ProX Carbon 29er Hardtail Frame Cheap Price Chinese Carbon Hardtail Frame

• Priced from USD279/set

• Carbon frame 29er hardtail for XC

• 12x148mm boost thru-axle

• Full internal cable routing

  • Item NO.:

    PXM909
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD black(or Customized Decal/Painting)
DESCRIPTION

ProX Carbon 29er Hardtail Frame PXM909 - Cheap Price Hardtail MTB Frame For XC

"Hardtail" is the name given to bikes that feature no rear suspension. Compared with rear suspension bike frame, the hardtail frame is lighter, simpler and less expensive.
Our 29er carbon hardtail frame PXM909 is currently available in three sizes (15'', 17'', 19'' ), and is compatible for 29 inch bicycle wheels with max tire clearance 29er*2.35''.
The default finish of carbon frame we make is UD matte or glossy. In addition, customized logo and color painting is acceptable. So you can get this bike frame as what you like!
What is in your parcel? It includes a frame, a seat clamp, a rear thru-axle, a headset(optional) and a spare rear derailleur hanger(optional).
If you are thinking about buying a hardtail XC bike frame, then scroll deeper.
This hardtail XC carbon frame is priced from USD279/set.

PXM909 carbon hardtail mtb frame cable routing

Full Internal Cable Routing

There is no doubt that full internal cable routing looks rather pretty. This carbon MTB bike 29er frame is with internal cable routing design. Perfect combination of professional geometry and full internal cable routing design. This design looks really nice and clean after whole bike assembled.

A-Rear derailleur cable routing
B-Dropper post remote routing
C-Rear brake control routing

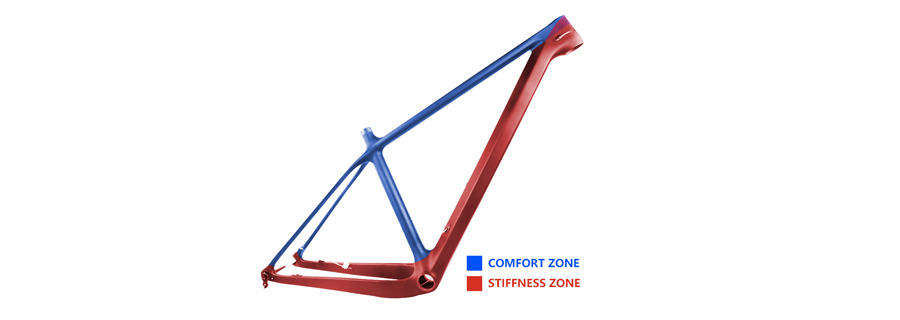

vibration damping tube shape of PXM909 hardtail carbon frame

Vibration Damping Tube Shape

The top tube and seat stay(comfort zone) are designed with relatively slim and flat tube shape, which helps to reduce vibration and result in better comfort.
The down tube and chain stay(stiffness zone) are designed with bigger and square tube shapes, which increase the stiffness and guarantee the strength of frame. Further, this superior rigidity of the frame ensures precise handling in the steeper terrain.
Such design is amazing combination of comfort and stiffness in this MTB hardtail carbon frame.

PXM909 carbon xc hardtail frame

More Versatile

We boosted tire clearance to allow wider tire up to 29er*2.35'', giving you more options of tires. Meanwhile, this hardtail MTB frame is designed for common 31.6mm(34.9 clamp) round shape seat post. The dropper seat post is also compatible for better technical control.

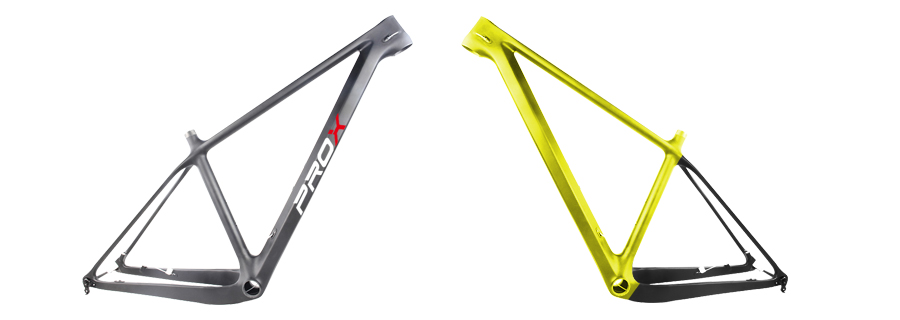

carbon frame hardtail with color painting and logo

Customized Color Painting/Logo

The customized color painting/logo is acceptable.
The painting cost of frames mainly consist of two parts: water decal cost + color paint and coating cost. The water decal is used for letters (brand mark, logo or other words), and color paint is used on larger area position on the frame.
It's your bike, it's special to you and which is what we also care about! Welcome to contact us for pricing and more details about customized color painting.

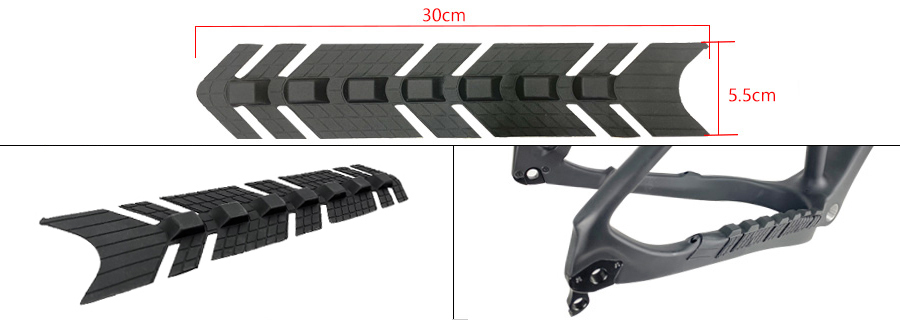

Chainstay Protector

Chainstay Protector

Chains hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chain and the bike. Being fast bike and quiet bike as well.
27g per chainstay protector sheet and it will come with your frame.

complete bikes built with PXM909 hardtail carbon frame

In addition to carbon XC frames, ProX also have various options of MTB bike wheels, building with DT Swiss hubs, as well as ProX own mould hubs.

If you also need, please see more details on another page of our MTB carbon wheels here or contact us for suggestion.

SPECIFICATION

ProX Cheap Price Hardtail Carbon Frame For Cross Country

 Frame:  PXM909 Hardtail MTB Frame 29er Mountain Bike Carbon Frame
 Material:  High modulus Toray T700  carbon fiber
 Size:  15'', 17'', 19'' (Small, Medium, Large)
 Headtube:  Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Fit headset standard FSA No.42ACB)
 Weight(+/-50g):

1220g-15''

1240g-17''

1270g-19''

 Seatpost Diameter:  31.6mm(34.9 clamp) round shape -Dropper post insert length(15''-140mm, 17''-190mm, 19''-200mm)
 Bottom Bracket:  Press Fit BB92
 Max Tire Clearance:  29er*2.35''
 Max Chainring:  34T
 Chainline:  52mm
 Brake Type:  Post Mount Disc brake, Rotor 160mm
 Front Derailleur:  Clamp on (or 1x single chainring)
 Fork Offset:  46mm offset fork, M15*110mm boost recommended
 Dropout:  12x148mm boost thru-axle
 Test Standard:  ISO4210
 Warranty:  2-year

TECHNOLOGY

Geometry

SIZE 15'' 17''

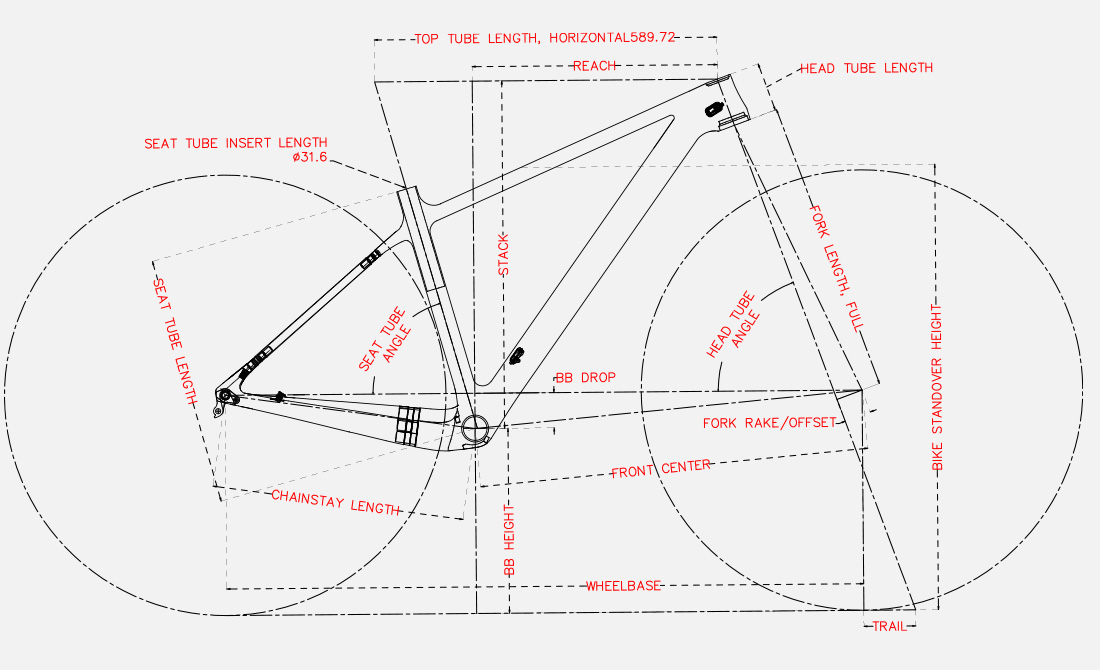

19'' Geometry of hardtail carbon frame PXM909
SEATPOST INSERT LENGTH 200mm 220mm 240mm
REACH 376mm 422mm 451mm
TOP TUBE LENGTH, HORIZONTAL 542mm 595mm 625mm
STACK 591.3mm 599.4mm 610.4mm
WHEELBASE 1048.6mm 1099mm 1129.5mm
CHAINSTAY LENGTH 435mm 435mm 435mm
FRONT CENTER 620.9mm 670.9mm 701.4mm
BB DROP 61mm 61mm 61mm
BB HEIGHT 316mm 316mm 316mm
SEAT TUBE ANGLE 74° 74° 74°
HEAD TUBE ANGLE 70° 70° 70°
SEAT TUBE LENGTH 380mm 431mm 483mm
HEAD TUBE LENGTH 90mm 90mm 95mm
BIKE STANDOVER HEIGH(29“*2.35”) 740mm 768.8mm 807mm
FORK RAKE/OFFSET 46mm 46mm 46mm
FORK LENGTH, FULL 506mm 506mm 506mm
TRAIL 89.5mm 89.5mm 89.5mm
