ProX Affordable Carbon Wheels 34DB Disc Brake Carbon Road Wheelset

• Priced from USD279/pair

• 4-pawl x 3-teeth freehub system

• 28mm and 25mm wide carbon rims optional

• Pillar 1423 spokes, aero and strong

• Compatible for 700*25C-45C tire (tubeless compatible)

  • Brand:

    PROX

  • Item NO.:

    34DB Clincher Wheels

  • Payment:

    Paypal, Bank Transfer

  • Origin:

    China

  • Color:

    UD/3K/12K(Customized Decal Acceptable)
Inquiry now
DESCRIPTION


ProX 34DB Disc Brake Carbon Road Wheels - Quick Engagement Hub With Affordable Price

As cyclists, it's safe to say we obsess about the carbon bike wheels including wheel's stiffness, weight and aerodynamic property etc. Sometimes we might ignore the hubs. Although the mechanical components are hidden in a hub shell, it's still the central to performance.


ProX 34DB disc brake carbon road wheel features

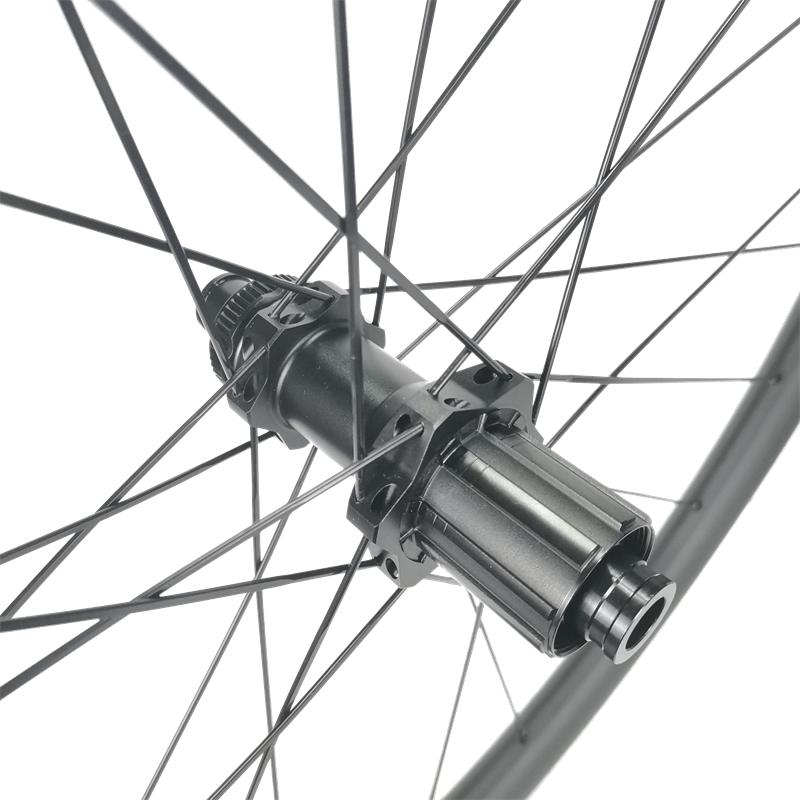

Looking for quick engagement, solid build and affordable road hub? The new ProX 34DB hub has all that. Good quality hubs are made by well selected hub manufacturer in Taiwan. It uses a 48-tooth drive ring at 4 degrees inside which is engaged by all four pawls at once. Each pawl has three teeth, giving a solid 12 points of contact to drive the hub forward. For the regular pawls freehub system, there are 3~6 pawls generally with 1 tooth only and won't provide much firmly supports while pedaling at very beginning. With the ProX 34DB hubs, the road and gravel bikers can feel the most efficient instantaneous driving performance from the riding feeling compared to other regular hubs.
In my opinion, this hub won’t be extremely metallic in the sound while freehub is rotating. It’s smooth sounds without loud noise. This is one of the features I love it besides its affordable price, lightweight (358g/pair) and compact hub shape. In addition, ProX 34DB hub can be made with your customized logo (either etch logo or make stickers). So it will become your own brand hubs!

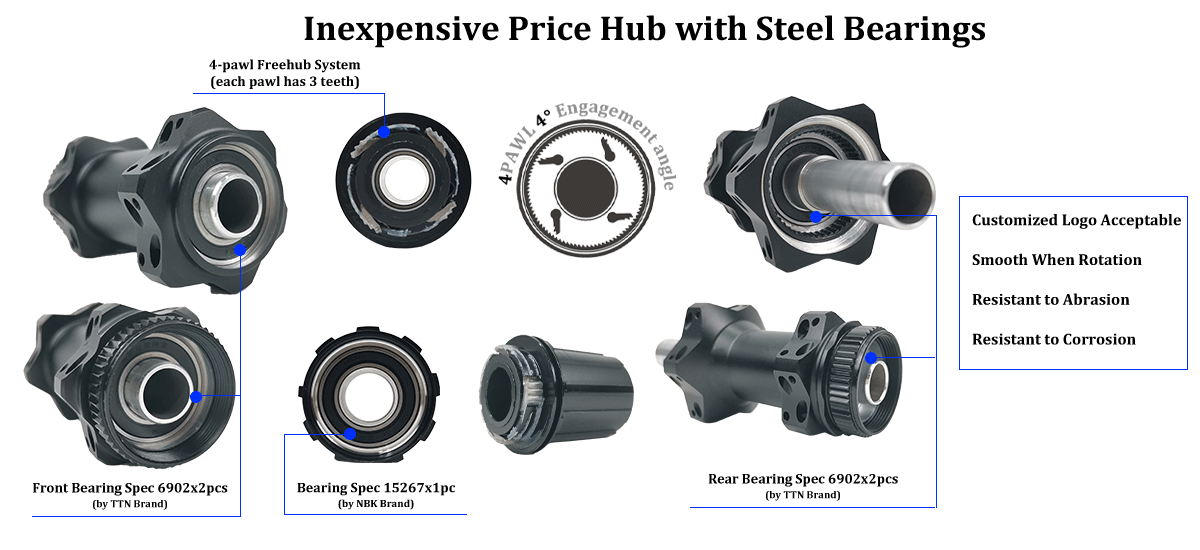

4-pawl x 3-teeth freehub structure inside 34DB hubs

ProX provides two width option for our 34DB disc brake carbon road wheels. That is, 28mm width carbon clincher rims, and 25mm width carbon rims clincher.

The 28mm width rim series (model PRD28) is with 28mm outer (21mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*28C. If you plan to use 28C (or wider) tire, PRD28 rim series is recommended.

The 25mm width rim series (model PRD25) is with 25mm outer (18mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*25C. If you plan to use 25C tire, PRD25 rim series is recommended.

SPECIFICATION

ProX Carbon 34DB Disc Brake Carbon Road Wheelset Specification:
-Hub:ProX 34DB disc hubs (front 12*100mm TA/rear 12*142mm TA)

-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or SRAM 12s XDR optional
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type:Clincher/tubeless compatible
-Spoke: Pillar 1423 spoke
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


ProX 34DB Road Disc Brake Carbon Wheelset Built With 28mm Width Carbon Rims

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
34DB-PRD28-22C-1423 PRD28-22C 22mm 28mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1454g
34DB-PRD28-33C-1423 PRD28-33C 33mm 28mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1494g
34DB-PRD28-38C-1423 PRD28-38C 38mm 28mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1514g
34DB-PRD28-44C-1423 PRD28-44C 44mm 28mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1554g
34DB-PRD28-50C-1423 PRD28-50C 50mm 28mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1614g
34DB-PRD28-55C-1423 PRD28-55C 55mm 28mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1654g


700C Road Disc Brake Carbon Clincher Rims PRD28 (28mm width)

Rims PRD28-22C PRD28-33C
 PRD28-38C
 PRD28-44C
 PRD28-50C
 PRD28-55C
Max Weight Limit 90kg/198lb
 105kg/230lb
 105kg/230lb
 110kg/240lb
 115kg/250lb
 115kg/250lb
Material T700+T800
 T700+T800
 T700+T800
 T700+T800
 T700+T800
 T700+T800
Sectional Drawing rim drawing 22mm deep road rim
 rim drawing 33mm deep road rim
 rim drawing 38mm deep road rim
 rim drawing 44mm deep road rim
 rim drawing 50mm deep road rim
 carbon disc rim 55mm


ProX 34DB Road Disc Brake Carbon Wheelset Built With 25mm Width Carbon Rims

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
34DB-PRD25-38C-1423 PRD25-38C 38mm 25mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1474g
34DB-PRD25-45C-1423 PRD25-45C 45mm 25mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1534g
34DB-PRD25-50C-1423 PRD25-50C 50mm 25mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1594g
34DB-PRD25-60C-1423 PRD25-60C 60mm 25mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 1734g
34DB-PRD25-80C-1423 PRD25-80C 80mm 25mm Tubeless or Clincher ProX 34DB Disc 12*100mm 12*142mm Pillar 1423 700*25C-45C 2014g


700C Road Disc Brake Carbon Clincher Rims PRD25 (25mm width)

Rims PRD25-30C PRD25-38C PRD25-45C PRD25-50C PRD25-60C PRD25-80C
Max Weight Limit 100kg/220lb 110kg/240lb 110kg/240lb 115kg/250lb 115kg/250lb 120kg/265lb
Material T700 T700 T700 T700 T700 T700
Sectional Drawing carbon disc brake road rim 30mm height carbon disc brake road rim 38mm height carbon disc brake road rim 45mm height carbon disc brake road rim 50mm height carbon disc brake road rim 60mm height carbon disc brake road rim 80mm height

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon road bike rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Wide Inner Width

Wide Inner Width

Relatively 18mm/21mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

Aero U Shape

Aero U Shape

Wide U Shape road bike carbon rims are more aerodynamic than traditional V Shape carbon road rims.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Road Disc Brake

Road disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our bicycle carbon wheels are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

ProX Road Hubs

ProX Road Hubs

ProX own mould 34DB road hubs are used. High quality hubs with cheap price.

34DB road disc brake hubs are designed with 6-pawl freehub system. With regular steel bearings and ceramic bearings optional.

Such hubs can also be etched with your customized logo.

12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.

Pillar Spokes

Pillar Spokes

The popular Pillar PSR AERO 1423 spokes are used.

Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.

Perfect aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
