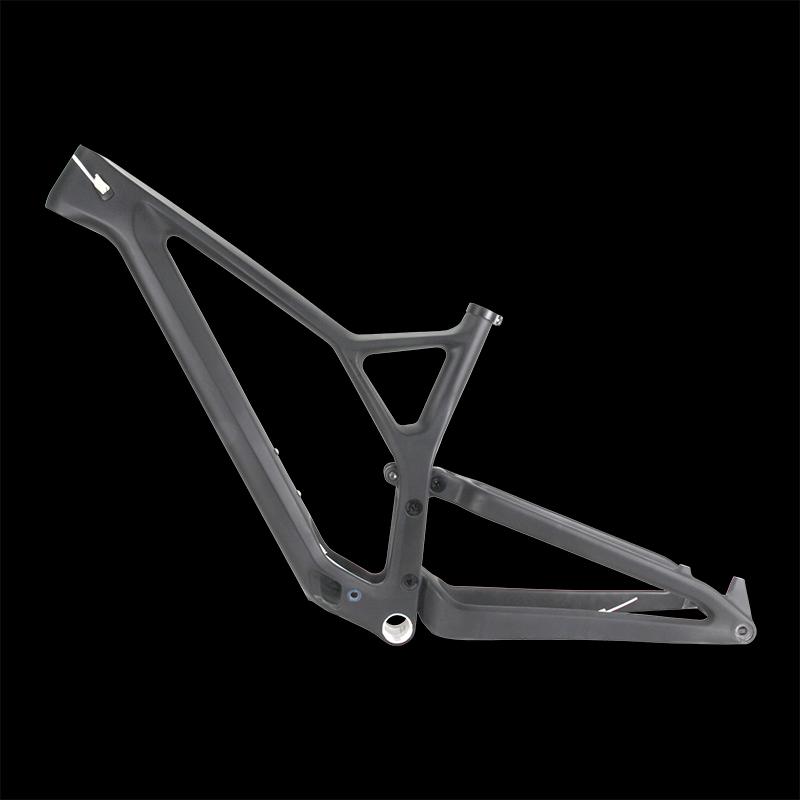

• Trail 29er/650b plus full suspension carbon frame
• Fit 165*45mm trunnion mount rear shock
• Max 130mm rear travel
• 12*148mm Boost thru axle
Item NO.:
PXFS958Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD black(or Customized Decal/Painting)ProX MTB Trail Frame Carbon Full Suspension MTB Frame For Trail Bike
A good trail bike frame is designed to combine both uphill and downhill performance. It usually sits somewhere between 130mm and 150mm on front and rear travel, and can tackle everything from rock gardens to steep terrain. As trail MTB biking fills the expansive middle zone between enduro and cross country, Undoubtedly, it becomes the most popular riding style.
Our trail mountain bike carbon frame PXFS958 is currently available in three sizes (17.5'', 19'', 20.5''), and is compatible for both 27.5 inch and 29 inch bike wheels.
The default finish of carbon frame we make is UD matte or glossy. In addition, customized logo and color painting is acceptable. So you can get this bike frame as what you like!
What is in your parcel? It includes frame, seat clamp, rear thru-axle, headset(optional) and spare rear derailleur(optional).
Looking for do-everything mountain bike trail frame? Below is your answer.
Rear Shock Size

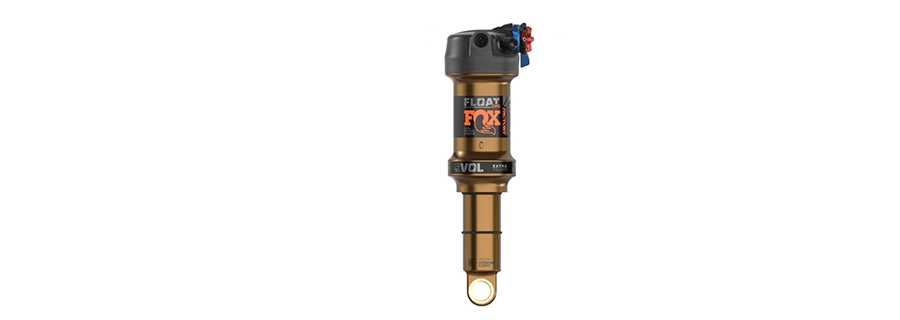

PXFS958 trail bike frame is designed to fit 165*45mm trunnion mount rear shock.
Due to the installation position of rear shock on the frame, there is no adequate space to accept all rear shock with piggy back design.
Large Space for Shock Valve
When using air shocks, the first step is to pump air into the air valve.

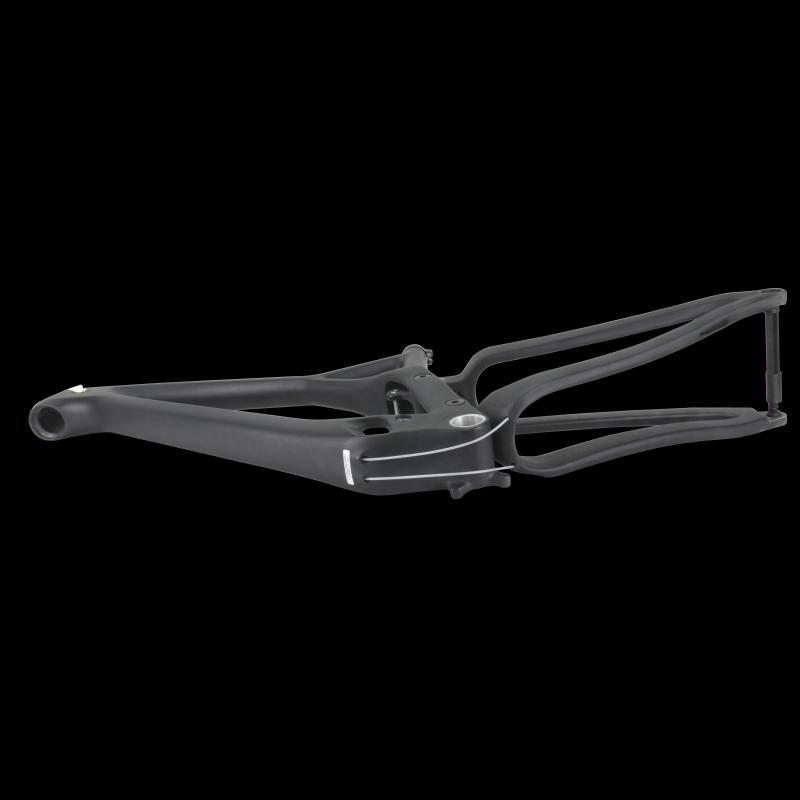

Linkage-driven Single Pivot Suspension System
Such single pivot suspension system uses an uninterrupted swingarm which connects rear axle directly to the main body of frame. There is no pivot on swingarm, so there is no pivot loosen or noise issue, and the maintenance is simpler. In addition, the stiffness, stability and controllability are greatly improved.

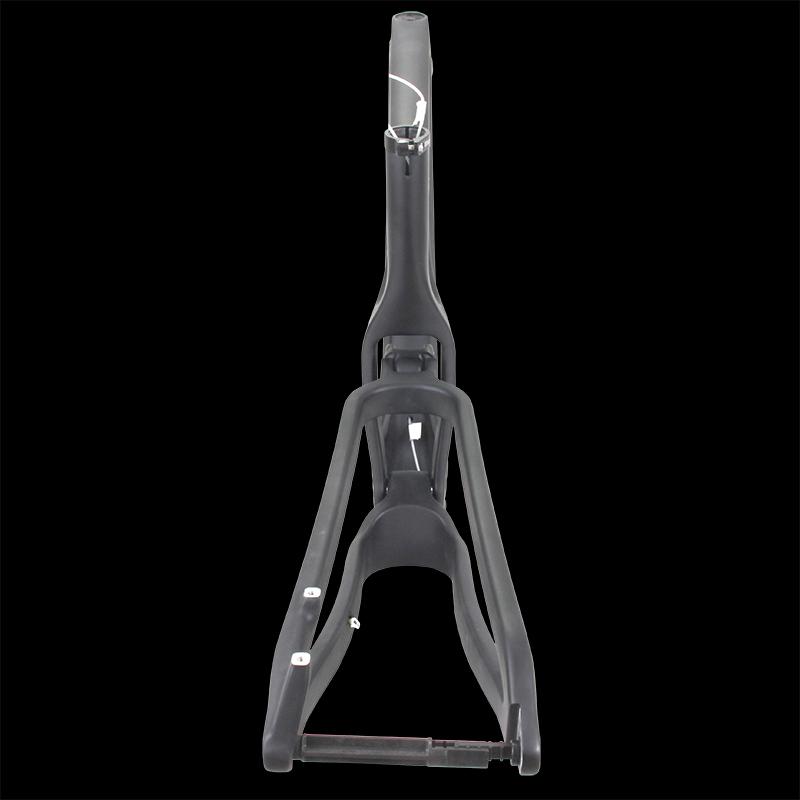

Full Internal Cable Routing Design

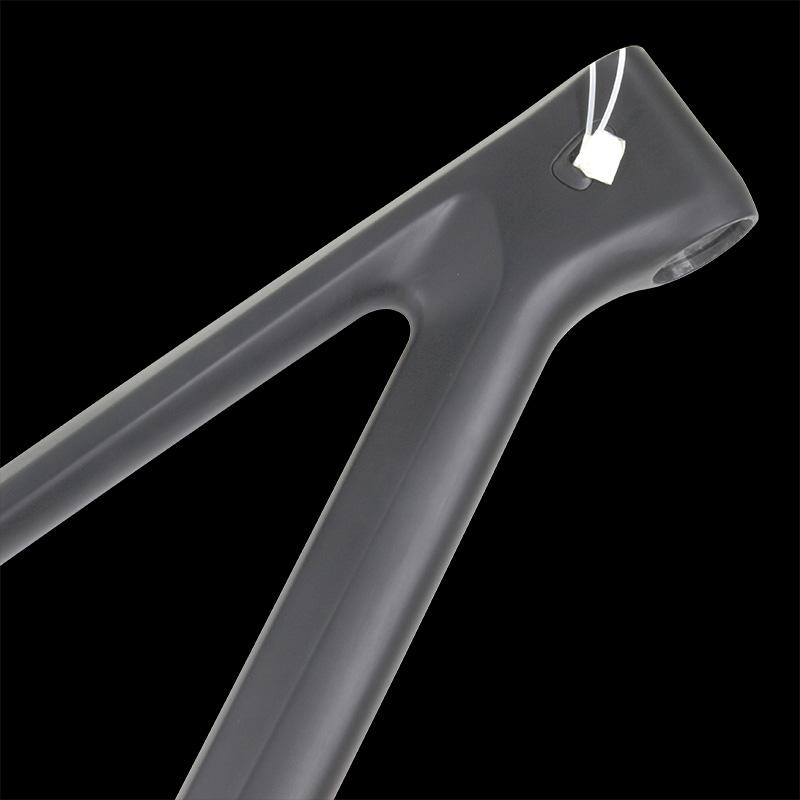

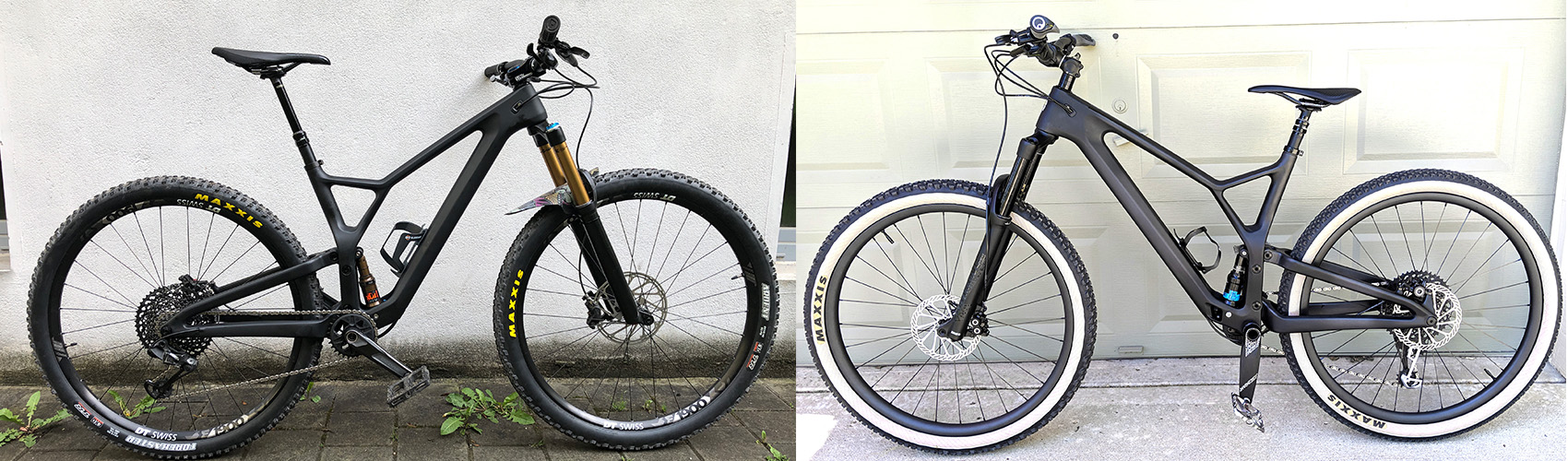

There is no doubt that full internal cable routing looks rather pretty. This full suspension 29er carbon frame is with internal cable routing design. Perfect combination of professional geometry and full internal cable routing design. This design looks really nice and clean after whole bike assembled.

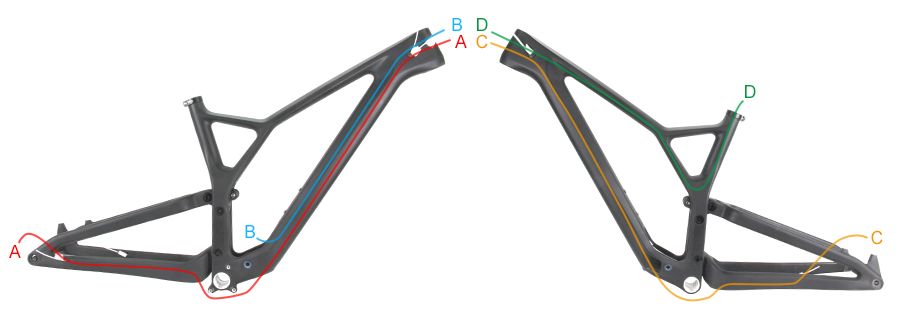

A-Rear derailleur cable routing

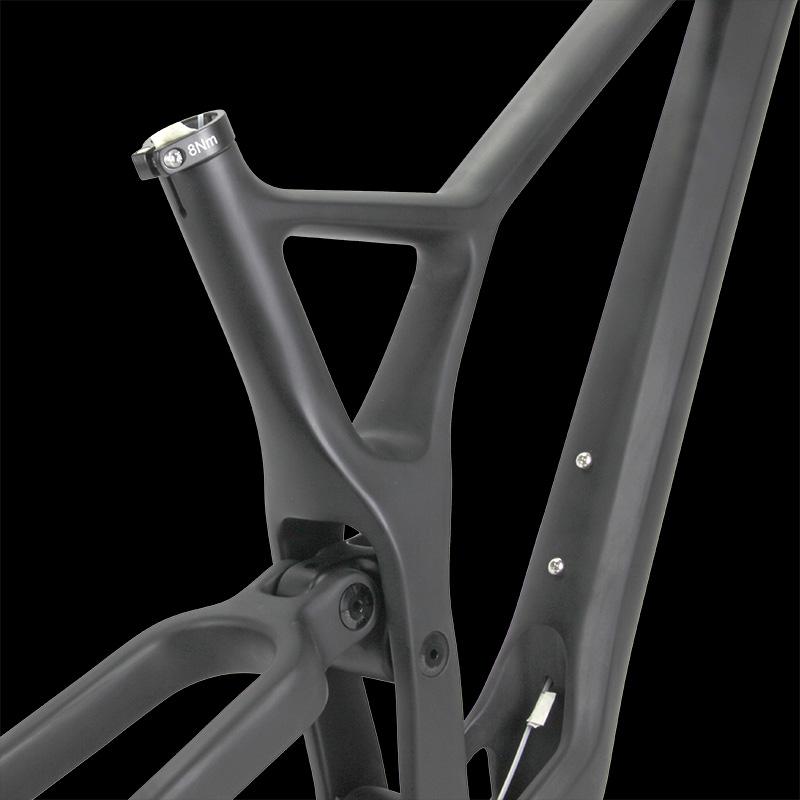

Hidden Linkage Design

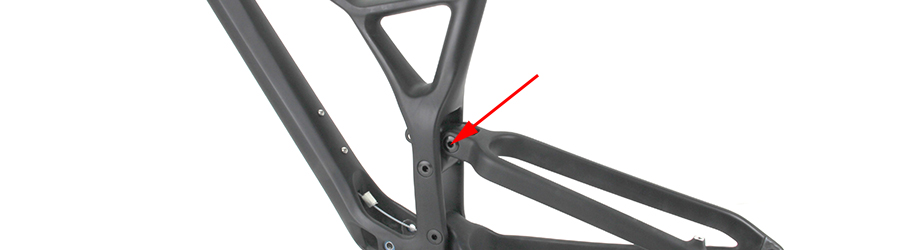

Now, the linkage hides behind the seat tube of the front triangle.

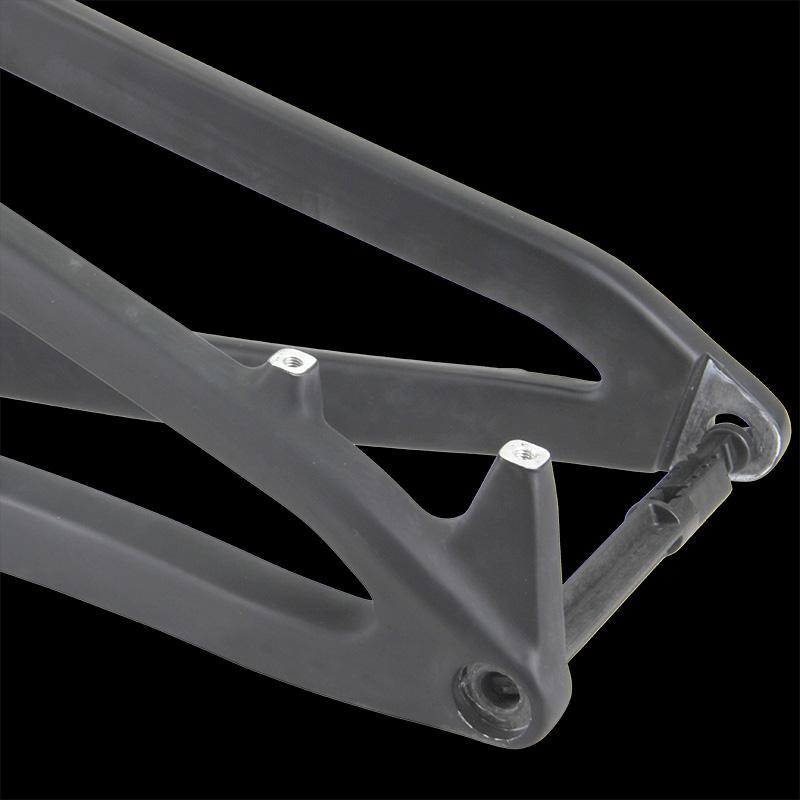

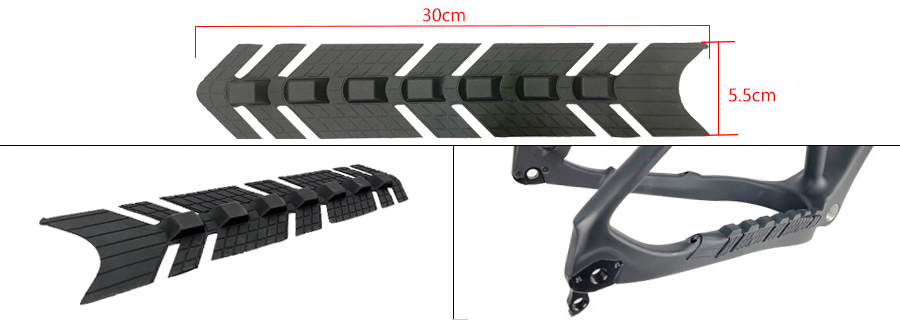

Chainstay Protector
Chains hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chain and the bike. Being fast bike and quiet bike as well.

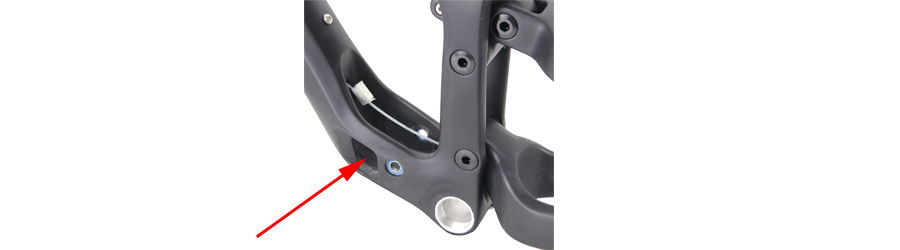

PXFS958 mtb trail frame is designed with a big hole to provide adequate space for shock valve, which makes assembly and pumping easier.
Enduro MAX Bearings

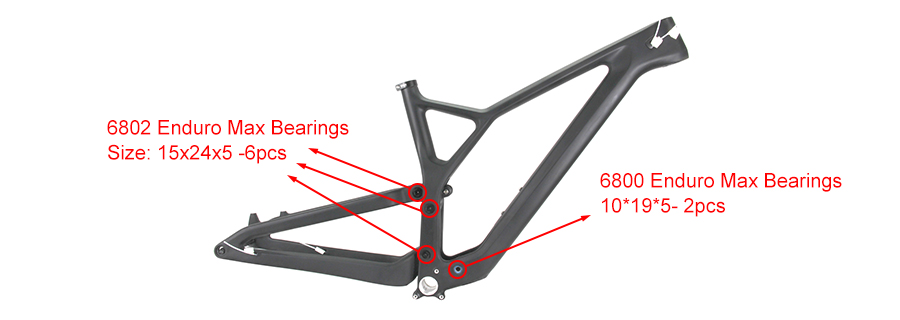

For this carbon trail bike frame PXFS958, high quality Enduro bearings are used to optimize the suspension system performance. Enduro Bearings MAX series are with almost 20 years history and help mountain bike pivots for challenges. It's advertised these bearings have 35-40% more load capacity than standard radial bearings. High end bearings endow our mtb carbon frames better performance and durability.
B-Rear shock remote routing
C-Rear brake control routing
D-Dropper post remote routing
Not only make the frame more compact and beautiful, but also protects it from dirt, water and crashes to ensure its functions at the best.
27g per chainstay protector sheet and it will come with your frame.
If you are also interested in the carbon bike wheels, please click the MTB wheels here or contact us for more details.

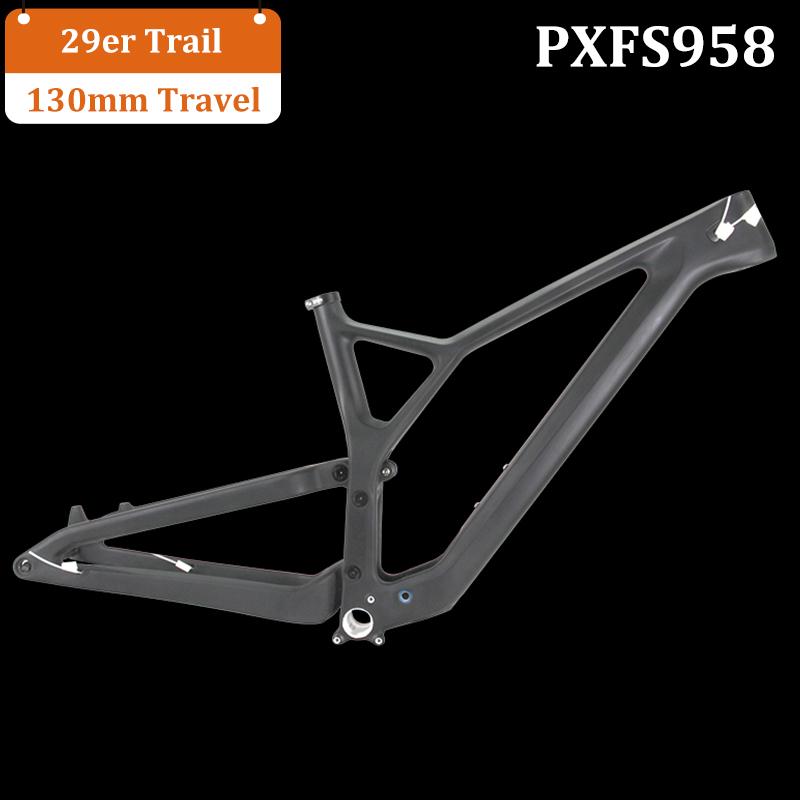

ProX Carbon Full Suspension Trail Mountain Bike Frame PXFS958
Frame:
Full suspension carbon trail bike frame
Material:
High modulus Toray T700 carbon fiber
Size:
17.5'', 19'', 20.5'' (Medium, Large, Xlarge)
Front Travel:
130-150mm
Rear Travel:
130mm
Headtube:
Tapered 1 1/8 "- 1 1/2"head tube, upper 42mm lower 52mm (Headset standard FSA No.42ACB)
Weight(+/-50g):
2400g/17.5''
Seatpost Diameter:
31.6mm(37mm clamp). Dropper post insert length: 17.5''=170mm, 19''=200mm
Bottom Bracket:
BSA -73mm (compatible with ISCG-05 chain guide)
Max Tire Clearance:
29er*2.4'' and 27.5*2.8''
Max Compatible Chainring:
34T
Chainline:
52mm
Rotor:
180mm post mount
Fork Derailleur:
Single chainring 1x drivetrain system
Fork Offset:
51mm offset fork, M15*110mm boost recommended
Rear Shock:
165*45mm trunnion mount (bushing size: upper 30*φ8mm, bottom 54*φ10mm)
Dropout:
12*148mm boost thru axle

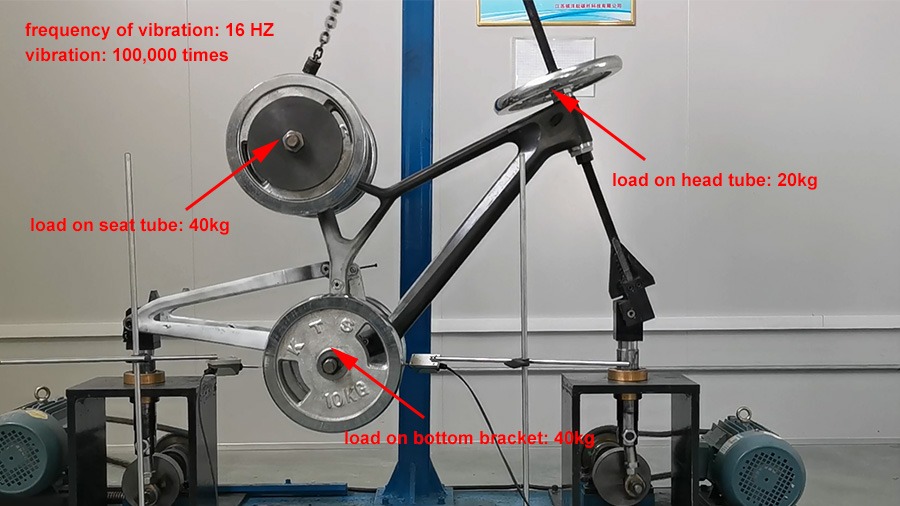

Test Standard:
ISO4210
Warranty:
2-year
Geometry
SIZE
17.5''
19''
20.5''
BODY HEIGHT (Reference)
165 - 175cm
176 - 185cm
186 - 194cm
SEATPOST INSERT LENGTH
170mm
200mm
230mm
REACH
440mm
470mm
500mm
TOP TUBE LENGTH, HORIZONTAL
590mm
623mm
658mm
STACK
602mm
620mm
629mm
WHEELBASE
1178mm
1214mm
1250mm
CHAINSTAY LENGTH
444.5mm
444.5mm
444.5mm
FRONT CENTER
736mm
772mm
807mm
BB DROP
36mm
36mm
36mm
BB HEIGHT
339mm
339mm
339mm
SEAT TUBE ANGLE
76°
76°
76°
HEAD TUBE ANGLE
67°
67°
67°
SEAT TUBE LENGTH
440mm
480mm
520mm
HEAD TUBE LENGTH
95mm
110mm
125mm
BIKE STANDOVER HEIGH(29“*2.35”)
731.4mm
732.8mm
735.9mm
FORK RAKE/OFFSET
51mm
51mm
51mm
FORK LENGTH, FULL
541mm
541mm
541mm
TRAIL
104mm
104mm
104mm

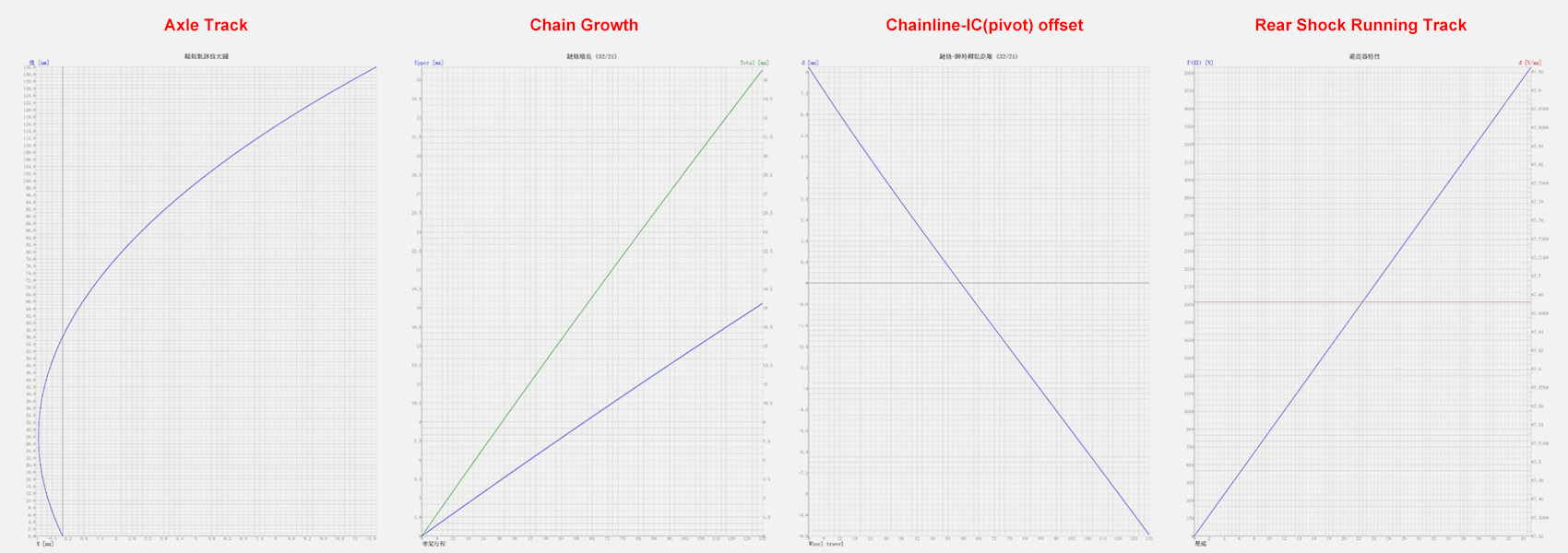

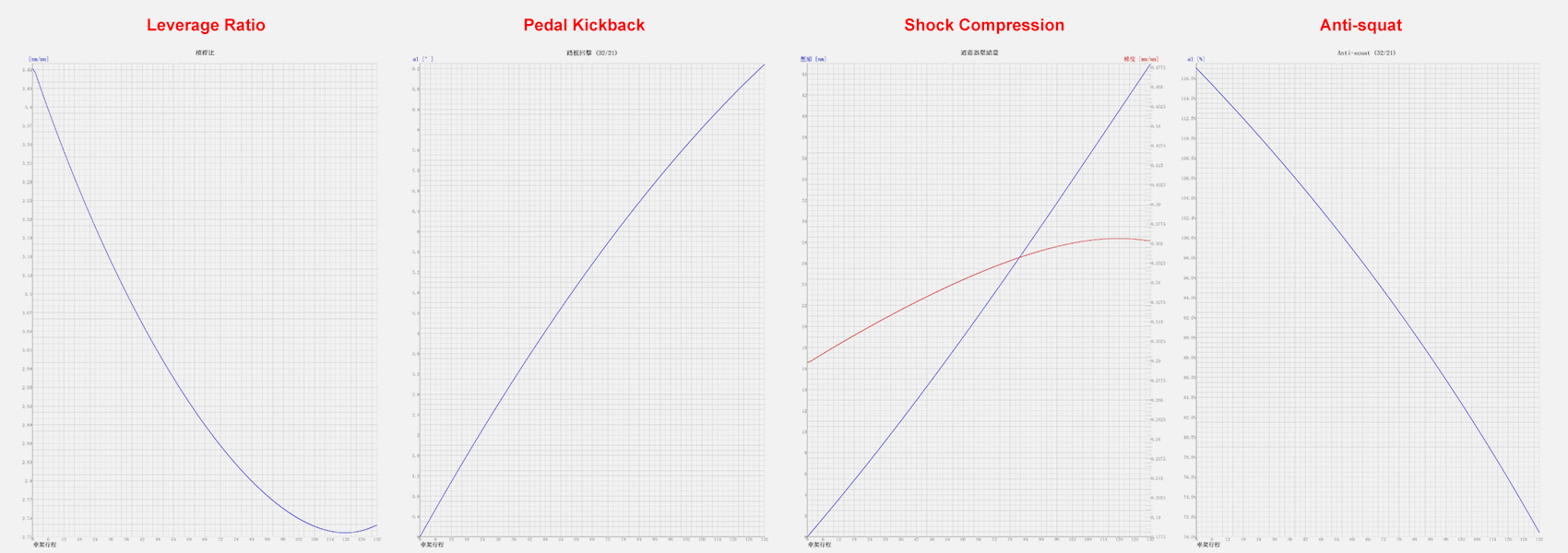

Suspension System Simulation Data
|
|
If you'd like high resolution pictures of suspension data, welcome to contact us.

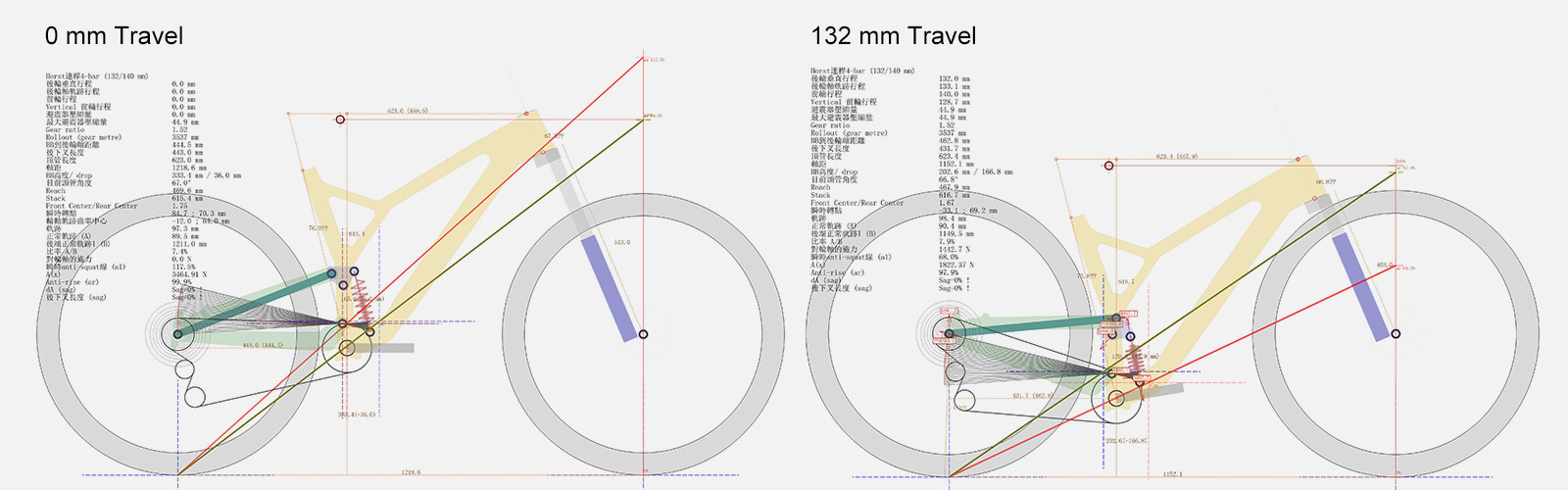

PXFS958 Frame Suspension Simulation From 0~132mm Travel
|
