DT 350DB Gravel Carbon Wheels

/ProX Carbon Gravel Wheelset DT350 Gravel Bike Wheels 700C Tubeless Ready

carbon gravel wheelset
carbon gravel wheelset carbon gravel wheelset carbon gravel wheelset carbon gravel wheelset carbon gravel wheelset carbon gravel wheelset carbon gravel wheelset carbon gravel wheelset

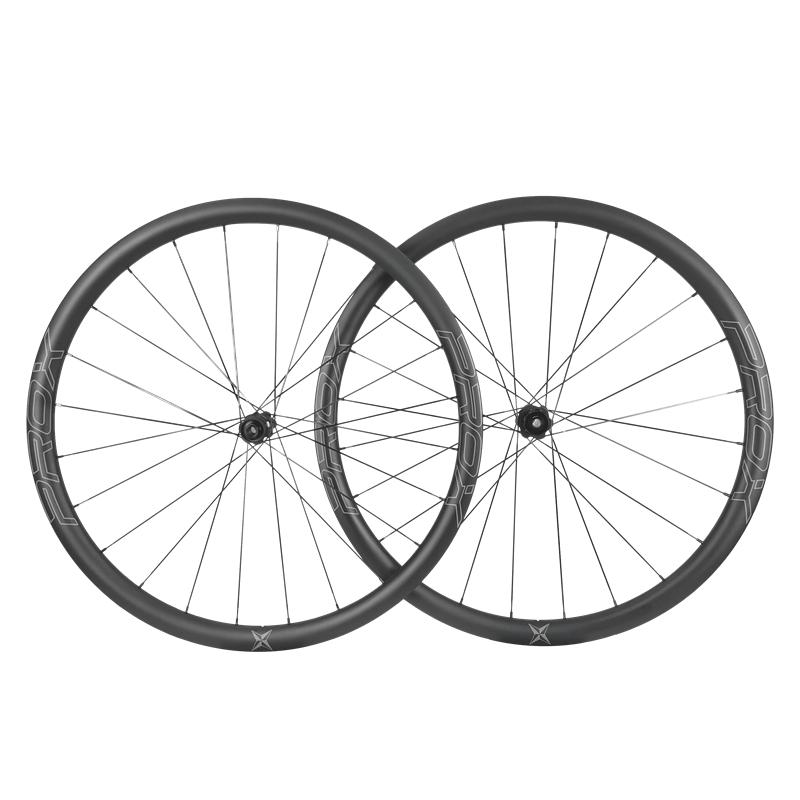

ProX Carbon Gravel Wheelset DT350 Gravel Bike Wheels 700C Tubeless Ready

• 28/33/44mm depth gravel carbon rims optional

• High cost performance DT Swiss 350s disc hubs

• Shimano/Sram 11-12 speed freehub available

• Pillar 1423 spokes, aero and strong

• Compatible for 700*30C-50C tire (tubeless ready)

  • Item NO.:

    350DB Gravel wheels

  • Payment:

    Paypal, Bank Transfer

  • Origin:

    China

  • Color:

    UD/3K/12K(Customized Decal Acceptable)
Inquiry now
DESCRIPTION

ProX DT350 Carbon Gravel Wheels - Mid-to-high End Gravel Bike Wheelset For Racing

DT Swiss 350s road hubs are developed to be reliable and simplified. The reliability is achieved by the simultaneous engagement of the ratchets which result in larger contact area.

The simplified end-caps design makes it possible for tool-free disassembly and easy maintenance. The cost of DT350 hubs are much lower than DT240 and DT180 hubs.

Carbon gravel wheels built with DT350 hubs are of great performance and affordable price for racing.

gravel wheelset 700c disc

latest dt swiss disc 350s gravel hubs

ProX provides 28/33/44mm depth gravel carbon rims to build carbon gravel wheelset. 33mm and 44mm gravel rims are with bead hook and hookless versions optional.

According to our sales record, PCX33 (33mm height bead hook) gravel carbon rim is most popular with our customers.

SPECIFICATION

ProX DT350 Gravel/Cyclocross Carbon Wheelset Specification
-Hub:DT Swiss 350s disc (front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or Sram 12s XDR optional

-Freehub System: Ratchet System 36
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type:Clincher/tubeless ready
-Spoke: Pillar 1423 spoke
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


DT350 Disc Brake CX/Gravel Carbon Wheelset (Tubeless Ready)

Model Rim Rim Bead Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
350DB-PCX28-1423 PCX28 Hook 28mm 29mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*30C-50C 1459g
350DB-PCX33-1423 PCX33 Hook 33mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*30C-50C 1499g
350DB-PZX33-1423 PZX33 Hookless 33mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*30C-50C 1499g
350DB-PCX44-1423 PCX44 Hook 44mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*30C-50C 1559g
350DB-PZX44-1423 PZX44 Hookless 44mm 28mm Tubeless or Clincher DT350 Road disc 12*100mm 12*142mm Pillar 1423 700*30C-50C 1559g


700C CX/Gravel Bike Carbon Rims (Tubeless Ready)

Rims PCX28 PCX33 PZX33 PCX44 PZX44
Max Weight Limit 110kg/240lb 120kg/265lb 120kg/265lb 120kg/265lb 120kg/265lb
Material T700+T800 T700+T800 T700+T800 T700+T800 T700+T800
Sectional Drawing CX sectional drawing gravel 29mm wide CX sectional drawing gravel 28mm wide CX sectional drawing gravel 28mm CX sectional drawing gravel 28mm hook CX sectional drawing gravel 28mm hookless

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon fiber gravel rims.

Wider Inner Width

Wider Inner Width

Wider 21mm inner width, suitable for wide 700x30C-50C gravel tires.

Wider stance for tire, easy tire mounting and dismounting.

Better traction and cornering performance.

Aero U Shape

Aero U Shape

Wide U Shape carbon bike rims are more aerodynamic than traditional V Shape carbon rims.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless Ready

Tubeless tire is widely used in gravel bike wheelset thanks to its better traction, lower rolling resistance and better performance in off-road.

All our gravel bike rims (no matter bead hook or hookless models) are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Disc Brake

Disc Brake

Disc brake provides more sensitive and precise braking performance than rim brake.

All our gravel carbon rims are designed for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our carbon wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

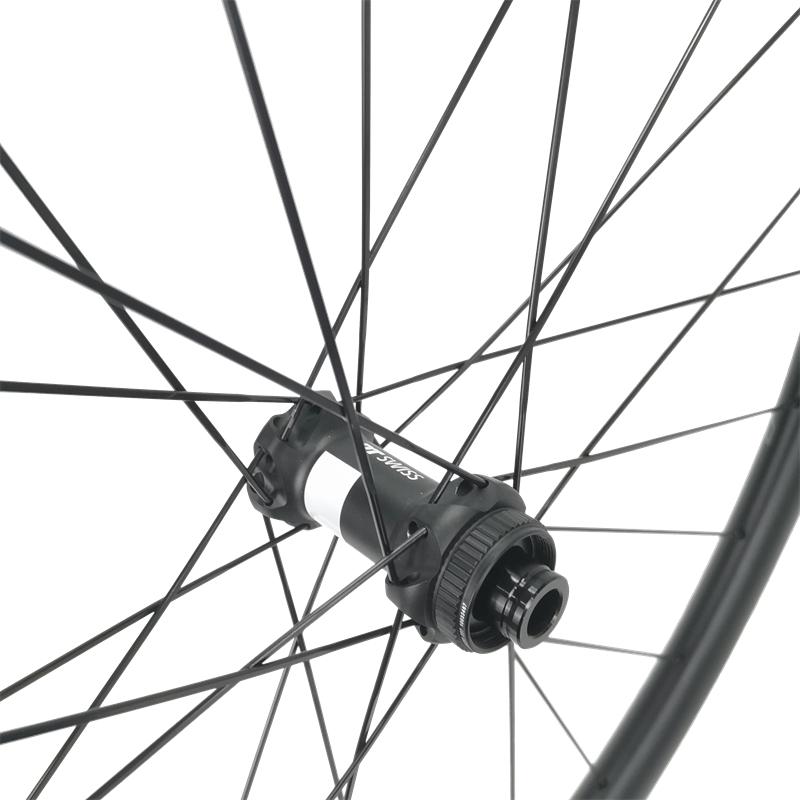

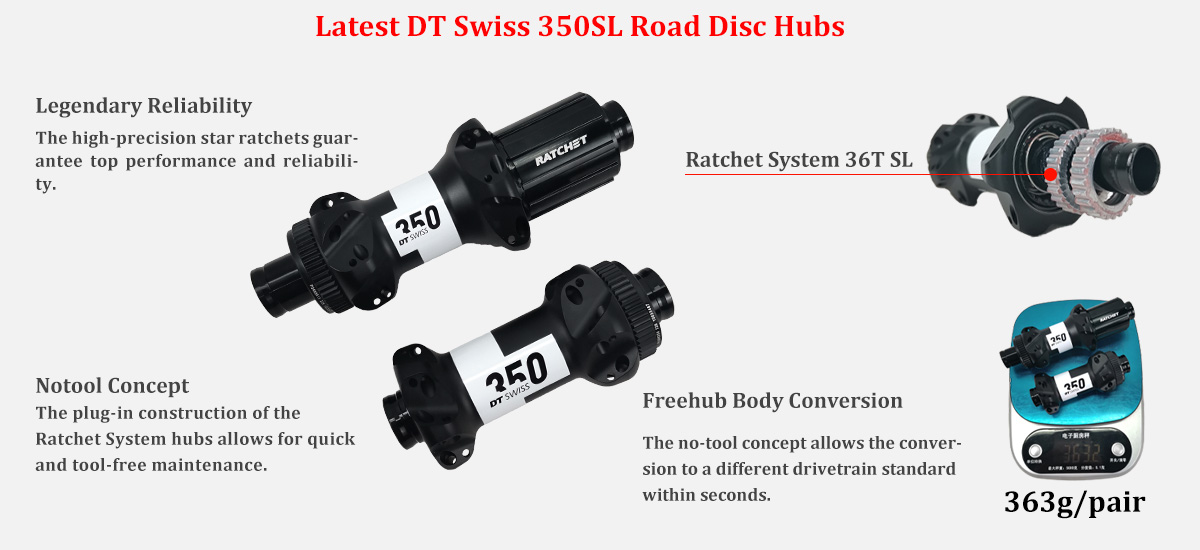

DT350 Disc Brake Hubs

DT350 Road Hubs

DT Swiss 350 road disc brake hubs are used. DT Swiss gravel wheels with great performance and competitive price.

DT Swiss Ratchet System, reliable and stable. Straight pull spoke system, direct power transmission.

12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.

Pillar Spokes

Pillar Spokes

The popular Pillar PSR AERO 1423 spokes are used.

Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.

Perfect aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.

VIDEO
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
gravel bike carbon frame

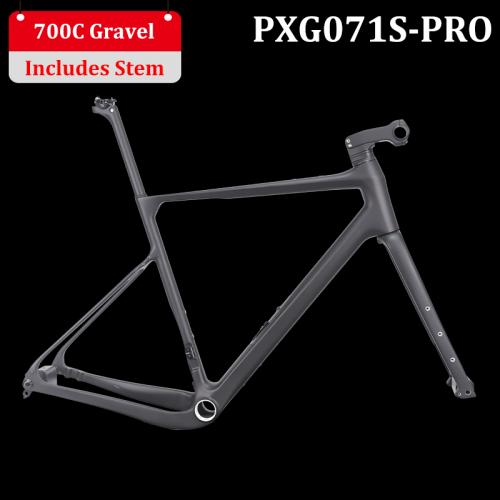

ProX Carbon Gravel Bike Frame With Micro Suspension System Plus Stem
