Braking Test for ProX Road Carbon Rims

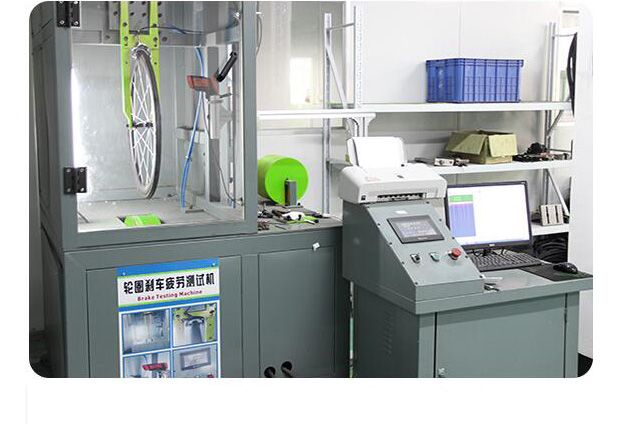

Braking Temperature Test
Good braking performance will give you greatly confidence to come off the brakes and handle the speed through the corner. On the other hand, Poor braking will distract your attention from riding and even lose control over bike. This is the most important test for rim brake wheels. By this test, you could know well how the wheel is heat-resistant. In the testing, the braking temperature is as high as 245 centigrade!

  • Test condition: Inflate tire to air pressure 120psi, load 100kgf, brake force 15kg, braking for 80 seconds, release for 10 seconds, speed keep in 12.5km/h. Braking test 10 times as one cycles, running two cycles finish the test. Total braking time is 1600 seconds.
  • Test Standard: Rims are the same as original and deformation ≤0.3mm.
  • Test Result: After two cycles, rim without damage, and deformation ≤0.3mm


Braking Distance Test
For a good rim brake wheel, it should be high-temperature resistant, having good braking performance with less noise and shorter braking distance no matter in dry or wet conditions. This test reflects how the brake track and brake pads perform together.

  • Test condition: Inflate tire to air pressure 120psi, load 100kgf, brake lever force 18kg, speed 25km/h, single cycle keep braking until stop, test 25times.
  • Test Standard: Braking distance ≤12m.
  • Test Result: Test according to the test condition, average braking distance 10m.
