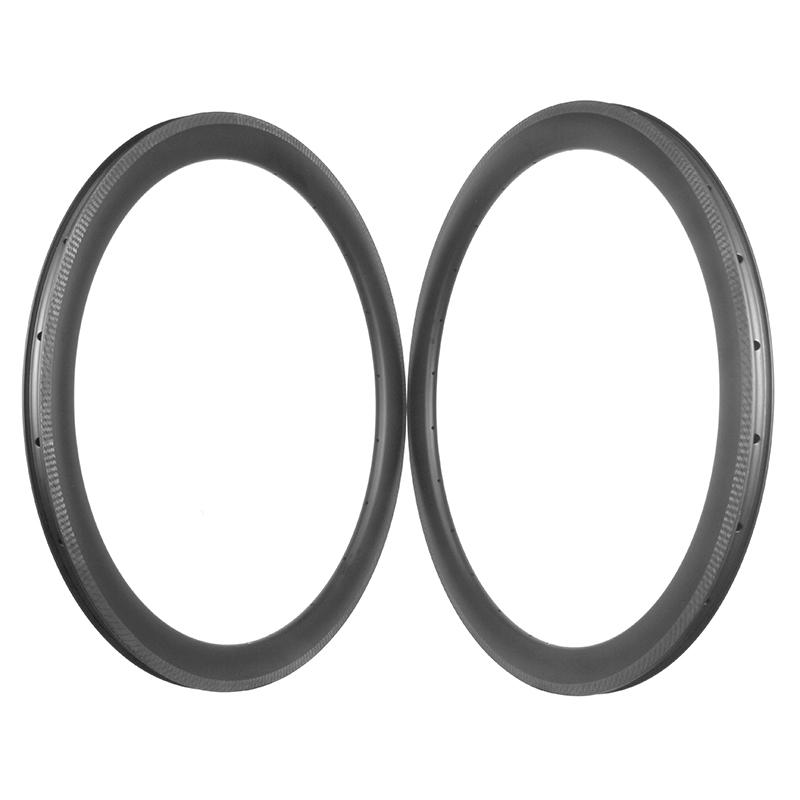

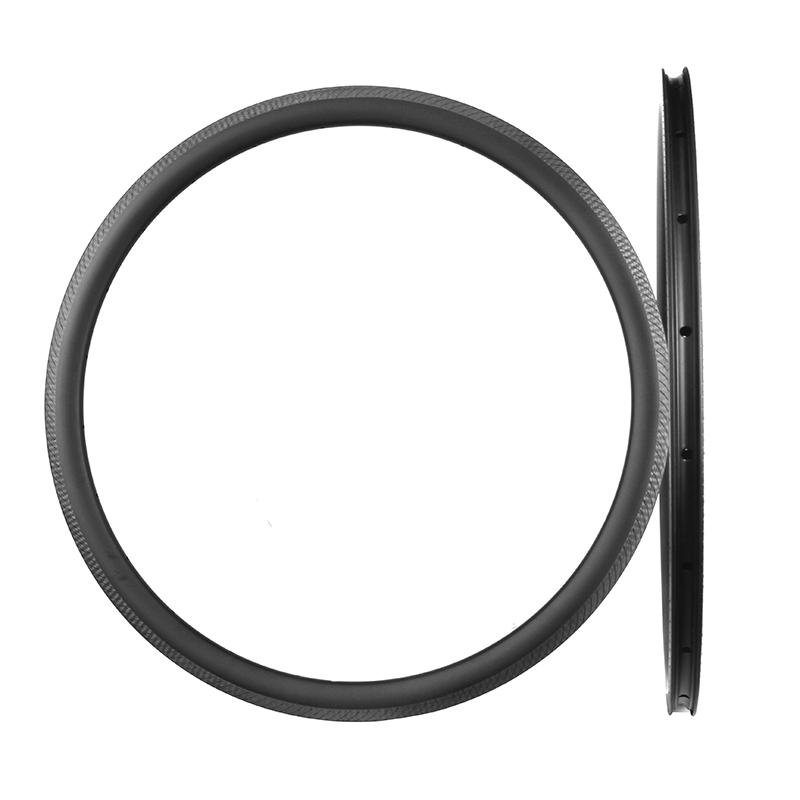

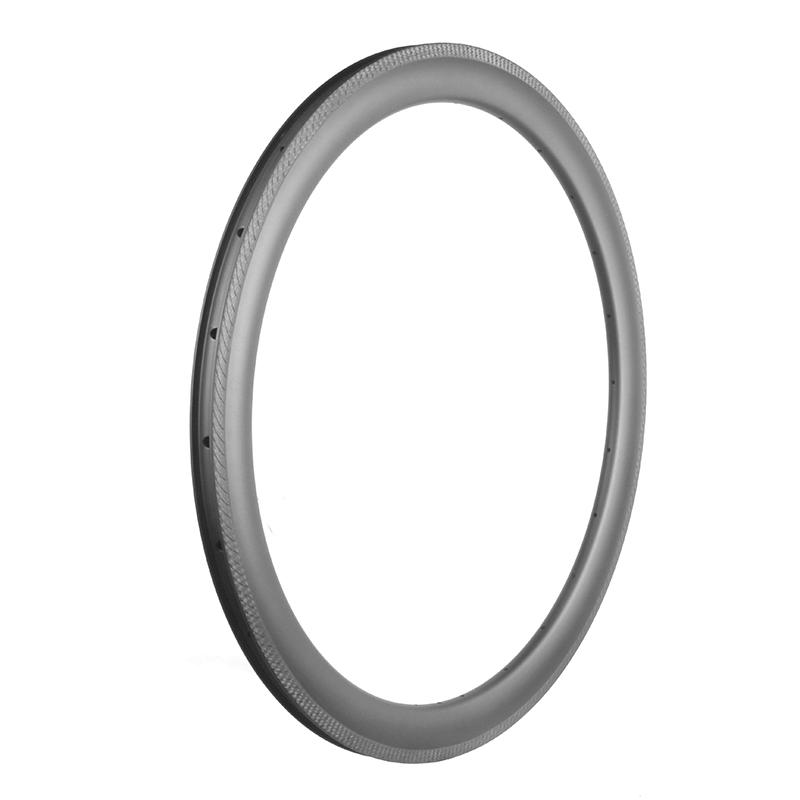

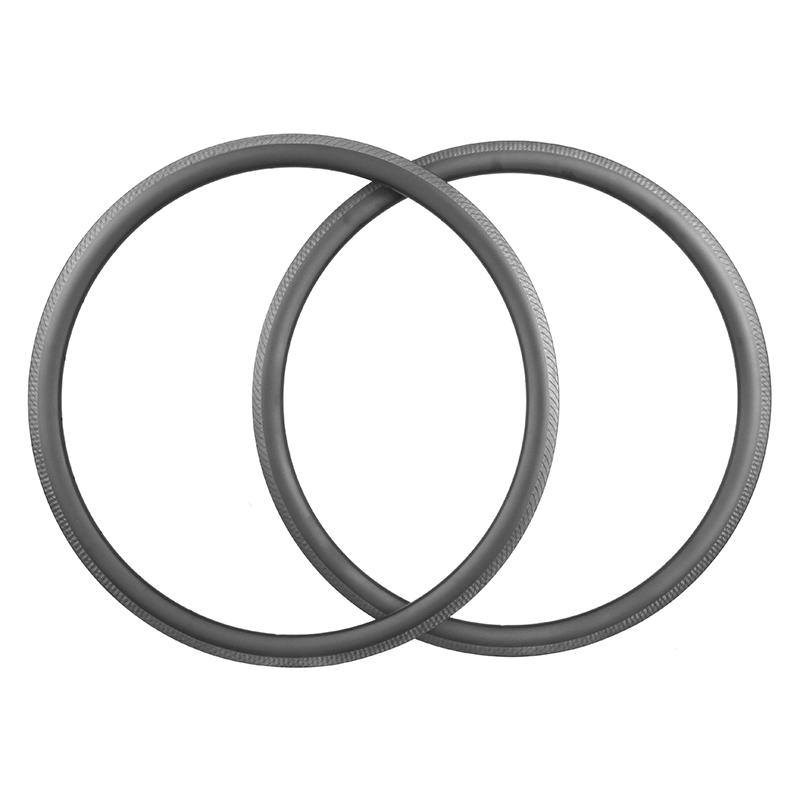

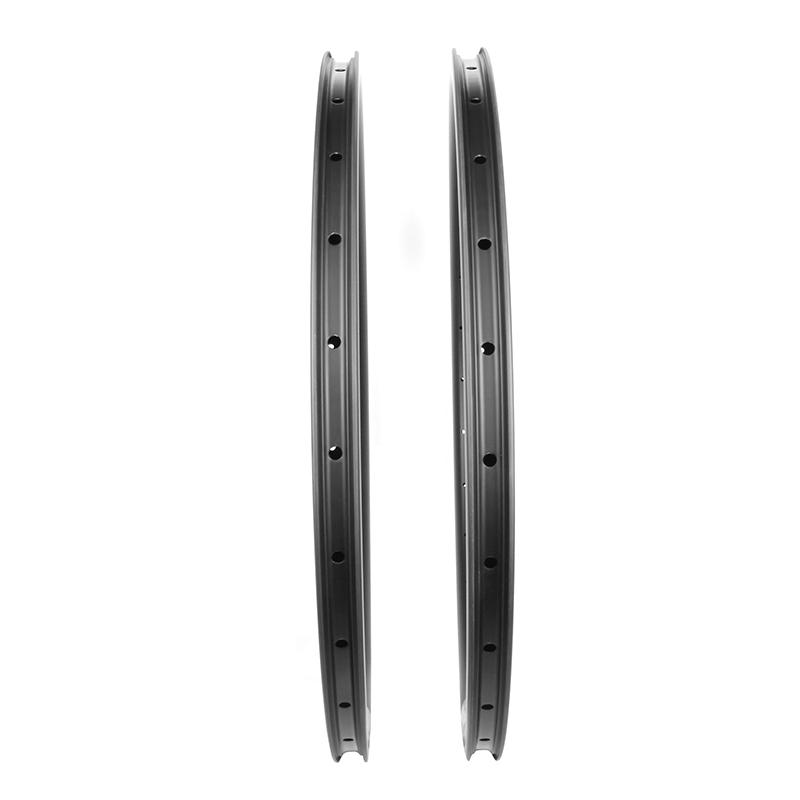

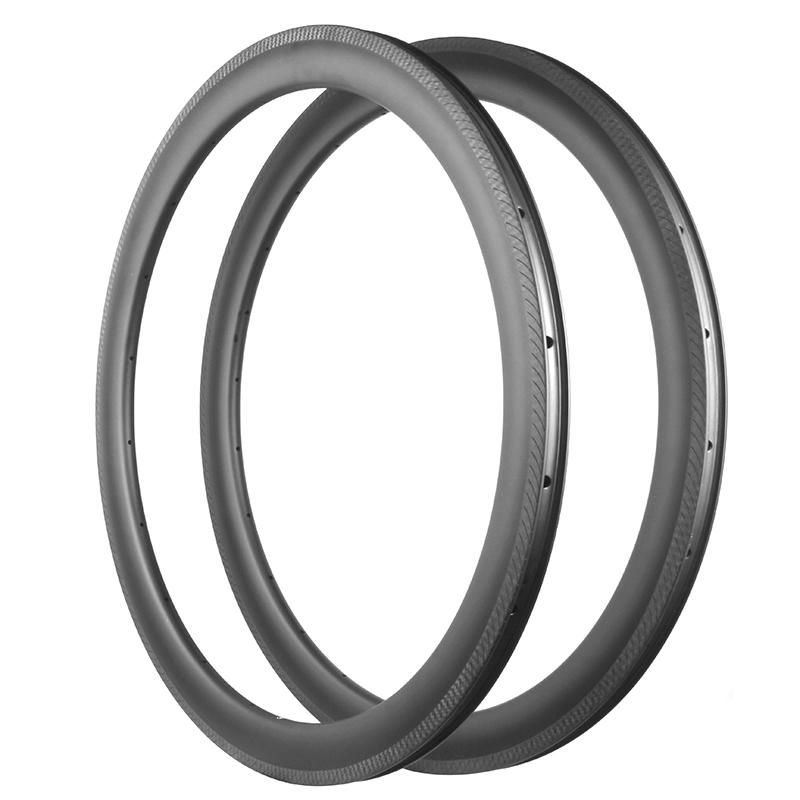

ProX 28mm Wide Rim Brake Carbon Clincher Rims Symmetric 700C Carbon Road Bike Rims

• Road rim-brake carbon rims, 28mm width

• Carbon clincher rims (tubeless ready)

• 33/38/44/50/55mm depth optional

• With high TG 3K grooved brake surface

• High quality, 2-year warranty

  • Item NO.:

    PRV28-C
  • Payment:

    Paypal, Bank Transfer, West Union
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

PRV28-C (ProX Road Rim-brake 28mm width clincher) carbon rims are equipped with high TG resin brake surface (with small grooves on the surface).

Such high TG 3K grooved brake surface is able to bear higher temperature while braking, and the heat can be eliminated sooner, which makes our carbon rims more durable.

- Small grooves provide more friction, less lever force is needed, and the braking distance can be shorten for about 30%.

- Small grooves make water clearance easier, improve the performance in wet condition.

- Reduce noise, avoid squeal during braking.

Such upgraded brake surface greatly improves the service life of our rim-brake carbon rims. We offer 2 years' quality warranty for all our carbon bike rims.

(In fact, most riders have been used our carbon rims much longer than 2 years.)

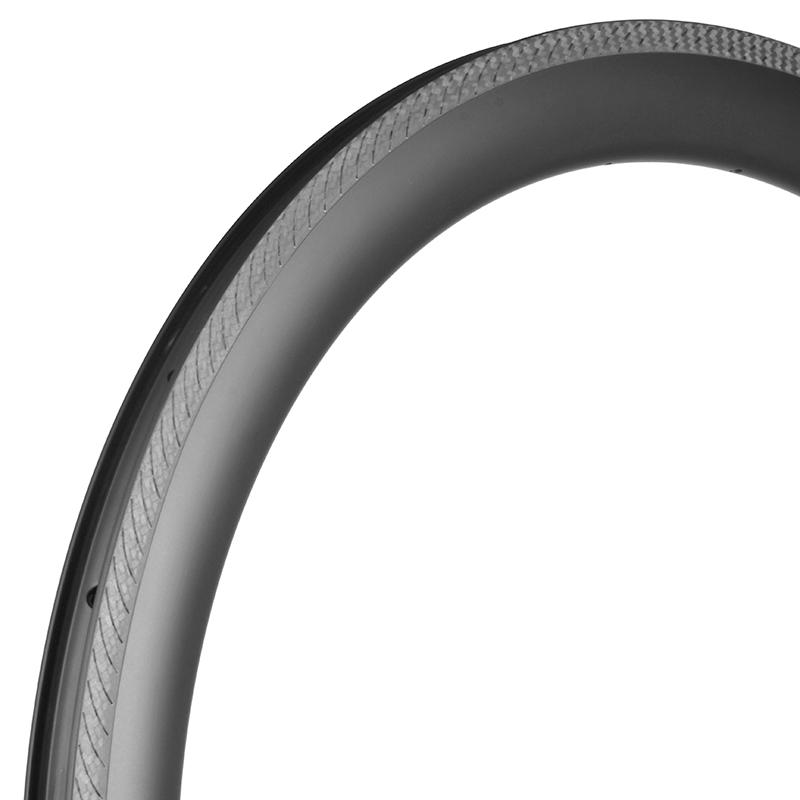

carbon rims with 3K grooved brake surface        carbon rims with 3K grooved brake surface

SPECIFICATION

ProX Road Rim-brake 28mm Wide Carbon Clincher Rims 700C Tubeless Ready

Model  PRV28-33C PRV28-38C PRV28-44C PRV28-50C PRV28-55C
Terrian(Recommended) Road Road Road Road Road
Material T700 T700 T700 T700 T700
Weight(±15g) 460g 470g 480g 510g 530g
Max Weight Limit 110kg/242lb 115kg/253lb 120kg/265lb 120kg/265lb 120kg/265lb
Depth 33mm 38mm 44mm 50mm 55mm
Sectional Drawing
Outer Width 28mm 28mm 28mm 28mm 28mm
Inner Width 21mm 21mm 21mm 21mm 21mm
Rim Offset  0mm 0mm 0mm 0mm 0mm
ERD* 574mm 564mm 552mm 540mm 530mm
Rim Bead Hook Hook Hook Hook Hook
Tire Type Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher
Brake Type Rim Brake Rim Brake Rim Brake Rim Brake Rim Brake
Max Spoke Tension 130kgf  130kgf  130kgf  130kgf  130kgf
Max Tire Pressure 125psi/8.6bar 125psi/8.6bar 125psi/8.6bar 125psi/8.6bar 125psi/8.6bar
Tire Size(Recommended) 700*28C-45C 700*28C-45C 700*28C-45C 700*28C-45C 700*28C-45C


calculate the ERD of road rims

ERD*

Effective Rim Diameter (ERD) is the maximum distance that spokes need to bridge going from one end of the rim to another. How do we calculate the ERD of our rims? The corresponding equation and a drawing is as shown:

ERD=OD-(rim depth)*2+(rim thickness)*2

For example

ERD of PRV28-33C rim=633mm-33mm*2+3.5mm*2=574mm

Most people prefer ERD including the length of the nipple cap. However, customers may use different nipples and components for building. Please add the height of the nipple cap(2.5mm~3mm generally) for your spoke calculation. If the height of the nipple cap is 3mm, then ERD of your PRV28-33C rim is 574mm+3mm*2=580mm


A: Rim nipple bed thickness (=3.5mm)

B: Length of nipple cap (2.5mm~3mm generally)

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon road bike rims.

Wider Inner Width

Wider Inner Width

Wider 21mm inner width, optimized for increasingly popular 700x28C tires (also fit even wider tires).

Wider stance for tire, easy tire mounting and dismounting.

Better traction and cornering performance.

Aero U Shape

Aero U Shape

Wide U Shape carbon road rims are more aerodynamic than traditional V Shape road bike carbon rims.

It is also of better stiffness and strength.

Bead Lock

Bead Lock

There are small ridges on both side of rim channel called “bead lock”, which makes it easy for tubeless tire inflation.

Together with hooked bead to well lock the tire, prevent it from blowing out.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in road bike carbon wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Rim Brake

Rim Brake

Carbon road bike rim designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface.

Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition.

Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
