ProX 4-Spoke Bike Wheels Carbon 27.5er Mountain Bike Wheels

• 4-spoke carbon wheel for 650b MTB bikes

• Clincher(tubeless)

• 30mm width, 40mm height

• Disc brake (6-bolt)

• High quality Chosen hubs from Taiwan

  • Item NO.:

    P4-40TL wheels
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

For XC (Cross Country) mountain bikes, if you want mtb carbon wheels which are easy for maintenance and do not care a bit heavier weight, 4-spoke carbon wheel is good option.

Since 4-spoke carbon wheel is made in one-piece, there is no traditional spoke needed, which makes it easy for maintenance (no need true spokes or replace spokes).

ProX 650b 4-spoke MTB carbon wheel is designed for 650b mountain bikes (or other bikes that fit 27.5’’ wheel).

If you want wheel for 29er mountain bikes, please check another page of our 6-spoke carbon mtb wheels.

The rim side wall in our carbon spoke wheel is thicker than regular carbon rims, which is of better stiffness and strength.

In our MTB 4-spoke carbon wheels, Chosen hubs (made in Taiwan) are used, with Shimano 11s HG, 12s MicroSpline, Sram 11/12s XD freehub optional.

The default hubs come with boost standard (front 15*110, rear 12*148mm). Non-boost (front 15*100, rear 12*142) can also be ordered (need to emphasize it when contacting us).

SPECIFICATION

ProX 650b Mountain Bike 4-Spoke Carbon Wheels Specification:

-Hub: Chosen hubs (made in Taiwan)

-Hub spacing: Boost (front 15*110mm TA/rear 12*148mm TA) and non-boost (front 15*100mm TA/rear 12*142mm TA) optional

-Disc brake type: 6-bolt

-Cassette Body: Shimano 11s HG, 12s MicroSpline, Sram 11/12s XD optional

-Tire Type: Clincher/Tubeless

-Warranty Year: 2 years


 Model Category Max Weight Limit Brake Type Rim Depth Tire Type Terrian  Front/Rear Hub Hub Size
Tire Size
(Recommended)
Weight(+/-30g)
P4-40TL-F 4-spoke-650B-F 120kg/265lb Disc brake 40mm Clincher/Tubuless MTB Front Chosen hub 15*110mm 650b*1.9''-2.3'' 960g
P4-40TL-R 4-spoke-650B-R 120kg/265lb Disc brake 40mm Clincher/Tubuless MTB Rear Chosen hub 12*148mm 650b*1.9''-2.3'' 1120g

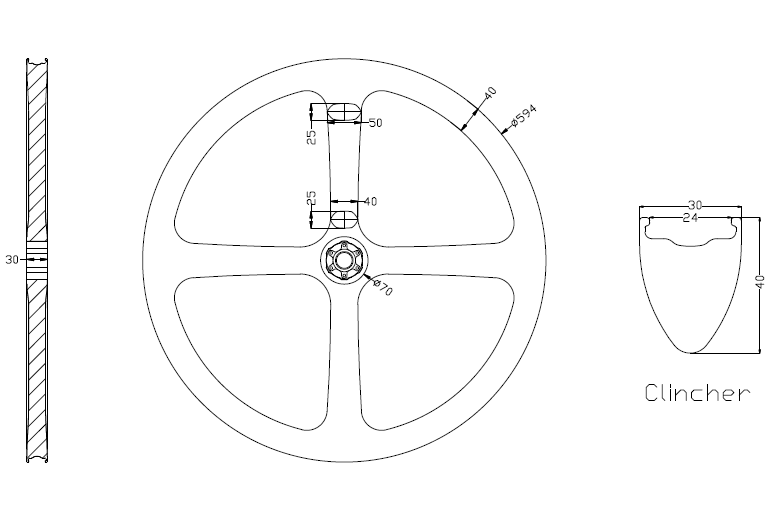

ProX 650b 4-spoke carbon wheel drawing
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our 4-spoke MTB carbon wheels.

Combining with stable resin system to make consistent quality and high strength carbon mtb wheels.

Tubeless

Tubeless

Tubeless tire has been the mainstream in mountain bike wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our 4-spoke MTB carbon wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Chosen MTB Hubs

Chosen MTB Hubs

Chosen MTB hubs are used in our 4-spoke MTB carbon wheel.

Available in boost spacing (15*110/12*148), as well as traditional MTB spacing (15*100/12*142).

Both 12-speed (Sram XD, Shimano MicroSpline) and 11-speed freehub are optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.

VIDEO
Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
undulating mtb carbon rims
ProX Undulating Asymmetric Design Carbon Mountain Bike Rim 29 inch MTB Rim
• Undulating rim depth (22-25mm) • 35mm width for 29er XC riding • Asymmetric design for even spoke tension • Carbon clincher rims (tubeless ready) • Super light & standard weight optional
gravel bike carbon frame
ProX Carbon Gravel Bike Frame Hidden Cable With Integrated Handlebar
• Threaded T47 (85.5mm) bottom bracket • Downtube storage design • Max tire clearance 700*50C or 650B*2.1'' • UDH rear derailleur hanger • Full hidden cable with integrated handlebar • Thru-axle front 12*100/rear 12*142 • Disc brake (flat mount), 140mm or 160mm • Mechanical and electronic groupset compatible
cheap carbon wheelset

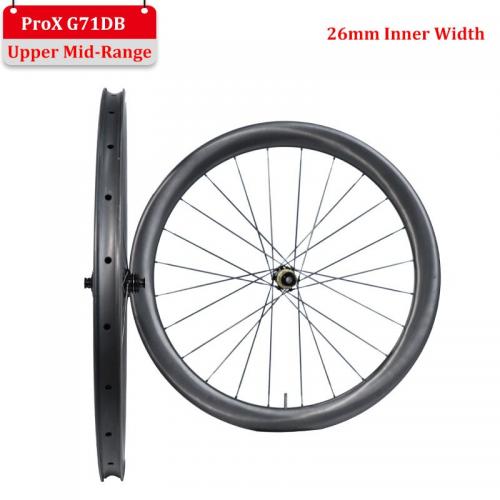

ON SALE! ProX Road Disc Brake Carbon Wheelset Cheap Chinese Carbon Wheels
