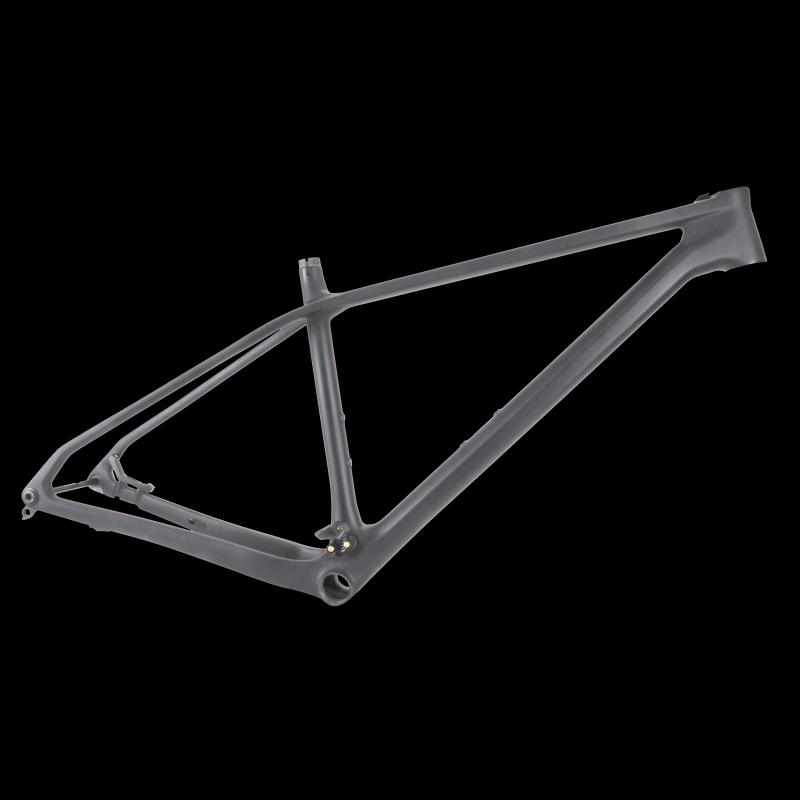

ProX 29er Carbon Hardtail Frame Full Hidden Cable MTB Hardtail Frame

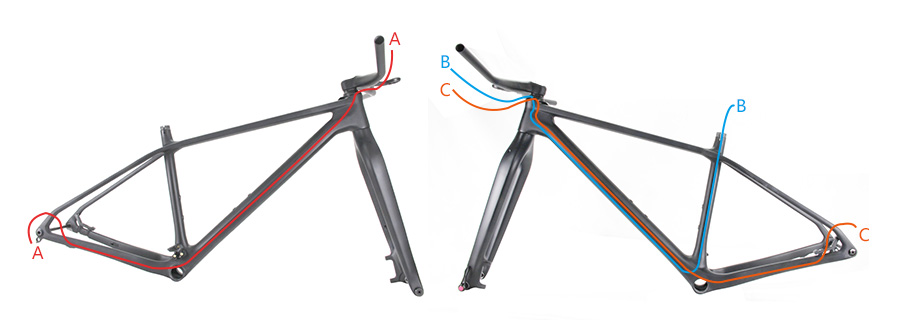

Full Hidden Cable Routing Design

There is no doubt that full internal cable routing looks rather pretty. This carbon XC MTB bike 29er frame is with internal cable routing design. Hidden internal cables goes into head tube directly. Perfect combination of professional geometry and full internal cable routing design. This design looks really nice and clean after whole bike assembled.

A-Rear derailleur cable routing
B-Dropper post remote routing
C-Rear brake control routing

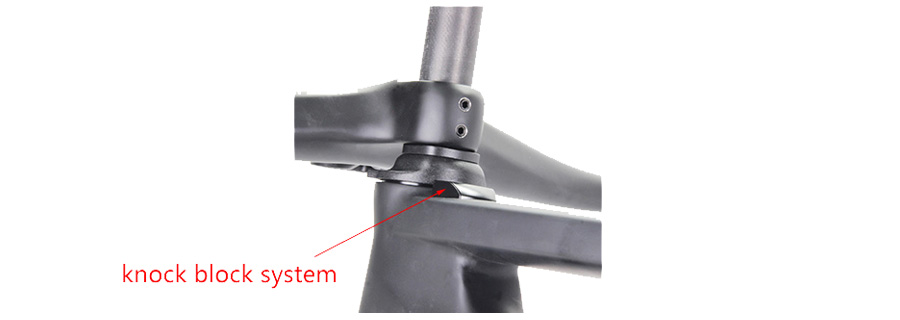

Knock Block System

It aids in preventing handlebar from over spinning to hit top tube.
Limiting the angle of movement for the frame, but also allow enough usual range of movement while doing the XC riding.

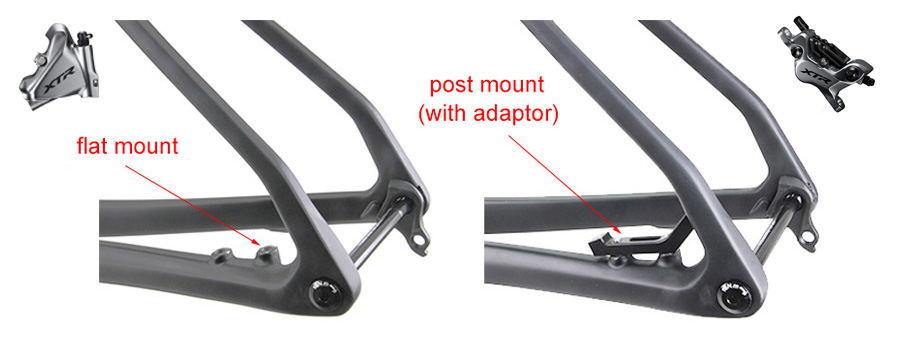

Flat Mount & Post Mount

PXM914 carbon hardtail frame fits both flat mount and post mount(with adaptor) caliper disc brake, 160mm rotor.

Due to weight-saving and aero construction, flat mount has become the mainstream for road bikes. Now, it has been introduced by Shimano to mountain bikes. Flat mount puts the caliper closer to perfectly flush with the frame. It's smaller, lighter and nicer.
Post mount is mechanically cheaper, simpler and more structurally efficient. But it has the disadvantage of putting the threads in the fork/frame, which might lead to some risk and problem of damage.

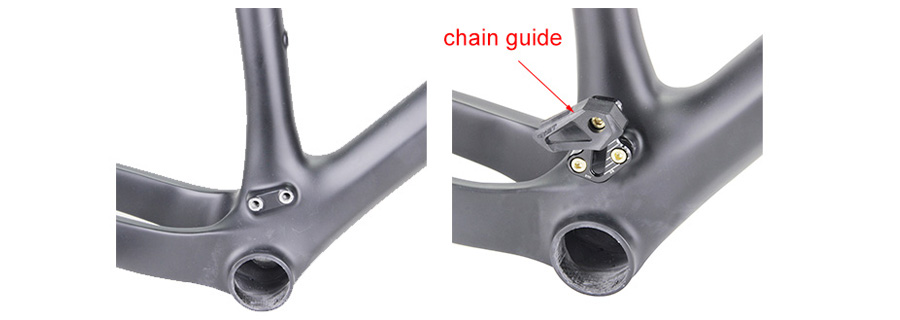

Chain Guide

PXM914 carbon hardtail mtb frame comes with chain guide, which reduces the risk chain popping off and minimize an abnormality during shifting. So you can go further without drop chain holding you back.

This hardtail frame is designed for single 1x chainring (can not mount front derailleur). The single chainring system makes your bike lighter and less complication. It brings a liberating feeling for riding.

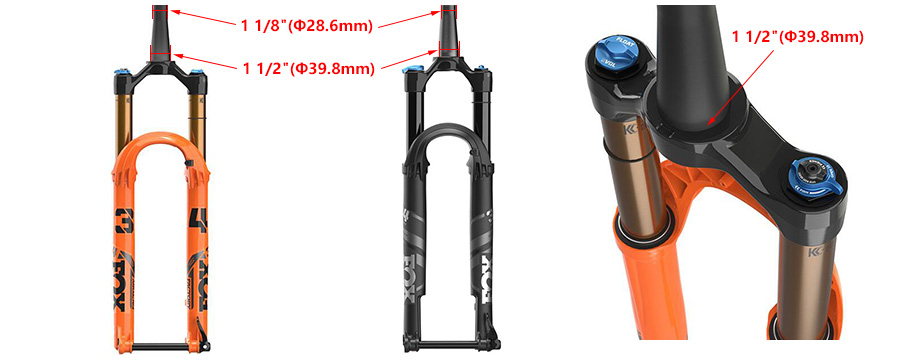

Compatible Fork

PXM914 mtb hardtail carbon frame is designed for tapered fork, upper diameter 1 1/8"(28.6mm) - lower diameter 1 1/2"(39.8mm).

If you prefer to use full suspension front fork, those tapered forks with 51mm rake/offset and boost size(15*110mm thru-axle) is recommended.

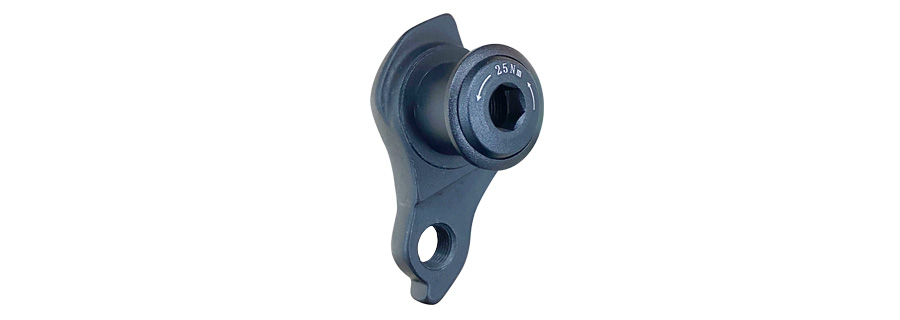

Universal Derailleur Hanger

The UDH(Universal Derailleur Hanger) creates a single hanger design that works on any bike for any derailleur generally and is primarily aimed at mountain bikes for now. It’ll also ensure perfect alignment during installation, so gear set up and shifting should be easier and crisper. What's more, if the chain jams, the hanger pivots backwards protecting the mech from being damaged. Besides, if you ever need replacement, it can be easily got since it is standard. From now on, say goodbye to the long lead time for the customized replacement hanger. More details, please read UDH details from SRAM.

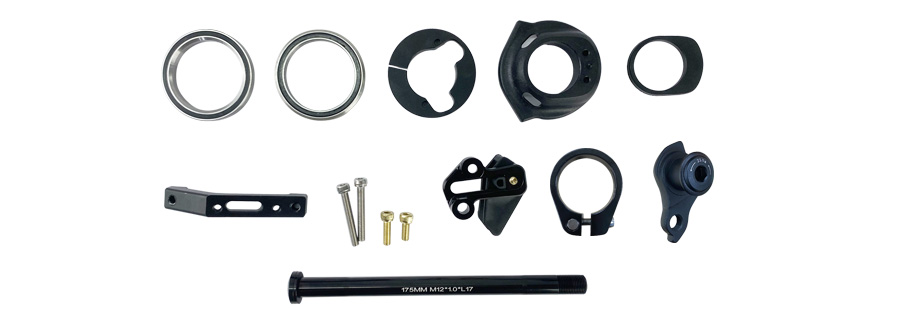

What is in your parcel?

It includes a frame and accessories showed in the left.

Line 1(left to right): headset-2pcs bearings and 3pcs spacers

Line 2(left to right): adaptor and bolts for post mount, chain guide, seat clamp, rear UDH derailleur hanger

Line 3: rear thru-axle

Chainstay Protector

Chains may hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chainstay and the bike. Being fast bike and quiet bike as well.
Such good quality chainstay protector only weighs 27g and it will come with your frame.
