ProX 700C Rear Disc Wheel 25mm Wide Aero Disc Brake Carbon Disc Wheel For TT Bikes

• 25mm width full disc carbon wheel

• Clincher(tubeless) & Tubular optional

• Disc brake (center lock)

• PMI solid filled inside, better stiffness and strength

• Novatec 792DB, ProX 36DB, DT Swiss hubs optional

  • Item NO.:

    UFO25-DISC-DB
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

In Time Trial, Triathlon and Track bikes, full disc wheel, 5-spoke wheel and 3-spoke carbon wheel are widely used.

Compared to regular wheels, carbon spoke and full disc wheels are relatively heavier, but they are outstanding in aerodynamics and stiffness which are critical for TT/Track bikes.

Since TT/Track bikes are normally used in flat road condition, a bit heavier weight is not the cons. Instead, it could be the pros considering heavier weight provides greater inertia and helps riders to keep at higher speed during cruise phase.

With PMI filled inside for this UFO disc wheel, it not only contributes impact resistance, but also better strength and stiffness to this disc wheel. Besides, solid full disc wheel makes much less noise than those hollow full disc wheels during riding.
This disc wheel features a toroidal bulge design, which makes it much more aerodynamic than other normal disc wheel in the market. The valve hole is on the drive side and equipped with a carbon cover which is fixed by hook & loop tape inside. It keeps the valve clean and of better looking. The most important benefit is to reduce wind resistance and noise.
Designed with innovative asymmetric, it's slightly bulge wheel body on non-drive side and slightly sunken on drive side. This difference would not be greatly obvious from the wheel side view, but greatly helps to balance the whole bike after assembling and reach better aerodynamics while rolling.
For such 25mm wide road rims, the optimized aerodynamics tire size is 700*25C. It's the most popular tire size for the TT/road/track bikes in the market.
Both tubular and clincher(tubeless ready) versions are available.

Carbon 700c disc rear wheel TT
Hub options:
There are 4 hubs options for full disk rear wheel--Novatec 792DB, ProX 36DB, DT swiss 350DB and DT swiss 240DB hubs.
Novatec 792DB hub is with regular 4-pawl freehub system.
Rest of them are designed with a very refined and reliable ratchet freehub system, which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. The ratchet freehub system is applied on high-end hub brand hubs generally.
All of them are center lock, Shimano 11/12s or SRAM 12s XDR freehub available.
- Novatec 792DB hub:  4-pawl freehub system and made in Taiwan
- ProX 36DB hub: Good quality hubs made by well selected hub manufacturer in Taiwan, 36T ratchet system, with Enduro bearings.
- DT Swiss 350DB hub: 36T ratchet system
- DT Swiss 240DB EXP hub: 36T ratchet system

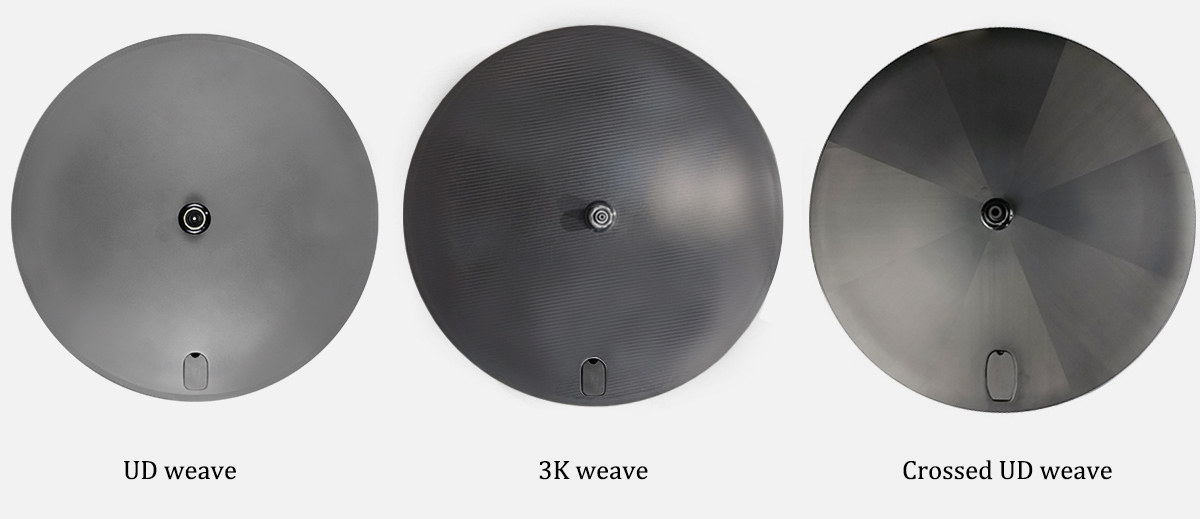

Different carbon weave apperance optional (see below picture).

rear disc wheel different carbon weave
ProX carbon full disk rear wheel is priced from US$525/pc.
As always, hand-made in our factory, to order and to your specifications.
SPECIFICATION

ProX Super Aero 25mm Width Disc Brake Full Disc Carbon Wheel

-Rim Width: 25mm

-Appearance: UD, 3K, Crossed UD weave optional

-Hubs: Novatec 792DB, ProX 36DB, DT Swiss 350DB and DT Swiss 240DB

-Hub Size: 12*142mm

-Cassette Body: Shimano 11/12s or SRAM 12s XDR

-Brake Type: disc brake

-Tire Type: Tubular, Clincher(tubeless)

-Tire Pressure: 125psi/8.6bar

-Warranty Year: 2 years


Clincher-25mm Width 700C Rear Disc Carbon Wheel

Model Category Max Weight Limit Brake Type Tire Type Terrain Front/Rear Hub Hub Size Weight(+/-40g)
UFO25-DISC-DB-C-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear Novatec 792DB 12*142mm TA 1310g
UFO25-DISC-DB-C-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear ProX 36DB 12*142mm TA 1300g
UFO25-DISC-DB-C-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear DT Swiss 350DB 12*142mm TA 1340g
UFO25-DISC-DB-C-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear DT Swiss 240DB 12*142mm TA 1300g


Tubular-25mm Width 700C Rear Disc Carbon Wheel

Model Category Max Weight Limit Brake Type Tire Type Terrain Front/Rear Hub Hub Size Weight(+/-40g)
UFO25-DISC-DB-T-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Tubular Tri/Road Rear Novatec 792DB 12*142mm TA 1200g
UFO25-DISC-DB-T-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Tubular Tri/Road Rear ProX 36DB 12*142mm TA 1190g
UFO25-DISC-DB-T-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Tubular Tri/Road Rear DT Swiss 350DB 12*142mm TA 1220g
UFO25-DISC-DB-T-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Tubular Tri/Road Rear DT Swiss 240DB 12*142mm TA 1190g

25mm width full disk carbon wheel drawing
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our carbon full disc wheels.

Combining with stable resin system to make consistent quality and high strength full disc carbon wheels.

Tubeless

Tubeless Ready

Tubeless tire is getting popular in carbon TT/Track wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our carbon clincher disc wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Narrow Inner Width

Relatively narrow 18mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

Chosen Road Hubs

DT Swiss Hubs

High end DT Swiss road hubs and cheap price OEM ProX 36DB optional for the full disc carbon wheel, light weight and reliable Ratchet 36 freehub system.

The hub spacings is disc brake (12*142mm thru axle).

With Shimano 11/12 speed, Sram 12-speed XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
