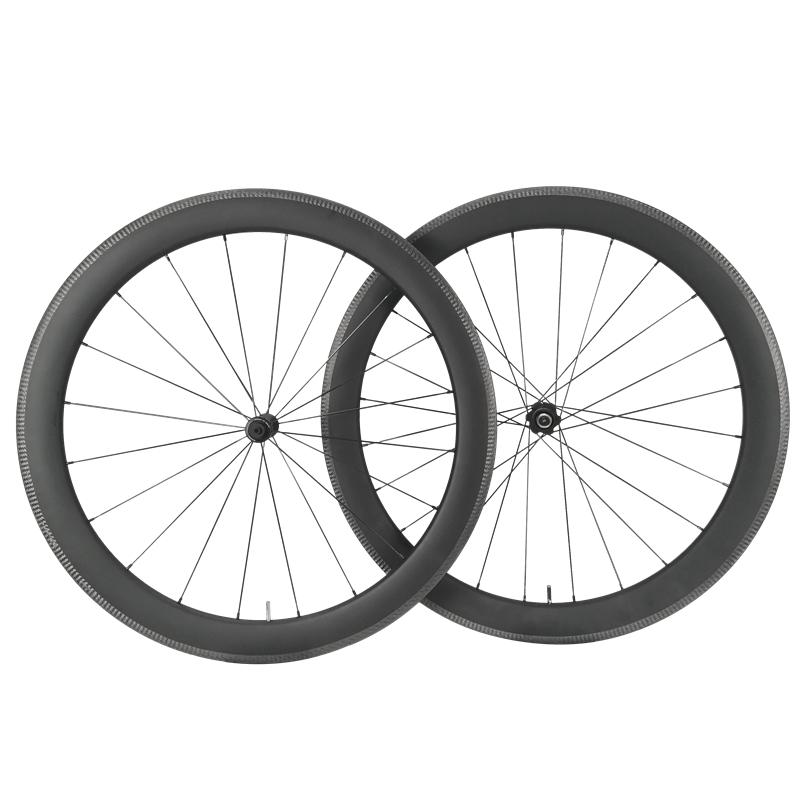

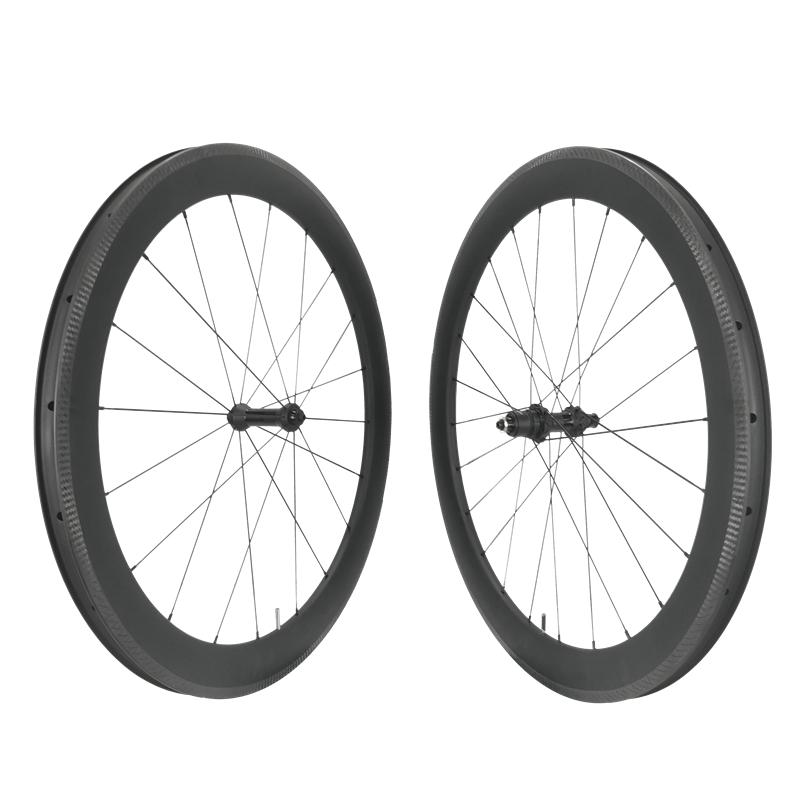

ProX Best Rim Brake Wheelset DT180 Carbon Road Wheels

• 25mm and 28mm width carbon rims optional

• Pro racing DT Swiss 180 EXP road rim-brake hubs

• Shimano/Sram 11-12 speed freehub available

• Sapim CX-Ray spokes, super light and aero

• Compatible for 700*25C-45C tire (tubeless ready)

  • Brand:

    PROX
  • Item NO.:

    180S Clincher Wheels
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

ProX DT180 EXP Carbon Road Wheels - Best Rim Brake Wheels For Racing

Equipped with upgraded Ratchet EXP technology, the newest DT Swiss 180 road hub is ultimate in precision, lightness and stiffness. The refined end-caps are simplified for tool-free disassembly. What's more, powered by premium ceramic bearings, the rolling resistance is minimized, which enables you to ride faster with less effort. Carbon wheels built with DT180 hubs are ideal for professional racing.

ProX provides two width option for our DT180 rim-brake carbon wheels. That is, 28mm width carbon clincher rims, and 25mm width carbon rims clincher.

Both series rims are with high TG 3K grooved braking track, which provides more friction, shorten about 30% braking distance, faster heat elimination.

The 28mm width rim series (model PRV28) is with 28mm outer (21mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*28C. If you plan to use 28C (or wider) tire, PRV28 rim series is recommended.

The 25mm width rim series (model PRV25) is with 25mm outer (18mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*25C. If you plan to use 25C tire, PRV25 rim series is recommended.

To match premium DT180 hubs, high-end Sapim CX-Ray spokes are used, which is one of the best spokes available in the market.

Sapim CX-Ray spokes is the best combination of light weight, strength, flexibility, and it performs best in fatigue testing.

Premium hubs, spokes and rims make best carbon wheels for racing.

SPECIFICATION

ProX Best DT180 Rim Brake Carbon Road Wheelset Specification:
-Hub:DT180 Road EXP ratchet 36T (front 5*100mm QR/rear 5*130mm QR)
-Brake type: rim brake/non-disc
-Cassette Body: Shimano 11/12s or Sram 12s XDR

-Freehub System: Ratchet EXP 36
-Type: straight pull
-Spoke Hole Count: front 20H/rear 24H
-Tire Type:Clincher/tubeless ready
-Spoke: Sapim CX-Ray
-Spoke Tension(recommended): ≤130kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


DT180 Rim-brake Carbon Clincher Wheels Built With 28mm Width Rims

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
180S-PRV28-33C-Ray PRV28-33C 33mm 28mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*28C-45C 1412g
180S-PRV28-38C-Ray
PRV28-38C
38mm
28mm
Tubeless or Clincher
DT180 EXP Road
5*100mm QR
5*100mm QR
Sapim CX-Ray
700*28C-45C
1432g
180S-PRV28-44C-Ray PRV28-44C 44mm 28mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*28C-45C 1452g
180S-PRV28-50C-Ray
PRV28-50C
50mm
28mm
Tubeless or Clincher
DT180 EXP Road
5*100mm QR
5*100mm QR
Sapim CX-Ray
700*28C-45C
1512g
180S-PRV28-55C-Ray PRV28-55C 55mm 28mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*28C-45C 1552g


700C Rim-brake Carbon Clincher Rims 28mm Width

Rims PRV28-33C PRV28-38C PRV28-44C PRV28-50C PRV28-55C
Max Weight Limit 105kg/230lb 105kg/230lb 110kg/240lb 110kg/240lb 110kg/240lb
Material T700 T700 T700 T700 T700
Sectional Drawing


DT180 Rim-brake Carbon Clincher Wheels Built With 25mm Width Rims

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
180S-PRV25-38C-Ray PRV25-38C 38mm 25mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-45C 1412g
180S-PRV25-45C-Ray PRV25-45C 45mm 25mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-45C 1452g
180S-PRV25-50C-Ray PRV25-50C 50mm 25mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-45C 1492g
180S-PRV25-60C-Ray PRV25-60C 60mm 25mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-45C 1612g
180S-PRV25-80C-Ray PRV25-80C 80mm 25mm Tubeless or Clincher DT180 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-45C 1812g

700C Rim-brake Carbon Clincher Rims 25mm Width

Rims PRV25-38C PRV25-45C PRV25-50C PRV25-60C PRV25-80C
Max Weight Limit 110kg/240lb 110kg/240lb 115kg/250lb 120kg/265lb 120kg/265lb
Material T700 T700 T700 T700 T700
Sectional Drawing

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon road rims.

Wider Inner Width

Wider Inner Width

Wider 21mm/18mm inner width, optimized for increasingly popular 700x28C/25C tires (also fit even wider tires).

Wider stance for tire, easy tire mounting and dismounting.

Better traction and cornering performance.

Aero U Shape

Aero U Shape

Wide U Shape carbon road rims are more aerodynamic than traditional V Shape road carbon rims.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in carbon road wheelset thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Rim Brake

Rim Brake

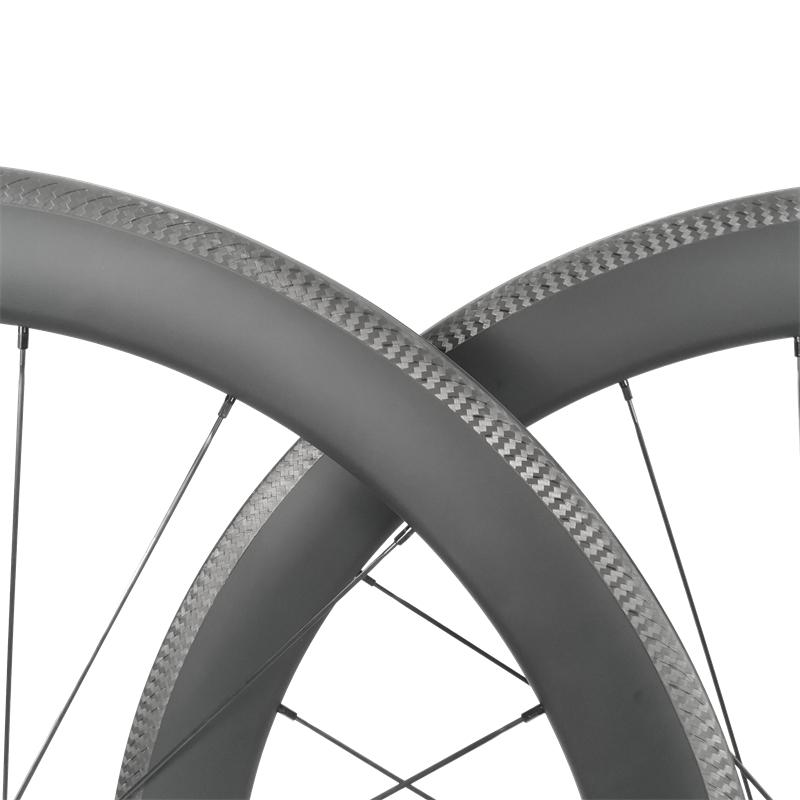

Road carbon rims designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface.

Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition.

Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.

Hand Built

Hand Built

All our carbon wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

DT180 Road Hubs

DT180 EXP Hubs

Best DT Swiss 180 EXP road hubs, ultimate in lightweight, stiffness and performance. Best rim brake carbon wheels for pro racing.

Ratchet EXP 36 freehub system, plus ceramic bearings for super smoothness and reliability.

5*100/5*130 standard QR, with Shimano 11-speed, Sram 12-speed XDR freehub optional.

Sapim Spokes

Sapim Spokes

High end Sapim CX-Ray spokes, one of the best spokes available in the market.

Sapim CX-Ray spoke is the best combination of light weight, strength, flexibility, and it results in best fatigue testing.

It is widely used in best road wheelsets of those top brands all over the world.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
