ProX Carbon Gravel Bike Frame Hidden Cable Design With Stem

• Max tire clearance 700*53C or 650B*2.1''

Full hidden cable routing including stem

Thru-axle front 12*100/rear 12*142

Flat mount type disc brake

Mechanical and electronic groupset compatible

  • Item NO.:

    PXG071S-D
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD black(or Customized Decal/Painting)
DESCRIPTION

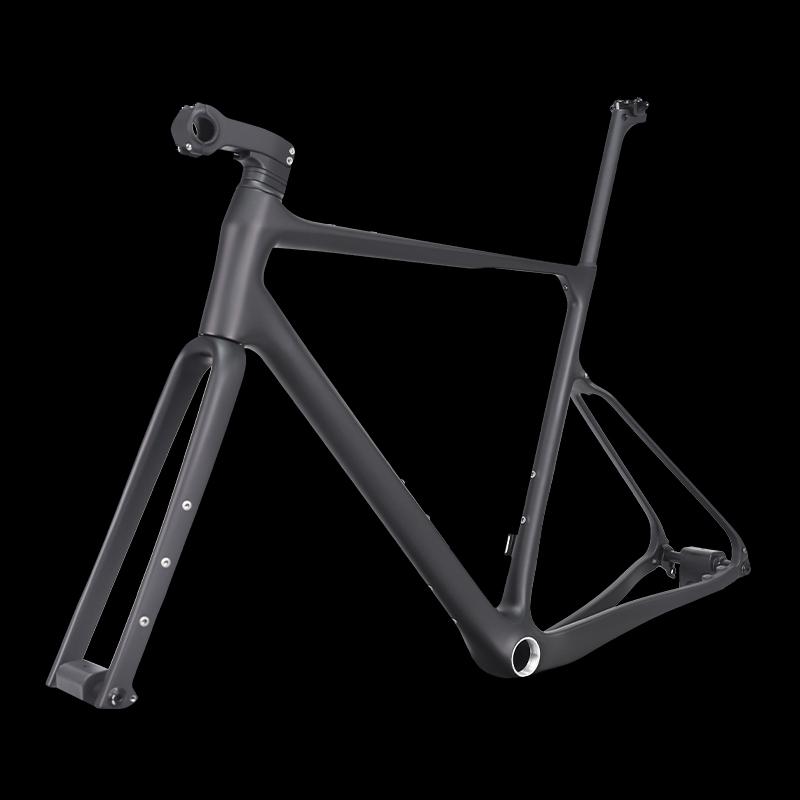

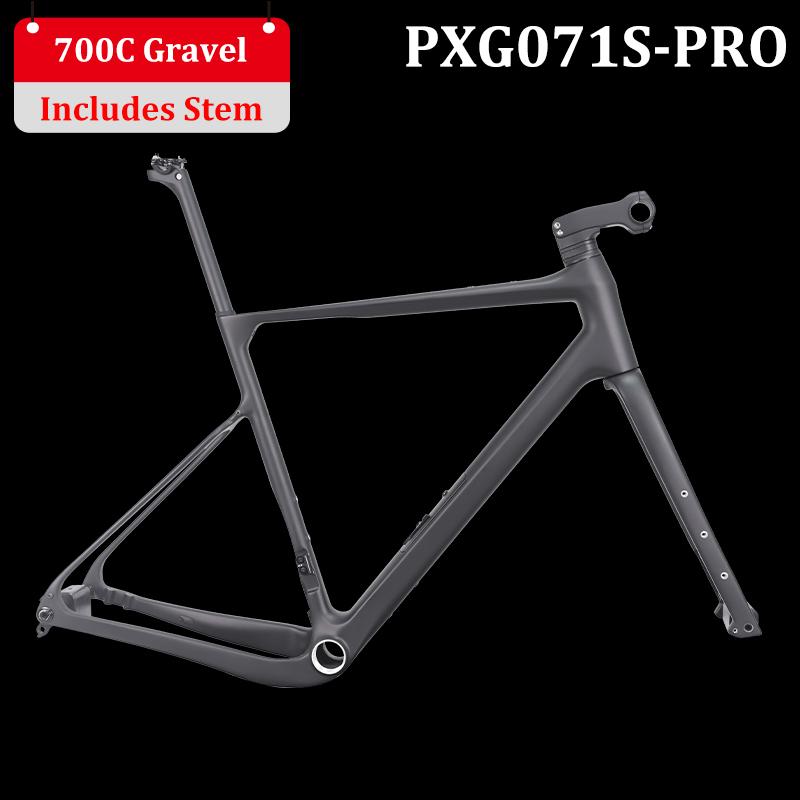

ProX Carbon Gravel Bike Frame Hidden Cable Design With Stem

This frame is handsome looking with all the mounts you could dream of for bags, fenders and water bottles. It’s a bike frame that is supremely comfortable over long distances.
PXG071S-D is a fast, fun and versatile gravel bicycle frame. This frame permits to run tyres up to 53mm wide to boost the bike’s already comfortable ride on rough terrain. Whether you are passing through deep sand, slick mud, rocks, gravel and tarmac, it has immense composure to handle challenges.
The default finish of carbon frame we make is UD matte or glossy. In addition, customized logo and color painting is acceptable. So you can get this gravel bike frame as what you like!
What is in your parcel? It includes a frame, a seat clamp, a fork, a seat post, a stem, a headset, a set of spacers and a pair of thru-axle(front+rear).
The carbon gravel frameset is priced from USD475/set.

PXG071S-D gravel frame special tube shape

Special Design to Reduce Vibration

PXG071S-D gravel carbon frame comes with 25mm offset seat post, providing better comfort ability for long distance cycling.

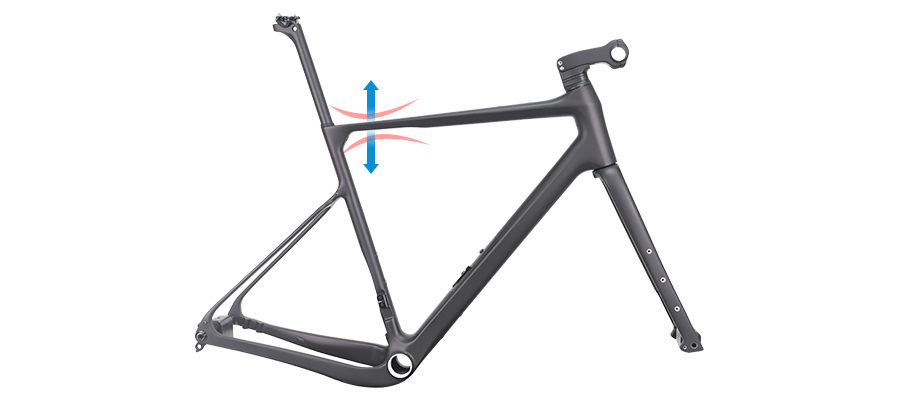

Top tube shaved off at the position near seat tube, which helps to reduce vibration and result in better comfortability.

gravel carbon frame with comfortable geometry

Comfortable Geometry

This gravel bike frame is with slacker headtube angle (71-72°), longer Reach, higher BB Height and increased fork rake compared to traditional gravel frame. All of them provide rider more comfortable riding gesture while staying in control even in rough off-road terrain.
It will be your good company for long distance adventure.

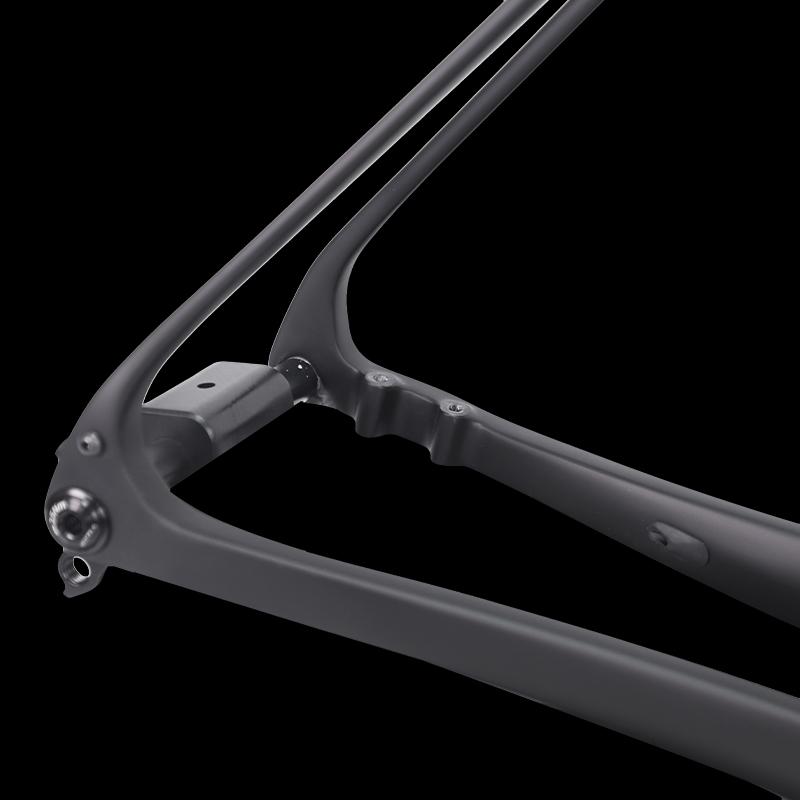

PXG071S-D gravel frame with rack and fender mounts

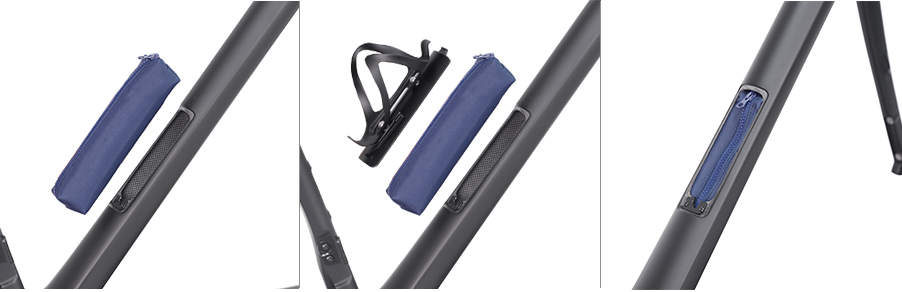

Smart Mounts

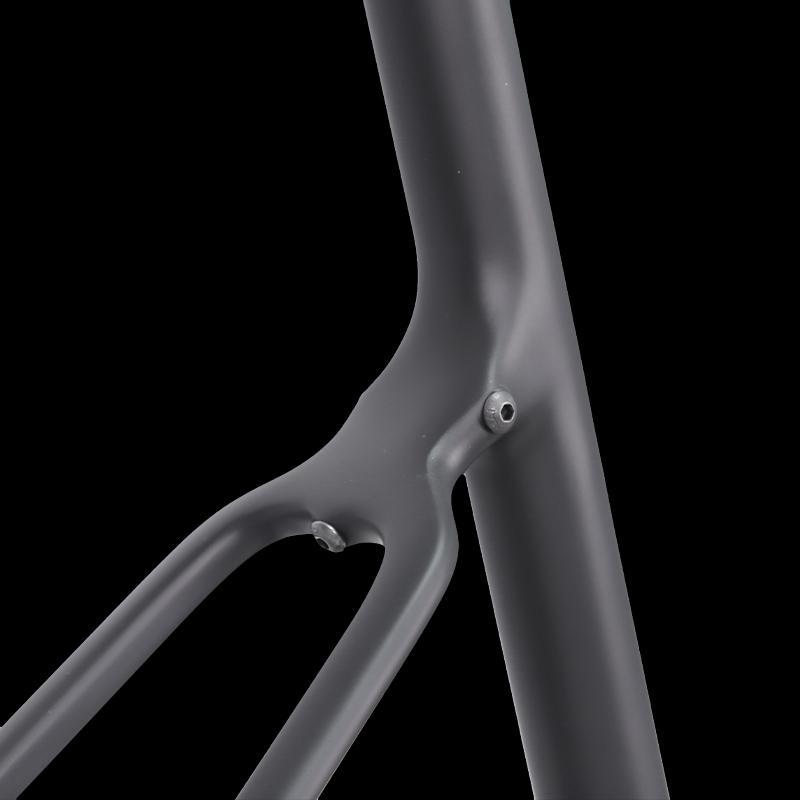

There is the rack mount design on this frame. For security, the rack mount on rear is for luggage only, not recommended for little children.

Mudguard/Fender is one of the best accessories you can add to your gravel bike frame which helps you against to dusty ground.

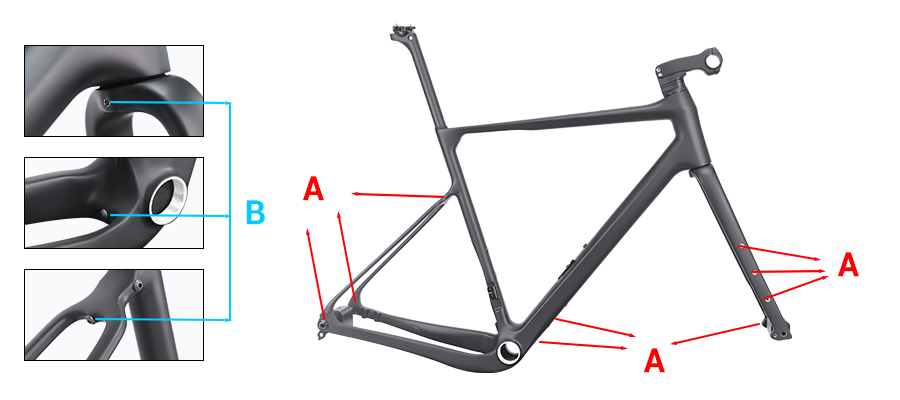

A: For rack mount

    max load on rear=25kg

    max load on fork(each side)=3kg

B: For fender mount

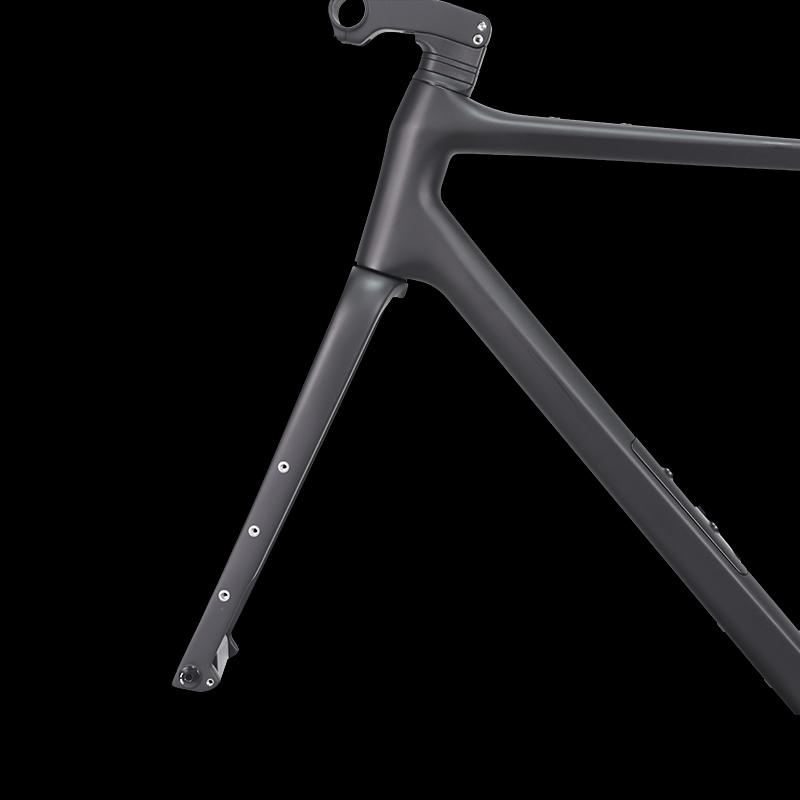

carbon gravel forks options

Fork Options

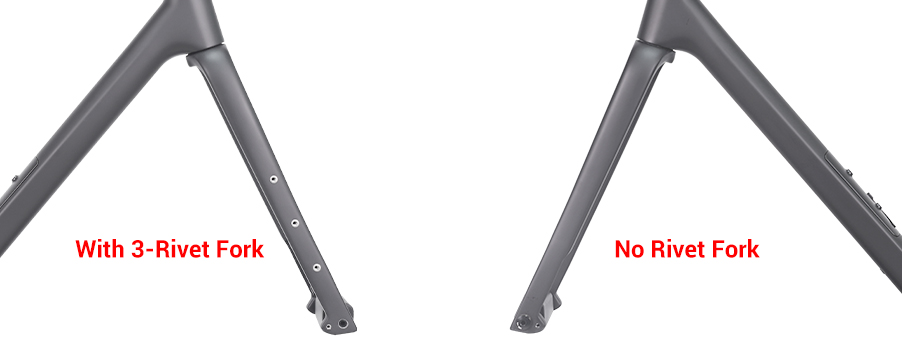

The default carbon gravel fork is with 3 rivets on both sides of fork leg. Considering some riders do not plan to put small luggage or bottles on fork leg (would affect handling), there is also the other option for this gravel fork, no holes on either side. If you prefer to have forks with no such rivet holes, please let us know when placing orders.

seat post for PXG071S-D gravel frame

Seatpost Options

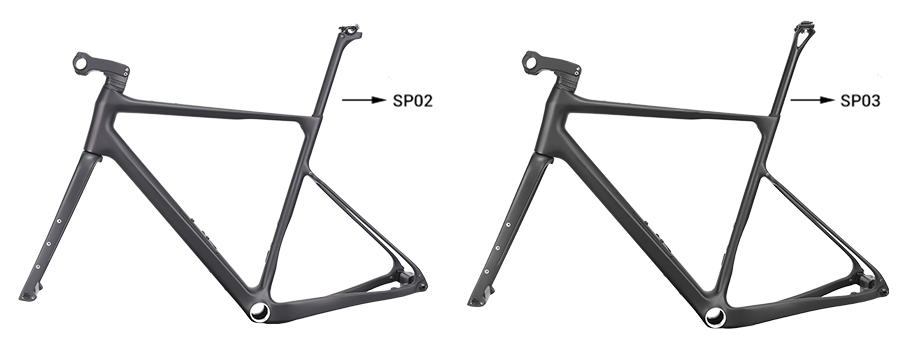

PXG071S-D gravel frame will come with seat post SP02(25mm offset) by default. If update to SP03(15mm offset), the extra charge is US$10, and please mention that you need seat post SP03 when placing orders

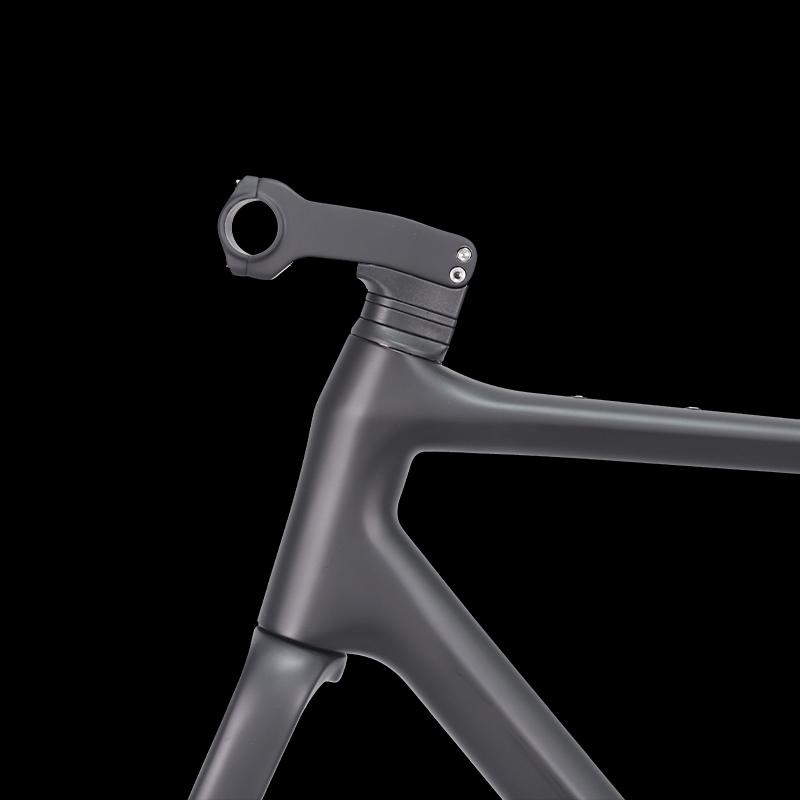

PXG071S-D gravel frame full hidden cable routing

Full Hidden Cable Routing Design

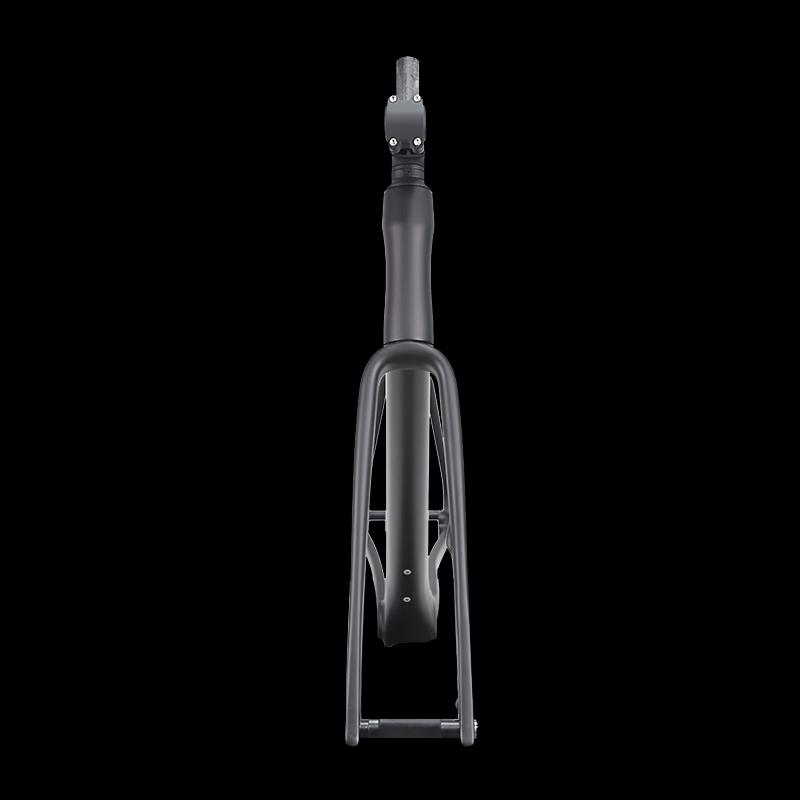

There is no doubt that full internal cable routing looks rather pretty. PXG071S-D gravel carbon frame is with full hidden cable routing design(cable enter frame from under stem). Perfect combination of professional geometry and full internal cable routing design. This design looks really nice and clean after whole bike assembled.

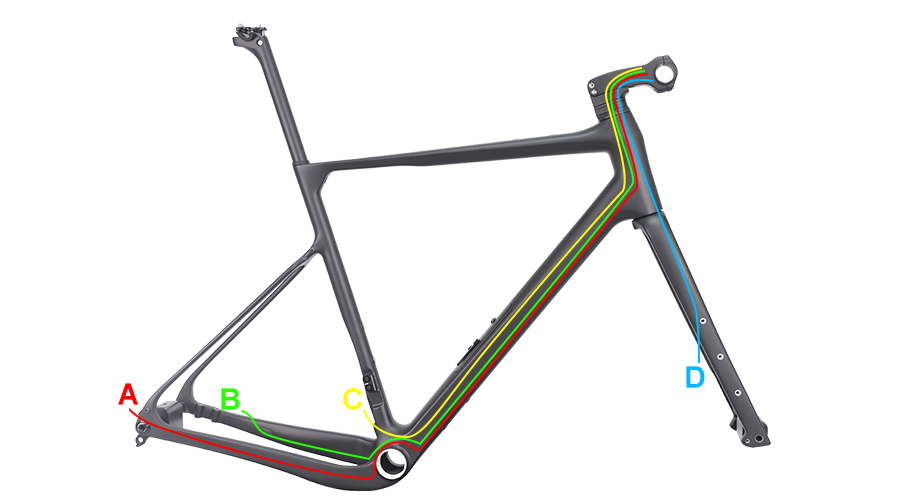

ARear derailleur cable routing
BFront derailleur cable routing
CRear disc brake cable routing
DFront disc brake cable routing

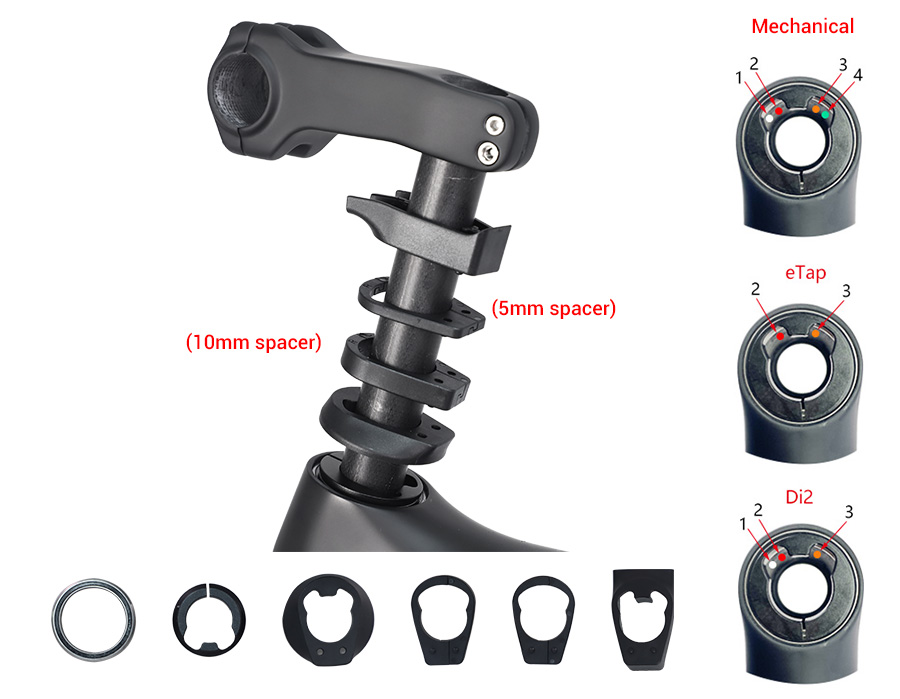

Cable Routing for Compatible Groupset

Cable Routing for Compatible Groupset

Mechanical
1-Front derailleur cable routing
2-Front disc brake cable routing
3-Rear disc brake cable routing
4-Rear derailleur cable routing

Shimano Di2
1-Di2 Electronic cable routing
2-Front disc brake cable routing
3-Rear disc brake cable routing

SRAM eTap
1-Front disc brake cable routing
2-Rear disc brake cable routing



Notes for 42T Sprocket

Notes for 42T Sprocket

If you install cassette larger than 42T(such as 11-44T, 11-46T, etc), you need to install a additional hanger as left image show(2.3cm*4.5cm). We also provide this hanger and please let us know when placing order for this gravel frame.

Latex 3D Mandrel Technology on gravel carbon frame

Latex 3D Mandrel Technology

Use newest one-piece latex 3D mandrel and moulding technology.
Such technology helps to optimize the orthodromic and strength of carbon fiber, and avoid wrinkle inside (wrinkle is a key factor that may cause crack). Even using same material, the strength is improved 30%.
To achieve same strength, tradition method requires thickness 1mm-1.2mm, while such new technology only requires 0.5mm-0.8mm thickness. Thus, we are able to make the frame about 15% lighter, given strength unchanged.

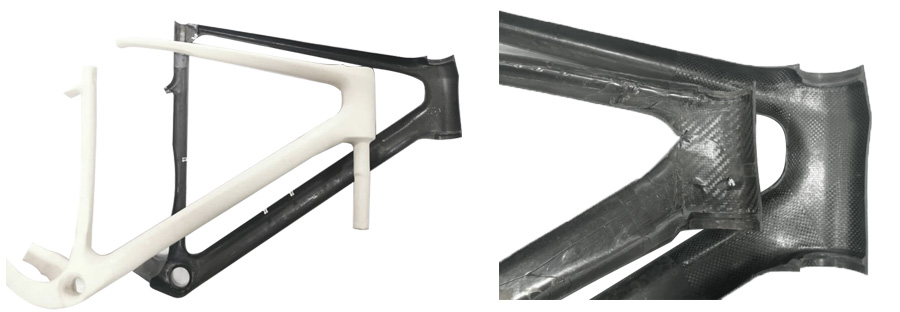

The left picture shows frame made with tradition technology and new 3D latex technology. For tradition method, it is with many wrinkle and bubble inside(picture A). For 3D latex mandrel which is smooth inside, no wrinkle or bubble(picture B).

complete bike built with PXG071S-D carbon gravel frame


In addtion to carbon gravel frames, ProX also have various options of gravel bike wheels, building with DT Swiss hubs, as well as ProX own mould hubs.

If you also need, please see more details on another page of our gravel carbon wheels or contact us for suggestion.

SPECIFICATION

ProX Gravel Bike Carbon Frame Full Hidden Cable Design With Stem

 Frame:  PXG071S-D Carbon Frame For Gravel Bike Designed With Stem
 Material:  High modulus Toray T700 carbon fiber
 Size:  49/52/55/58cm
 Fork:  Matching gravel carbon fork
 Stem Size:  90/100/110/120mm
 Headtube:  Straight 1 1/2'' head tube (upper 52mm lower 52mm)
 Frame Weight(+/-50g):

49cm: 990g

52cm: 1020g

55cm: 1050g

58cm: 1100g

 Fork Weight(+/-15g):  450g
 Stem Weight(+/-5g):
 140g
 Seatpost Weight(+/-10g):  190g
 Seatpost Diameter:  15mm or 25mm offset, 27.2mm diameter (round shape)

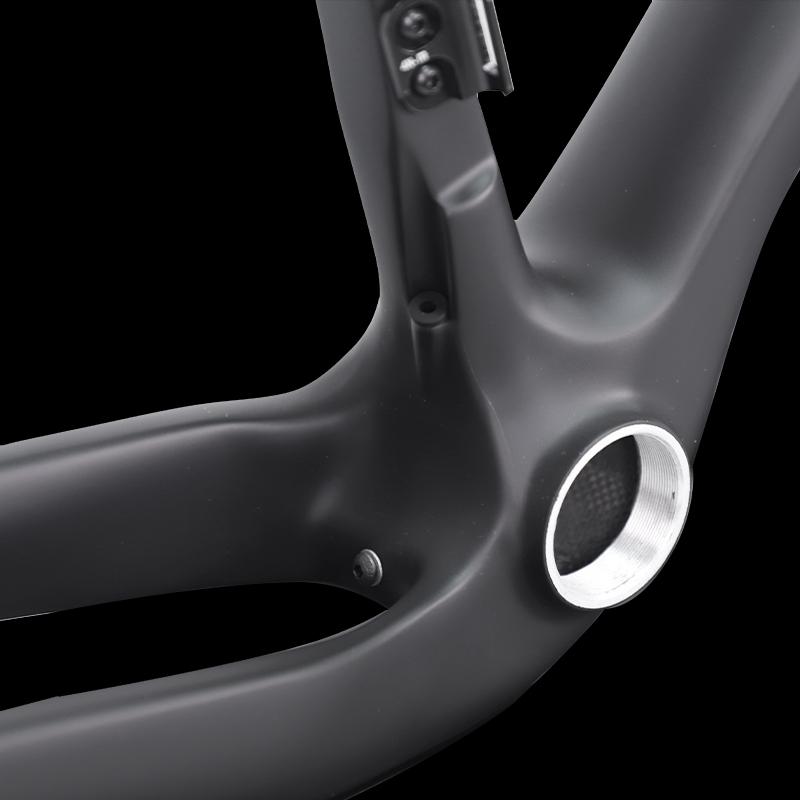

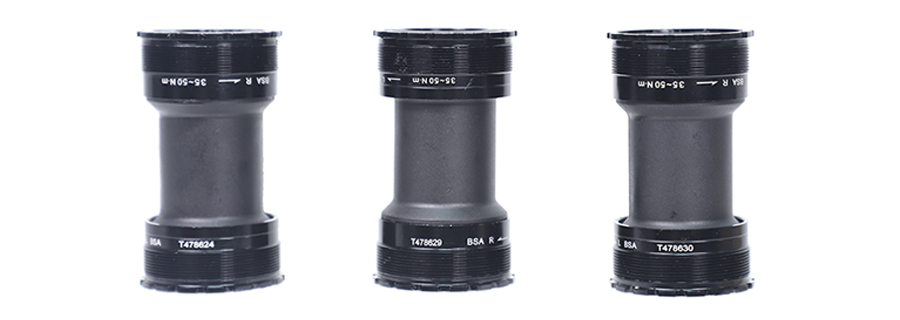

 Bottom Bracket:  Press Fit BB86
 Max Tire Clearance:  700*53C or 650B*2.1'' or 29er*1.95''
 Max Chainring:

 If use single chainring, max 42T (corresponding chainline=49.7mm ).

 If use double chainring, max 54/42T (chainline=43.5mm), min 46-30T (chainline=47mm)

 Brake Mount Type:  Shimano flat mount disc brake (suitable length of caliper bolt: 38.2mm)
 Dropout:  Front 12*100mm, Rear 12*142mm thru-axle
 Groupset Compatible

 Mechanical / Electronic (Di2/ eTap)

 Not compatible with old rear derailleur without B-LINK, eg old 105 5800

 Recommended Groupset:  Shimano Gravel Groupset GRX
 Test Standard:  ISO4210
 Warranty:  2 years

TECHNOLOGY

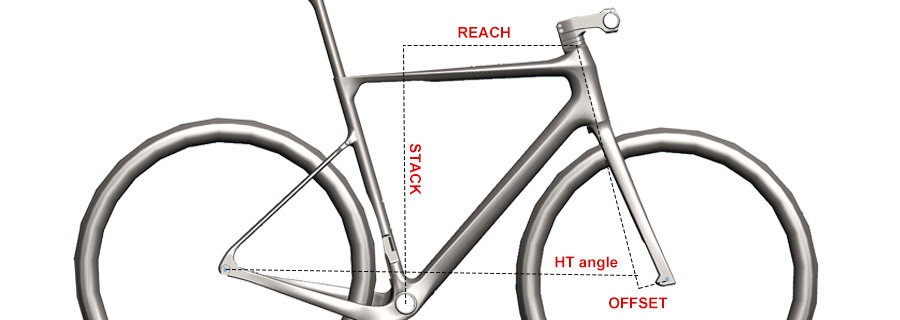

Geometry

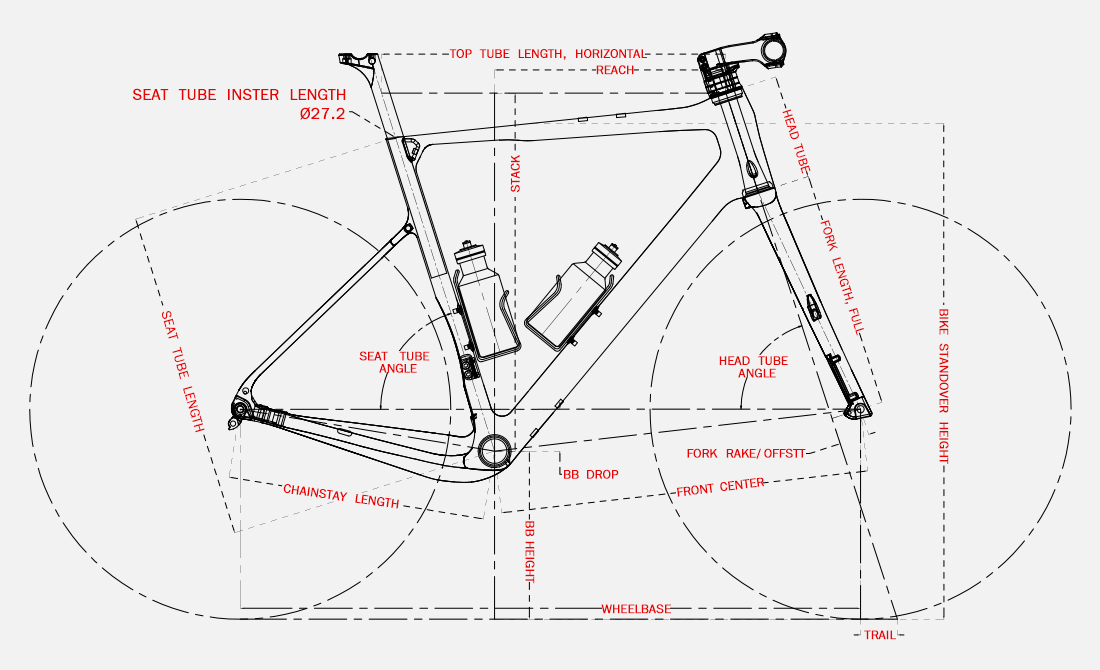

SIZE 490 520 550 580 Geometry of gravel frame PXG071S-D
BODY HEIGHT (Reference)
155 - 164cm
165 - 173cm
174 - 183cm
184 - 194cm

SEATPOST INSERT LENGTH 180mm 220mm 250mm 270mm
REACH 374.1mm 377.5mm 386mm 397.1mm
TOP TUBE LENGTH, HORIZONTAL 535mm 550mm 575mm 595mm
STACK 542.6mm 563.4mm 598.6mm 627.1mm
WHEELBASE 1008.9mm 1014.5mm 1029.6mm 1049.8mm
CHAINSTAY LENGTH 430mm 430mm 430mm 430mm
FRONT CENTER 593.8mm 599.4mm 614.5mm 634.5mm
BB DROP 70mm 70mm 70mm 70mm
BB HEIGHT 285mm 285mm 285mm 285mm
SEAT TUBE ANGLE 73.5° 73° 72.5° 72.5°
HEAD TUBE ANGLE 71° 71.5° 72° 72°
SEAT TUBE LENGTH 490mm 520mm 550mm 580mm
HEAD TUBE LENGTH 120mm 140mm 175mm 205mm
BIKE STANDOVER HEIGHT(700C*53C) 776.4mm 793.4mm 833.4mm 863.9mm
BIKE STANDOVER HEIGHT(650B*2.1") 766.4mm 783.4mm 823.4mm 853.9mm
FORK RAKE/OFFSET 50mm 50mm 50mm 50mm
FORK LENGTH, FULL 397mm 397mm 397mm 397mm
TRAIL 69.3mm 66.1mm 62.7mm 62.7mm


Frame ISO4210 Test

All of our carbon bike frames are tested under ISO4210 Standard.
The tests are including frame-fatigue test(with pedalling forces, horizontal forces and vertical forces), frame/fork assembly – impact test (falling mass), stiffness test(for headtube, rear triangle and BB), strength test(for headtube and rear triangle) etc. It ensures the function of the frame and long-lasting as well.


How To Install ProX Carbon Handlebars Properly?

tighten carbon bike stemtighten the handlebar on carbon bike frame


Recommended Torque For Other Accessories On ProX Carbon Frameset

Recommended Torque for bike accessoriesRecommended Torque for bike derailleur hanger
