CX/GRAVEL

/

CX/Gravel Rims

/

Undulating CX/Gravel Carbon Rims

/ProX Carbon Gravel Rims 700C Undulating Cyclocross And Gravel Carbon Rims

undulating gravel rims
undulating gravel rims undulating gravel rims undulating gravel rims undulating gravel rims undulating gravel rims undulating gravel rims undulating gravel rims undulating gravel rims

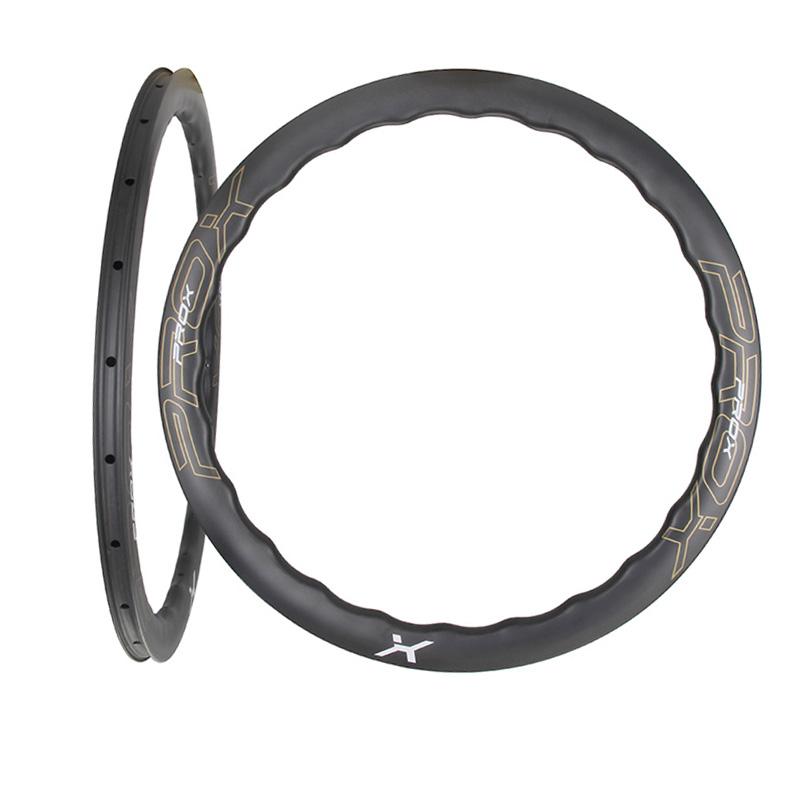

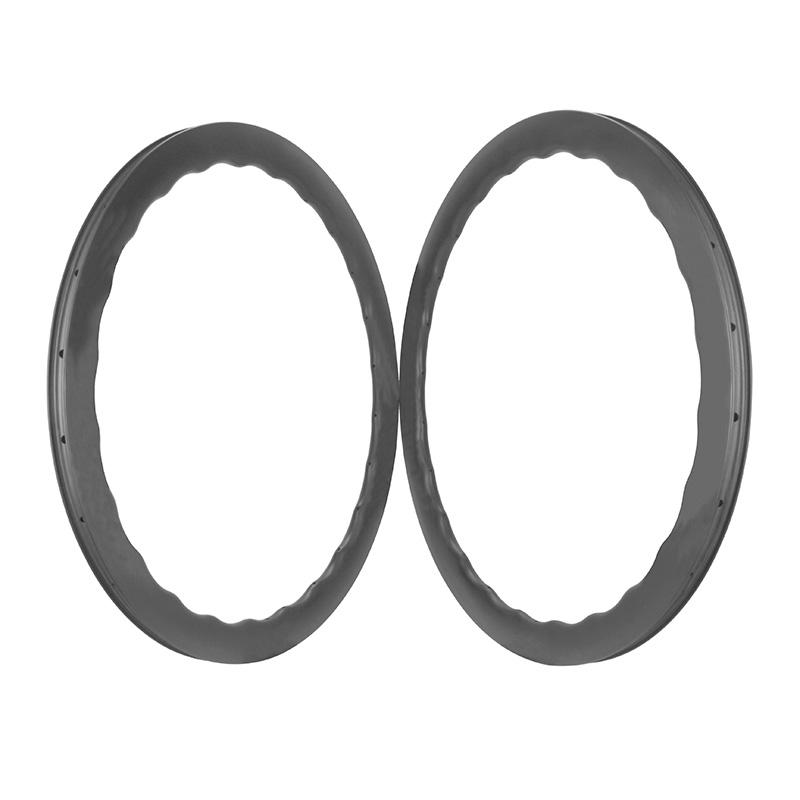

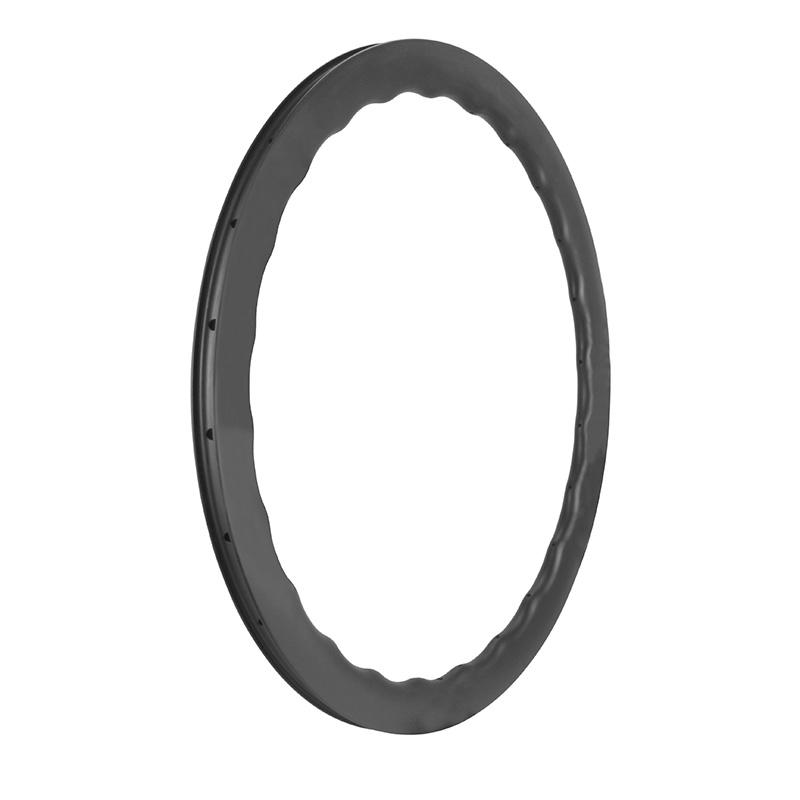

ProX Carbon Gravel Rims 700C Undulating Cyclocross And Gravel Carbon Rims

• Undulating rim depth (35/40mm)

• 30mm width, for gravel bike

• Aero and stable in all wind conditions

• Super light & standard weight optional

• Hook and hookless optional

  • Brand:

    PROX

  • Item NO.:

    UCX30 Gravel

  • Payment:

    Paypal, Bank Transfer

  • Origin:

    China

  • Color:

    UD/3K/12K(Customized Decal Acceptable)
Inquiry now
DESCRIPTION

ProX has launched unique undulating gravel disc series rims. These rims are designed with 24/25mm inner width, which is suitable for gravel tires with size 700*30C-53C. Cyclocross/Gravel carbon rims are with relatively shallower profile but wider in width. Generally, it is something between Road and MTB rims.

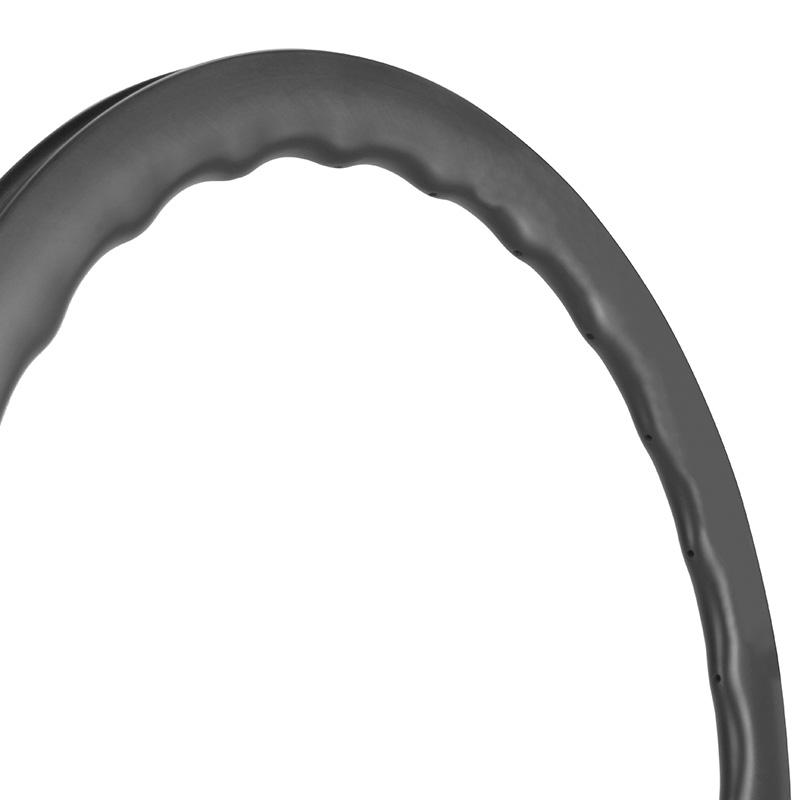

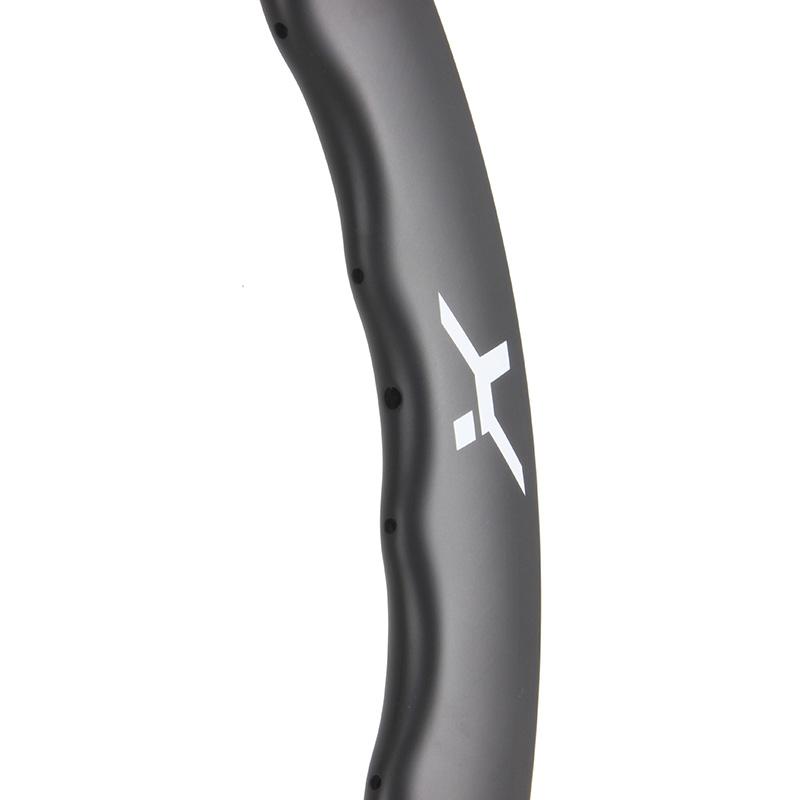

As the name indicates, undulating carbon rims are with varying depth. If measured from spoke hole area, the UCX30-340 rim is with 40mm depth and in between it drops to 35mm. This depth profiles wave up and down 5mm for better aero performance and crosswind stability. It allow the riders to handle the bike better especially in the wind.
ProX undulating disc brake rim is only available in conventional 24 spoke holes currently. The rim is specific reinforced to each spoke hole drilling in the deeper area to increase rim strength and stiffness as well.

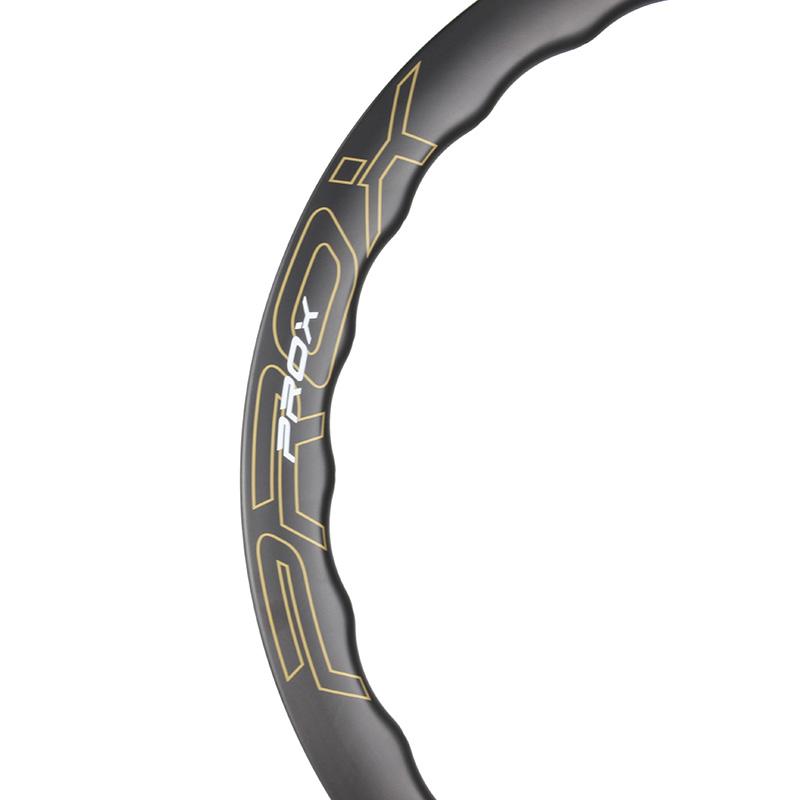

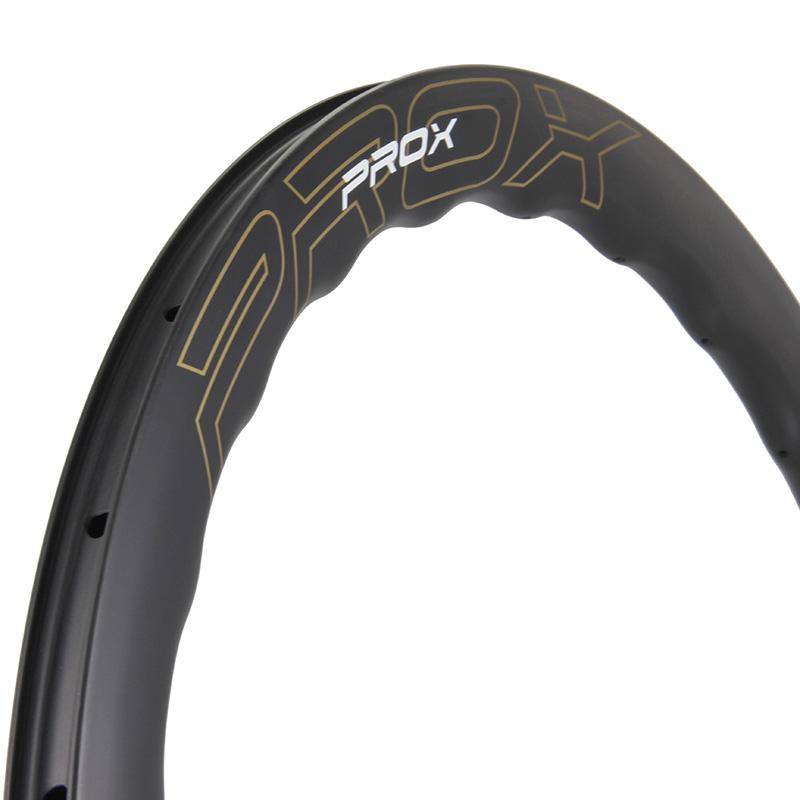

ProX decal/logo is offered for free as showed in ProX decal page. The decal will be applied on the rim and do the matte or glossy finish according to customers’ preference. You can choose either with such gold ProX decal or simply without decal (UD black matte or UD black glossy finish).

30mm width undulating depth carbon gravel rims

Apart from regular bead hook models (UCX30-340-SL, UCX30-340), we also offer hookless models (UZX30-340-SL, UZX30-340) which is closer to MTB carbon rims. For riders who plan to use gravel bikes more like a MTB hardtail bike, and will use tubeless tire at lower tire pressure (not exceed 60psi), hookless is a good option.
For riders who plan to use gravel bike more like a road bike, and prefer higher tire pressure (max 90psi), bead hook is recommended.
Standard weight version (without "SL"  on the rim model name, such as UCX30-340) carbon rim is made from Toray T700 carbon fiber which is the basis to make high strength bike carbon rims. The max rider weight limit is 120kg/265lb.
Super light weight version (with "SL" on the rim model name, such as UCX30-340-SL) carbon rim is made from premium Toray T800 carbon fiber to achieve super light weight, which is more suitable for lighter weight riders (max weight limit 100kg/220lb). Both standard weight version and super light weight versions are optional for undulating gravel carbon rims.

SPECIFICATION

ProX Carbon 30mm Width 700C Undulating Gravel Carbon Clincher Rims

Model UCX30-340-SL UCX30-340 UZX30-340-SL UZX30-340
Terrain(Recommended) Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel
Material T800 T700 T800 T700
Weight(±15g) 400g 440g 380g 420g
Spoke Hole Options 24H 24H 24H 24H
Rim Bead
 Hook
 Hook
 Hookless
 Hookless
Outer Width 30mm 30mm 30mm 30mm
Inner Width 24mm 24mm 25mm 25mm
Depth 35-40mm 35-40mm 35-40mm 35-40mm
Max Weight Limit 100kg/220lb 120kg/265lb 100kg/220lb 120kg/265lb

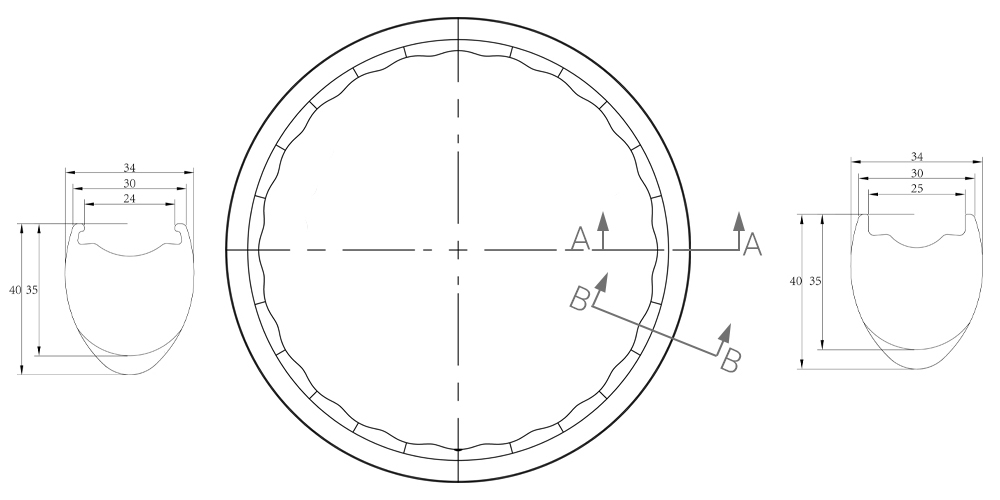

Sectional Drawing undulating gravel carbon rim drawing
Rim Offset 0mm 0mm 0mm 0mm
ERD* 560mm 560mm 560mm 560mm
Tire Type Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher
Brake Type Disc Brake Disc Brake Disc Brake Disc Brake
Max Spoke Tension 130kgf 130kgf 130kgf 130kgf
Max Tire Pressure 90psi/6.2bar 90psi/6.2bar 60psi/4.1bar 60psi/4.1bar
Tire Size(Recommended) 700*30C-50C 700*30C-50C 700*35C-50C 700*35C-50C


calculate the ERD of road rims

ERD*

Effective Rim Diameter (ERD) is the maximum distance that spokes need to bridge going from one end of the rim to another. How do we calculate the ERD of our rims? The corresponding equation and a drawing is as shown:

ERD=OD-(rim depth)*2+(rim thickness)*2

For example：

ERD of UCX30-340-SL rim=633mm-40mm*2+3.5mm*2=560mm

Most people prefer ERD including the length of the nipple cap. However, customers may use different nipples and components for building. Please add the height of the nipple cap(2.5mm~3mm generally) for your spoke calculation. If the height of the nipple cap is 3mm, then ERD of your UCX30-340-SL rim is 560mm+3mm*2=566mm


A: Rim nipple bed thickness (=3.5mm)

B: Length of nipple cap (2.5mm~3mm generally)

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 and T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight gravel carbon bike rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Wider Inner Width

Wider Inner Width

Wider 24/25mm inner width, optimized for 700x30C tires (also fit even wider tires).

Wider stance for tire, easy tire mounting and dismounting.

Better traction and cornering performance.

Undulating Rim Depth

Undulating Rim Depth

The mid-depth profile waves up and down 5mm for better aero performance and crosswind stability.

Such design help to improve bike handling, bring you a faster and more confident riding experience.

In addition, the stiffess and strength are also improved.

Bead Lock

Bead Lock

There are small ridges on both side of rim channel called “bead lock”, which makes it easy for tubeless tire inflation.

Together with hooked bead to well lock the tire, prevent it from blowing out.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in carbon gravel wheelset thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Gravel Disc Brake

Gravel disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber gravel bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
