• 25mm and 28mm width carbon rims optional
• Affordable price ProX R98 road hubs, for rim-brake
• Shimano/Sram 11-12 speed freehub available
• Pillar 1423 spokes, aero and strong
• Compatible for 700*25C-45C tire (tubeless ready)
Item NO.:
R98 Clincher WheelsPayment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable):

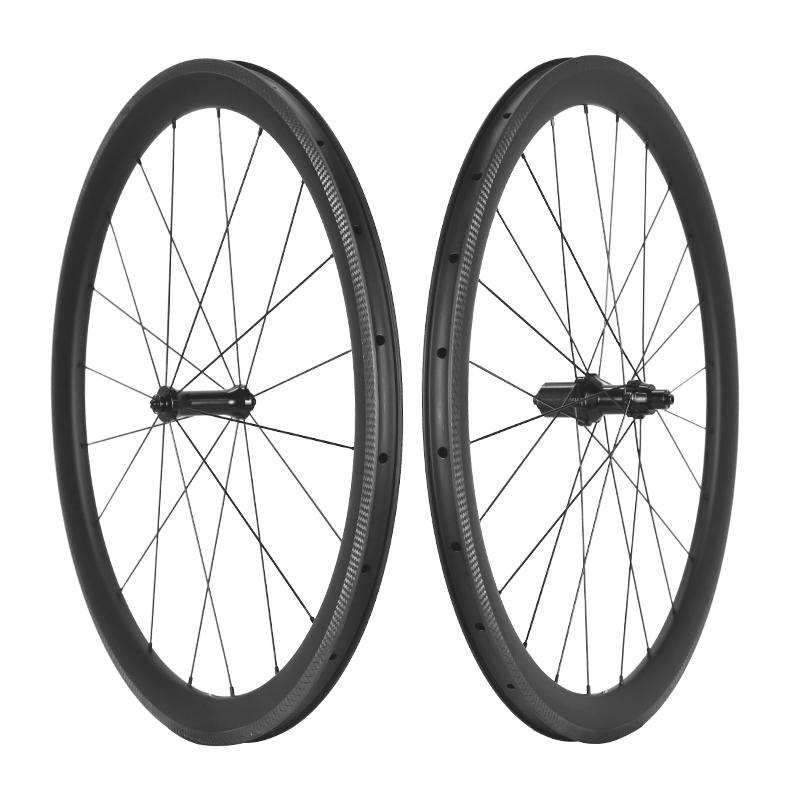

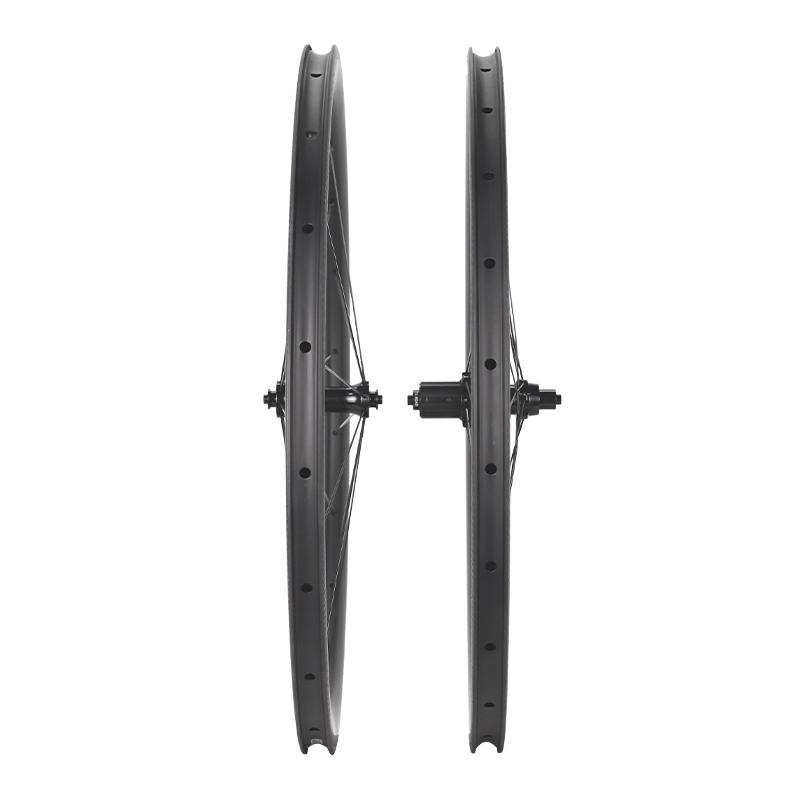

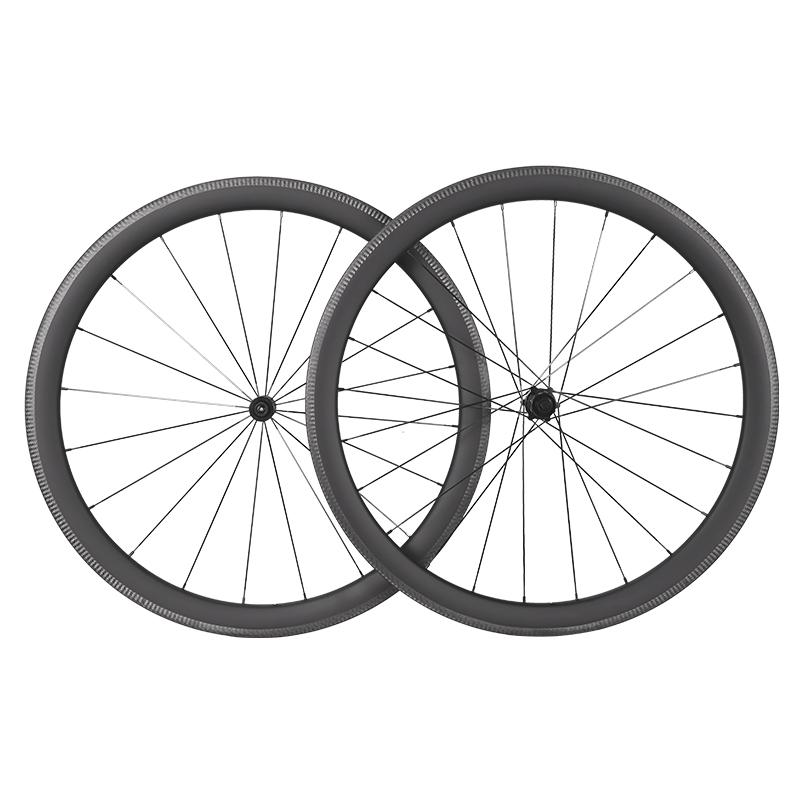

ProX Own Mould R98 Road Wheels - Affordable Rim-brake Carbon Wheelset For Training

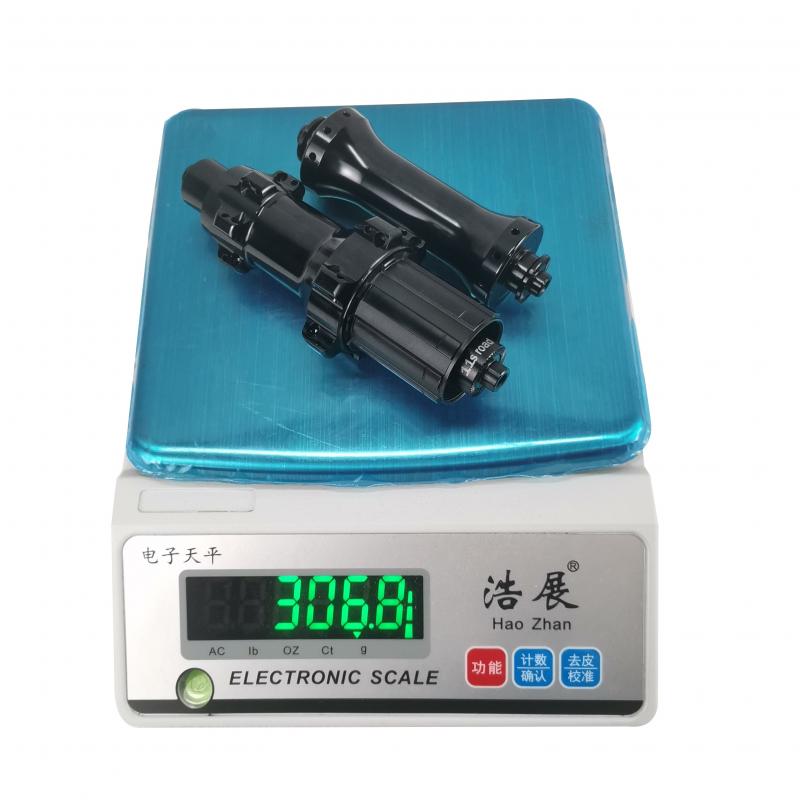

Considering the cost of DT Swiss hubs increases quickly, and lead time is getting longer and longer, ProX has developed our own mould rim brake hubs (called R98).
ProX R98 road rim-brake hubs are designed with 4-pawl freehub system, stable quality with affordable price.
R98 hubs can be made with your customized logo (either etch logo or make stickers on the hubs). So it will become your own brand hubs!
ProX provides two width option for our R98 rim-brake carbon wheels. That is, 28mm width carbon clincher rims, and 25mm width carbon rims clincher.
Both series rims are with high TG 3K grooved braking track, which provides more friction, shorten about 30% braking distance, faster heat elimination.
The 28mm width rim series (model PRV28) is with 28mm outer (21mm inner) width.
For such wide road rims, the optimized aerodynamics tire size is 700*28C. If you plan to use 28C (or wider) tire, PRV28 rim series is recommended.
The 25mm width rim series (model PRV25) is with 25mm outer (18mm inner) width.
For such wide road rims, the optimized aerodynamics tire size is 700*25C. If you plan to use 25C tire, PRV25 rim series is recommended.
This affordable carbon bike wheels are more suitable for below range of cyclists who are looking to update the biking performance without breaking the bank.
Casual riders: who enjoy cycling for fitness or leisure may be interested in upgrading their bike wheels for better performance and a more enjoyable riding experience.
Commuters: who commute to work by riding affordable carbon bike wheels. These wheels can provide improved speed, efficiency, and durability, making the daily commute more enjoyable.
Amateur racers: who participate in amateur races or local cycling events. Carbon bike wheels are known for their lightweight and aerodynamic feature, which can improve speed and handling.
Budget-conscious people: who want the benefits from carbon wheels and also with affordable price. This carbon wheels can provide a performance upgrading without the high price.
ProX R98 Rim Brake Carbon Road Wheelset Specification:
-Hub:ProX R98 road (front 5*100mm QR/rear 5*130mm QR).
With regular(steel) bearings
-Brake type: rim brake/non-disc
-Cassette Body: Shimano 11/12s or Sram 12s XDR optional
-Type: straight pull
-Spoke Hole Count: front 20H/rear 24H
-Tire Type:Clincher/tubeless ready
-Spoke: Pillar 1423
-Spoke Tension(recommended): ≤130kgf
our built wheels: 100~110kgf on front, 120~130kgf on rear drive side
-Tire Pressure: 125psi/8.6bar
-Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.
-Warranty Year: 2 years

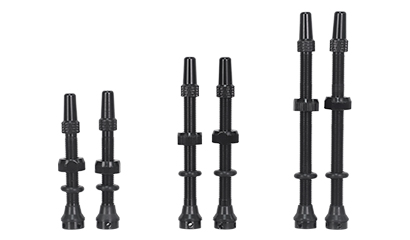

-Tubeless Valve (not included): 44/60/80mm length optional
ProX R98 Rim-brake Carbon Clincher Wheels Built With 28mm Width Rims
| Model | Rim | Depth | Outer Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
| R98-PRV28-33C-1423 | PRV28-33C | 33mm | 28mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*28C-45C | 1535g |
| R98-PRV28-38C-1423 | PRV28-38C | 38mm | 28mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*28C-45C | 1555g |
| R98-PRV28-44C-1423 | PRV28-44C | 44mm | 28mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*28C-45C | 1575g |
| R98-PRV28-50C-1423 | PRV28-50C | 50mm | 28mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*28C-45C | 1635g |
| R98-PRV28-55C-1423 | PRV28-55C | 55mm | 28mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*28C-45C | 1675g |
700C Rim-brake Carbon Clincher Rims 28mm Width
| Rims | PRV28-33C | PRV28-38C | PRV28-44C | PRV28-50C | PRV28-55C |
| Max Weight Limit | 110kg/242lb | 115kg/253lb | 120kg/265lb | 120kg/265lb | 120kg/265lb |
| Material | T700 | T700 | T700 | T700 | T700 |
| Sectional Drawing |
|
|
|
|
|
ProX R98 Rim-brake Carbon Clincher Wheels Built With 25mm Width Rims
| Model | Rim | Depth | Outer Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
| R98-PRV25-38C-1423 | PRV25-38C | 38mm | 25mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*25C-45C | 1535g |
| R98-PRV25-45C-1423 | PRV25-45C | 45mm | 25mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*25C-45C | 1575g |
| R98-PRV25-50C-1423 | PRV25-50C | 50mm | 25mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*25C-45C | 1615g |
| R98-PRV25-60C-1423 | PRV25-60C | 60mm | 25mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*25C-45C | 1735g |
| R98-PRV25-80C-1423 | PRV25-80C | 80mm | 25mm | Tubeless or Clincher | ProX R98 road | 5*100mm QR | 5*130mm QR | Pillar 1423 | 700*25C-45C | 1935g |
700C Rim-brake Carbon Clincher Rims 25mm Width
Rims
PRV25-38C
PRV25-45C
PRV25-50C
PRV25-60C
PRV25-80C
Max Weight Limit
115kg/253lb
120kg/265lb
120kg/265lb
125kg/275lb
125kg/275lb
Material
T700
T700
T700
T700
T700
Sectional Drawing
 |
Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight road carbon rims.
|
 |
Wider Inner Width
Wider 21mm inner width, optimized for increasingly popular 700x28C tires (also fit even wider tires). Wider stance for tire, easy tire mounting and dismounting. Better traction and cornering performance.
|
 |
Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape road bike carbon rims. It is also of better stiffness and strength. |
 |
Tubeless Ready
Tubeless tire is getting popular in carbon road bike wheelset thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 |

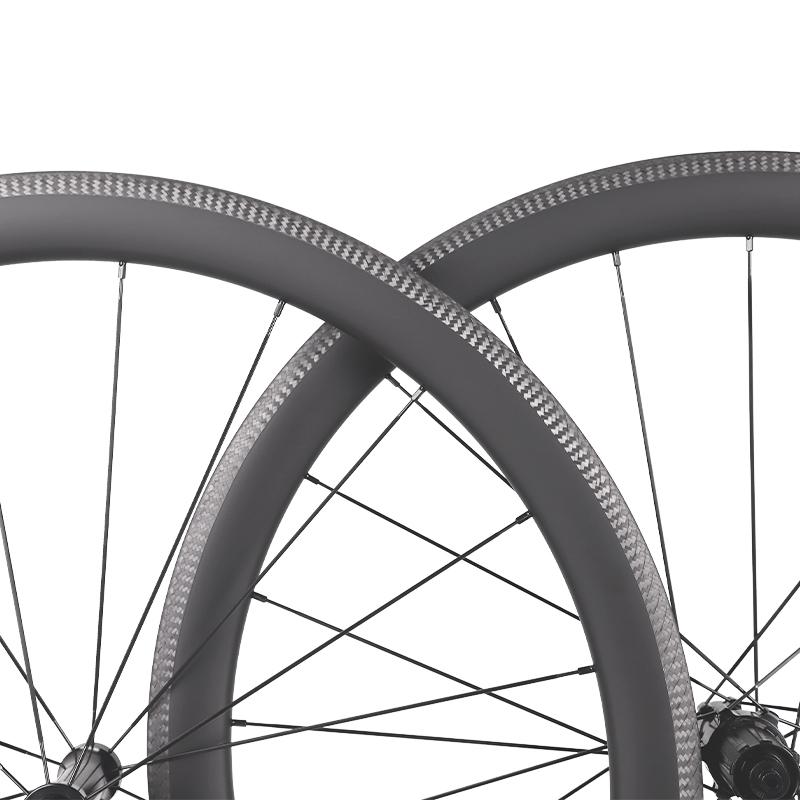

Rim Brake Road carbon rims designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface. Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition. Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.
|
 |
Hand Built All our carbon bike wheelsets are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
 |

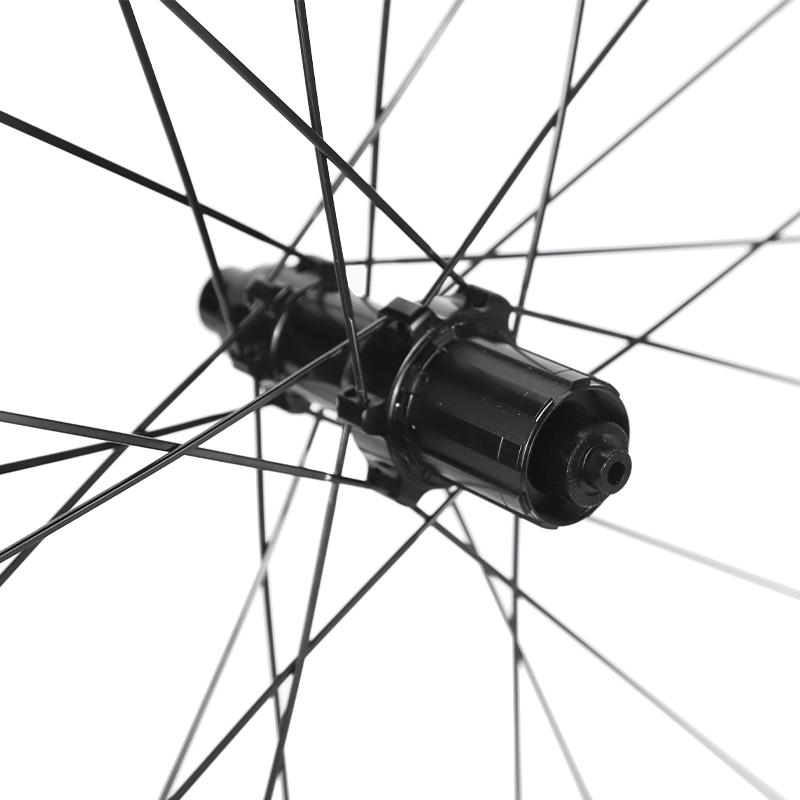

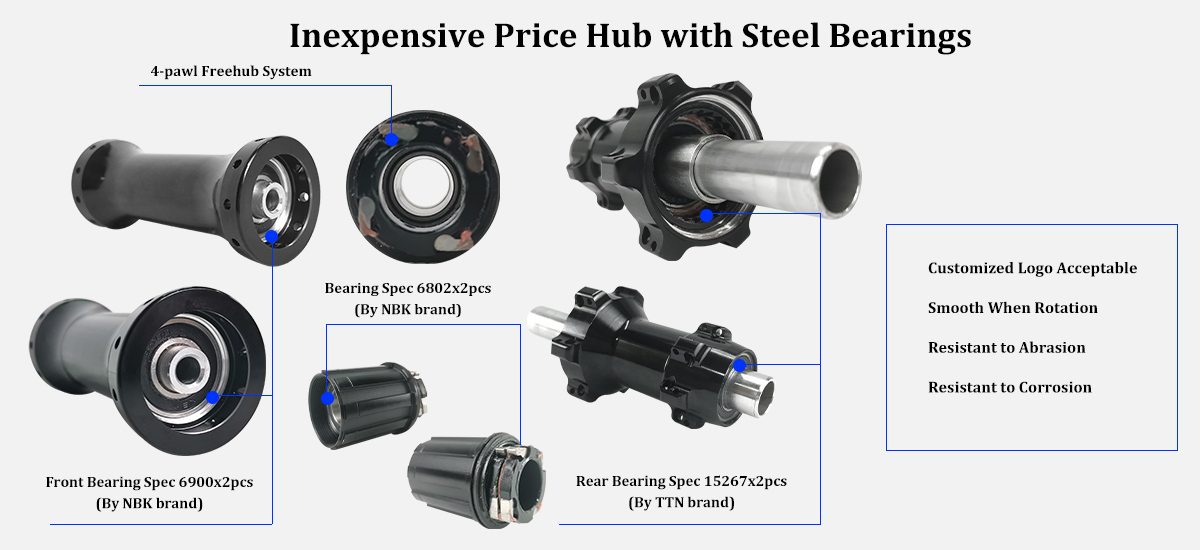

ProX Road Hubs ProX own mould R98 road hubs are used. High quality hubs with affordable price for carbon rim brake wheelset. R98 road rim brake hubs are designed with 4-pawl freehub system with regular steel bearings. Such hubs can also be etched with your customized logo.
|
 |
Pillar Spokes The popular Pillar PSR AERO 1423 spokes are used. Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%. Perfect aero shape, high elasticity and low drag coefficient.
|
 |
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page.
|
