29er And 650b Gravel Bike Carbon Rims Apr 10, 2022

Gravel bike has been more and more popular during the past several years. It is the middle ground between regular road bikes and XC mountain bikes.

Compared to regular road bikes, gravel bikes enable riders to have more upright riding postures for better comfort and control during off-road riding.

Compared to mountain bikes which typically come with flat handlebars, drop bars for gravel bikes provide more hand positions, allowing riders to adjust during long journey adventure so as to reduce fatigue and improve comfort. Thus, riders can reach high speed on paved roads with a lower riding posture, and have great handle during off-road riding with higher riding posture.

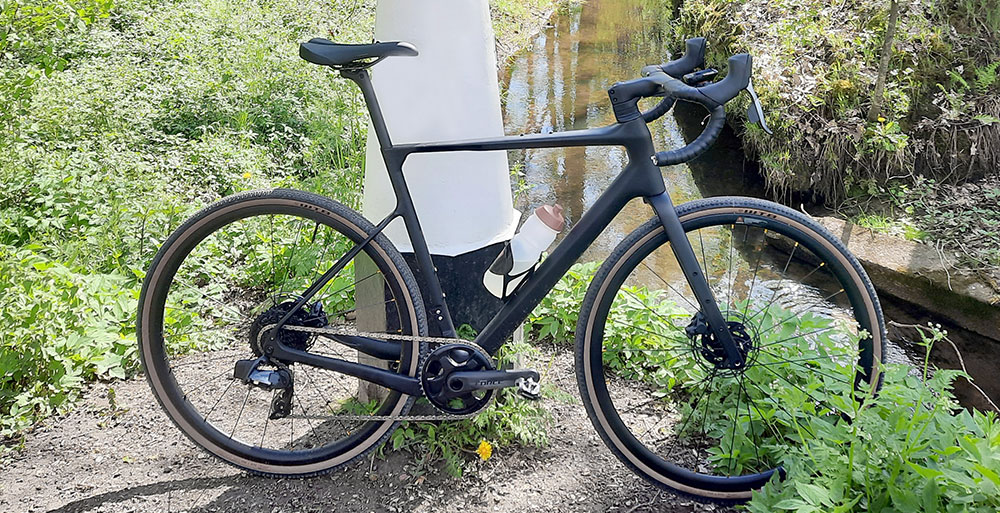

carbon gravel bike

To meet the various demand, ProX produces both 700C gravel bike rims as well as 650b and 29er gravel rims.

If you plan to make your gravel bike closer to Road bike (use tire smaller than 700*50C), our 700C gravel bike carbon rims are recommended.

However, if you want to make your gravel bike closer to Mountain bike (use wider tire than 2.0’’) and is also able to be used for XC riding, our 29er and 650b gravel carbon rims are recommended.

Besides, you can also built mullet wheel with such carbon gravel rims (front wheel 29er, rear wheel 650b). 29er wheel have better rollover speed and is easier to overcome obstacles, while 650b wheel provides better controllability.

The detail of ProX carbon rims for gravel bike can be found in below table.

ProX 700C Gravel Bike Carbon Rims (Disc Brake, Tubeless Ready)

Model PCX28 PCX33 PZX33 PCX44 PZX44
Size 700C 700C 700C 700C 700C
Terrian(Recommended) Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel
Material T700+T800 T700+T800 T700+T800 T700+T800 T700+T800
Weight(±15g) 380g 400g 400g 430g 430g
Depth 28mm 33mm 33mm 44mm 44mm
Sectional Drawing rim drawing of carbon gravel 28mm rim drawing of carbon gravel 33mm rim drawing of carbon gravel 33mm hookless rim drawing of carbon gravel 44mm rim drawing of carbon gravel 44mm hookless
Rim Bead Hook Hook Hookless Hook Hookless
Tire Size(Recommended) 700*30C-50C 700*30C-50C 700*30C-50C 700*30C-50C 700*30C-50C


ProX 29er And 650b Gravel Bike Carbon Rims (Tubeless Ready)

Model PCX930 PZX930 PCX730 PZX730
Size 29er 29er 650b 650b
Terrain(Recommended) Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel
Material T700+T800 T700+T800 T700+T800 T700+T800
Weight(±15g) 450g 430g 430g 410g
Depth 36mm 36mm 36mm 36mm
Sectional Drawing gravel carbon rims PCX930 gravel carbon rims PZX930 gravel carbon rims PCX730 gravel carbon rims PZX730
Rim Bead Hook Hookless Hook Hookless
Tire Size(Recommended) 29er*2.0''-2.4''

29er*2.0''-2.4''

650b*2.0''-2.4''

650b*2.0''-2.4''
