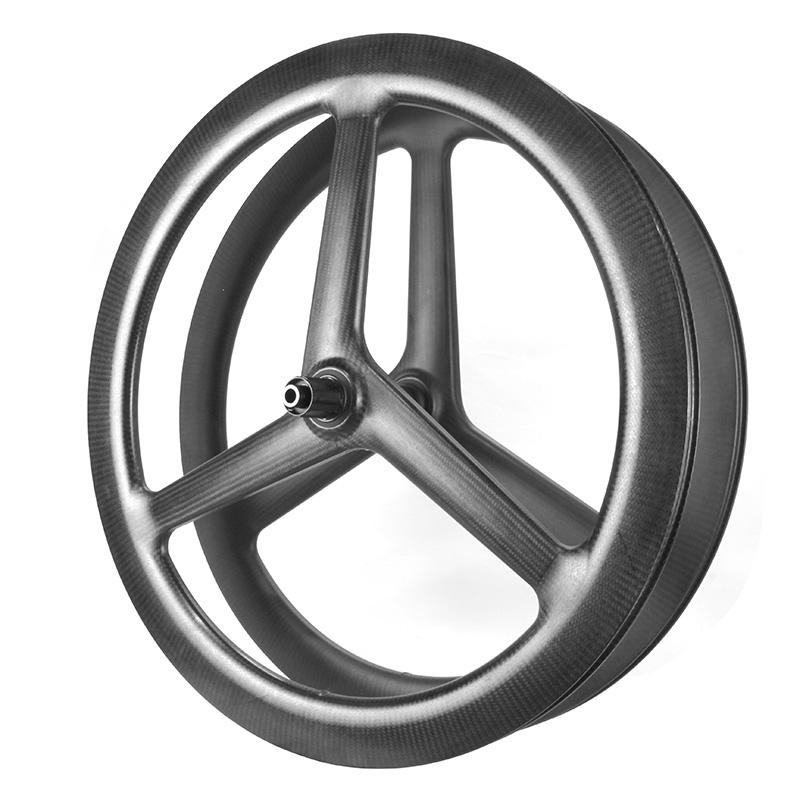

ProX 3-Spoke Carbon Wheel 27mm Wide Aero 700C Tri Spoke Wheel

• 27mm width, 58mm depth, better aerodynamics

OEM hub with 36T ratchet system

• Tri spoke carbon wheel for 700C Road/TT/Track bikes

• Clincher(tubeless ready)

• Disc brake & rim-brake version optional

  • Item NO.:

    P3-58C
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

The tri-spoke carbon wheel is perfectly suited for triathlon, time trial and track riding.

Compared to regular road wheels, carbon spoke wheel is relatively heavier, but it’s outstanding in aerodynamics and stiffness which are critical for TT/Track bikes.

27mm outer width is an absolute and perfect choice to follow latest popular tendency in the carbon bike market. 21mm inner 27mm outer width, optimized aerodynamics for 700x28C tires.

ProX 3-spoke carbon wheel features

Wheels options:
In terms of weight, ProX tri spoke carbon wheel offers two weight options, regular version(made from carbon T700) and lightweight version(made from carbon T700+T800). The max rider weight limit is 120kg/265lb for both of them. The weight difference is around 90g per wheel. If you pay more attention to the weight, take the lightweight version into your consideration.
Good quality OEM PX hubs are made by well selected hub manufacturer in Taiwan, using 36T ratchet system. This series hubs are workable for rim brake, disc brake and track system separately.
All of them are designed with a very refined and reliable ratchet freehub system, which improves power transfer efficiency and the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. The ratchet freehub system is applied on high-end hub brand hubs generally, such as DT Swiss hubs.
For the rear hub cassette body, the Shimano 11/12s and SRAM 12s XDR freehub are optional.

SPECIFICATION

ProX 27mm Width Aero and Stiff Tri-Spoke Carbon Wheel Specification:

-Hub: OEM ProX hubs (made in Taiwan)

-Cassette Body: Shimano 11/12s or Sram 12s XDR

-Tire Type: Clincher(tubeless)

-Rim Width: 21mm inner/27mm outer

-Rim Depth: 58mm

-Brake Type: rim-brake and disc brake optional

-Tire Pressure: 125psi/8.6bar

-Warranty Year: 2 years


 Model Category Max Weight Limit Brake Type Rim Depth Tire Type Terrain Material Hub Hub Size Weight(+/-30g)
P3-58C-Road-F-SL 3-spoke Front 120kg/265lb Rim Brake 58mm Clincher Road/TT T700+T800 ProX RT36 hub 5*100mm QR 820g
P3-58C-Road-F 3-spoke Front 120kg/265lb Rim Brake 58mm Clincher Road/TT T700 ProX RT36 hub 5*100mm QR 910g
P3-58C-Road-R-SL 3-spoke Rear 120kg/265lb Rim Brake 58mm Clincher Road/TT T700+T800 ProX RT36 hub 5*130mm QR 950g
P3-58C-Road-R 3-spoke Rear 120kg/265lb Rim Brake 58mm Clincher Road/TT T700 ProX RT36 hub 5*130mm QR 1040g
P3-58C DB-Road-F-SL 3-spoke Front 120kg/265lb Disc Brake 58mm Clincher Road/TT T700+T800 ProX 36DB hub 12*100mm TA 810g
P3-58C DB-Road-F 3-spoke Front 120kg/265lb Disc Brake 58mm Clincher Road/TT T700 ProX 36DB hub 12*100mm TA 900g
P3-58C DB-Road-R-SL 3-spoke Rear 120kg/265lb Disc Brake 58mm Clincher Road/TT T700+T800 ProX 36DB hub 12*142mm TA 940g
P3-58C DB-Road-R 3-spoke Rear 120kg/265lb Disc Brake 58mm Clincher Road/TT T700 ProX 36DB hub 12*142mm TA 1030g
P3-58C-Track-F-SL 3-spoke Front 120kg/265lb N/A 58mm Clincher Track T700+T800 ProX T36 hub 9*100mm 820g
P3-58C-Track-F 3-spoke Front 120kg/265lb N/A 58mm Clincher Track T700 ProX T36 hub 9*100mm 910g
P3-58C-Track-R-SL 3-spoke Rear 120kg/265lb N/A 58mm Clincher Track T700+T800 ProX T36 hub 10*120mm 900g
P3-58C-Track-R 3-spoke Rear 120kg/265lb N/A 58mm Clincher Track T700 ProX T36 hub 10*120mm 990g

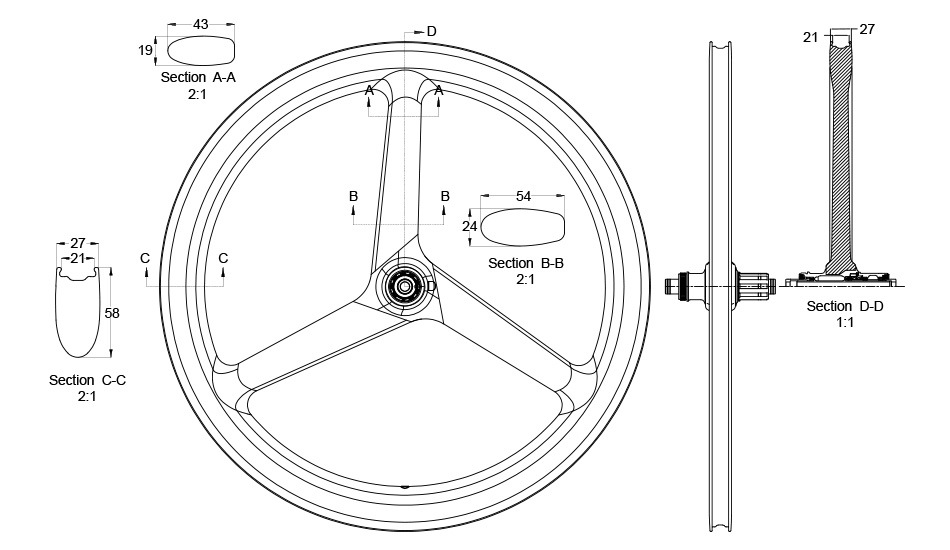

ProX tri-spoke carbon wheel geometry
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 and T800 carbon fiber are used in our road carbon 3-spoke wheels.

Combining with stable resin system to make consistent quality and high strength 3-spoke carbon wheels.

Tubeless

Tubeless

Tubeless tire is getting popular in carbon TT/Track wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our 3-spoke road bike wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Wider Inner Width

Relatively wider 21mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x28C are recommended (also fit other wider tires).

Chosen Road Hubs

OEM ProX Hubs

OEM hubs are used in our 3-spoke wheels which are designed with 36T ratchet freehub system. Stable quality and competitive price.

Different hub spacings optional for rim brake (5*100/5*130QR), disc brake (12*100/12*142TA), as well as track bike (9*120mm).

With Shimano 11/12 speed, Sram 12 speed XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
