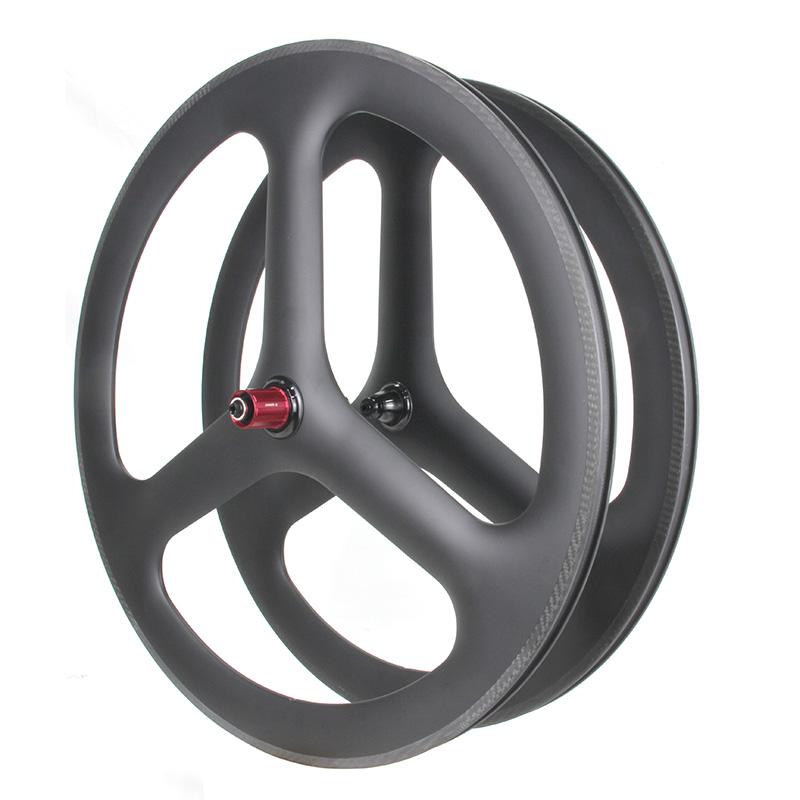

ProX 3-Spoke Carbon Wheel 700C 3-Spoke Wheel For Road-TT-Track Bikes

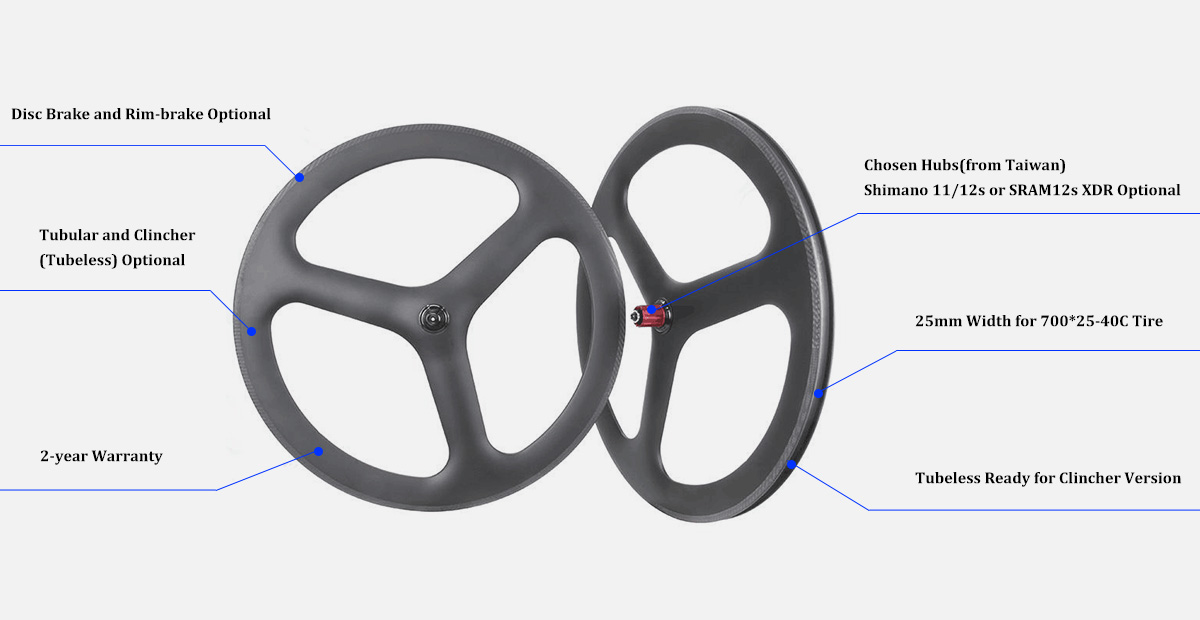

• 25mm width, 55mm depth

• 3-spoke wheel for Road/TT/Track bikes

• Both tubular and clincher(tubeless) available

• Disc brake and rim-brake version optional

• High quality Chosen hubs from Taiwan

  • Item NO.:

    P3-55
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

In Triathlon, Time Trial and Track bikes, 3-spoke, 5-spoke and full disc carbon wheels are widely used.

Compared to regular wheels, carbon spoke and full disc wheels are relatively heavier, but they are outstanding in aerodynamics and stiffness which are critical for TT/Track bikes.

Since TT/Track bikes are normally used in flat road condition, a bit heavier weight is not the cons. Instead, it could be the pros considering heavier weight provides greater inertia and helps riders to keep at higher speed during cruise phase.

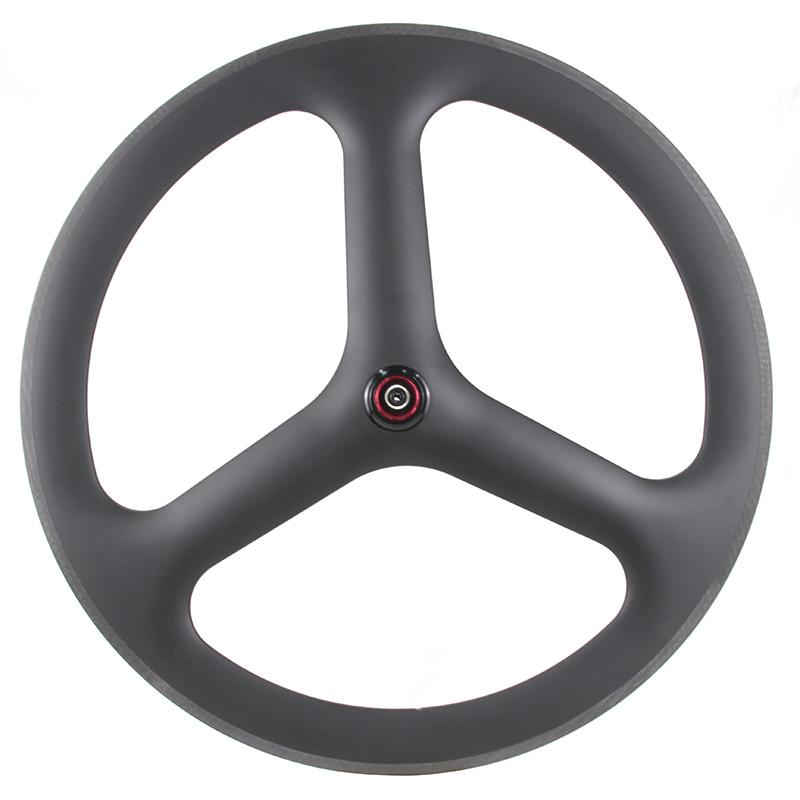

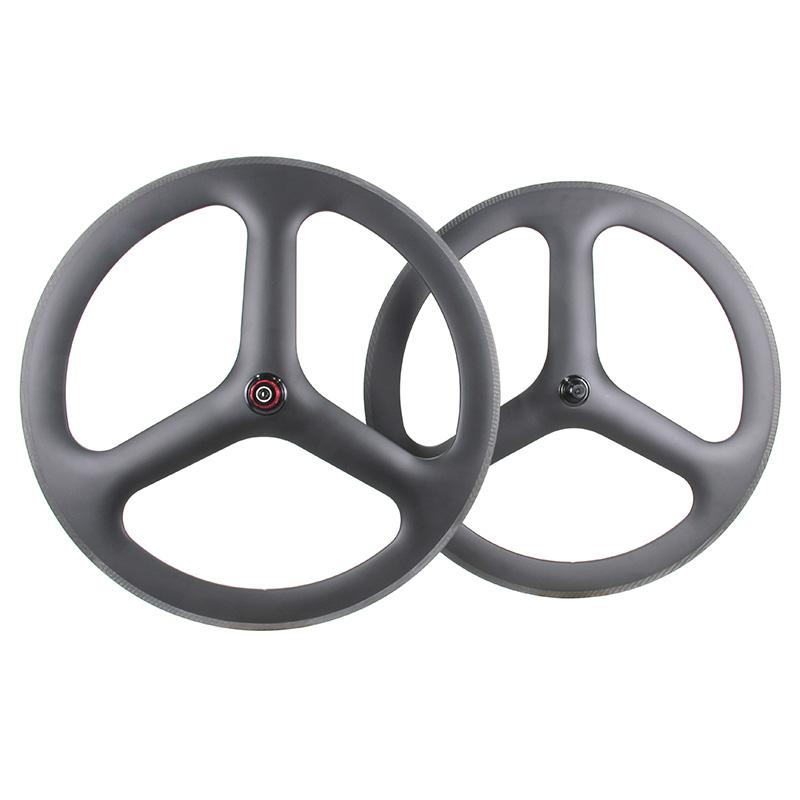

3 spoke bike wheels

Our 3-spoke carbon wheels are made with thicker side wall compared to regular carbon rims, which provides better stiffness and strength.

The 3 carbon beams are designed with bladed shape and is one-piece molded with the rest of wheels, which helps to optimize aerodynamics.

In our tri-spoke carbon wheelset, Chosen hubs (made in Taiwan) are used, with Shimano 11/12s and Sram 12s XDR freehub optional. Both tubular and clincher(tubeless), disc brake and rim brake versions are available.

SPECIFICATION

ProX Aero and Stiff 3-Spoke Carbon Wheels Specification:

-Hub: Chosen hubs (made in Taiwan)

-Cassette Body: Shimano 11/12s or Sram 12s XDR

-Tire Type: Tubular, Clincher(tubeless)

-Rim Width: 25mm

-Rim Depth: 55mm

-Brake Type: rim-brake and disc brake optional

-Tire Pressure: 125psi/8.6bar

-Warranty Year: 2 years


 Model Category Max Weight Limit Brake Type Rim Depth Tire Type Terrian  Front/Rear Hub Hub Size Weight(+/-30g)
P3-55T-Road-F 3-spoke Front 120kg/265lb Rim Brake 55mm Tubular Road/TT Front Chosen Hub 5*100mm QR 750g
P3-55C-Road-F 3-spoke Front 120kg/265lb Rim Brake 55mm Clincher Road/TT Front Chosen Hub 5*100mm QR 850g
P3-55T-Road-R 3-spoke Rear 120kg/265lb Rim Brake 55mm Tubular Road/TT Rear Chosen Hub 5*130mm QR 900g
P3-55C-Road-R 3-spoke Rear 120kg/265lb Rim Brake 55mm Clincher Road/TT Rear Chosen Hub 5*130mm QR 950g
P3-55T DB-Road-F 3-spoke Front 120kg/265lb Disc Brake 55mm Tubular Road/TT Front Chosen Hub 12*100mm TA 760g
P3-55C DB-Road-F 3-spoke Front 120kg/265lb Disc Brake 55mm Clincher Road/TT Front Chosen Hub 12*100mm TA 860g
P3-55T DB-Road-R 3-spoke Rear 120kg/265lb Disc Brake 55mm Tubular Road/TT Rear Chosen Hub 12*142mm TA 910g
P3-55C DB-Road-R 3-spoke Rear 120kg/265lb Disc Brake 55mm Clincher Road/TT Rear Chosen Hub 12*142mm TA 960g
P3-55T-Track-F 3-spoke Front 120kg/265lb N/A 55mm Tubular Track Front Chosen Hub 9*100mm 750g
P3-55C-Track-F 3-spoke Front 120kg/265lb N/A 55mm Clincher Track Front Chosen Hub 9*100mm 850g
P3-55T-Track-R 3-spoke Rear 120kg/265lb N/A 55mm Tubular Track Rear Chosen Hub 10*120mm 900g
P3-55C-Track-R 3-spoke Rear 120kg/265lb N/A 55mm Clincher Track Rear Chosen Hub 10*120mm 950g

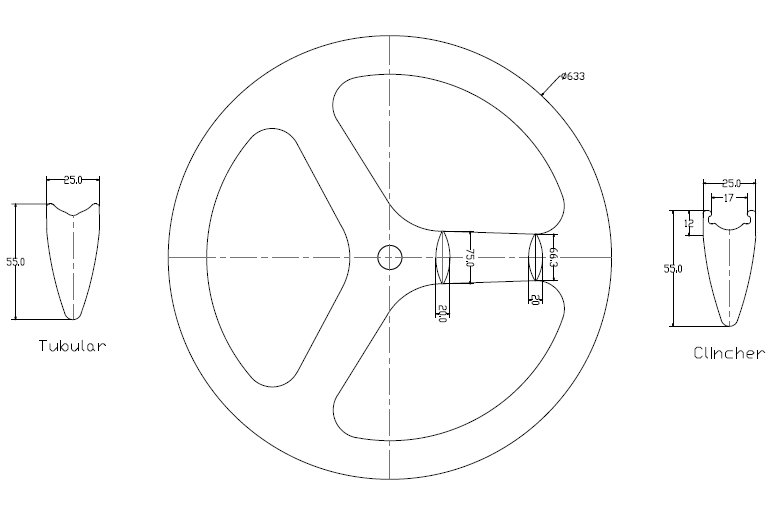

3-spoke carbon wheels drawing
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our road carbon 3-spoke wheels.

Combining with stable resin system to make consistent quality and high strength 3-spoke carbon wheels.

Tubeless

Tubeless

Tubeless tire is getting popular in carbon TT/Track wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our 3-spoke road bike wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Narrow Inner Width

Relatively narrow 17mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

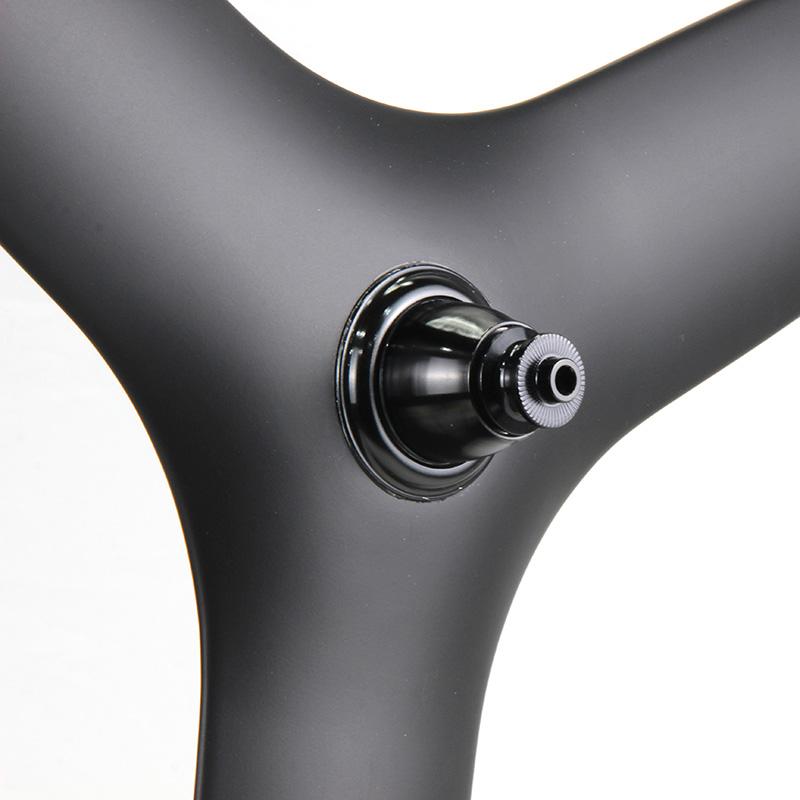

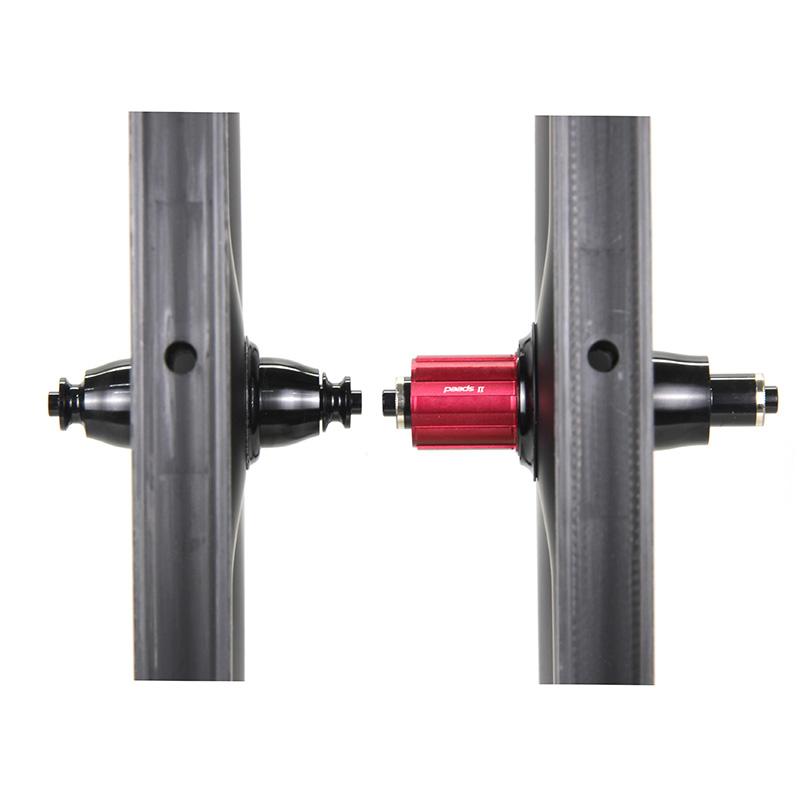

Chosen Road Hubs

Chosen Road Hubs

Chosen Road hubs are used in our 3-spoke wheels. Stable quality and competitive price.

Different hub spacings optional for rim brake (5*100/5*130QR), disc brake (12*100/12*142TA), as well as track bike (9*100/10*120mm).

With Shimano 11/12 speed, Sram 12 speed XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
