29er Asymmetric MTB Carbon Rims

/ProX Asymmetric Carbon MTB Rims 29 Inch MTB Rims Tubeless Ready

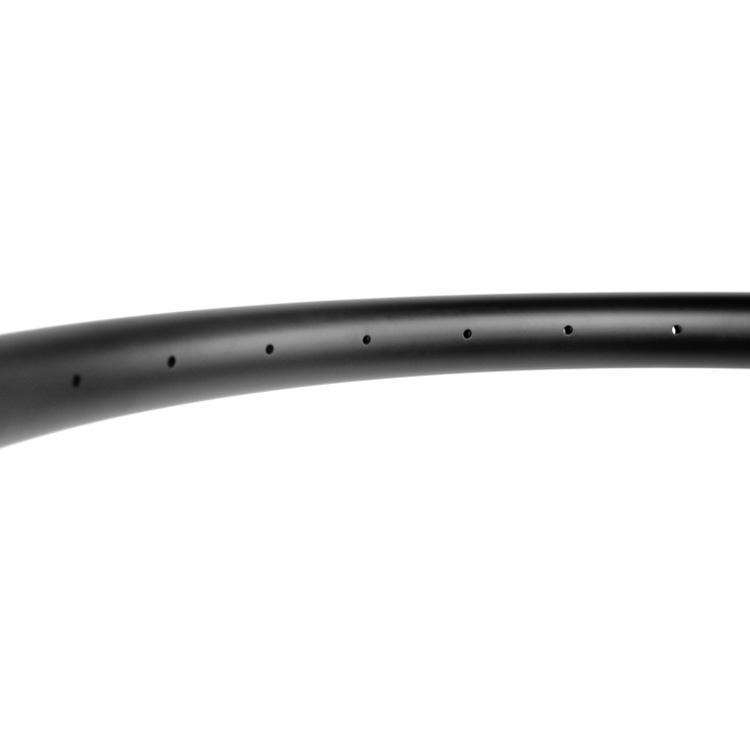

carbon mtb rims 29
carbon mtb rims 29 carbon mtb rims 29 carbon mtb rims 29 carbon mtb rims 29 carbon mtb rims 29 carbon mtb rims 29 carbon mtb rims 29 carbon mtb rims 29

ProX Asymmetric Carbon MTB Rims 29 Inch MTB Rims Tubeless Ready

• Asymmetric design for even spoke tension

• Tubeless ready carbon MTB rims

• 30/33/37/38/40mm width for XC/TR/AM/EN/Ebike

• Light weight T700+T800+Graphene material

• High quality, 2-year warranty

  • Brand:

    PROX

  • Item NO.:

    PAD-29

  • Payment:

    Paypal, Bank Transfer

  • Origin:

    China

  • Color:

    UD/3K/12K(Customized Decal Acceptable)
Inquiry now
DESCRIPTION

For MTB carbon rims, strength should be top priority which is essential for riders’ safety and good cycling experience.

PAD29 (ProX Asymmetric Design mtb 29er) carbon rims are made from premium Toray T700+T800 carbon fiber which is the basis to make high strength mtb carbon rims.

In addition, we optimize rim lay-up design, eliminate excessive materials to save weight, and add extra materials around spoke hole area for reinforcement.

Thus, our MTB carbon rims are light weight, but still strong and durable.

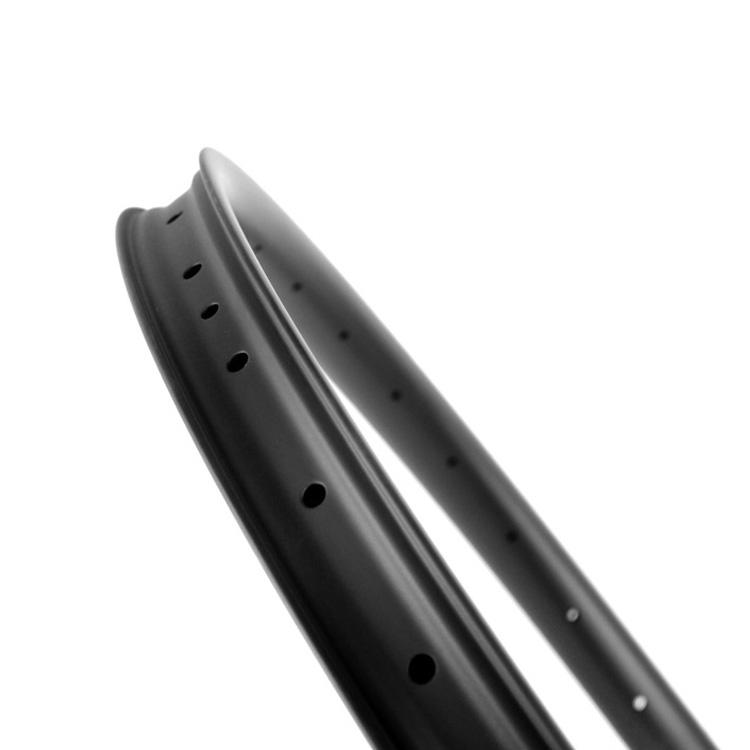

carbon-bike-rims

Asymmetric design helps to make wheelset with more even spoke tension between drive side and non-drive side. On the one hand, it makes wheelset stiffer since the spoke tension on non-drive side can be higher (than regular carbon wheels built with symmetric rims). On the other hand, the closer spoke tension between two sides make the wheelset more difficult to get loose after long time of use, which means less maintenance is needed.

PAD29 mtb carbon rims are optional in 30/33/38/40mm width, to meet different usage of XC, Trail, All Mountain, Enduro and Ebike.

SPECIFICATION

ProX Asymmetric Design 29er MTB Carbon Rims For XC/TR/AM/EN/Ebike

Model  PAD930-XC PAD930GP-XC PAD933GP-XC PAD933-TR PAD938-AM PAD938-EN
  PMC937-EN
 PAD940-EN
Terrain(Recommended) Cross Country Cross Country Cross Country Trail All Mountain Enduro/E-bike
 AM/Enduro
 Enduro/E-bike
Material T700 T700+T800

+Graphene

T700+T800

+Graphene

T700+T800

+Graphene

T700 T700
 T700
 T700
Weight(±15g) 360g 310g 340g 380g 450g 490g
 500g
 490g
Width 30mm 30mm 33mm 33mm 38mm 38mm
 37mm
 40mm
Rim Offset  2.6mm 2.6mm 3mm 3mm 3mm 3mm
 3mm
 3.5mm
ERD* 595mm 595mm 589mm 589mm 583mm 583mm
 603mm
 583mm
Tire Bead Hookless Hookless Hookless Hookless Hookless Hookless
 Hookless
 Hookless
Tire Type Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher
 Tubeless or Clincher
 Tubeless or Clincher
Max Weight Limit 120kg/265lb 100kg/220lb 100kg/220lb 120kg/265lb 120kg/265lb 120kg/265lb
 120kg/265lb
 120kg/265lb
Max Spoke Tension 145kgf  145kgf  145kgf  145kgf  145kgf  145kgf
 145kgf
 145kgf
Max Tire Pressure 40psi/2.7bar 40psi/2.7bar 40psi/2.7bar 40psi/2.7bar 35psi/2.4bar 35psi/2.4bar
 35psi/2.4bar
 35psi/2.4bar
Tire Size(Recommended) 29*2.0''-2.4'' 29*2.0''-2.4'' 29*2.1''-2.5'' 29*2.1''-2.5'' 29*2.3''-2.8'' 29*2.3''-2.8''
 29*2.25''-2.6''
 29*2.35''-3.0''
Sectional Drawing 29 mountain bike rims xc
 29 mountain bike rims xc riding
 29er mtb carbon rim 33mm width 29er mtb carbon rim 33mm width 29er mtb carbon rim 38mm width 29er mtb carbon rim 38mm width
29 mountain bike rims enduro

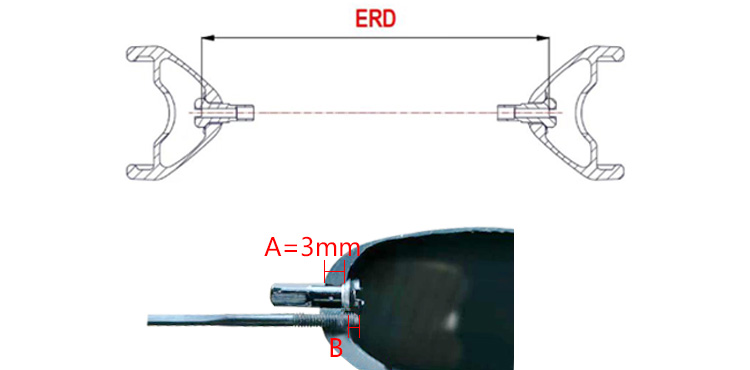

ERD of mountain bike rims 29 inch

ERD*

Effective Rim Diameter (ERD) is the maximum distance that spokes need to bridge going from one end of the rim to another. How do we calculate the ERD of our rims? The corresponding equation and a drawing is as shown:

ERD=OD-(rim depth)*2+(rim thickness)*2

For example：

ERD of PAD930-XC rim=633mm-22mm*2+3mm*2=595mm

Most people prefer ERD including the length of the nipple cap. However, customers may use different nipples and components for building. Please add the height of the nipple cap(2.5mm~3mm generally) for your spoke calculation. If the height of the nipple cap is 3mm, then ERD of your PAD930-XC rim is 595mm+3mm*2=601mm


A: Rim nipple bed thickness (=3mm)

B: Length of nipple cap (2.5mm~3mm generally)


TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Besides, advanced graphene filling technology is used in producing our super light MTB carbon rims (GP model).

Combining with stable resin system to make consistent quality and light weight 29er mountain bike rims.

Light Weight

Light Weight

Graphene filling Toray T700 + T800 carbon prepreg are well combined in our lay-up structure design, to create light weight carbon bike rims.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Asymmetric Design

Asymmetric Design

Asymmetric design mtb rims help to make wheelset with more even spoke tension between drive side and non-drive side.

Carbon mtb wheels built with asymmetric rims are of better stiffness and stability.

The spoke tension on such wheelset will not get loose easily, lower frequency for re-truing is needed.

Hookless Design

Hookless Design

Compared to bead hook rims, the sidewalls of hookless rims are thicker and stronger, providing better impact resistance.

Straight bead provides more stance for tire. Tires will not be squeezed in bead as it was, which makes it less "light bulb effect".

Thus, the tire/rim engagement is more stable, more difficult to be blown out under strong impact, which is important for carbon mtb rims.

Tubeless Ready

Tubeless Ready

Tubeless tire has been the mainstream of mountain bike carbon wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
