• 30mm and 28mm width carbon rims optional
• Pro racing DT Swiss 180 EXP disc brake hubs
• Shimano/Sram 11-12 speed freehub available
• Sapim CX-Ray spokes, super aero and light
• Compatible for 700*28C-45C tire (tubeless ready)
Brand:
PROXItem NO.:
180DB Clincher WheelPayment:
Paypal, Bank TransferColor:
UD/3K/12K(Customized Decal Acceptable)

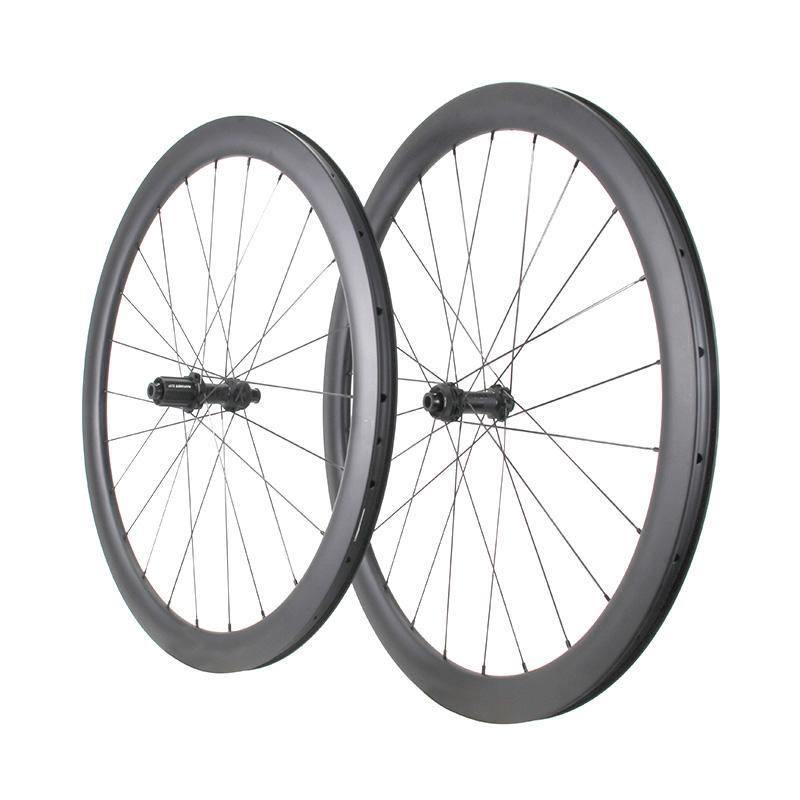

ProX DT180 EXP Disc Brake Road Wheels - Best Carbon Wheels For Racing
Equipped with upgraded Ratchet EXP technology, the newest DT Swiss 180 road hub is ultimate in precision, lightness and stiffness. The refined end-caps are simplified for tool-free disassembly. What's more, powered by premium ceramic bearings, the rolling resistance is minimized, which enables you to ride faster with less effort. Carbon wheels built with DT180 hubs are ideal for professional racing.
ProX provides two width option for our DT180 disc brake carbon road wheels. That is, 30mm width carbon clincher rims, and 28mm width carbon rims clincher.
The 30mm width rim series (model PAD-SL) is with 30mm outer (22mm inner) width, and features asymmetric design.
For such wide road rims, the optimized aerodynamics tire size is 700*30C. If you plan to use 30C tire, PAD-SL rim series is recommended.
The 28mm width rim series (model PRD28) is with 28mm outer (21mm inner) width, and common symmetric design.
For such wide road rims, the optimized aerodynamics tire size is 700*28C. If you plan to use 28C tire, PRD28 rim series is recommended.
To match premium DT180 hubs, high-end Sapim CX-Ray spokes are used, which is one of the best spokes available in the market.
Sapim CX-Ray spokes is the best combination of light weight, strength, flexibility, and it performs best in fatigue testing.
Premium hubs, spokes and rims make best carbon wheels for racing.
ProX Best DT180 Carbon Disc Wheelset Specification:
-Hub:DT180 Road disc EXP ratchet(front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Rear Cassette Body: Shimano 11/12s or Sram 12s XDR optional
-Freehub System: Ratchet EXP 36
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type:Clincher/tubeless ready
-Spoke: Sapim CX-Ray
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years
DT180 Disc Brake Carbon Road Wheels Built With Asymmetric Carbon Rims (30mm width)
Model
Rim
Depth
Outer Width
Tire Type
Hub
Front Size
Rear Size
Spoke
180DB-PAD35C-Ray
PAD35C-SL
35mm
30mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1342g
180DB-PAD45C-Ray
PAD45C-SL
45mm
30mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1432g
180DB-PAD50C-Ray
PAD50C-SL
50mm
30mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1472g
180DB-PAD58C-Ray
PAD58C-SL
58mm
30mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1572g
700C Asymmetric Road Disc Brake Carbon Clincher Rims (30mm width)
Rims
PAD35C-SL
PAD45C-SL
PAD50C-SL
PAD58C-SL
Max Weight Limit
100kg/220lb
100kg/220lb
100kg/220lb
100kg/220lb
Material
T700+T800
T700+T800
T700+T800
T700+T800
Sectional Drawing
DT180 Disc Brake Carbon Road Wheels Built With Symmetric Carbon Rims (28mm width)
Model
Rim
Depth
Outer Width
Tire Type
Hub
Front Size
Rear Size
Spoke
180DB-PRD28-22C-Ray
PRD28-22C
22mm
28mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1282g
180DB-PRD28-33C-Ray
PRD28-33C
33mm
28mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1322g
180DB-PRD28-38C-Ray
PRD28-38C
38mm
28mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1342g
180DB-PRD28-44C-Ray
PRD28-44C
44mm
28mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1382g
180DB-PRD28-50C-Ray
PRD28-50C
50mm
28mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1442g
180DB-PRD28-55C-Ray
PRD28-55C
55mm
28mm
Tubeless or Clincher
DT180 Road disc
12*100mm
12*142mm
Sapim CX-Ray
700*28C-45C
1482g
700C Symmetric Road Disc Brake Carbon Clincher Rims (28mm width)
Rims
PRD28-22C
PRD28-33C
PRD28-38C
PRD28-44C
PRD28-50C
PRD28-55C
Max Weight Limit
90kg/198lb
105kg/230lb
105kg/230lb
110kg/240lb
115kg/250lb
115kg/250lb
Material
T700+T800
T700+T800
T700+T800
T700+T800
T700+T800
T700+T800
Sectional Drawing
|
Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight carbon road rims.
|
|
Light Weight By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
|
Asymmetric Design
Asymmetric design road disc rims help to make wheelset with more even spoke tension between drive side and non-drive side. Carbon road wheels built with asymmetric rims are of better stiffness and stability. The spoke tension on such wheelset will not get loose easily, lower frequency for re-truing is needed.
|
|

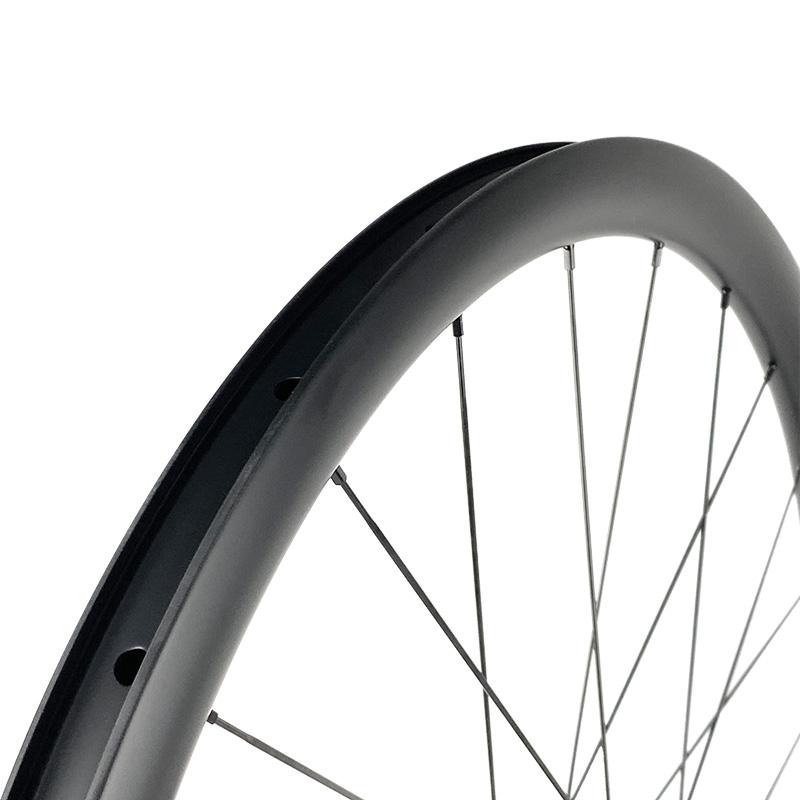

Wider Inner Width Wider 21mm inner width, optimized for increasingly popular 700x28C tires (also fit even wider tires). Wider stance for tire, easy tire mounting and dismounting. Better traction and cornering performance.
|
|
Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape road bike carbon rims. It is also of better stiffness and strength. |
|
Tubeless Ready
Tubeless tire is getting popular in road bike wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
|
Road Disc Brake Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
|
Hand Built All our carbon wheelsets are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
|

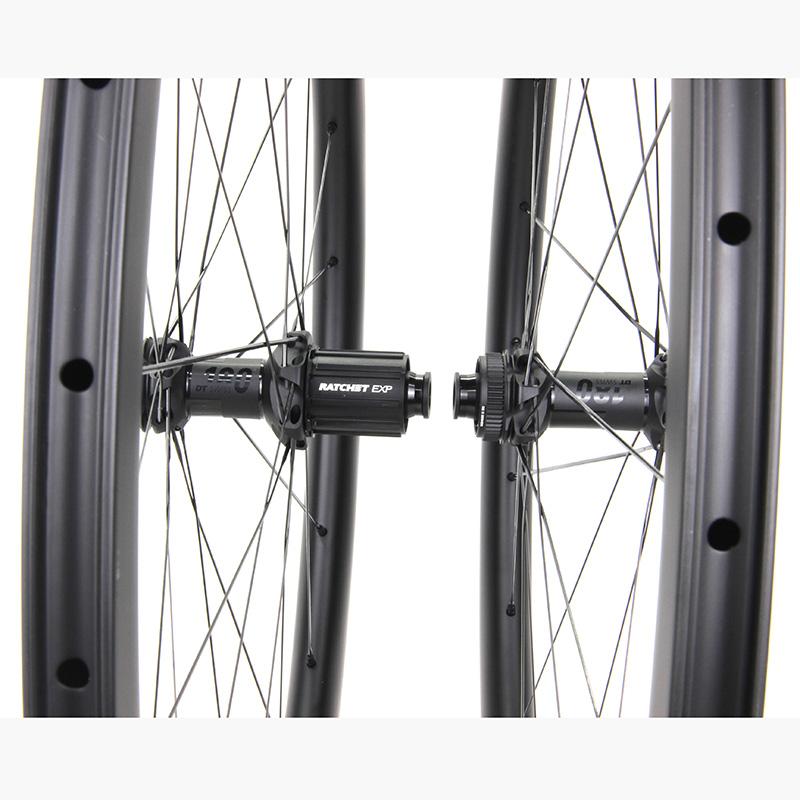

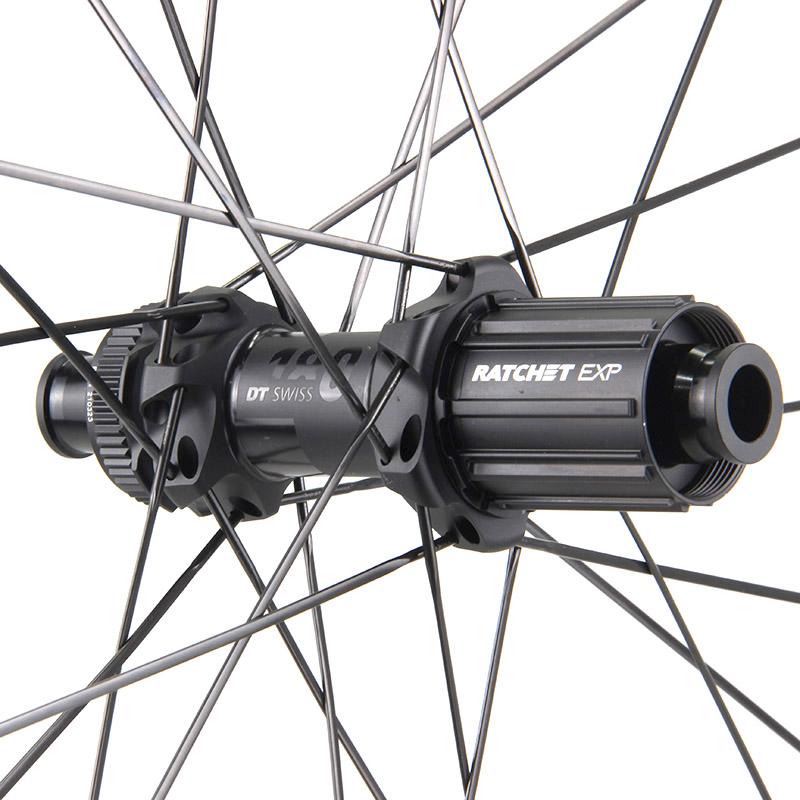

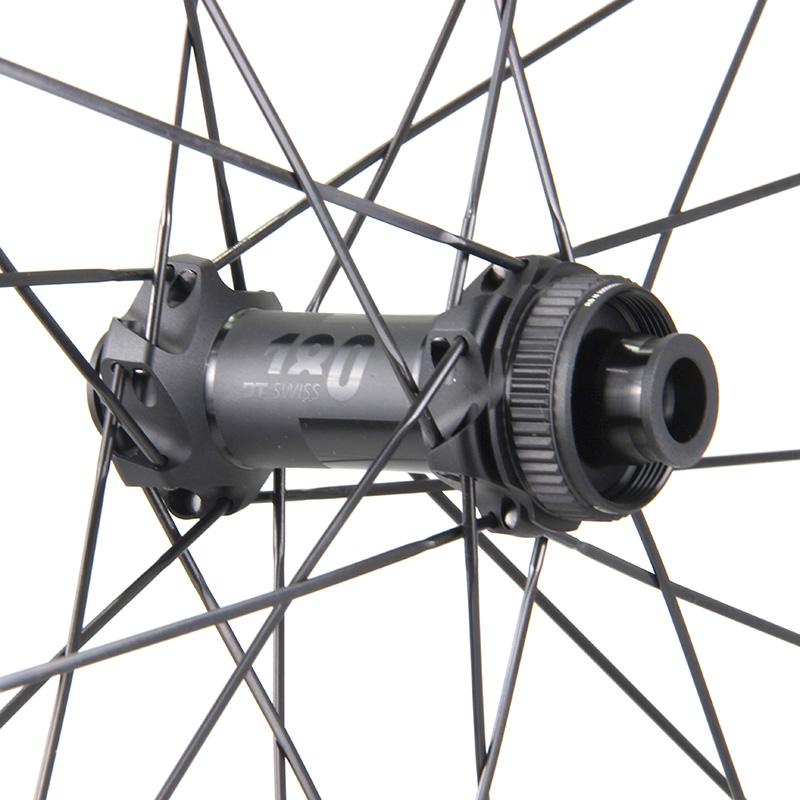

DT180 EXP Hubs Best DT Swiss 180 EXP road disc brake hubs, ultimate in lightweight, stiffness and performance. Best carbon disc wheelset for pro racing. Ratchet EXP 36 freehub system, plus ceramic bearings for super smoothness and reliability. 12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.
|
|
Sapim Spokes High end Sapim CX-Ray spokes, one of the best spokes available in the market. Sapim CX-Ray spoke is the best combination of light weight, strength, flexibility, and it results in best fatigue testing. It is widely used in many carbon road wheelset of those top brands all over the world. |
|
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed). Click Warranty Policy to see more details in another page. |
|
|
