• 27.5 plus/29er full suspension Enduro ebike frame
• Fit Shimano E8000/EP800 mid drive unit
• Fit Darfon battery E4C0M (708Wh)/ E4C0L (800Wh)
• 185*55mm trunnion mount rear shock
• 12*148mm boost thru axle
Item NO.:
PXE801Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD black(or Customized Decal/Painting):

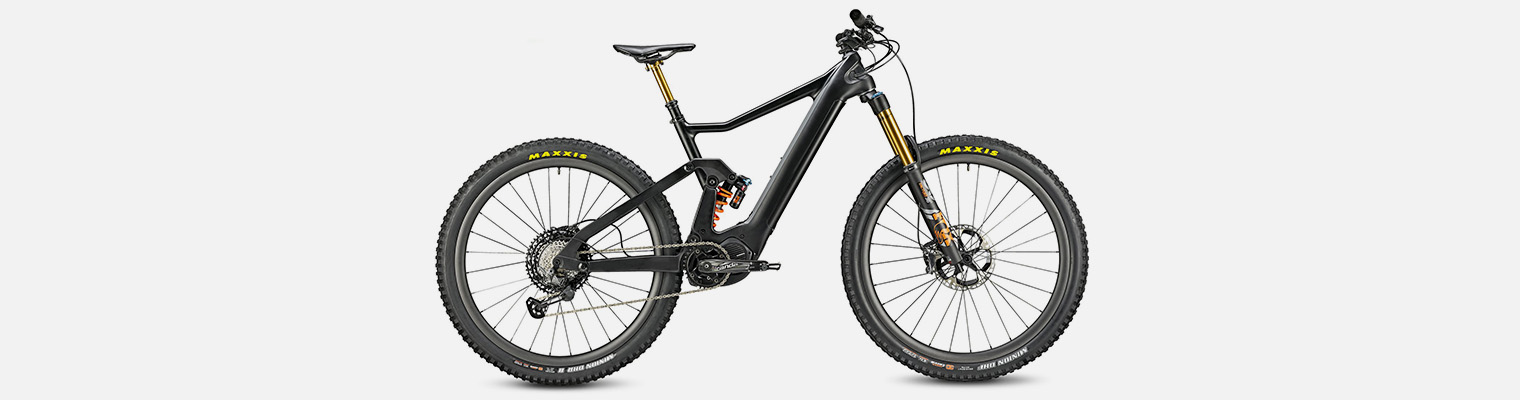

ProX Full Suspension Enduro E-Bike Carbon Frame For Shimano EP8 Motor and Darfon Battery
If you want continuous power on steep long climbs and don't want to lose power on long climbs sometimes, PXE801 carbon e-bike frame for Shimano mid drive unit is recommended.
This carbon ebike full suspension frame is currently available in four sizes (S, M, L) and is compatible for both 27.5 inch and 29 inch bike wheels.
The default finish of carbon frame we make is UD matte or glossy. In addition, customized logo and color painting is acceptable. So you can get this e bike frame as what you like!
What is in your parcel? It includes frame, seat clamp, rear thru-axle, cover for battery and motor(plastic material), headset(optional) and spare rear derailleur(optional).

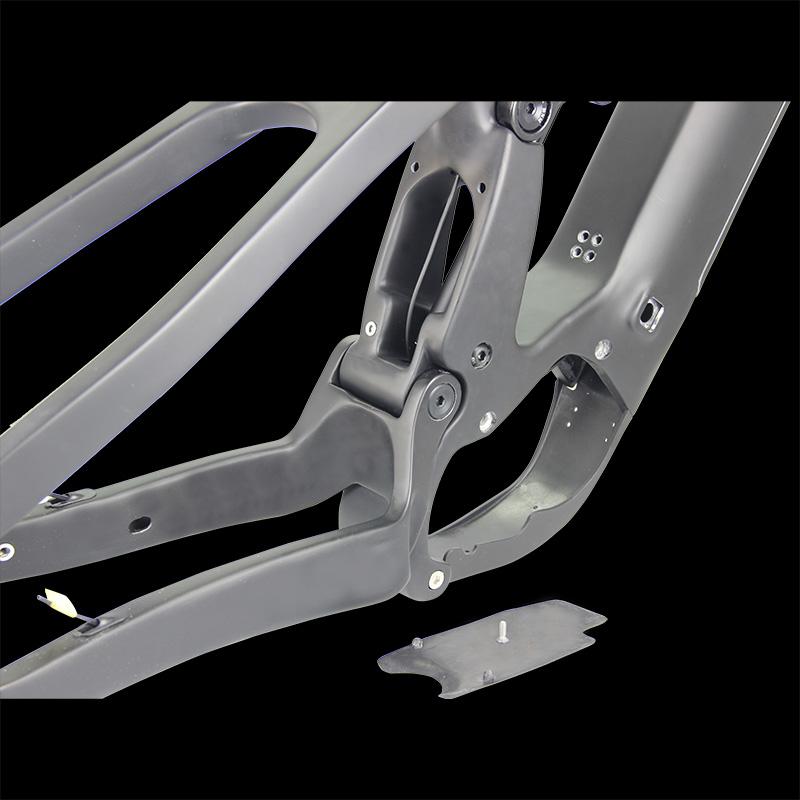

Shimano Motor
Carbon e-bike frame PXE801 is compatible with Shimano STEPS E8000/EP800 mid drive unit and Darfon battery E4C0M (708Wh) / E4C0L (800Wh).

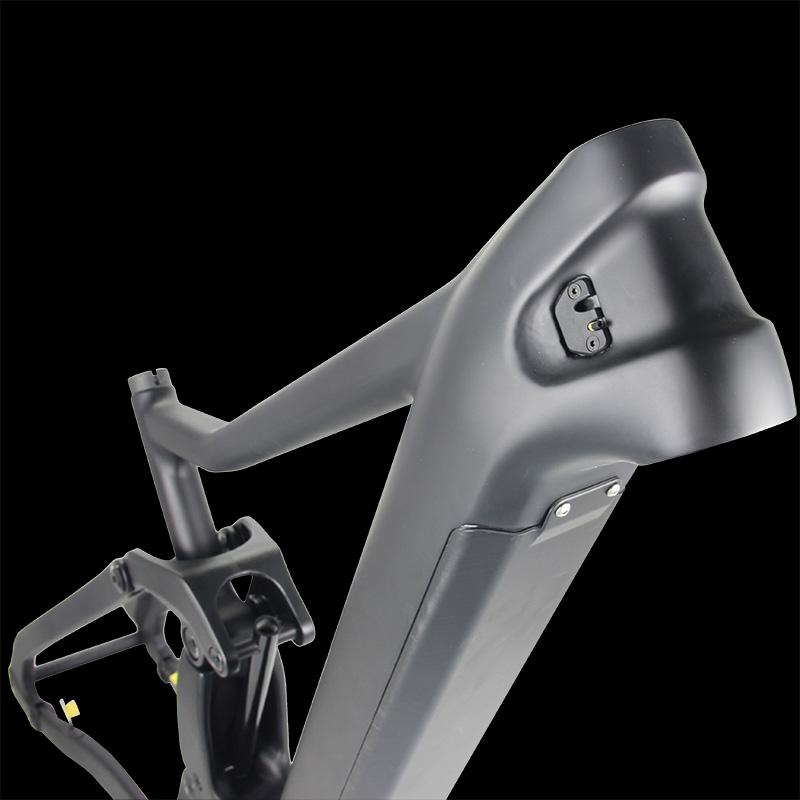

Darfon Battery

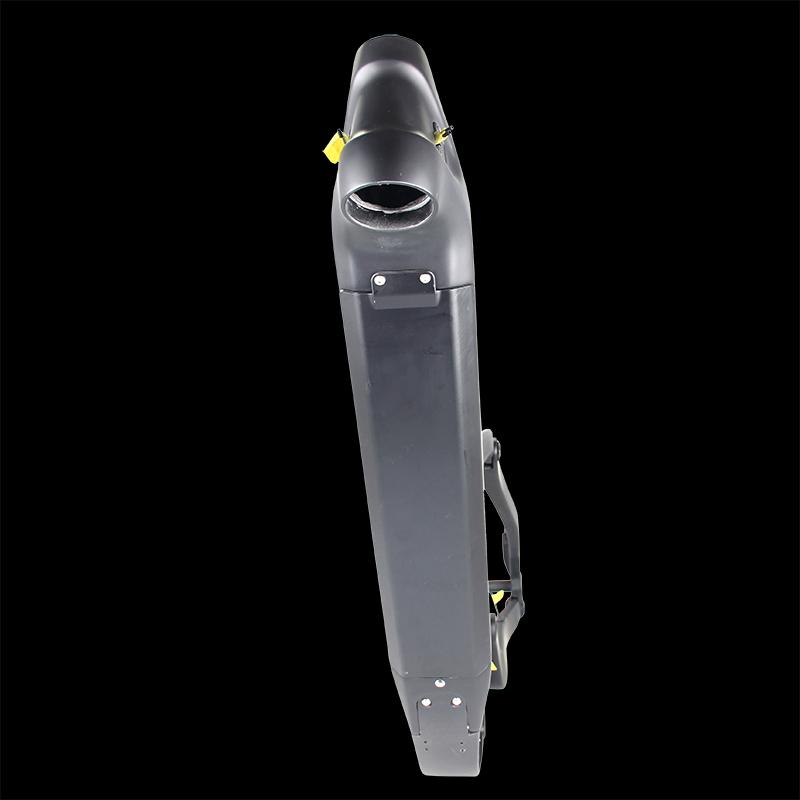

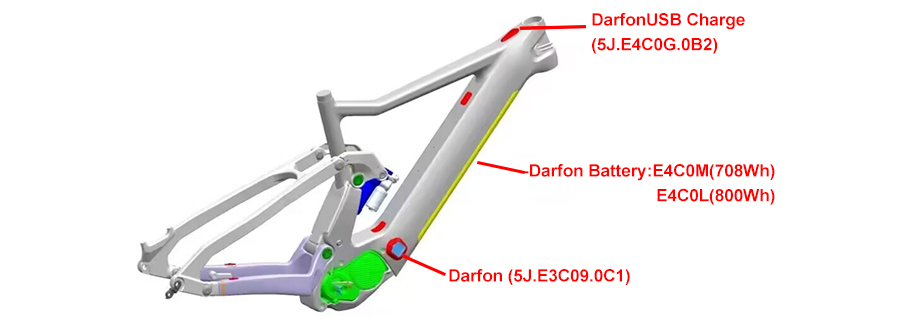

The battery for this PXE801 frame is Darfon battery E4C0M 708Wh / E4C0L 800Wh (integrated inside the down tube) as listed.
Rear Shock Size
Thanks to the installation position of rear shock on the frame, there is enough rooms to accept the rear shock with piggy back design and coil design.
The rear shock is efficient to steer the bike with confidence to challenge rugged mountain terrain.

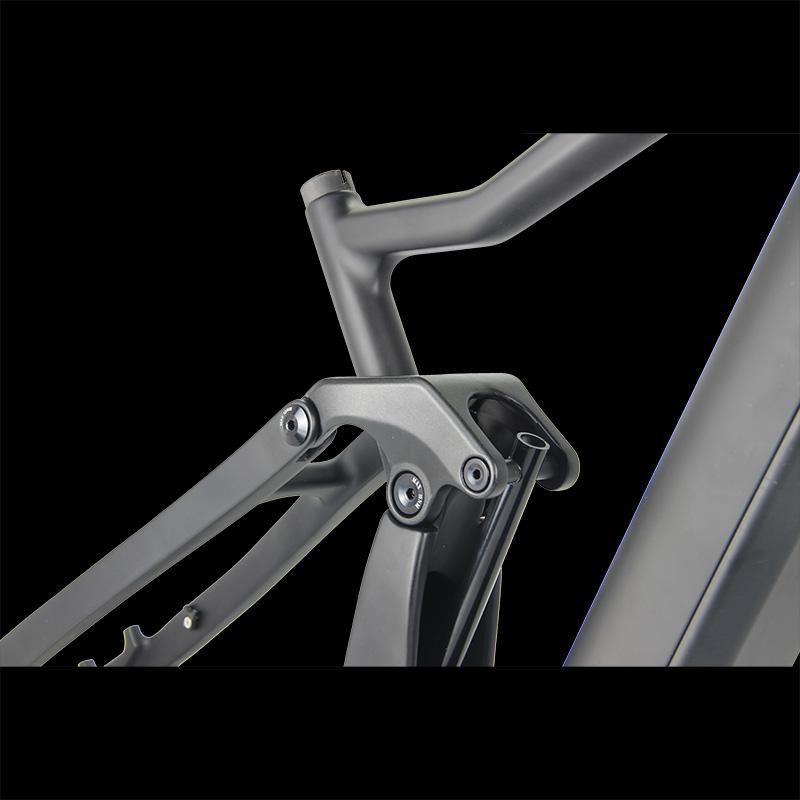

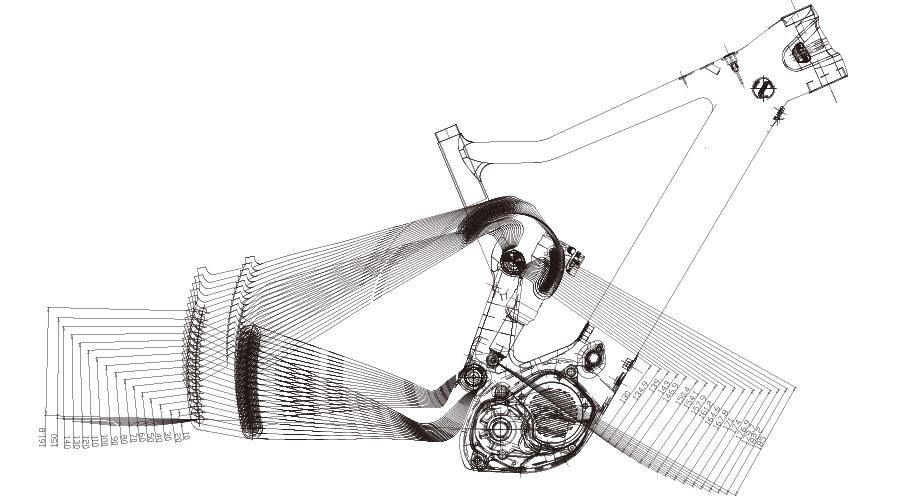

Link 4-bar Virtual Pivot Suspension System
Designed with Horst Link 4-bar virtual pivot suspension system.
Internal Cable Routing Design
There is no doubt that full internal cable routing looks rather pretty. PXE801 bike frame is with internal cable routing design. Perfect combination of professional geometry and full internal cable routing design. This design looks also nice and clean after whole bike assembled.

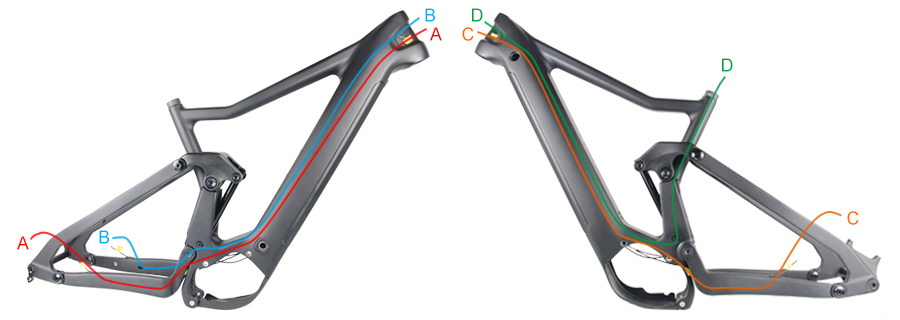

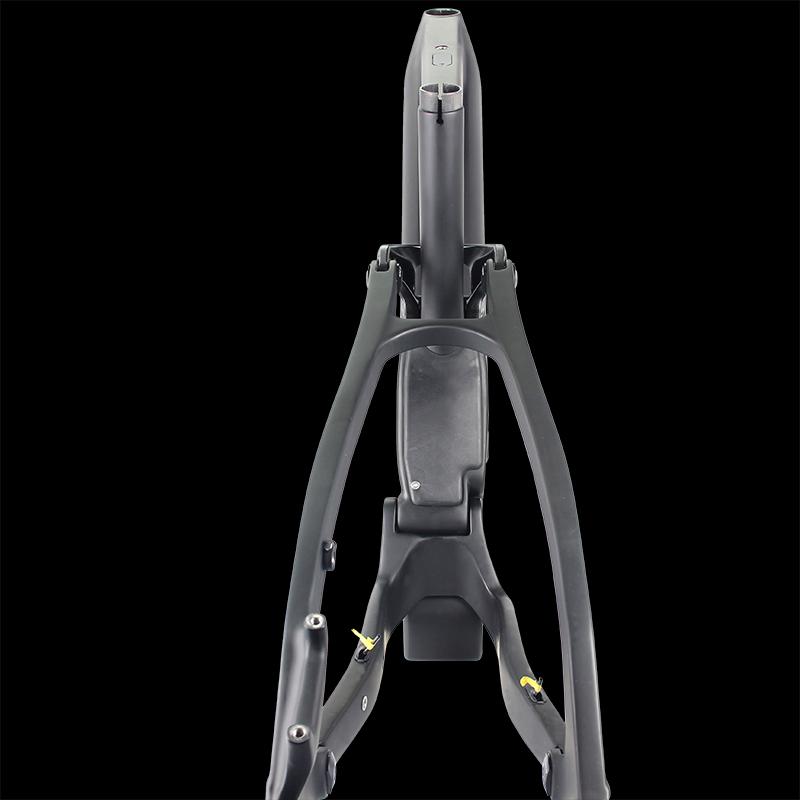

A-Rear derailleur cable routing

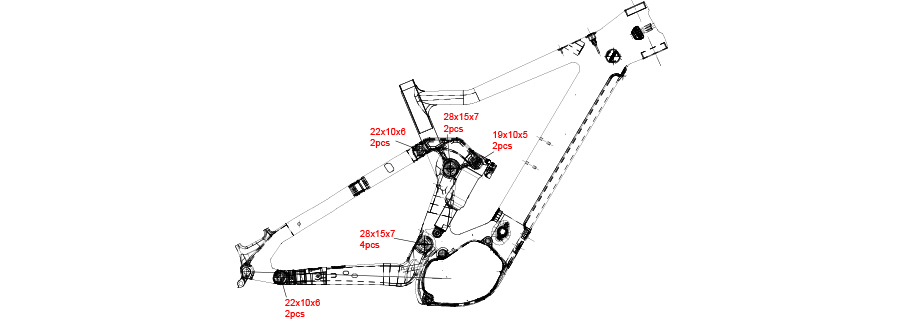

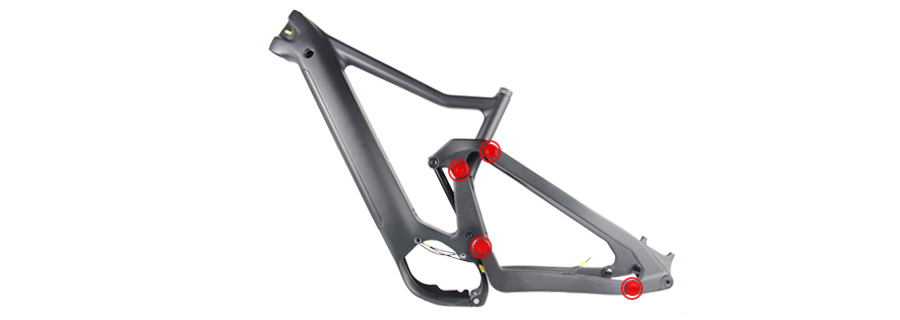

Bearings
For this carbon frame PXE801, high quality bearings are used to optimize the suspension system performance. High end bearings endow our mtb carbon frames better performance and durability.
Latex 3D Mandrel Technology
Use newest one-piece latex 3D mandrel and moulding technology.
Chainstay Protector

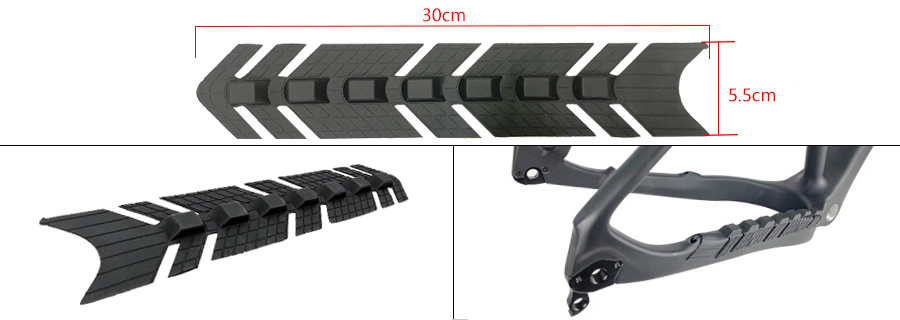

Chains hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chain and the bike. Being fast bike and quiet bike as well.

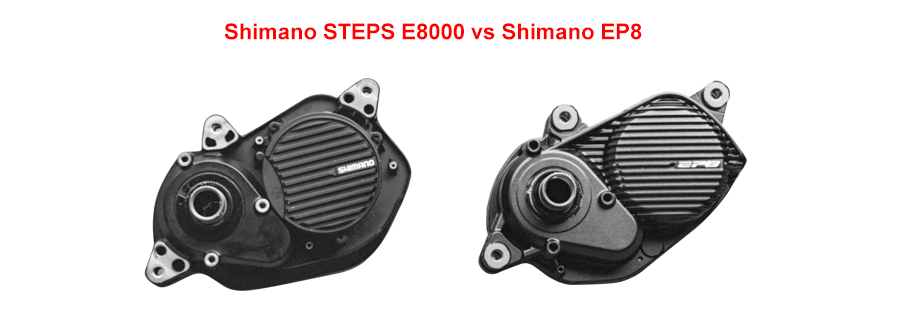

The shape of Shimano E8000/EP800 motor is almost the same, but Shimano EP800 is with lightsome on the bottom design. So, the Shimano new EP8 is saving around 300g over STEPS E8000. Compared to E8000, EP800 produces more torque, and is smoother and more battery-friendly(less pedalling resistance). Please note us which motor you plan to use when you are ready to order, then the proper motor cover will come with.
Rear shock placed in the best balance point to form an efficient suspension system which is nimble, not overloaded and extend the service life of bike.
What's more, the full suspension bike frame allows rider to get a better feel from rear shock which is to absorb the small and large hits with ease. It also provides relatively consistent and stable support through the entire adventure.
B- Rear sensor cable routing
C-Rear brake control routing
D-Dropper post remote routing
Even using same material, the strength is improved 30%.
27g per chainstay protector sheet and it will come with your frame.
In addition to e-bike carbon frames, ProX also supply high quality MTB carbon wheels as well as E-bike MTB carbon rims. If you are also need, please feel free to contact us and we will be happy to recommend for you.
ProX Full Suspension Enduro E-MTB Carbon Frame PXE801
Frame:
Carbon Full Suspension Ebike Frame For Shimano EP8 Motor and Darfon Battery
Material:
High modulus Toray T700 carbon fiber
Size:
S, M, L
Headtube:
Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Pressfit-Headset standard FSA No.57ACB)
Weight:
3600g/Medium
Seatpost Diameter:
31.6mm(34.9mm clamp)
Motor System:
Shimano E8000 and EP800 drive unit
Battery:
Darfon battery E4C0M (708Wh) / E4C0L (800Wh), integrated inside the down tube
Chainring set:
SM-CRE80
Front Travel:
160mm
Rear Travel:
160mm
Rear Shock Size:
185*55mm(trunnion mount). Bushing kits for lower end 20*10mm
Max Tire Clearance:
650b*3.0'' and 29er 2.6''
Brake Type:
Post Mount Disc brake 180mm
Fork Offset:
51mm offset fork, M15*110mm boost recommended
Dropout:
Thru Axle 12*148mm boost
Max Chainring:
34T
Test Standard:
ISO4210
Warranty Time:
2-year
Geometry
SIZE
S
M
L
BODY HEIGHT (Reference)
156-164cm,
165-177cm,
178-189cm
SEATPOST INSERT LENGTH
130mm
170mm
220mm
REACH
425.4mm
442.9mm
460.5mm
TOP TUBE LENGTH, HORIZONTAL
590mm
610mm
630mm
STACK
616.3mm
625.5mm
634.6mm
WHEELBASE
1198.7mm
1220.3mm
1242mm
CHAINSTAY LENGTH
455mm
455mm
455mm
FRONT CENTER
749.1mm
770.7mm
792.4mm
BB DROP
15mm
15mm
15mm
BB HEIGHT
365mm
365mm
365mm
SEAT TUBE ANGLE
75°
75°
75°
HEAD TUBE ANGLE
66°
66°
66°
SEAT TUBE LENGTH
406mm
457mm
508mm
HEAD TUBE LENGTH
110mm
120mm
130mm
BIKE STANDOVER HEIGH(29“*2.6")
777.8mm
806.3mm
818.7mm
FORK RAKE/OFFSET
51mm
51mm
51mm
FORK LENGTH, FULL
571mm
571mm
571mm
TRAIL
114mm
114mm
114mm
Ebike Frame Leverage Ratio

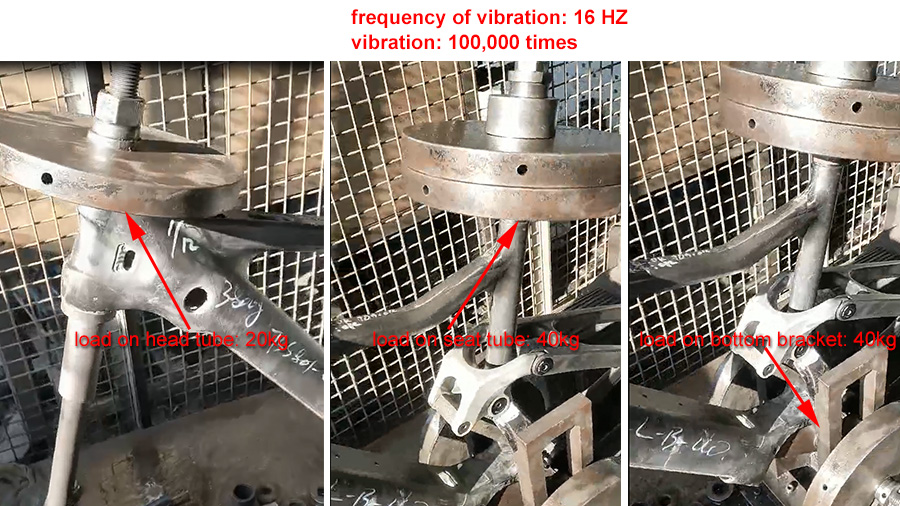

Vibration Test
 |
