ProX Full Suspension E-Bike Frame Bafang E-Mountain Bike Carbon Frame

• Fit Bafang M500/M510/M600 mid-drive engine

650b plus/29er full suspension Enduro e-bike frames

• Fit Bafang BT F03 or BT F04 battery

12*148mm boost thru axle

185*55mm trunnion mount rear shock

  • Item NO.:

    PXE04
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD black(or Customized Decal/Painting)
DESCRIPTION

ProX Full Suspension Bafang E-Bike Carbon Frame for AM/Enduro Riding

Considering the cost of Shimano drive engine increases quickly, and lead time is getting longer and longer, ProX has developed the carbon e-bike frame for Bafang motor/battery.

Now, it's possible to set up your own electric mountain bike sooner.
Our full suspension e bike frame is currently available in two sizes (Medium/Large), and is compatible for both 27.5 inch and 29 inch bike wheels.

The default finish of carbon frame we make is UD matte or Glossy. In addition, customized logo and color painting is acceptable. So you can get this e bike frame as what you like!

What is in your parcel? It includes frame, seat clamp, rear thru-axle, headset(optional) and spare rear derailleur(optional).

ProX e-mountain bike frame PXE04 is compatible with Bafang M500, M600 and newest M510 motor kits.

compatible Bafang motors M500, M600, M510


Built with BT F03 and BT F04 battery

Bafang Battery & Motor

If the ebike often for the long climbs and rider wants the support of continuous power on steep long climbs, the M600(3.9kg) is recommended. If you keen on lightweight, the M510(3kg) and M500(3.4kg) is recommended. BT F03 and BT F04 are both compatible for this frame. BT F03 battery matches this frame perfectly with full battery hidden inside downtube, but its capacity is a bit smaller (450Wh). BT F04 provides bigger capacity (600Wh), but this battery it is bit higher, once assembled on the frame, it will exceed 16mm from down tube plane. Though not look perfect, BT F04 will extend your riding time.

compatible rear shock

Rear Shock Size

The rear shock size is 185*55mm(trunnion mount) and bushing kits for low end 22*10mm.

Thanks to the installation position of rear shock on the frame, there is enough rooms to accept the rear shock with piggy back design and coil design.

The rear shock is efficient to steer the bike with confidence to challenge rugged mountain terrain.

PXE04 full suspension system

Link 4-bar Virtual Pivot Suspension System

Designed with Horst Link 4-bar virtual pivot suspension system.
Rear shock placed in the best balance point to form an efficient suspension system which is nimble, not overloaded and extend the service life of bike.
What's more, the full suspension bike frame allows rider to get a better feel from rear shock which is to absorb the small and large hits with ease. It also provides relatively consistent and stable support through the entire adventure.

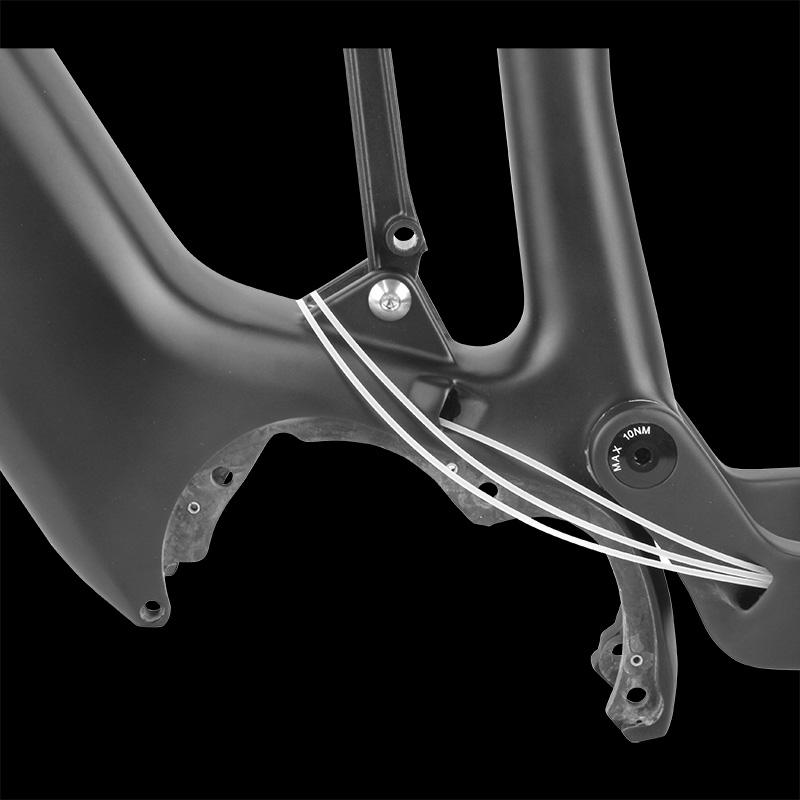

PXE04 cable routing system

Internal Cable Routing Design

There is no doubt that full internal cable routing looks rather pretty. PXE04 bike frame is with internal cable routing design. Perfect combination of professional geometry and full internal cable routing design. This design looks also nice and clean after whole bike assembled.

A-Rear brake control routing
B-Dropper post remote routing
C-Rear derailleur cable routing
D-Rear shock remote routing

charging port

Updated Charging Port

In order to improving using satisfaction, ProX has updated our ebike carbon frame PXE04 with charging port, which makes it possible to be charged directly without take down the battery. Much more convenient!

Latex 3D mandrel

Latex 3D Mandrel Technology

Use newest one-piece latex 3D mandrel and moulding technology.

Such technology helps to optimize the orthodromic and strength of carbon fiber, and avoid wrinkle inside (wrinkle is a key factor that may cause crack).
Even using same material, the strength is improved 30%.

If you are also considering the carbon bike rims/wheels, please clink the MTB bicycle rims detail here or contact us for carbon bike wheels, so we can recommend the best products accordingly.

SPECIFICATION

ProX Full Suspension E-Mountain Bike Carbon Frame

Frame: PXE04 Full Suspension E-Mountain Bike Carbon Frame for Bafang motor
Material: High modulus Toray T700  carbon fiber
Size: Medium/Large
Weight: 3300±45g/Medium, 3350±45g/Large
Motor System: Bafang M500(95NM), M510(95NM) or M600(120NM) mid drive engine - (excluded motor cover)
Battery: Bafang BTF03(450Wh) or BTF04(600Wh) - (excluded battery cover)
Headtube: Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (headset standard FSA No.57E)
Seatpost Diameter: 31.6mm (34.9mm seat clamp)
Max Tire Clearance: 650b*2.8" or 29er*2.4"
Front Travel: 150mm
Rear Travel: 150mm
Fork Offset: 51mm offset fork, M15*110mm boost recommeded
Rear Shock Size: 185*55mm (trunnion mount)
Brake Type: Post mount disc brake, 180mm rotor
Dropout: 12*148mm boost
Max Chainring: 34T
Test Standard: ISO4210
Warranty Time: 2-year


TECHNOLOGY

Geometry

SIZE M L     PXE04 geometry
SEATPOST INSERT LENGTH 170mm 220mm
REACH 443.1mm 468.1mm
TOP TUBE LENGTH, HORIZONTAL 610mm 635mm
STACK 623mm 633mm
WHEELBASE 1233.7mm 1258.7mm
CHAINSTAY LENGTH 460mm 460mm
FRONT CENTER 774.2mm 799.9mm
BB DROP 15mm 15mm
BB HEIGHT 345mm 345mm
SEAT TUBE ANGLE 75° 75°
HEAD TUBE ANGLE 65.5° 65.5°
SEAT TUBE LENGTH 445mm 480mm
HEAD TUBE LENGTH 125mm 135mm
BIKE STANDOVER HEIGH(27.5"*2.8") 826.4mm 838.7mm
FORK RAKE/OFFSET 51mm 51mm
FORK LENGTH, FULL 561mm 561mm
TRAIL 110.3mm 110.3mm


Suspension System Simulation Data

PXE04 suspension data 1
PXE04 suspension data 2

If you need high resolution pictures of suspension data, please contact us.


Frame Suspension Simulation From 0~150mm Travel
