• Fit Bafang M620 mid-drive engine
• 650b plus/29er full suspension e-bike frame
• Fit Bafang BT F311(840Wh) battery

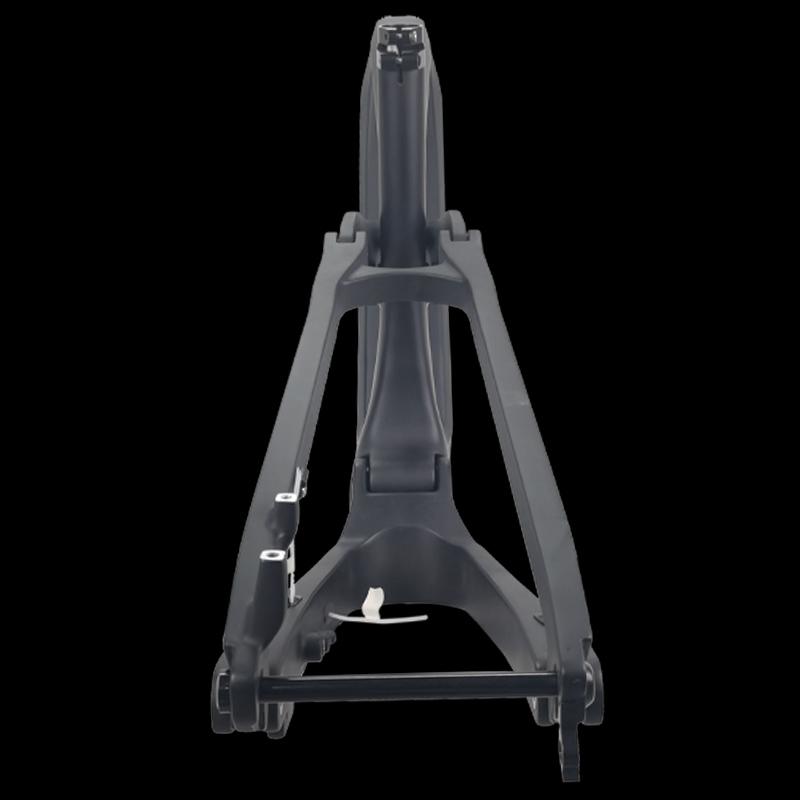

• 12*148mm boost thru axle
• 190*51mm standard mount rear shock
Item NO.:
PXE28Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD black(or Customized Decal/Painting):
ProX Full Suspension Bafang M620 E-Bike Carbon Frame for All Mountain/Enduro
Considering the cost of Shimano drive engine increases quickly, and lead time is getting longer and longer, ProX has developed the carbon e-bike frame for Bafang motor/battery.
Now, it's possible to set up your own electric mountain bike sooner.
Our bafang M620 carbon frame PXE28 is currently available in two sizes (17.5'' Medium/19'' Large), and compatible for both 27.5 inch and 29 inch bike wheels.
The default finish of carbon frame we make is UD matte or Glossy. In addition, customized logo and color painting is acceptable. So you can get this e bike frame as what you like!
What is in your parcel? It includes frame, seat clamp, rear thru-axle, headset(optional) and spare rear derailleur(optional).

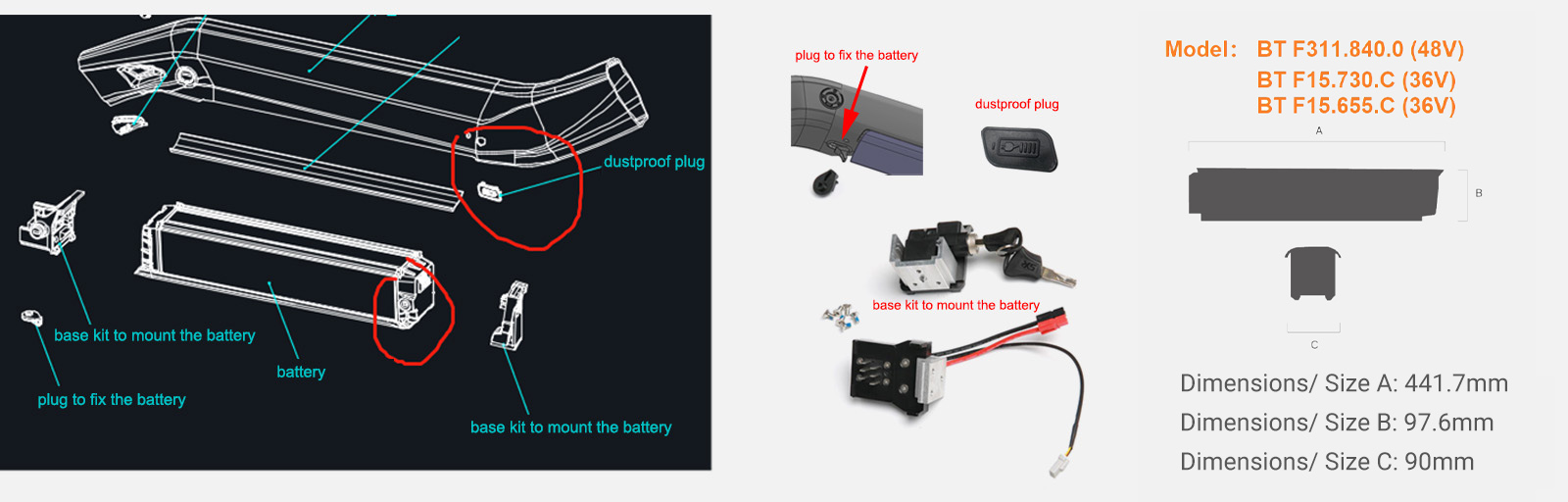

Below is Bafang components you might need for our PXE28 e-bike carbon frame. They can be bought together from your Bafang engine and battery supplier (not include with our frame).
- Bafang M620 mid-drive engine with cover
- Bafang BT F311.840.0 battery with cover
- base kit to mount the battery(upper and bottom)
- dustproof plug for charging port
- plug to fix the battery
 |

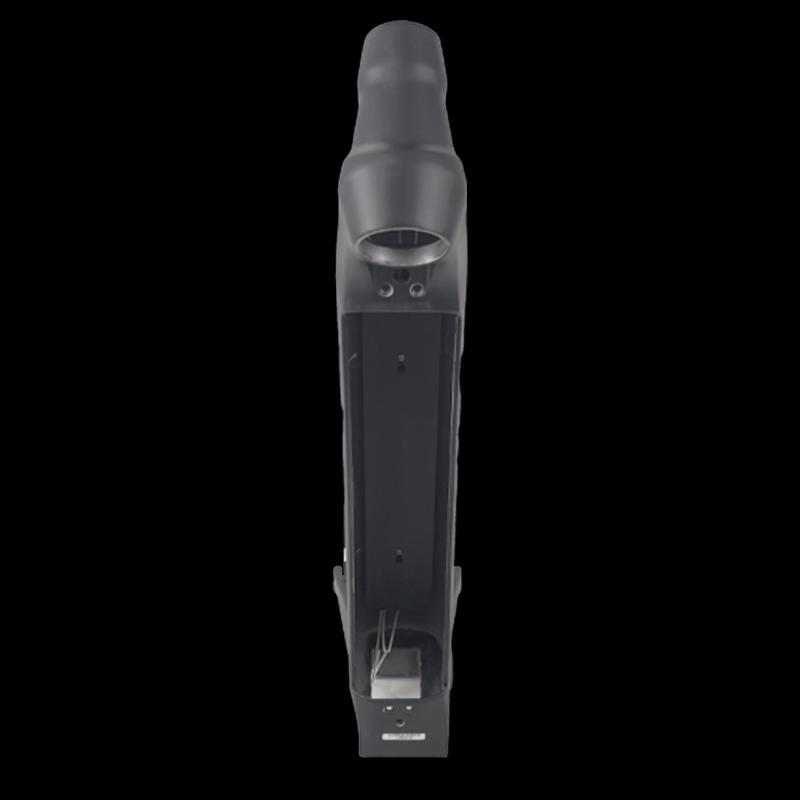

Bafang Battery & Motor
Carbon e-bike frame PXE28 is compatible with Bafang M620 motor and BT F311 840wh battery.

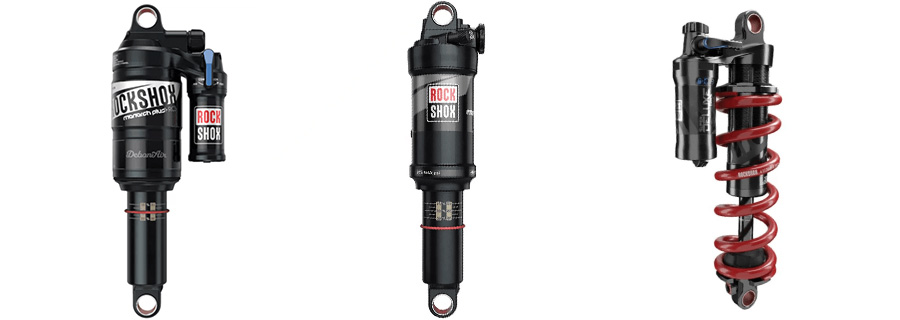

Rear Shock Size
Thanks to the installation position of rear shock on the frame, there is enough rooms to accept the rear shock with piggy back design and coil design.
The rear shock is efficient to steer the bike with confidence to challenge rugged mountain terrain.
Link 4-bar Virtual Pivot Suspension System
Designed with Horst Link 4-bar virtual pivot suspension system.

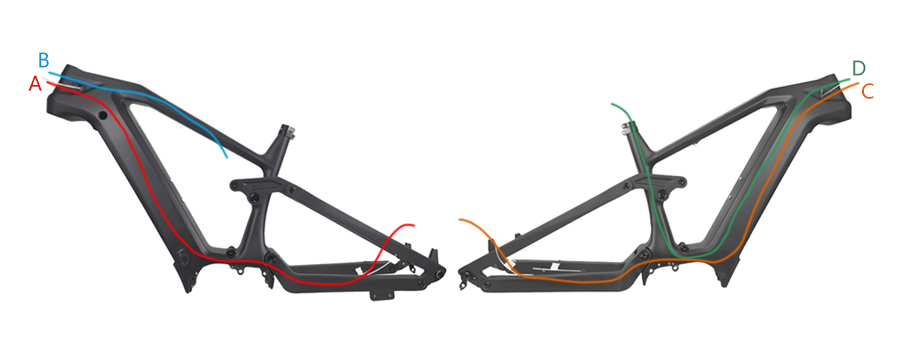

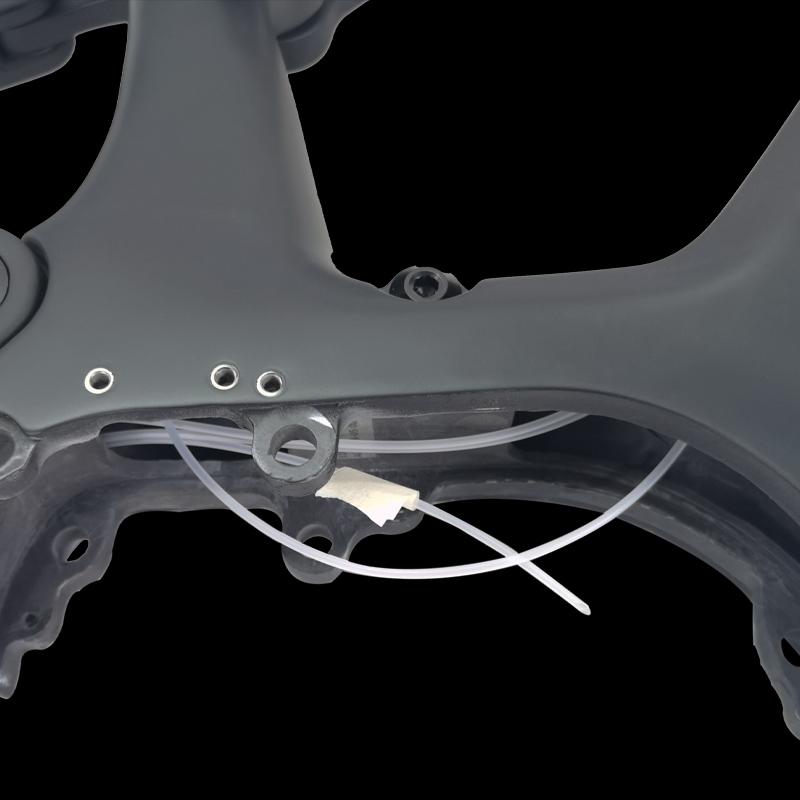

Internal Cable Routing Design
There is no doubt that full internal cable routing looks rather pretty. PXE28 bike frame is with internal cable routing design. Perfect combination of professional geometry and full internal cable routing design. This design looks also nice and clean after whole bike assembled.
A-Rear brake control routing
Kickstand Mount
The kickstand is needed to hold the bike, otherwise it will fall over. Without the bike kickstand, you might prop the bike against street or put it on the ground. Now it can stand where you are happy.

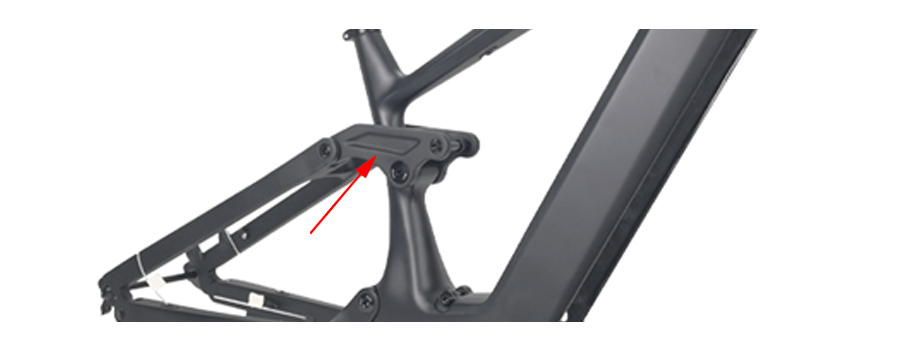

Carbon Linkage Design
Updated the linkage from aluminium alloy to carbon fiber materials.

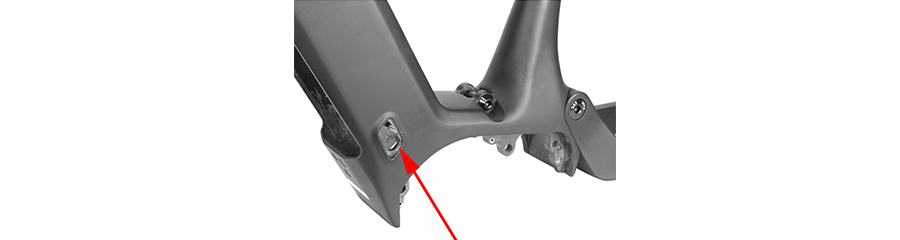

Updated Charging Port
In order to improving using satisfaction, ProX ebike carbon frame PXE28 is designed with charging port, which makes it possible to be charged directly without take down the battery. Much more convenient!
Latex 3D Mandrel Technology
Use newest one-piece latex 3D mandrel and moulding technology.

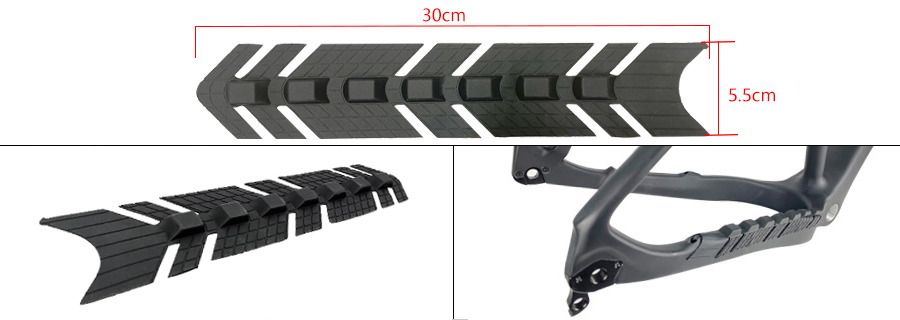

Chainstay Protector
Chains hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chain and the bike. Being fast bike and quiet bike as well.
The max drive system puts the rider in complete control. In spite of a great power output and a maximum torque of 160N.m, the motor operates in virtual silence.
Rear shock placed in the best balance point to form an efficient suspension system which is nimble, not overloaded and extend the service life of bike.
What's more, the full suspension bike frame allows rider to get a better feel from rear shock which is to absorb the small and large hits with ease. It also provides relatively consistent and stable support through the entire adventure.
B-Rear shock remote routing
C-Rear derailleur cable routing
D-Dropper post remote routing
Every time you park, don't need to worry about scuffing handlebar, frames, saddles and other parts.
Carbon is known for being lightweight, corrosion resistant and having a good strength-to-weight ratio. It makes the whole bike stronger, more durable and better appearance.
Even using same material, the strength is improved 30%.
27g per chainstay protector sheet and it will come with your frame.
In addition to e-bike carbon frames, ProX also supply high quality MTB carbon wheels as well as E-bike MTB carbon rims. If you are also need, please feel free to contact us and we will be happy to recommend for you.
ProX Full Suspension Bafang M620 Ebike Carbon Frame
Bafang BT F311.840.0 battery(48V)
Bafang BT F15.730.C battery(36V)
Frame:
PXE28 Full Suspension E-bike Carbon Frames Fit Bafang M620 Motor
Material:
High modulusToray T700 carbon fiber
Size:
Medium(17.5'')/Large(19'')
Weight(±45g):
3880g/Medium, 3910g/Large
Headtube:
Tapered 1 1/8 "- 1 1/2"head tube, upper 44mm lower 56mm (Headset standard FSA No.57)
Seatpost Diameter:
31.6mm(34.9mm seat clamp)
Motor System:
Bafang M620 mid drive engine - (Excluded motor cover)
Battery:
Bafang BT F15.655.C battery(36V)
Max Tire Clearance:
650B*3.0 and 29erx2.6"
Fork:
51mm offset fork, M15*110mm boost recommeded
Front Travel:
150-160mm
Rear Travel:
150mm
Rear Shock Size:
190*51mm standard mount rear shock(bushing kits spec 22.2*10mm upper and bottom)
Brake Type:
Post Mount Disc brake 180mm disc rotor (Max can fit 203mm disc rotor, need adapter)
Dropout:
Thru Axle 12*148mm Boost
Max Chainring:
44T
Max Cassette:
10-52T
Test Standard:
ISO4210
Warranty Time:
2-year

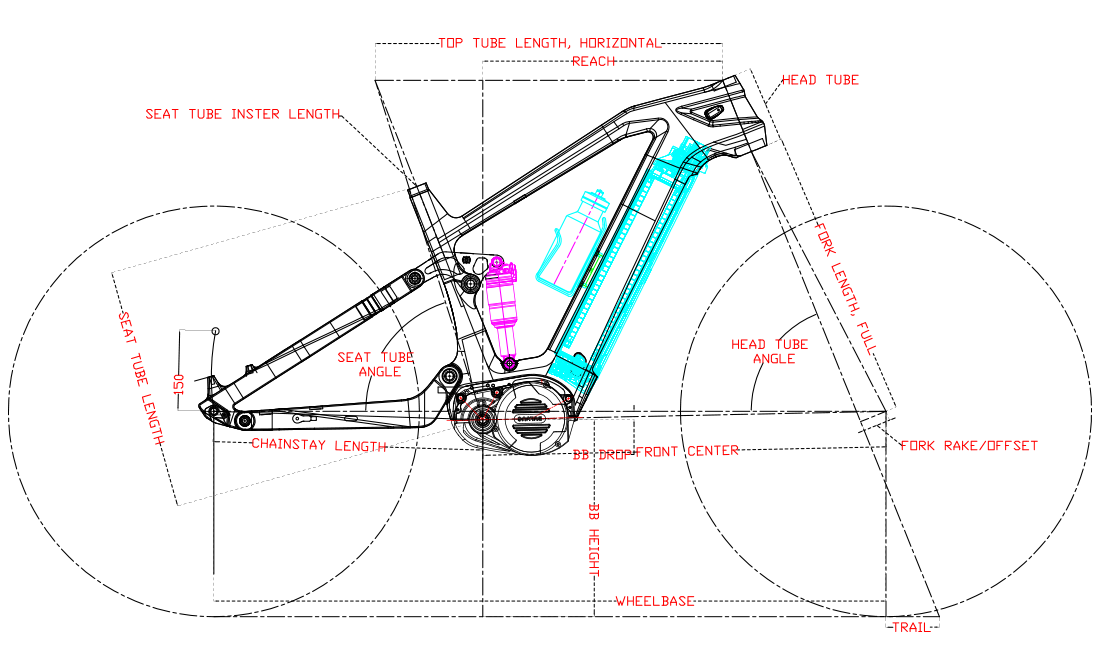

Geometry
M
L
SEATPOST INSERT LENGTH
180mm
200mm
REACH
446mm
469mm
TOP TUBE LENGTH, HORIZONTAL
646mm
672mm
STACK
630.9mm
640.1mm
WHEELBASE
1249.4mm
1275mm
CHAINSTAY LENGTH
500mm
500mm
FRONT CENTER
749.8mm
776mm
BB DROP
15.8mm
15.8mm
BB HEIGHT
366mm
366mm
SEAT TUBE ANGLE
72.4°
72.4°
HEAD TUBE ANGLE
68°
68°
SEAT TUBE LENGTH
451mm
482mm
HEAD TUBE LENGTH
143mm
153mm
BIKE STANDOVER HEIGH(26“*4.8")
806.3mm
818.7mm
FORK RAKE/OFFSET
51mm
51mm
FORK LENGTH, FULL
540mm
540mm
TRAIL
99.2mm
99.2mm

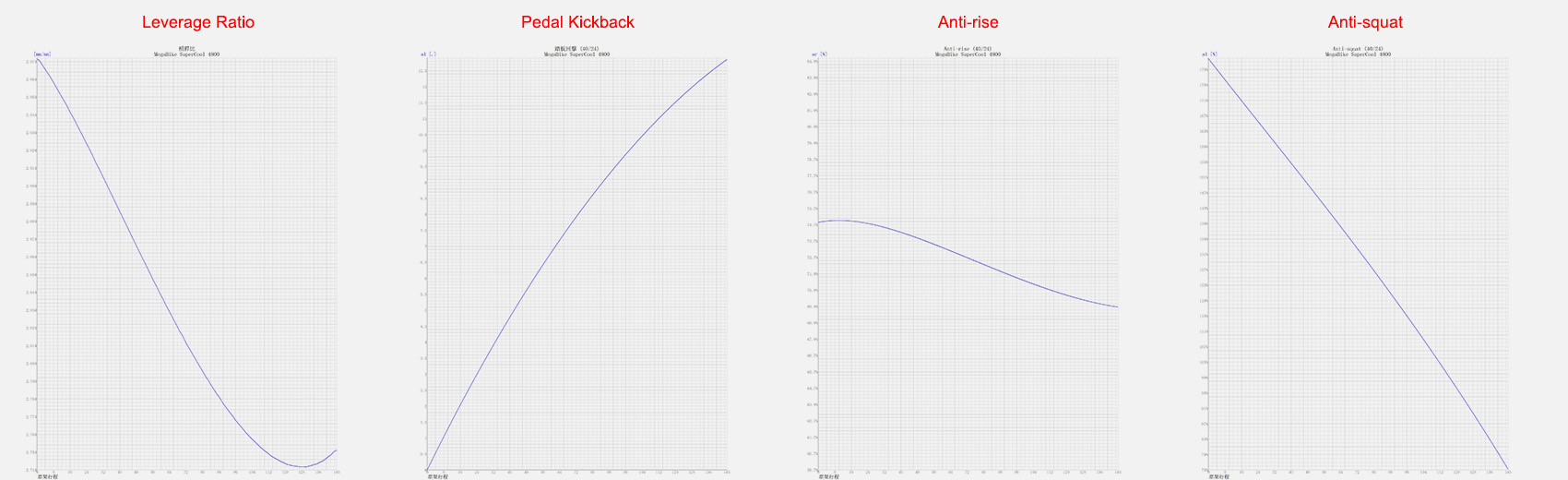

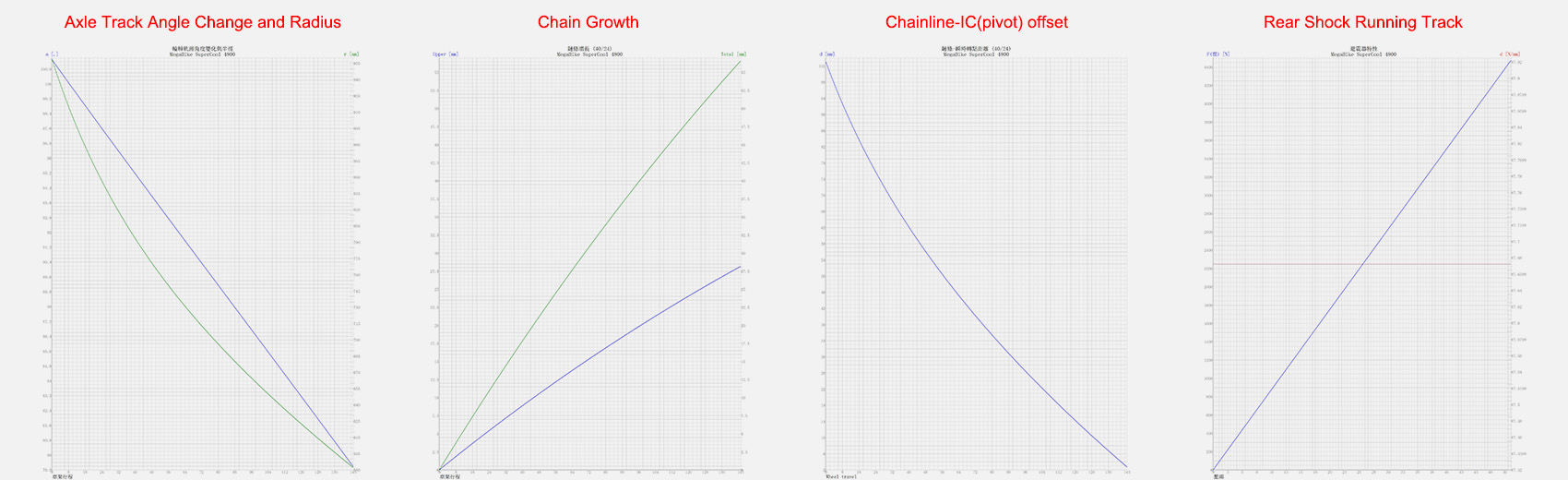

Suspension System Simulation Data
 |
 |
If you need high resolution pictures of suspension data, please contact us.

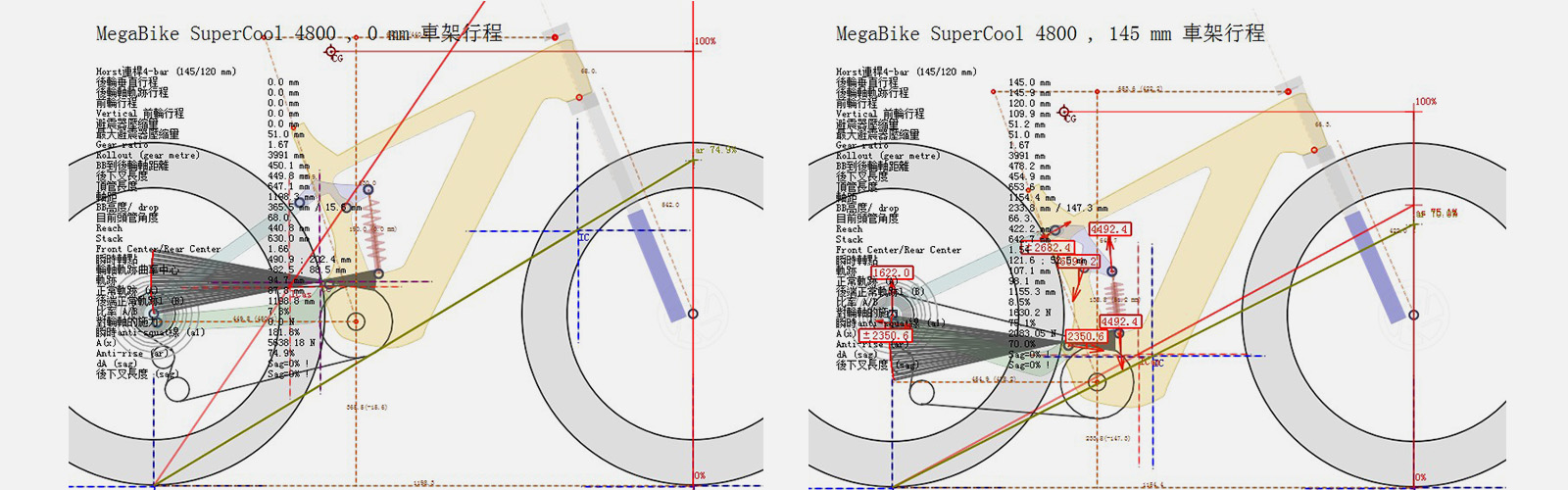

PXE28 E-bike Frame Rear Shock Compression Simulation
PXE28 Frame Suspension Simulation From 0~150mm Travel
 |
