ProX Full Suspension E-Bike Frame Bafang M820 E-Mountain Bike Carbon Frame

• Fit Bafang M820 mid-drive engine

• Fit Bafang BT F014 (410Wh) battery

• 29er/650b plus full suspension e-bike frames

• 12*148mm boost thru-axle

• 185*55mm trunnion mount rear shock

  • Item NO.:

    PXE930
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD black(or Customized Decal/Painting)
DESCRIPTION

ProX E-Bike Carbon Frame Light Weight Bafang M820 E-Mountain Bike Frame

Considering the cost of Shimano drive engine increases quickly, and lead time is getting longer and longer, ProX has developed the carbon e-bike frame for Bafang motor/battery. The possible whole e-bike weight is 18kg only!!!
Now, it's possible to set up your own electric MTB bicycle sooner.
Our bafang M820 carbon frame PXE930 is compatible for both 27.5 inch and 29 inch bike wheels, and available in three sizes (S'', M'', L'').
The default finish of carbon frame we make is UD matte or glossy finish. In addition, customized logo and color painting is acceptable. So you can get this e bike frame as what you like!

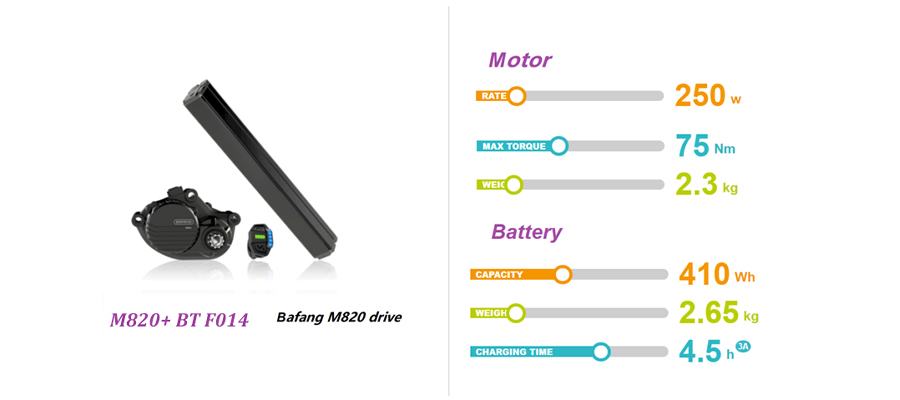

Bafang M820 Motor & BT F014 Battery

Bafang M820 Motor & BT F014 Battery

COMPACT! POWERFUL! LIGHT WEIGHT!
With only 2.3kg, M820 motor convinces in all points with 250W rated power and strong 75Nm(max effective torque) for a maximum extended cadence support of 120 rpm. Due to its perfectly tuned torque sensor, it can control the exact power according to the pedaling forces. The M820 drive system inspires every eMTB rider, regardless of the terrain situation!

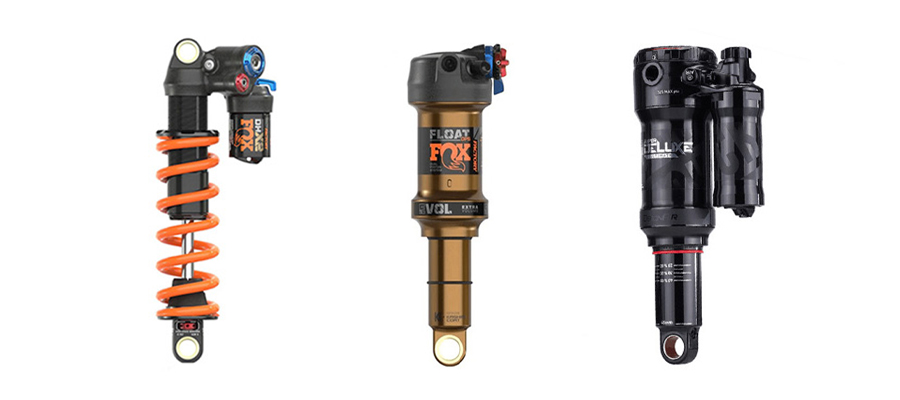

Rear Shock Size

Rear Shock Size

PXE930 eMTB carbon frame is with rear shock size 185*55mm(trunnion mount) and hardware spec. is upper M10 x 54mm and bottom M8 x 22.2mm. Thanks to the installation position of rear shock on the frame, there is enough rooms to accept the rear shock with piggy back design and coil design.
The rear shock is efficient to steer the bicycle with confidence to challenge rugged MTB terrains.

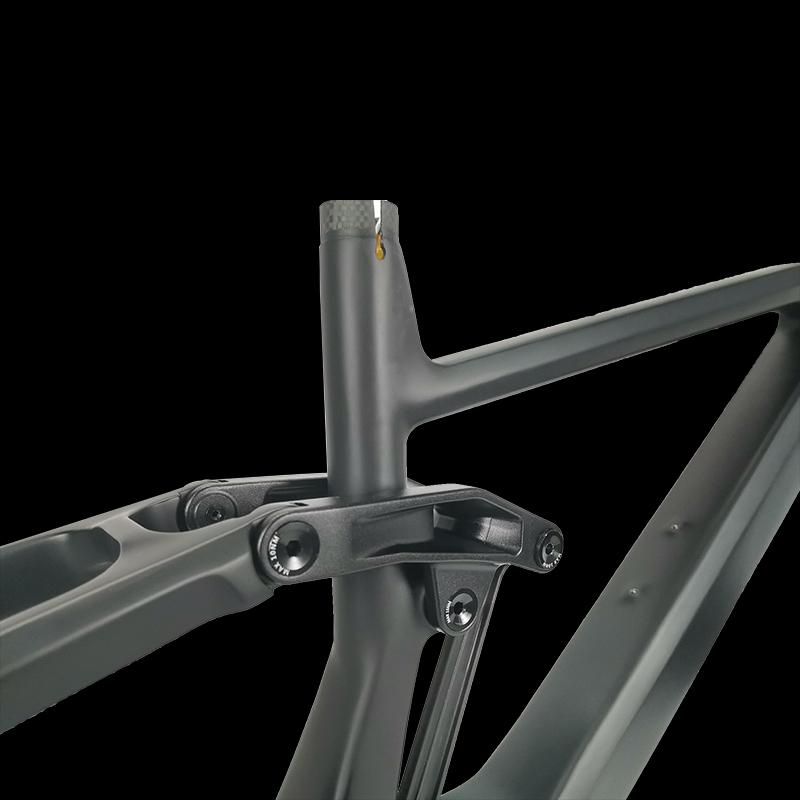

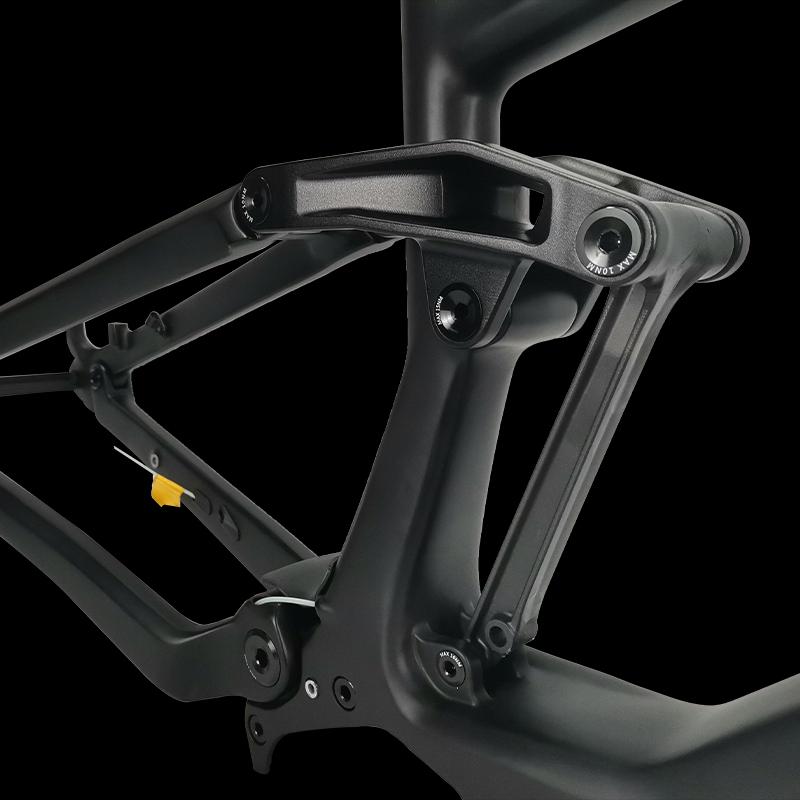

Link 4-bar Virtual Pivot Suspension System

Link 4-bar Virtual Pivot Suspension System

Designed with Horst Link 4-bar virtual pivot suspension system.
Rear shock placed in the best balance point to form an efficient suspension system which is nimble, not overloaded and extend the service life of bike.
What's more, the full suspension e-bike frame allows rider to get a better feel from rear shock which is to absorb the small and large hits with ease. It also provides relatively consistent and stable support through the entire adventure.

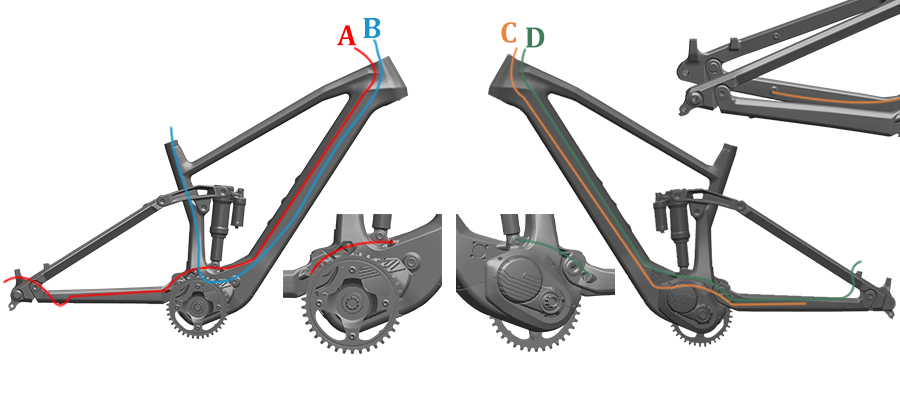

Internal Cable Routing Design

Full Hidden Cable Routing Design

There is no doubt that full internal cable routing looks rather pretty. PXE930 e-MTB bike frame is with internal cable routing design. Perfect combination of professional geometry and full internal cable routing design. This design looks also nice and clean after whole bicycle assembled.
A-Rear derailleur cable routing
B-Dropper post remote routing
C-Speed sensor cable routing
D-Rear brake control routing

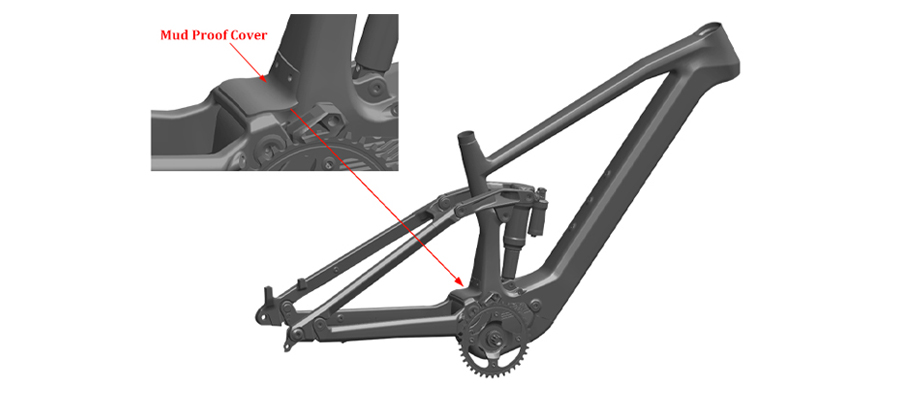

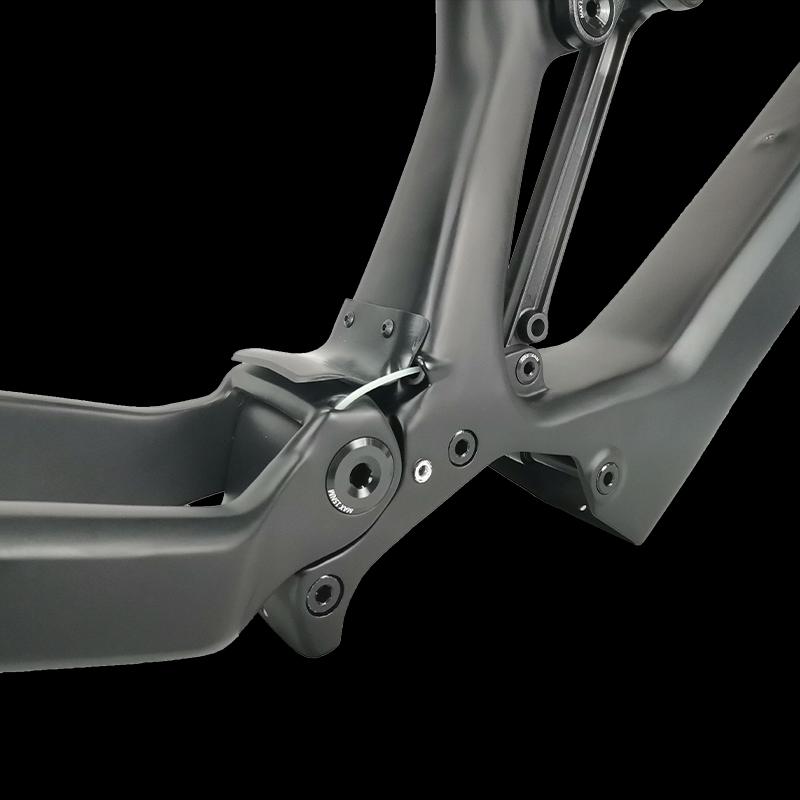

Mud/Silt Proof Cover

Mud/Silt Proof Cover

Bafang e-MTB carbon bike frame PXE930 is designed with mud proof cover. It prevents mud from running into the engine and rear suspension shock. By this protection, the operation function of the motor and shock will not be disturbed, running more stable and longer service life.

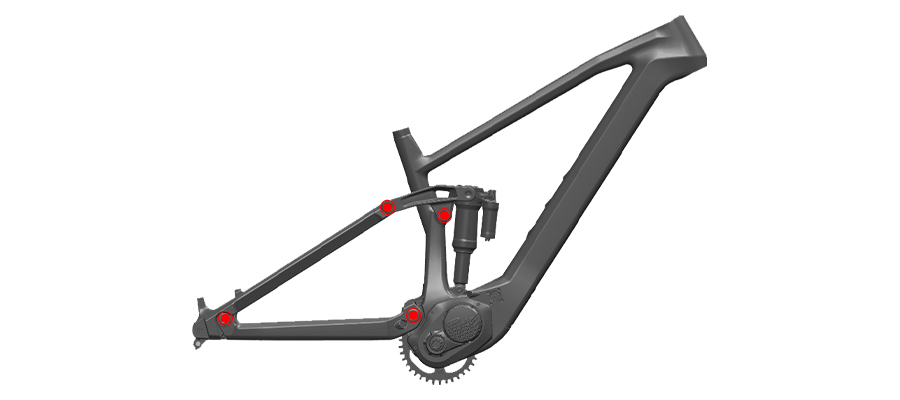

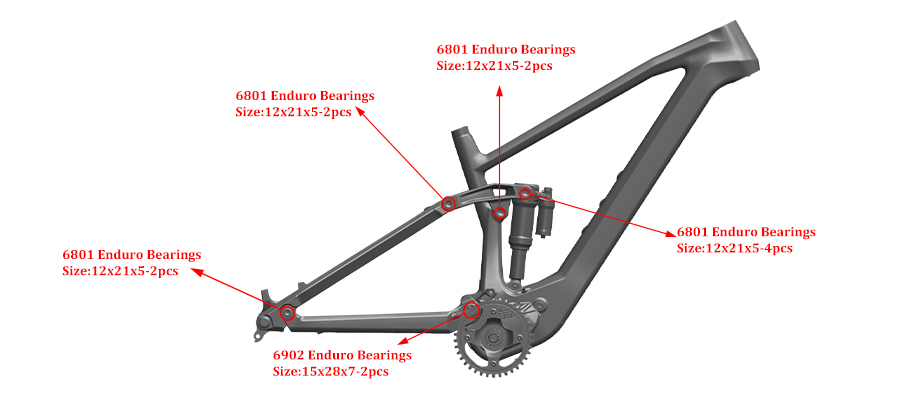

Enduro MAX Bearings

Enduro MAX Bearings

In this full suspension e bike frame PXE930, high quality Enduro bearings are used to optimize the suspension system performance. Enduro Bearings MAX series are with almost 20 years history and help MTB bike pivots for challenges. It's advertised these bearings have 35-40% more load capacity than standard radial bearings. High end bearings endow our mtb carbon frames better performance and durability.

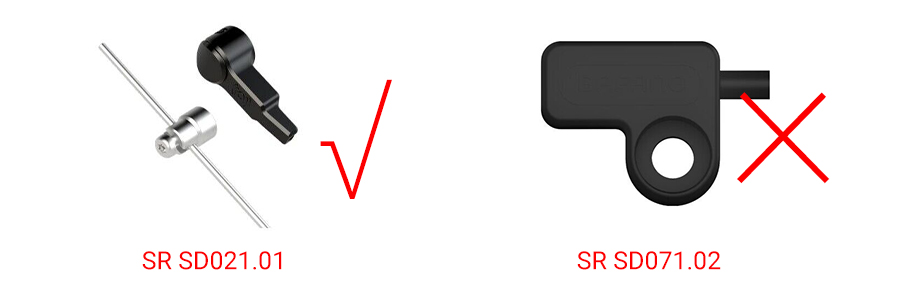

Suitable Speed Sensor SR SD021.01

Suitable Speed Sensor SR SD021.01

Currently the PXE930 bike frame is for Speed Sensor SR SD021.01, not compatible for SR SD071.02.

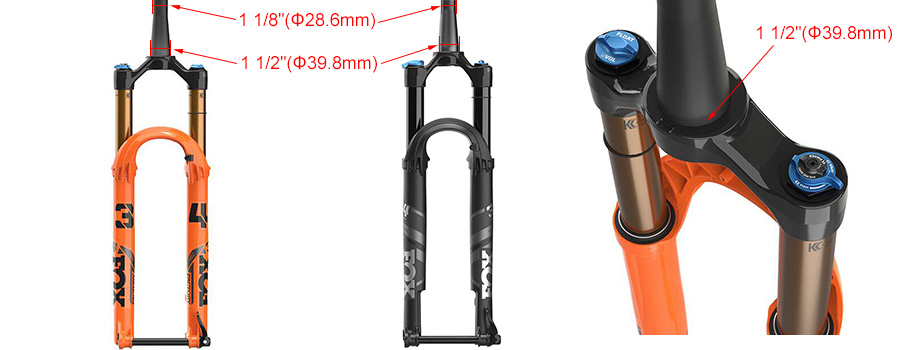

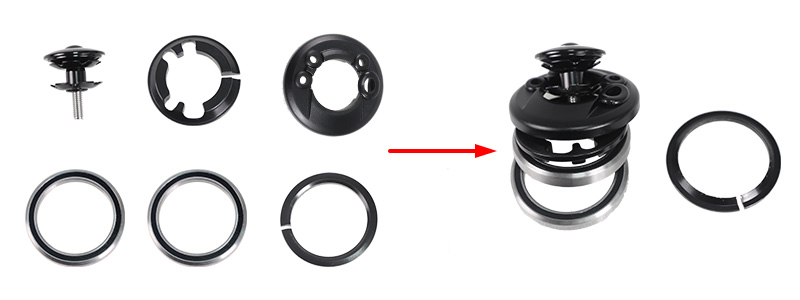

Suitable Fork for eMTB bike frame

Suitable Fork

For the PXE930 bike frame, it's designed for tapered steerer forks, upper diameter 1 1/8"(28.6mm) - lower diameter 1 1/2"(39.8mm). The full suspension fork with 44mm fork rake/offset and boost size(15*110mm thru axle) is recommended.

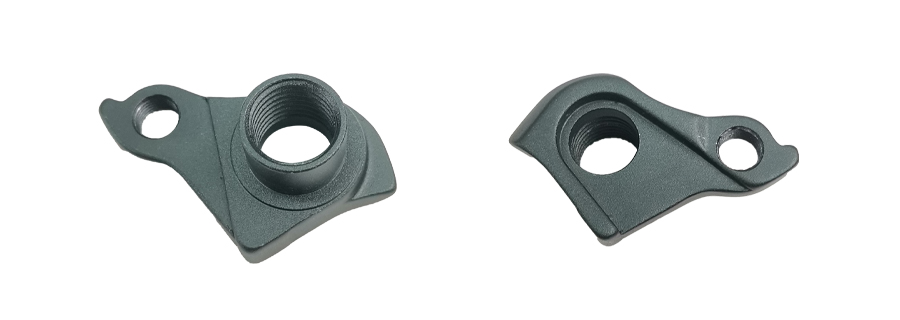

UDH for carbon eMTB bike frame

Universal Derailleur Hanger

The UDH(Universal Derailleur Hanger) creates a single hanger design that works on any bike for any derailleur generally and is primarily aimed at mountain bikes for now. It will also ensure perfect alignment during installation, so gear set up and shifting should be easier and crisper. What's more, if the chain jams, the hanger pivots backwards protecting the mech from being damaged. Besides, if you ever need replacement, it can be easily got since it is standard. From now on, say goodbye to the long lead time for the customized replacement hanger.

Chainstay Protector

Chainstay Protector

Chains hit the chainstay all the time. Every bounce bump or jump on your bike will lead to a chain slap on the chainstay. By using this high quality cushioning chainstay protector, it minimizes the rattling sound coming from your bike and softly protecting the chain and the bike. Being fast bike and quiet bike as well.
27g per chainstay protector sheet and it will come with your frame.

In addition to e-bike carbon frames, ProX also supply high quality ebike carbon MTB wheels as well as E-MTB carbon rims. If you are also need, please feel free to contact us and we will be happy to recommend for you.

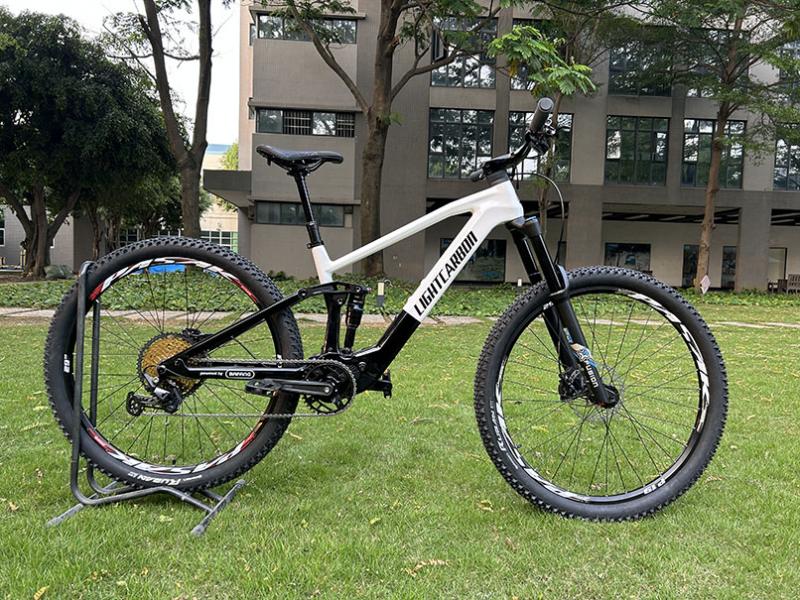

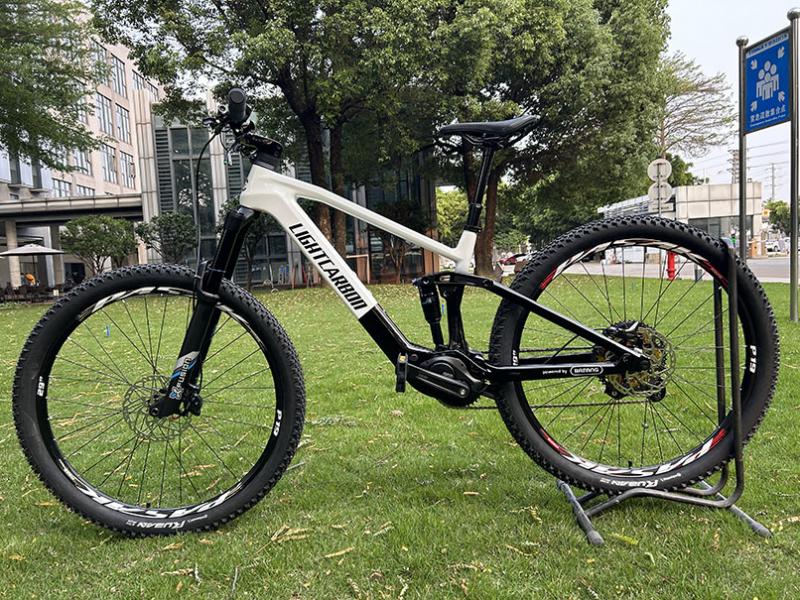

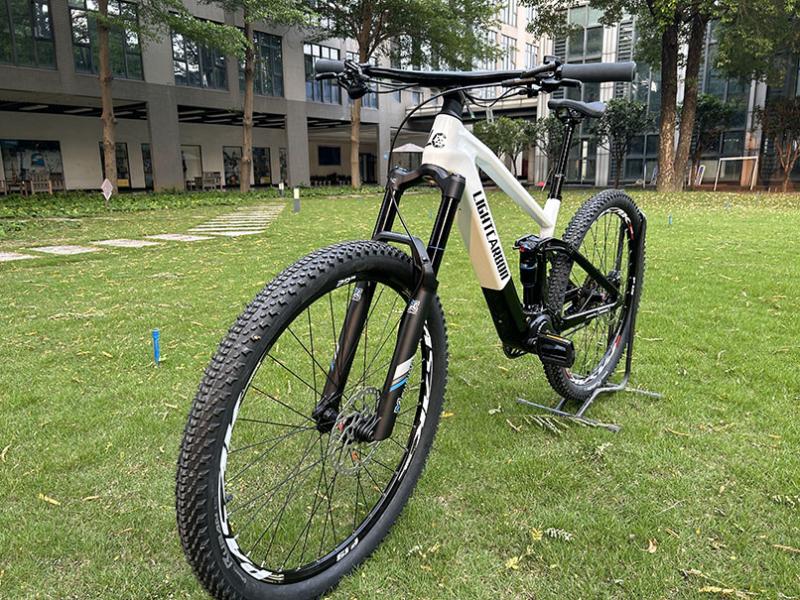

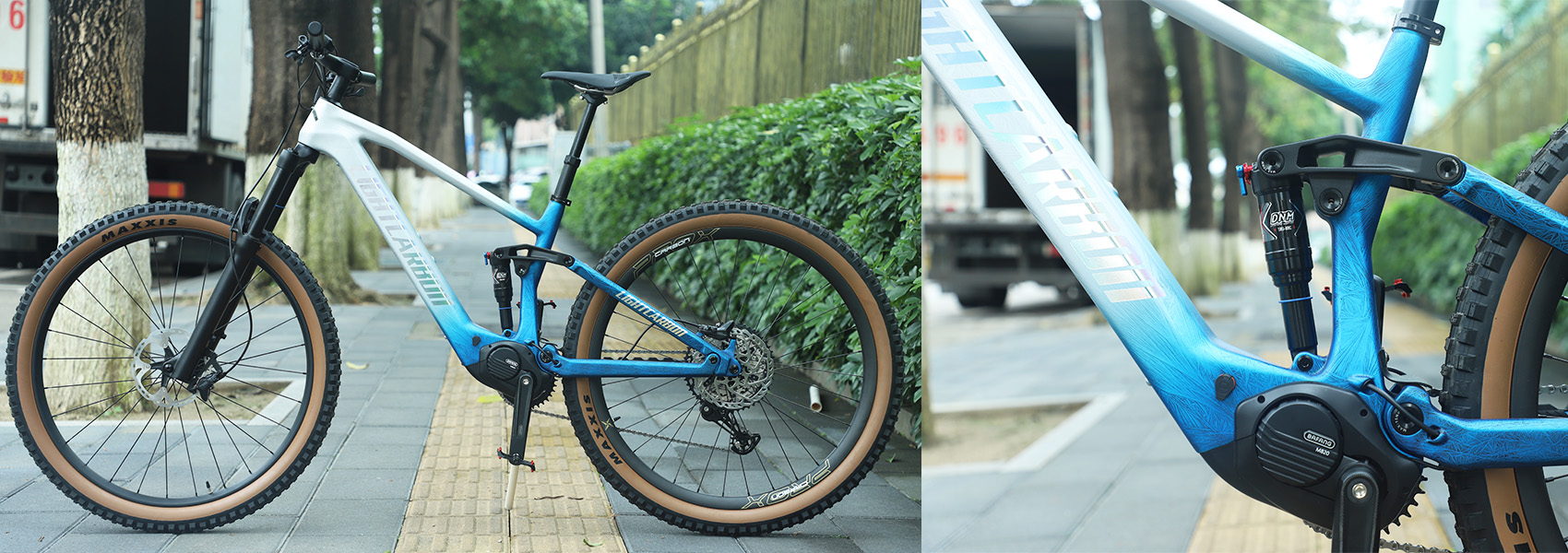

lightweight E-bike with bafang M820

SPECIFICATION

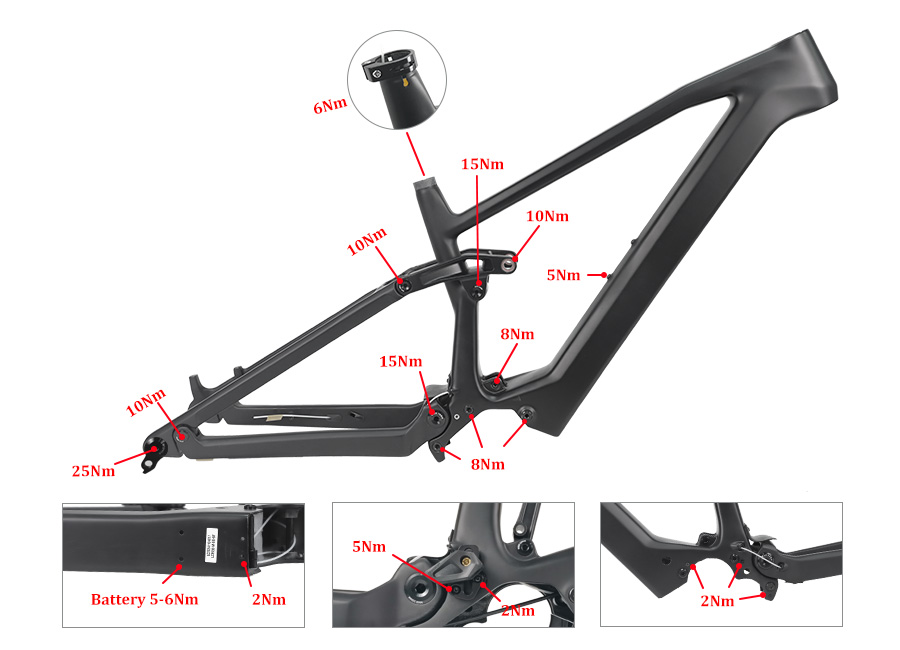

ProX Full Suspension Bafang M820 eMTB Carbon Frame PXE930

 Frame:  650B+/29er Boost Light Weight Full Suspension e-Mountain Bike Carbon Frame
 Material:  High modulus Toray T700+T800  carbon fiber
 Size:  S, M, L
 Headtube:  Straight 1 1/2" head tube
 Weight(±45g):  2750g/M''
 Seatpost Diameter:  31.6mm (34.9mm seat clamp)
 Motor System:  Bafang M820 mid drive engine, 250W (motor cover not included)
 Battery:  Bafang BT F014 410Wh battery, standby battery located in the bottle cage holder
 Max Tire Clearance:  650B*3.0'' and 29er*2.6"
 Front Travel:  150-160mm
 Rear Travel:  150mm
 Rear Shock Size:

 Shock eye-eye: 185x55mm , shock travel: 55mm -rear travel: 150mm

  Hardware upper M10 x 54mm, Bottom M8 x 22.2mm (excluded)
 Brake Type:  Post mount disc brake, 180mm rotor (fit max 203mm disc rotor, need adapter)
 Dropout:  12*148mm Boost Thru-axle
 Max Chainring:  Max 38T, Min 32T
 Max Chainline:
  53mm
 Max Cassette:  10-52T
 Test Standard:  ISO4210
 Warranty Time:  2-year

TECHNOLOGY

Geometry

SIZE S M L geometry of PXE930 eMTB frame
SEATPOST INSERT LENGTH 170mm 200mm 200mm
REACH 430mm 455mm 480mm
TOP TUBE LENGTH, HORIZONTAL 572mm 598mm 625mm
STACK 614.8mm 619.4mm 628.4mm
WHEELBASE 1205.5mm 1232.6mm 1261.9mm
CHAINSTAY LENGTH 457mm 457mm 457mm
FRONT CENTER 756.1mm 783.2mm 812.5mm
BB DROP 30mm 30mm 30mm
BB HEIGHT 335mm 335mm 335mm
SEAT TUBE ANGLE 77° 77° 77°
HEAD TUBE ANGLE 64.5° 64.5° 64.5°
SEAT TUBE LENGTH 390mm 420mm 450mm
HEAD TUBE LENGTH 105mm 110mm 120mm
BIKE STANDOVER HEIGH(29"*2.6") 782mm 801mm 825mm
FORK RAKE/OFFSET 44mm 44mm 44mm
FORK LENGTH, FULL 563mm 563mm 563mm
TRAIL 128mm 128mm 128mm

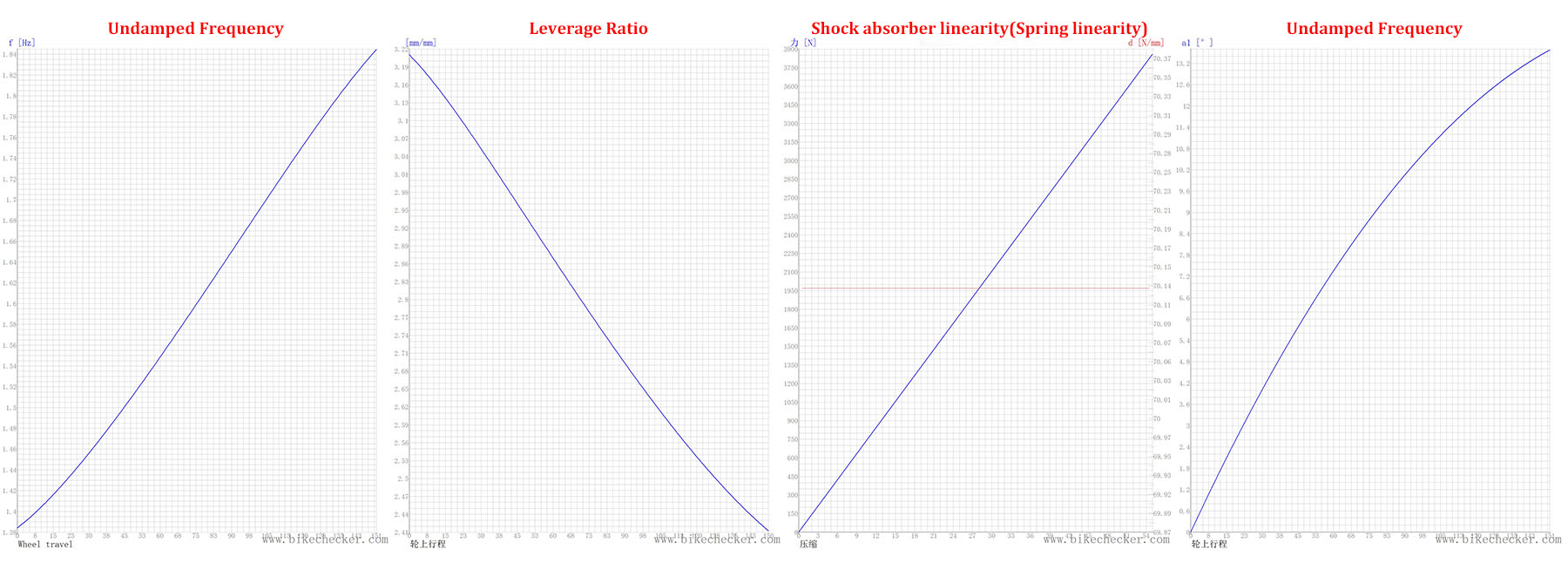

Suspension System Simulation Data


Suspension System Simulation Data
Suspension System Simulation Data for eMTB frame

If you need high resolution pictures of suspension data, please contact us.

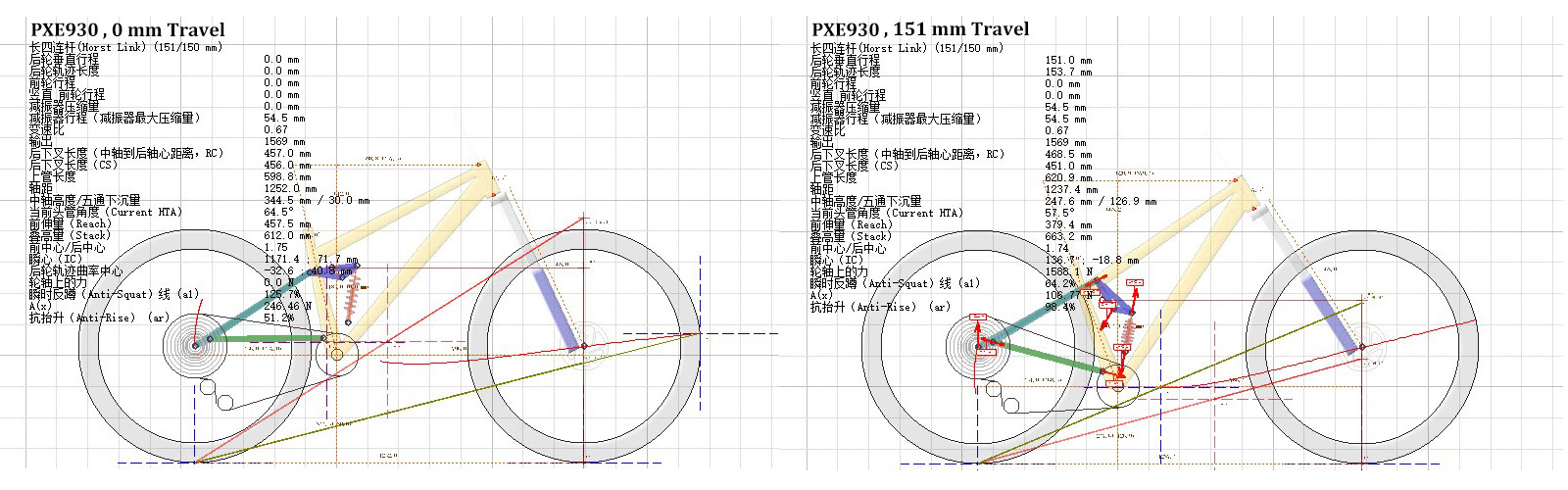

PXE930 E-Bike Frame Suspension Simulation From 0~150mm Travel

PXE930 Ebike Frame Suspension Simulation

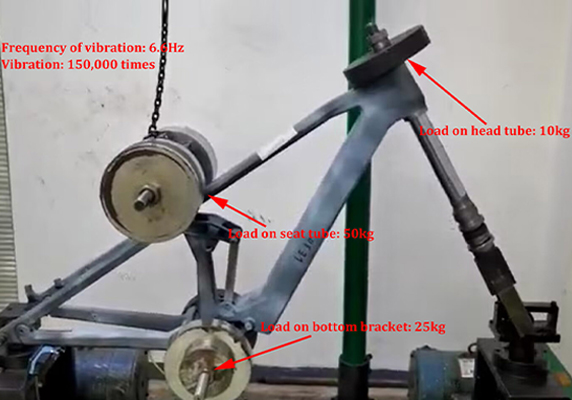

Vibration Test

Vibration testing simulates the rigorous riding vibration condition for 150,000 times. It ensures the function of the frame and long-lasting as well.
Vibration Test for PXE930 EBIKE frame
