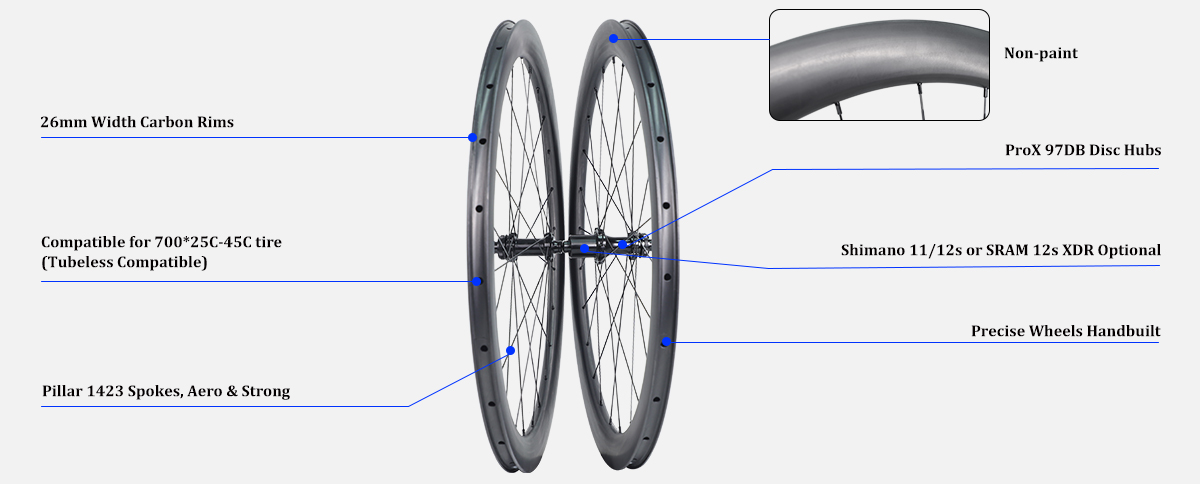

• Sale price, only US$229/pair! Ready to ship!
• Non-Paint finish for better anti-scratch
• 26mm width high quality carbon rims

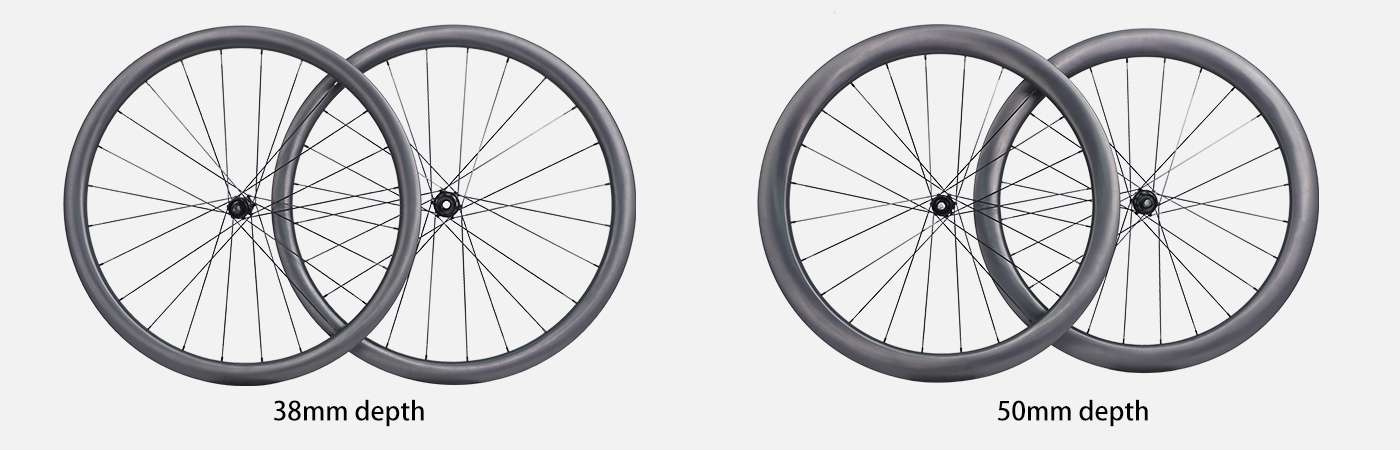

• Height 38mm and 50mm optional
• Pillar 1423 spokes, aero and strong
• Compatible for 700*25C-45C tire (tubeless ready)
Brand:
PROXItem NO.:
97DB-NRD26Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable):

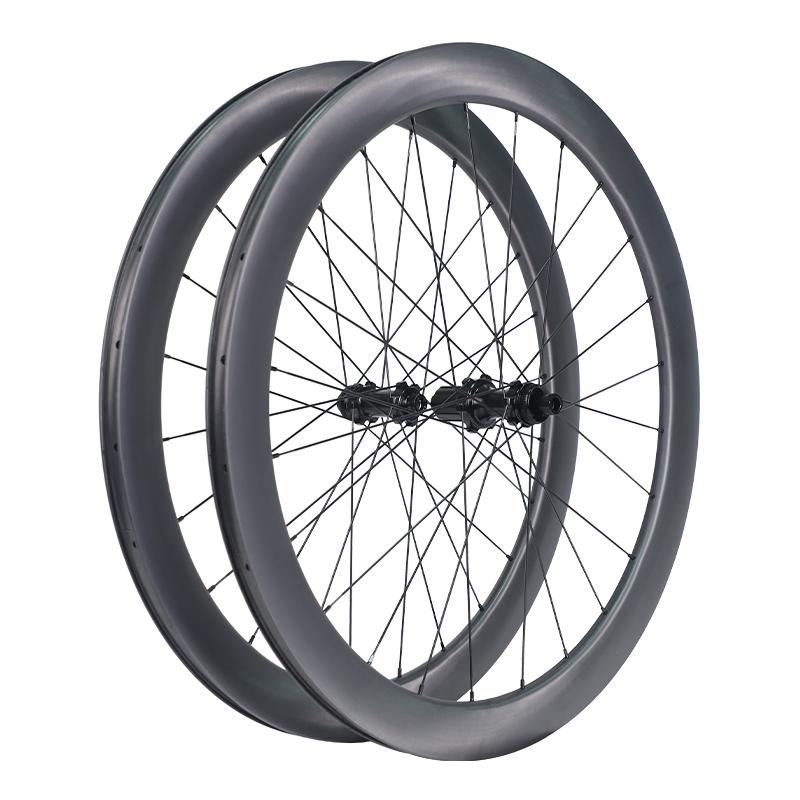

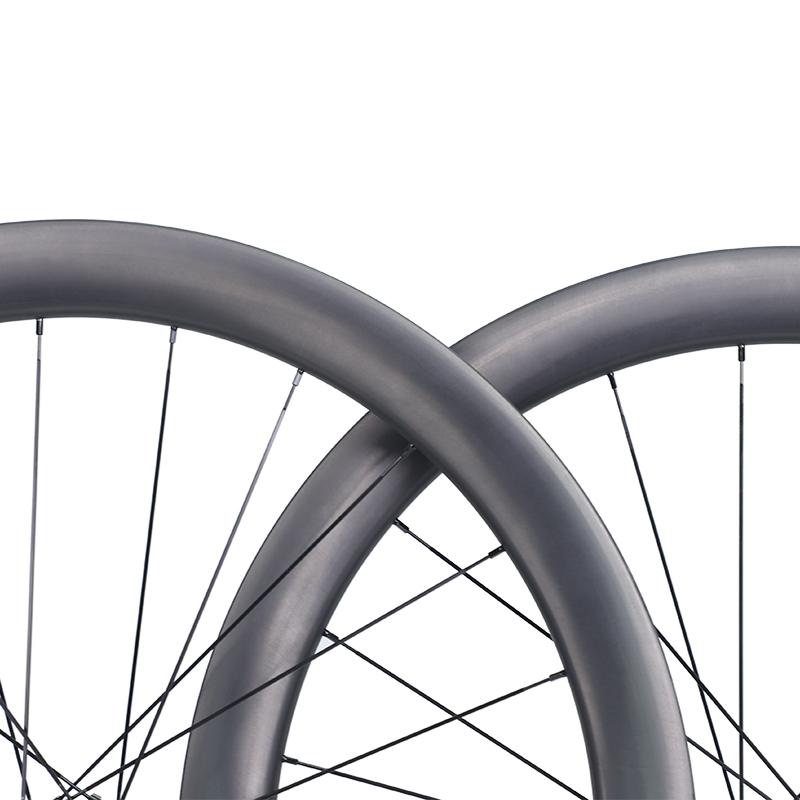

ProX 97DB Disc Brake Road Wheels - Affordable Carbon Road Wheelset ON SALE!
Special sale price only USD 229/pair (same for 38mm and 50mm height)! Once in a blue moon. Don't miss that boat!
Price does not include shipping cost. Please contact us to get final price plus shipping cost.
We offer Duty Free Shipping option to EU countries (+UK) and USA.
Considering the cost of DT Swiss hubs increases quickly, and lead time is getting longer and longer, ProX has developed our own mould disc brake hubs (called 97DB).

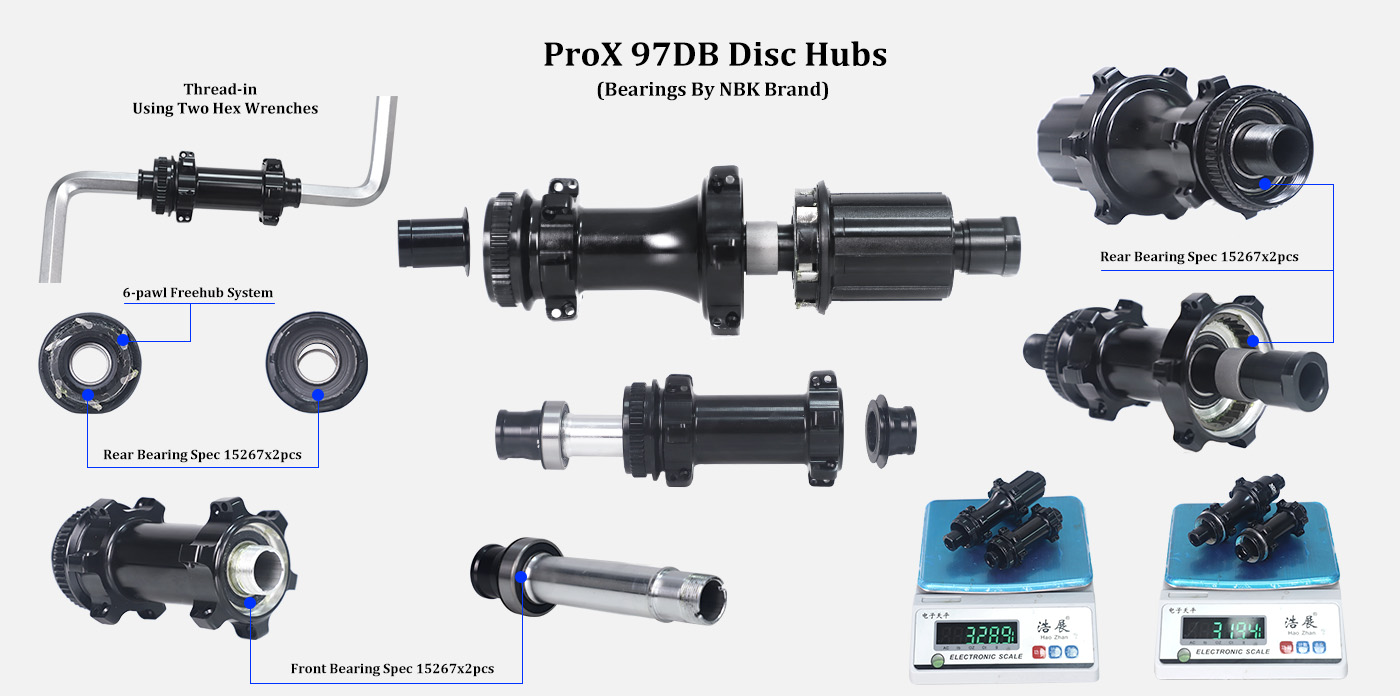

ProX 97DB road disc brake hubs are designed with 6-pawl freehub system, featuring regular steel bearings. New and improved design of adding the springs to the pawl freehub system which increases efficiency and resilience when pedaling. In that case, the friction is reduced and that can contribute more energy to the wheels.
On sale ProX 97DB road disc brake carbon wheelset will be built with 26mm outer (19mm inner) width carbon rims. For such 26mm wide road carbon clincher rim, the optimized aerodynamics tire size is 700*25C and 700*28C. If you plan to use even wider tires, it works as well.
ProX Own Mould 97DB Disc Brake Carbon Road Wheelset Specification:
-Rims: UD non-paint, without logo
-Hub: ProX 97DB disc hubs (front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or SRAM 12s XDR optional
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type: Clincher/tubeless ready
-Spoke: Pillar 1423 spoke
-Spoke Tension(recommended): ≤145kgf
drive side on front and rear: 130~140kgf
-Tire Pressure: 125psi/8.6bar
-Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.
-Warranty Year: 2 years
ProX 97DB Disc Brake Road Carbon Wheels On Sale Built With Carbon Rims (26mm width)
| Model | Rim | Depth | Outer Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
| 97DB-NRD26-38C-1423 | NRD26-38C | 38mm | 26mm | Tubeless or Clincher | ProX 97DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-45C | 1470g |
| 97DB-NRD26-50C-1423 | NRD26-50C | 50mm | 26mm | Tubeless or Clincher | ProX 97DB Disc | 12*100mm | 12*142mm | Pillar 1423 | 700*25C-45C | 1510g |
700C Road Disc Brake Carbon Clincher Rims 26mm width
Rims
NRD26-38C
NRD26-50C
Max Weight Limit
105kg/230lb
115kg/250lb
Material
T700
T700

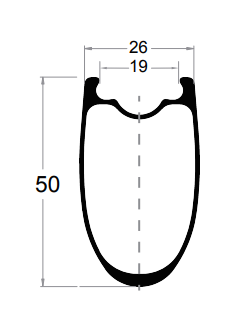

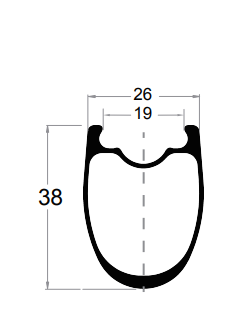

Sectional Drawing
 |
Carbon Fiber Material Premium Toray T700 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight carbon fiber bike rims.
|
 |
Light Weight By using well designed lay-up structure, UD non-paint applying, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
 |
Narrow Inner Width Relatively narrow 19mm inner width, make it possible to fit multiple sizes of tire. Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).
|
 |
Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon road rims. It is also of better stiffness and strength. |
 |
Tubeless Ready
Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 |
Road Disc Brake Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
 |
Hand Built All our bicycle carbon wheels are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
 |

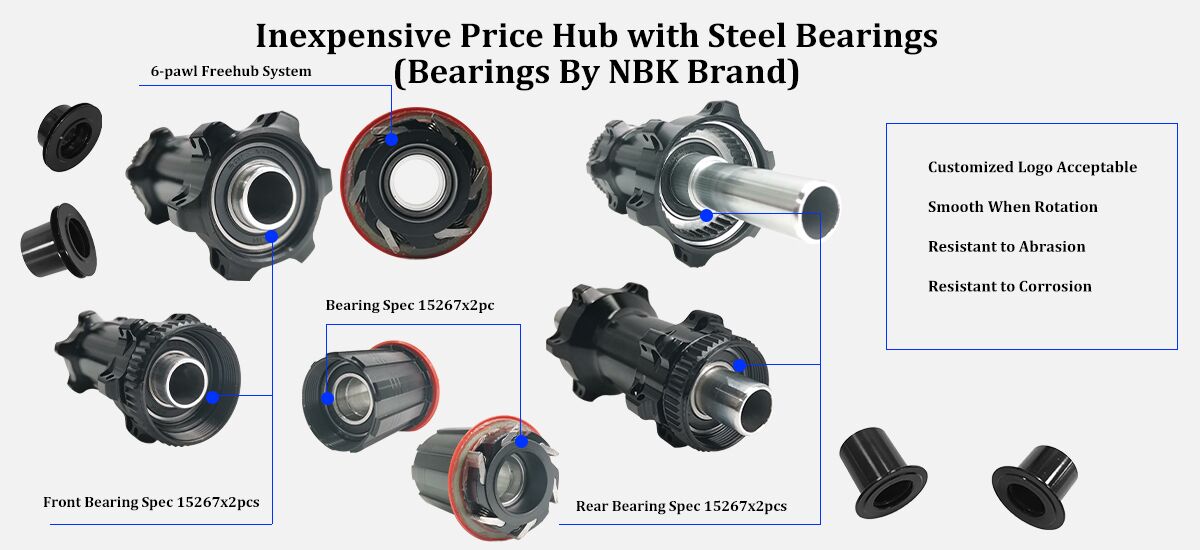

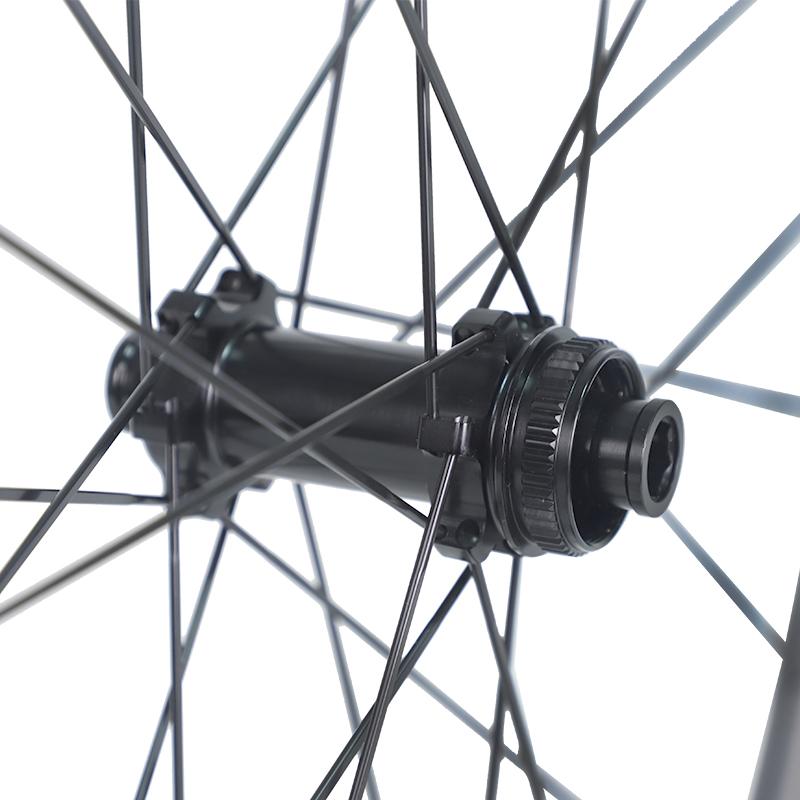

ProX Road Hubs ProX own mould 97DB road hubs are used. High quality hubs with cheap price. 97DB road disc brake hubs are designed with 6-pawl freehub system with regular steel bearings. Such hubs can also be etched with your customized logo.
12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.
|
 |
Pillar Spokes The popular Pillar PSR AERO 1423 spokes are used. Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%. Perfect aero shape, high elasticity and low drag coefficient.
|
 |
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |

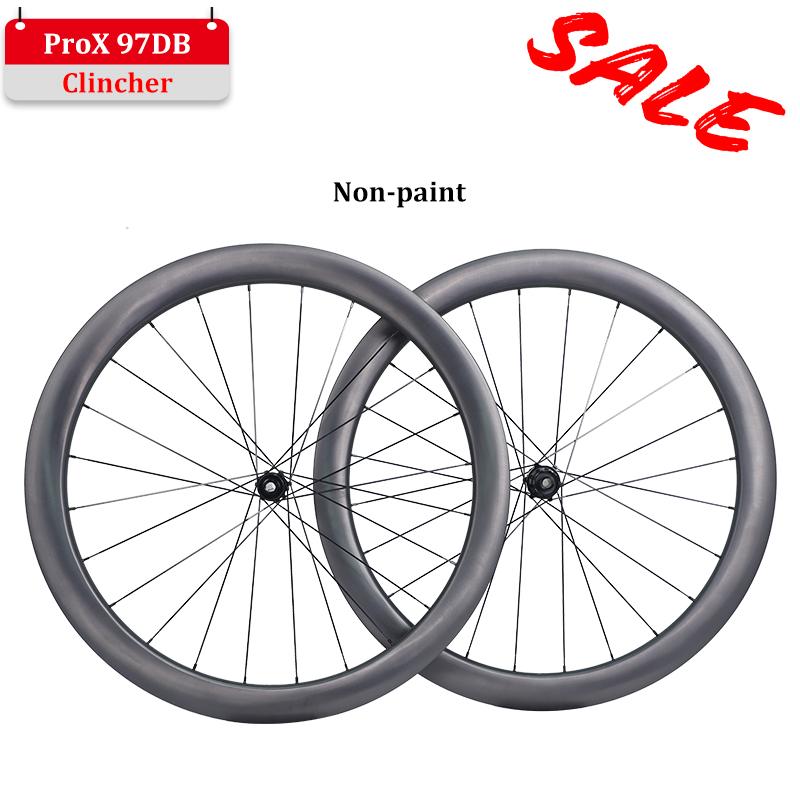

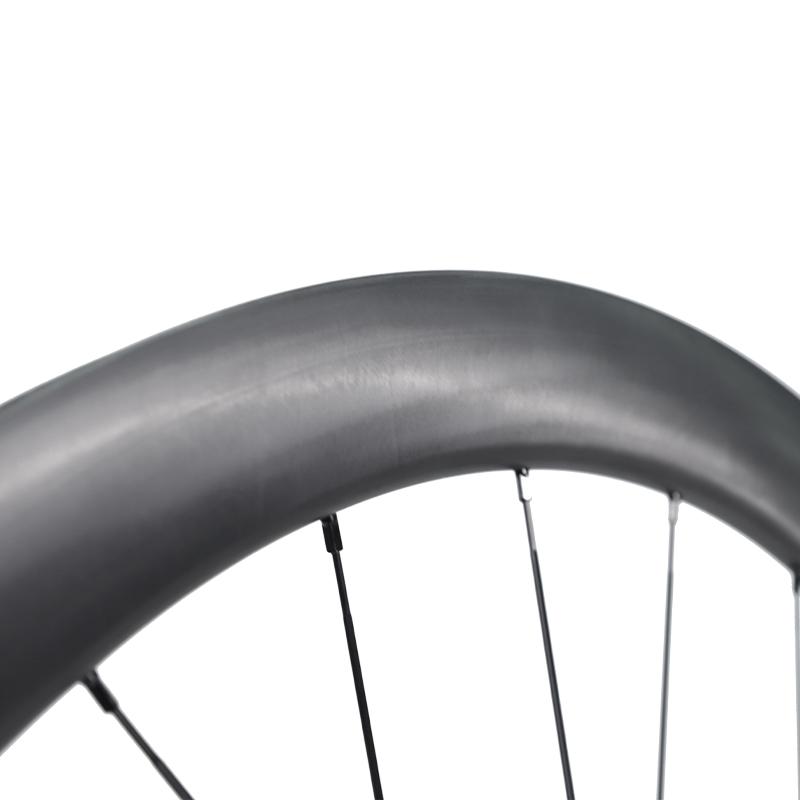

ProX Carbon had taken it to the next new level in terms of rim finish. Non-paint (paintless) finish become one of the choices. They feature the latest manufacturing technology and are the completed product when come out of rim molds directly, eliminating the need for coating or painting. Such carbon rims are of better scratch resistant, near flawless look and visible original carbon fiber weave. Non-paint looks more premium to match the carbon bike than the matte finish.
