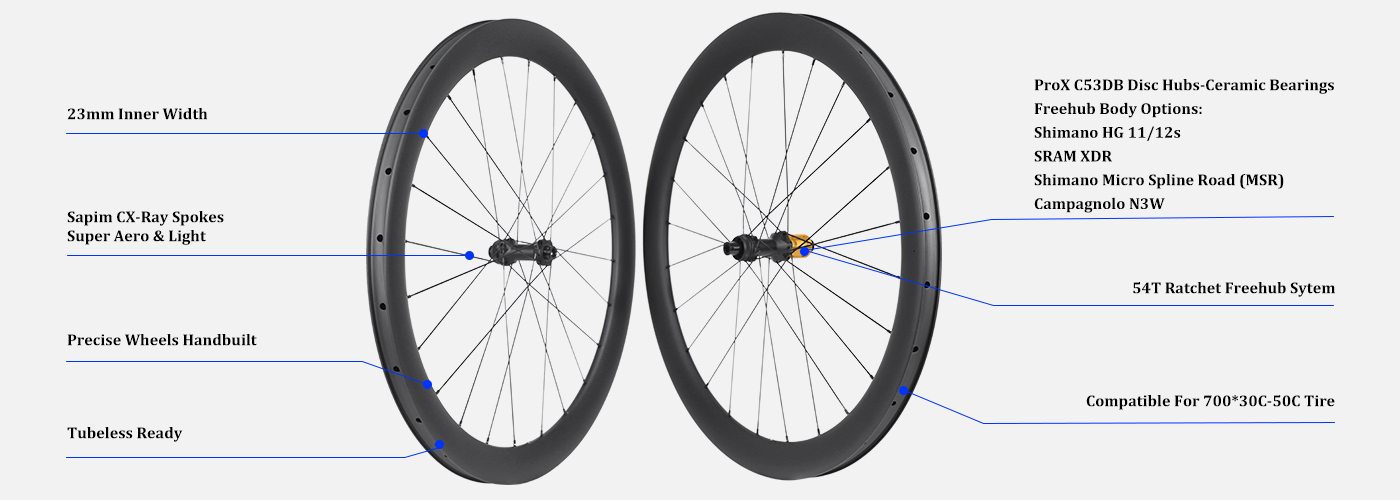

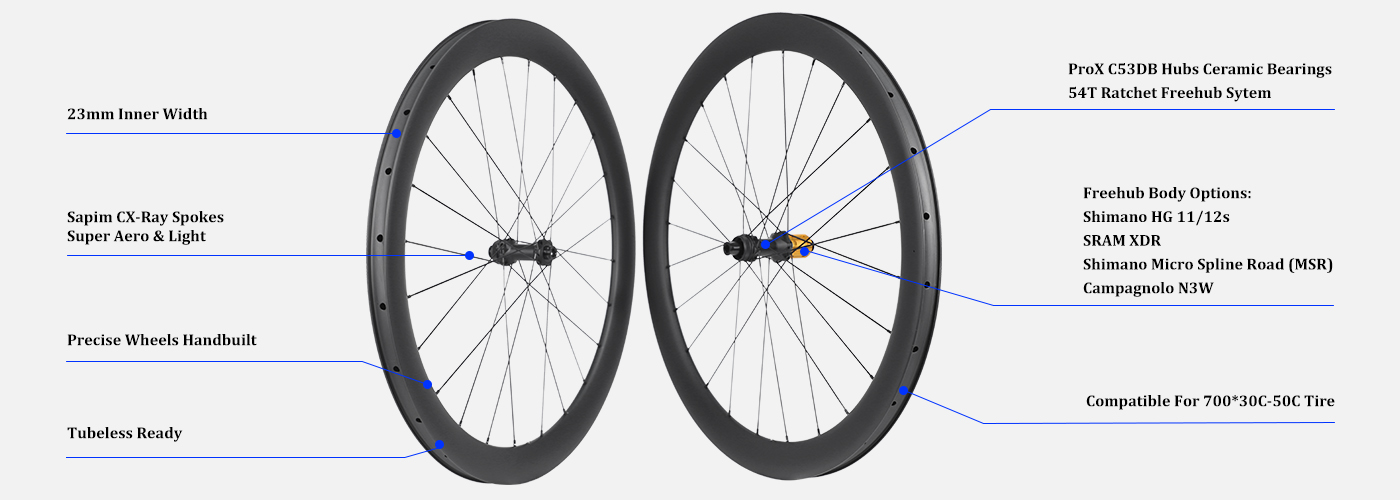

• Light weight, high performance road carbon wheels
• C53DB hubs with Ratchet 54T freehub, ceramic bearings
• High-end Sapim CX-Ray spokes, super light and aero
• Freehub Shimano HG, MSR, SRAM XDR, Campagnolo N3W optional
• With 23mm inner width carbon rims, aero and light
• Compatible for 700*30C-50C tire
Brand:
PROXItem NO.:
C53DB Clincher WheelPayment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable):

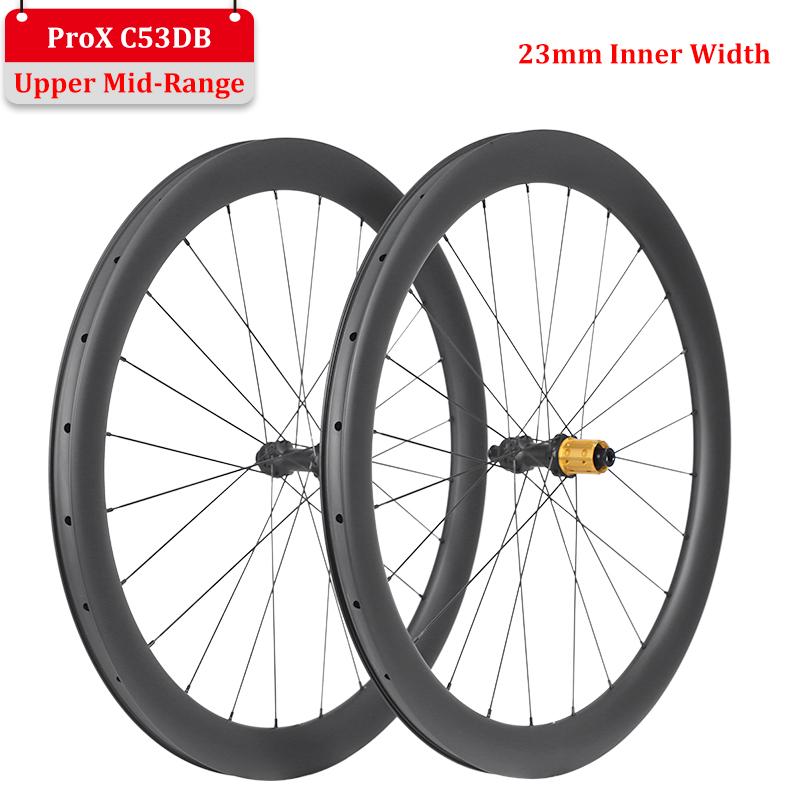

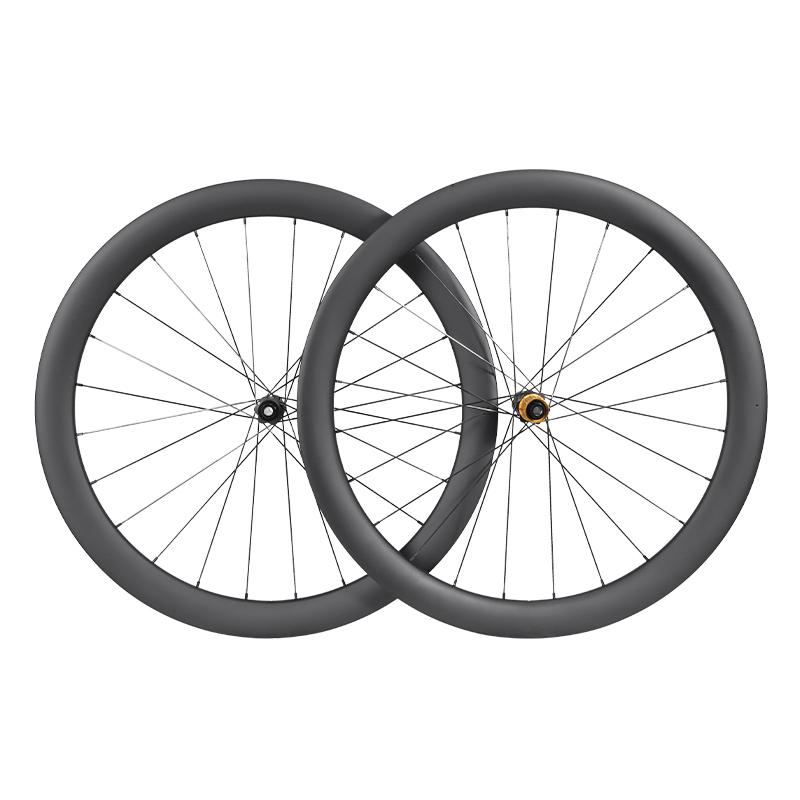

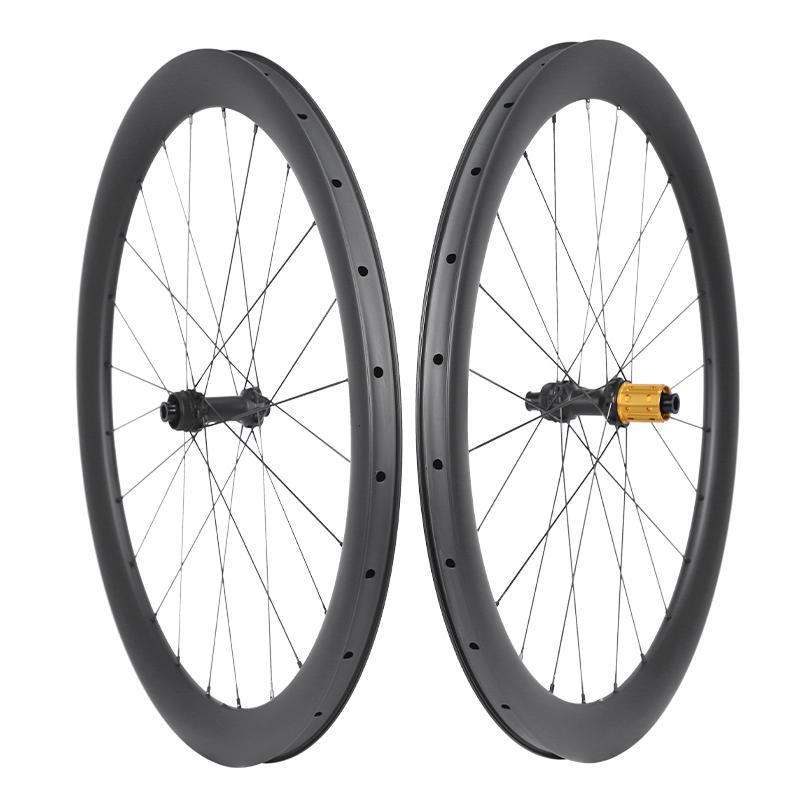

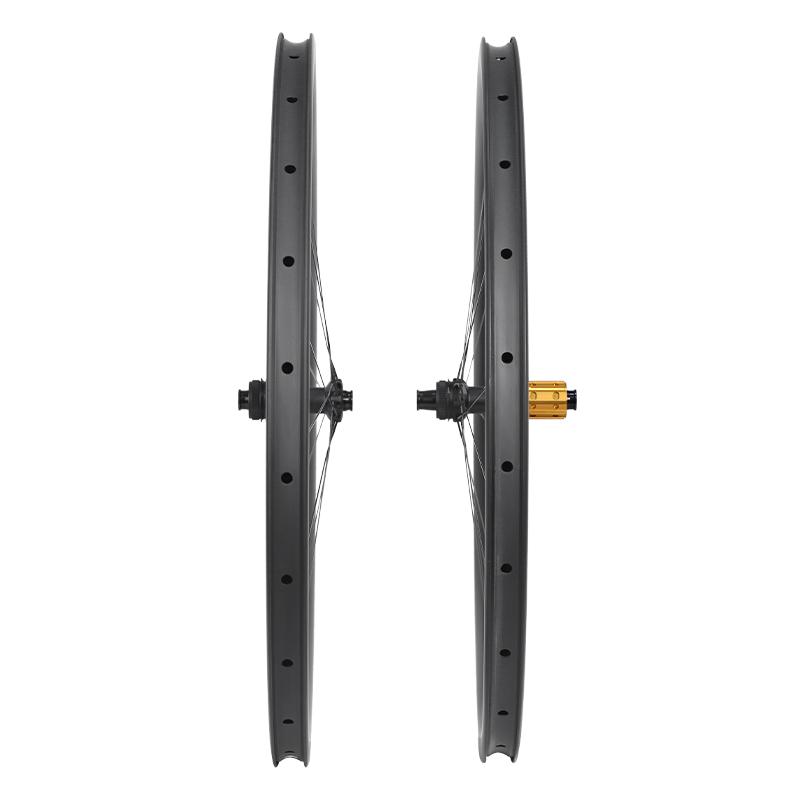

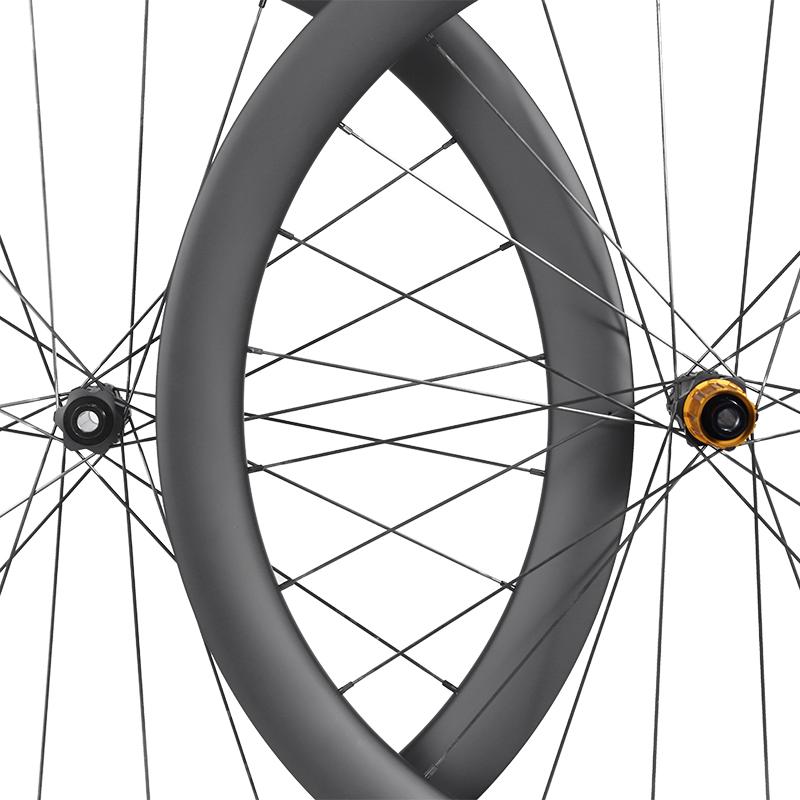

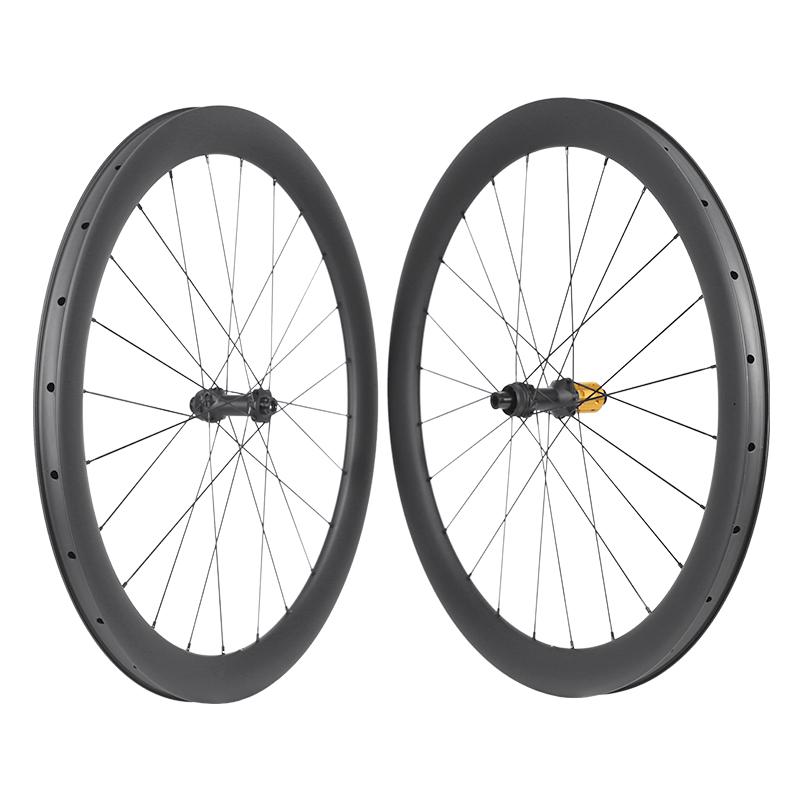

ProX C53DB Disc Brake Carbon Road Wheels - Light Weight, Instant Engagement, High Performance
Built for modern road performance, the ProX C53DB carbon wheelset combines lightweight construction, fast 54T ratchet engagement, and smooth ceramic bearings to deliver efficient power transfer and responsive acceleration. Paired with Sapim CX-Ray spokes and a modern wide rim profile, this wheelset offers an ideal balance of low weight, stiffness, and aerodynamic efficiency for demanding road riders.

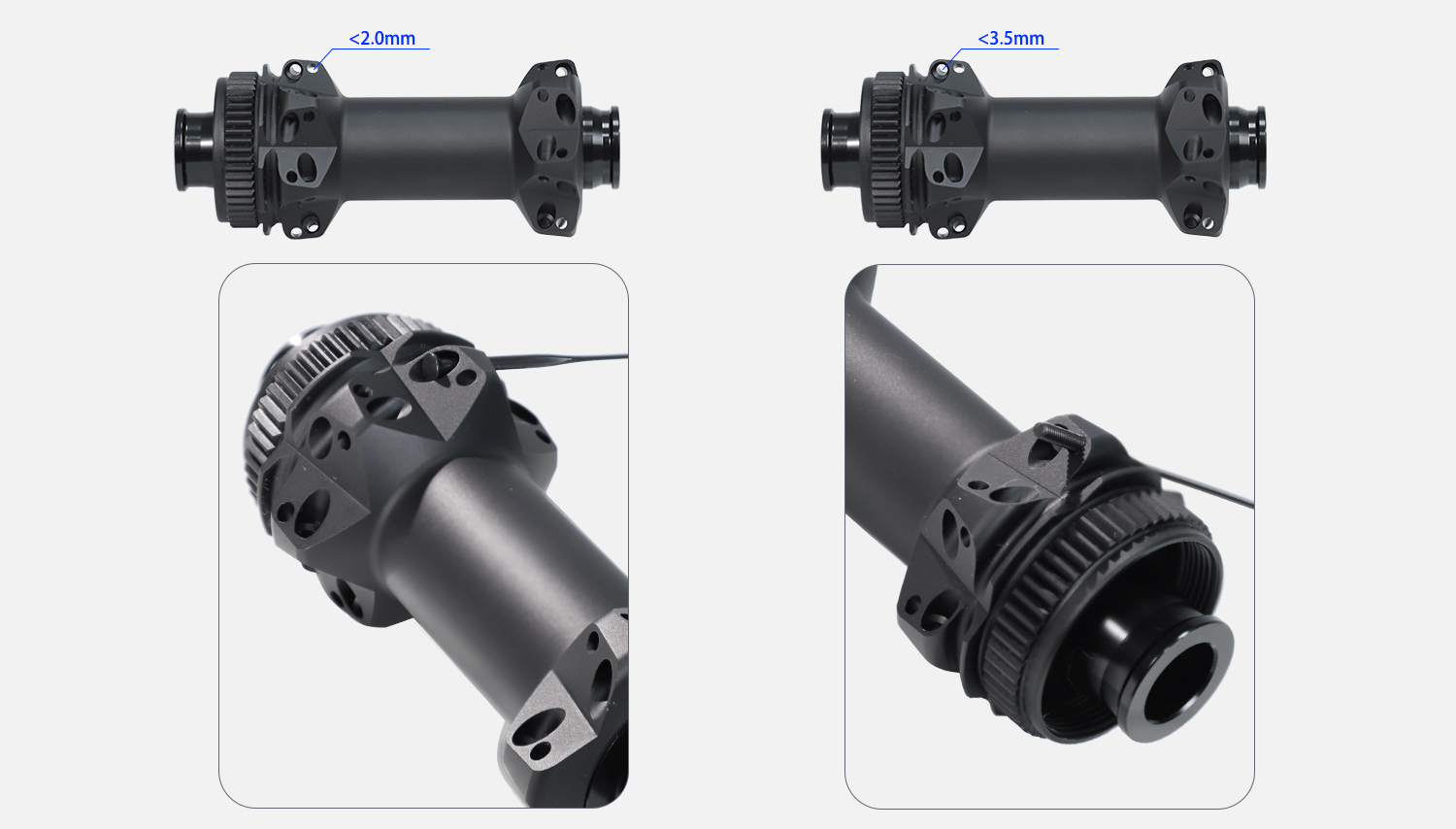

A lightweight hub shell paired with Sapim CX-Ray spokes keeps rotational weight low, helping riders accelerate faster and climb more efficiently. Lower rotating mass means quicker response every time you push on the pedals.
Moreover, the C53DB hub features a clean, compact shell design that balances weight reduction with structural strength.

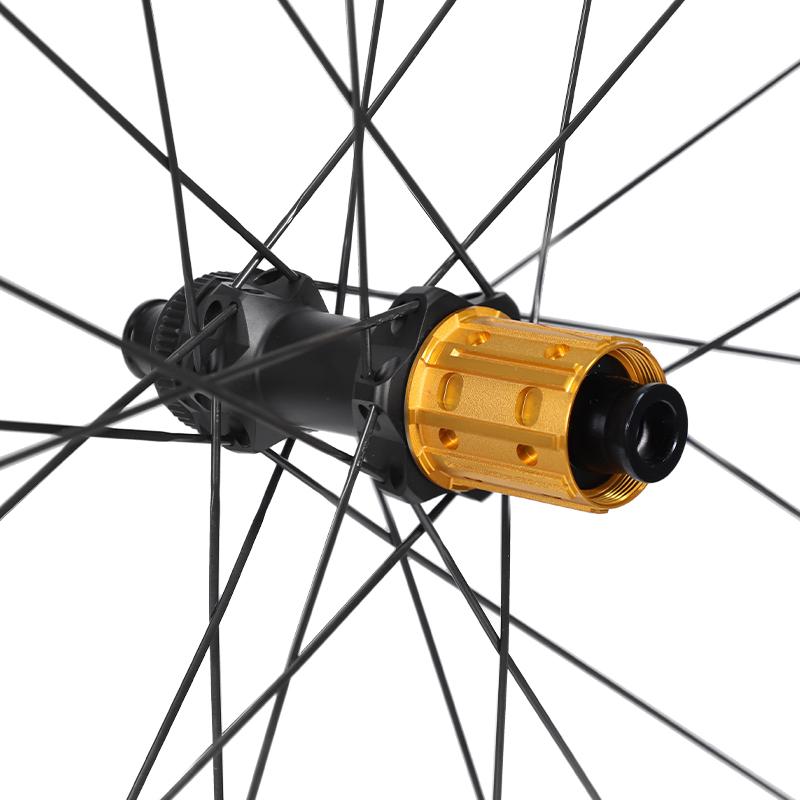

The 54-tooth ratchet system provides rapid engagement for instant power transfer. Whether sprinting, attacking on climbs, or exiting corners, the hub responds immediately to every pedal stroke.
Compared to traditional ratchet designs generally with two springs, this C53DB rear hub applies only one spring which reduces complexity while keeping performance reliable. Its modular and fewer-part structure offer easy maintenance and servicing.
It also performs well with tires wider than 32C, making it ideal for endurance road riding and mixed road conditions.
· responsive engagement
· climbing-focused road riders
 |
|
(ProX 50mm depth carbon wheels built on PXR018-D all-road ENDURANCE frame) |
Specification of ProX C53DB Light Weight Road Disc Brake Carbon Bicycle Wheels:

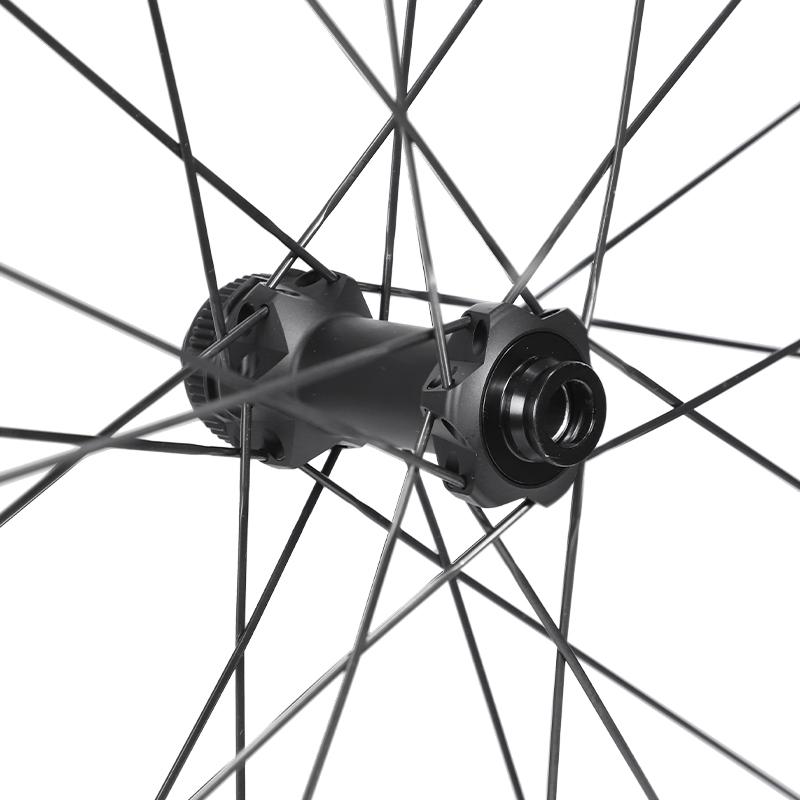

- Hub: ProX C53DB disc hubs, Ratchet 54T freehub system, (front 12*100mm TA/rear 12*142mm TA)
- Disc brake type: center lock
- Type: straight pull
- Cassette Body: Shimano HG 11/12s, SRAM XDR 12/13s, Shimano Micro Spline Road (MSR), Campagnolo N3W
- Spoke Hole Count: front 24H and rear 24H
- Tire Type: Clincher/Tubeless ready
- Spoke: High-end Sapim CX-Ray spokes, super light and aero, dimensions 2.0 - (0.9x2.2) - 2.0 mm
- Spoke Tension(recommended): ≤145kgf
130~140 kgf on rear drive side and front non-drive side
- Tire Pressure: 125psi/8.6bar
- Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.
- Warranty Year: 2 years
-Tubeless Valve (not included): 44/60/80mm length optional
ProX C53DB Light Weight Disc Brake Road Carbon Wheels
| Model | Rim | Depth | Inner Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|

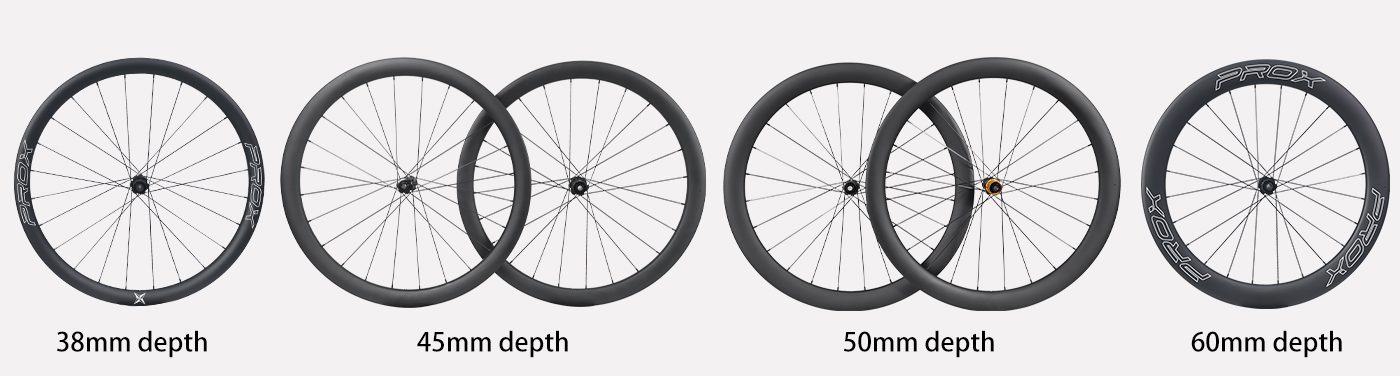

| C53DB-PRD923-38C-Ray | PRD923-38C | 38mm | 23mm | Tubeless or Clincher | ProX C53DB Disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*30C-50C | 1302g |
| C53DB-PRD923-45C-Ray | PRD923-45C | 45mm | 23mm | Tubeless or Clincher | ProX C53DB Disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*30C-50C | 1322g |
| C53DB-PRD923-50C-Ray | PRD923-50C | 50mm | 23mm | Tubeless or Clincher | ProX C53DB Disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*30C-50C | 1382g |
| C53DB-PRD923-55C-Ray | PRD923-55C | 55mm | 23mm | Tubeless or Clincher | ProX C53DB Disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*30C-50C | 1442g |
| C53DB-PRD923-60C-Ray | PRD923-60C | 60mm | 23mm | Tubeless or Clincher | ProX C53DB Disc | 12*100mm | 12*142mm | Sapim CX-Ray | 700*30C-50C | 1482g |
700C Road Disc Brake Carbon Clincher Rims PRD923 (23mm inner width)
Rims
PRD923-38C
PRD923-45C
PRD923-50C
PRD923-55C
PRD923-60C
Max Weight Limit
115kg/253lb
120kg/265lb
120kg/265lb
120kg/265lb
125kg/275lb
Materials
T700+T800
T700+T800
T700+T800
T700+T800
T700+T800
Sectional Drawing
 |
Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight road carbon rims.
|
 |
Light Weight By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
 |
Wide Inner Width Relatively wide 23mm inner width, make it possible to fit multiple sizes of tire. Normally road tire size 700x30C are recommended (also fit other wider tires).
|
 |
Aero U Shape Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon road rims. It is also of better stiffness and strength. |
 |
Tubeless Ready
Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 |
Road Disc Brake Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
 |
Hand Built All our bicycle carbon wheels are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
 |

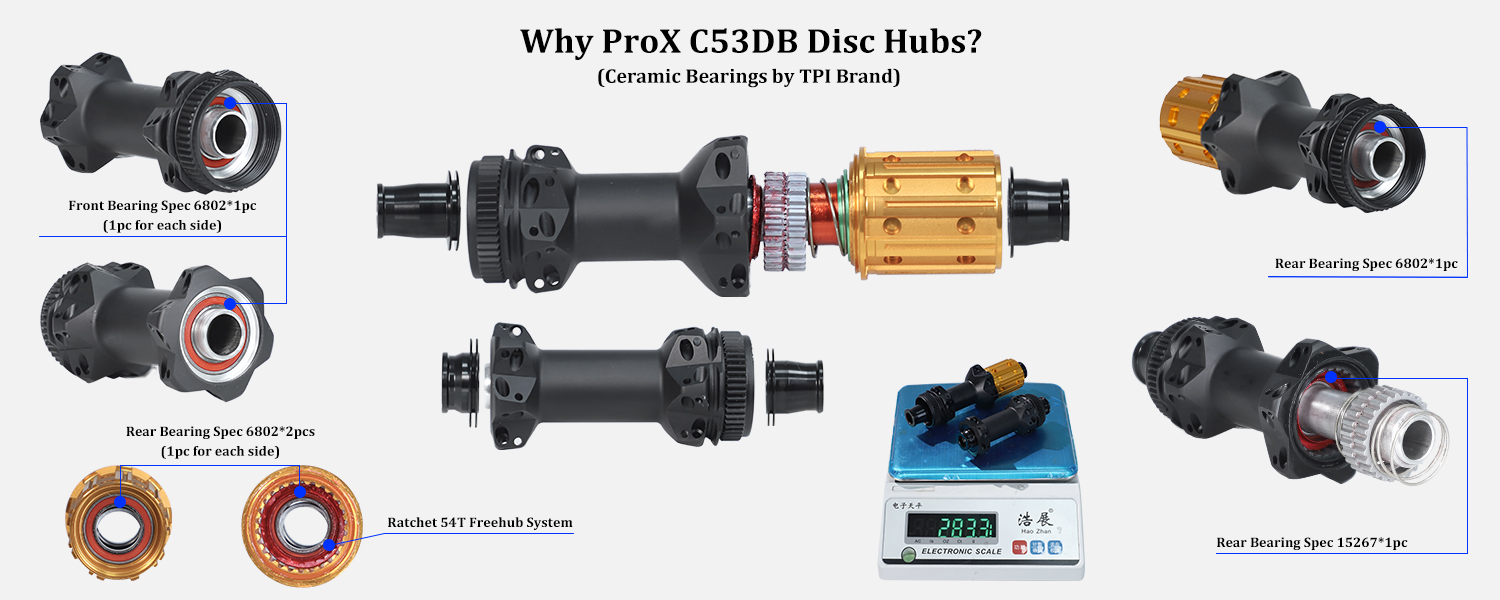

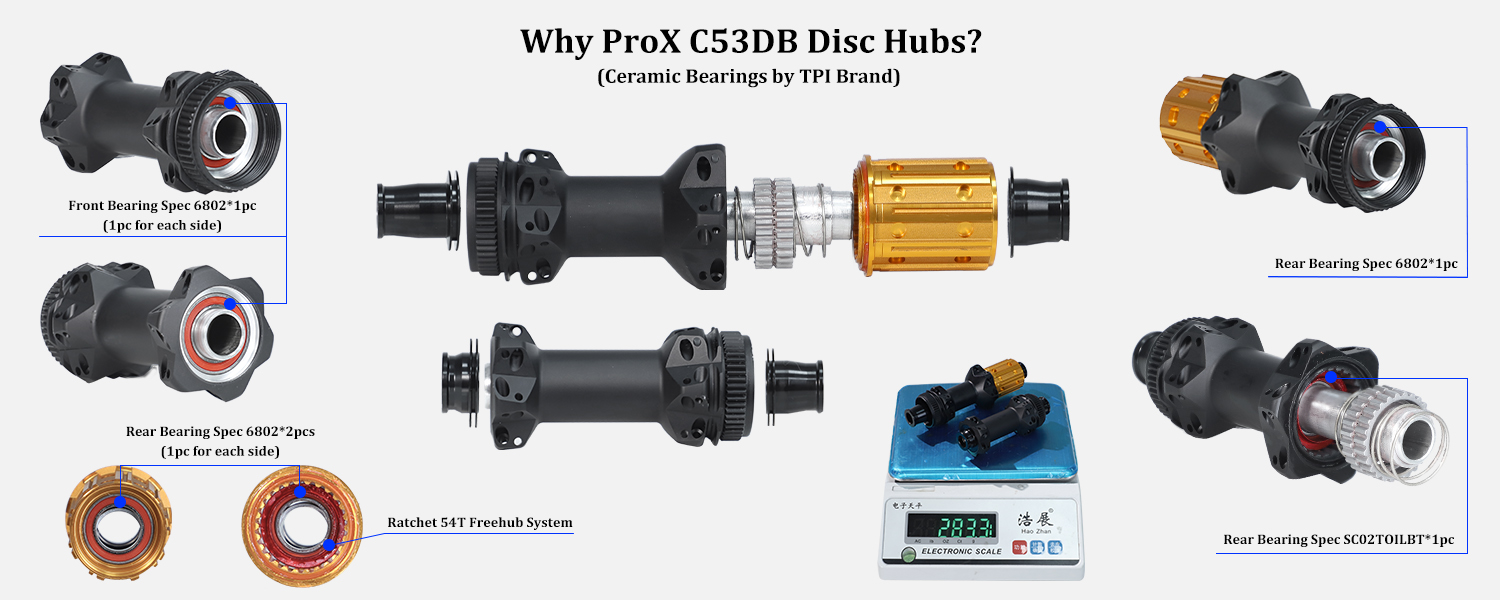

ProX C53DB Disc Hubs ProX own mould C53DB road hubs are used. High quality hubs with moderate price. C53DB road disc brake hubs are designed with ratchet 54T freehub system, and with ceramic bearings inside. Such hubs can also be etched with your customized logo.
12*100/12*142 thru-axle, with Shimano HG, MSR, SRAM XDR or Campagnolo N3W cassette body.
|
 |
Sapim Spokes High end Sapim CX-Ray spokes, one of the best spokes available in the market. Sapim CX-Ray spoke is the best combination of light weight, strength, flexibility, and it results in best fatigue testing. It is widely used in many disc brake road wheels of those top brands all over the world.
|
 |
2-Year Warranty We have strict production management system, QC and testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years' quality warranty is offered(starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
