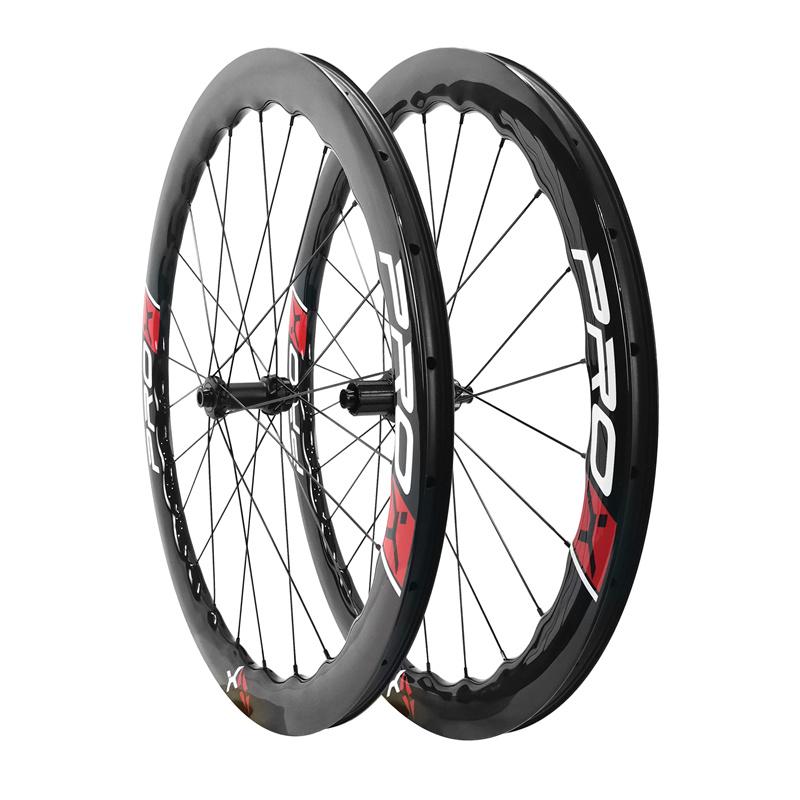

ProX Carbon Road Undulating Depth Disc Wheels C52DB Ratchet Freehub System

UCI Approved

• Affordable road carbon wheel, priced from USD409/pair

Hubs with ceramic bearings, Ratchet 36T freehub system

Bladed Pillar 1423 Spokes, aero & strong

• Compatible for 700*25C-45C tire

  • Brand:

    PROX
  • Item NO.:

    C52DB URD Wheel
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

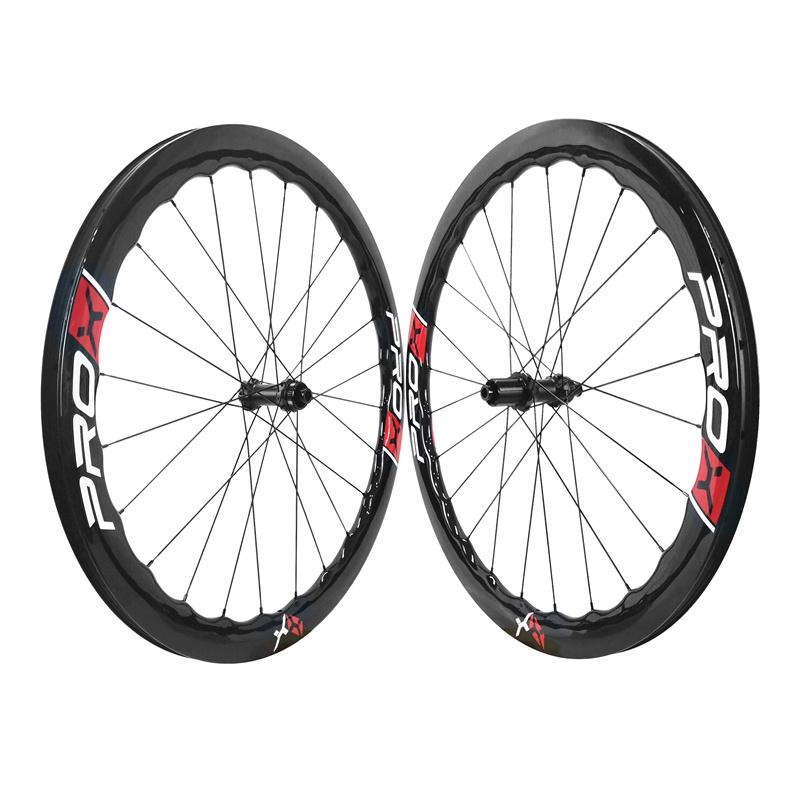

ProX C52DB Disc Brake Carbon Road Wheels - Ratchet 36T Hub With Good Price

Considering the price of DT Swiss hubs increases quickly, and lead time is getting longer and longer, ProX has developed our own mould disc brake hubs (called C52DB).

Reliable quality hubs made by well-known Taiwan hub manufacturer.

carbon wheelset disc brake UCI approved

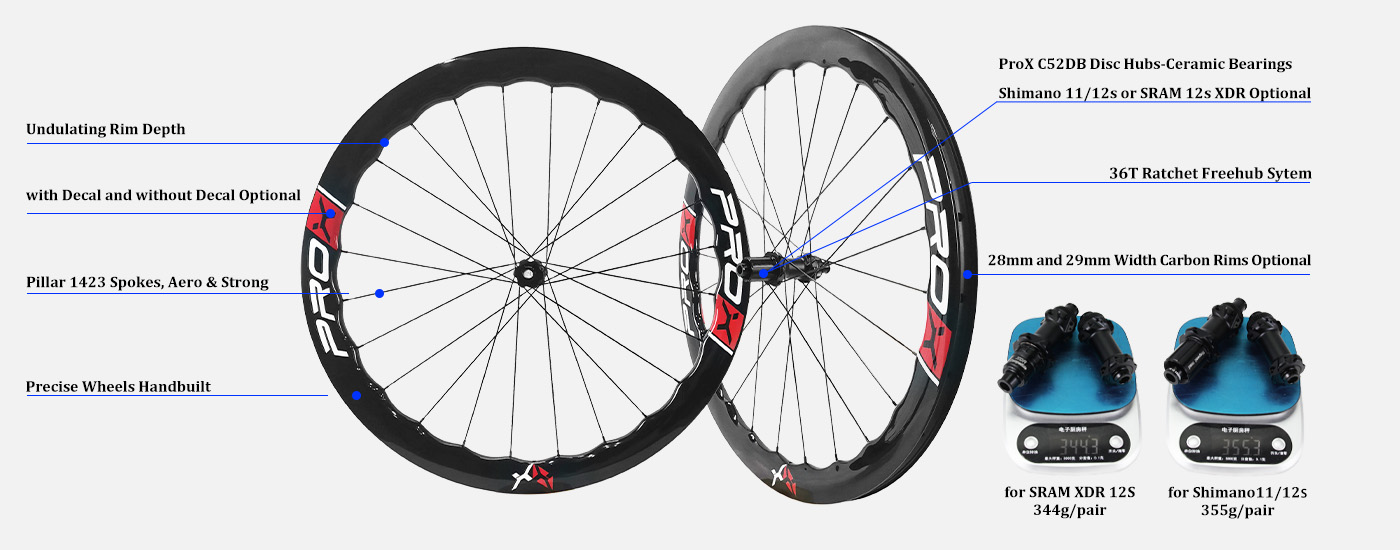

ProX C52DB road disc brake hubs feature ceramic bearings by TPI brand and only 344~355g/pair with different freehub body. Hubs are designed with Ratchet 36T freehub system which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. Ceramic bearings are smoother, rounder and with more uniform size. In that case, the friction is reduced and that can contribute more energy to the wheels. Ceramic bearing is also harder than steel bearings (up to 30%), which improves durability, and they also don’t rust for less maintenance.
In addition, C52DB hubs can be made with your customized logo (either etch logo or make stickers). So it will become your own brand hubs!

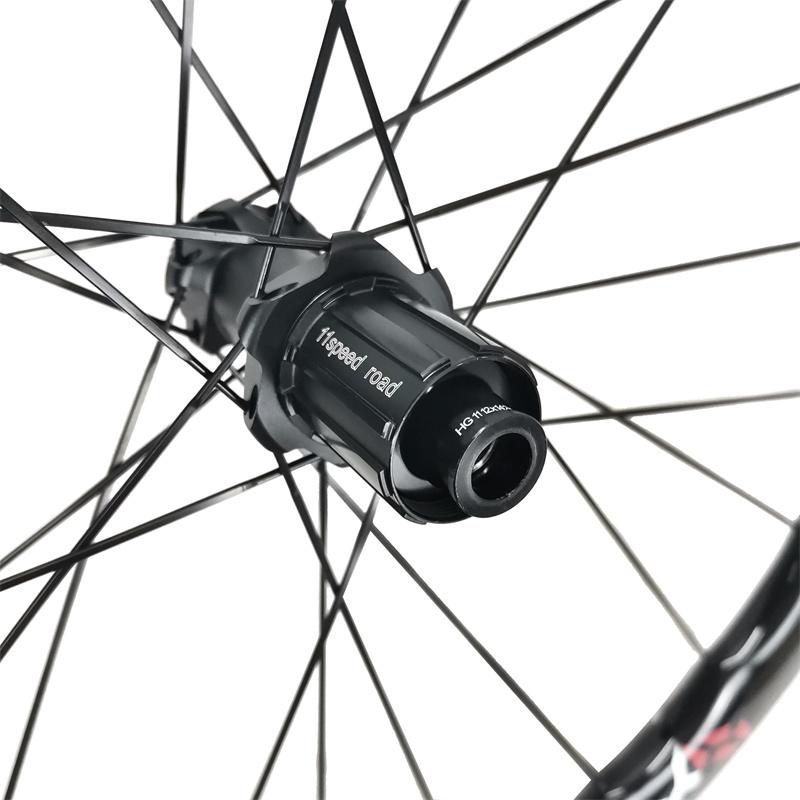

ProX C52DB hubs with Ratchet 36T freehub and ceramic bearings

All of the carbon bike rims will feature angled spoke holes, which will better align the spokes with hub flanges, and decrease the amount of spoke bend required when building.

For Undulating Road Disc series rim, it is with varying depth. This design is for better aero performance and crosswind stability. It allow the riders to handle the bike better especially in the wind. The rim has a hook bead design and is tubeless compatible. Tubeless tires can make a good performance at lower tire pressure for reduced rolling resistance and contribute to all out speed.
Standard weight version (URD26-450, URD28-450, URD28-556) carbon rim is made from Toray T700 carbon fiber which is the basis to make high strength bike carbon rims. The max rider weight limit is 120kg/265lb.
Super light weight version (URD26-450-SL, URD28-450-SL, URD28-556-SL) carbon rim is made from premium Toray T800 carbon fiber to achieve super light weight, which is more suitable for lighter weight riders (max weight limit 100kg/220lb).
Such new aerodynamic design road disc carbon rims help to minimize wind drag and improve stability in crosswinds obviously. It will bring you a faster and more confident riding experience.

SPECIFICATION

Specification Of ProX C52DB Road Disc Brake Carbon Wheels:
-Hub: ProX C52DB disc hubs, Ratchet 36T freehub system, (front 12*100mm TA/rear 12*142mm TA)

-Disc brake type: center lock
-Cassette Body: with Shimano 11/12s or SRAM XDR 12s
-Type: straight pull
-Spoke Hole Count: front 24H and rear 24H
-Tire Type: Clincher/Tubeless ready
-Spoke: Pillar 1423 spoke

-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


ProX C52DB Carbon Disc Brake Road Wheelset Built With Undulating Rim Depth Carbon Clincher Rims

                       Model               Rim        Depth   Outer Width              Tire Type                 Hub     Front Size     Rear Size            Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
C52DB-URD26-450SL-1423 URD26-450-SL 45-50mm 25.5mm Tubeless or Clincher ProX C52DB Disc 12*100mm 12*142mm Pillar 1423 700*25C-40C 1520g
C52DB-URD26-450-1423 URD26-450 45-50mm 25.5mm Tubeless or Clincher ProX C52DB Disc 12*100mm 12*142mm Pillar 1423 700*25C-40C 1580g
C52DB-URD28-450SL-1423 URD28-450-SL 45-50mm 28mm Tubeless or Clincher ProX C52DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1540g
C52DB-URD28-450-1423* URD28-450 45-50mm 28mm Tubeless or Clincher ProX C52DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1600g
C52DB-URD28-556SL-1423 URD28-556-SL 55-60mm 28mm Tubeless or Clincher ProX C52DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1700g
C52DB-URD28-556-1423 URD28-556 55-60mm 28mm Tubeless or Clincher ProX C52DB Disc 12*100mm 12*142mm Pillar 1423 700*28C-45C 1740g

UCI approved wheelsC52DB-URD28-450-1423* wheels is UCI approved. If you are interested in more details, please click the link or contact us for more details.


ProX Undulating Rim Depth Carbon Clincher Disc Brake Rims

Rims URD26-450-SL
URD26-450
URD28-450-SL
URD28-450
URD28-556-SL
URD28-556
Max Weight Limit 100kg/220lb
120kg/265lb
100kg/220lb
120kg/265lb
100kg/220lb
120kg/265lb
Material T800
T700
T800
T700
T800
T700

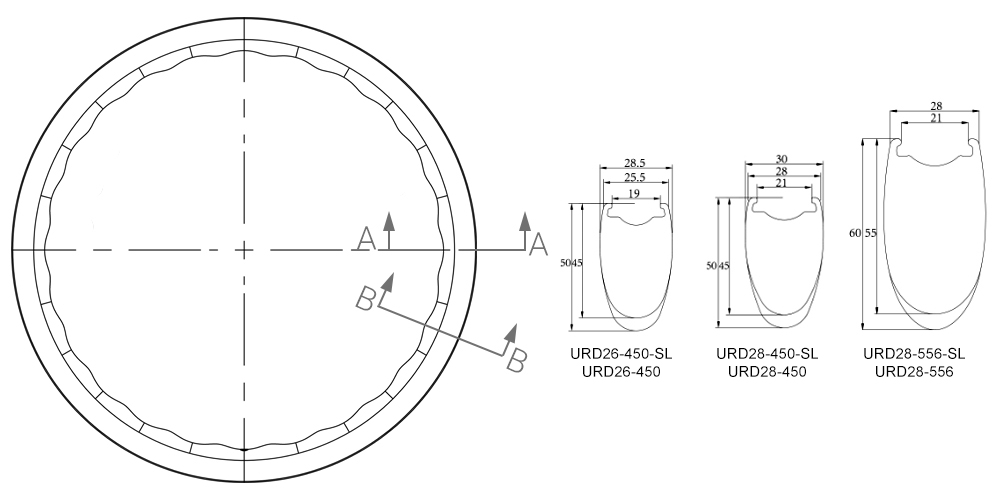

Sectional Drawing drawings for Undulating Rim Depth Carbon Clincher rims

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon fiber bike rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Narrow Inner Width

Wider Inner Width

Wider 19mm and 21mm inner width, optimized for 700x25C and 700x28C tires (also fit even wider tires).

Wider stance for tire, easy tire mounting and dismounting. Better traction and cornering performance.

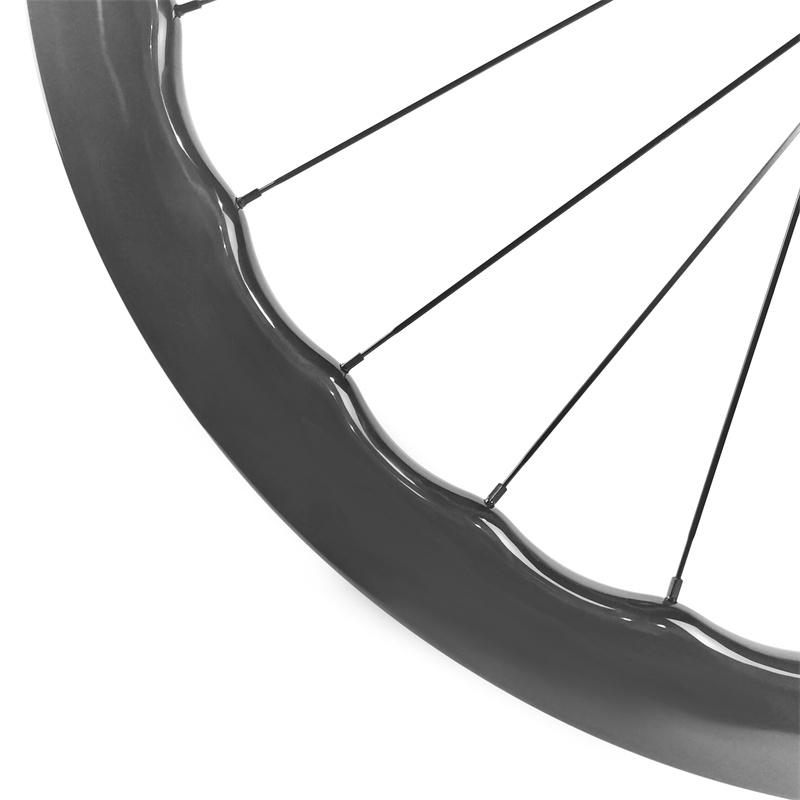

Undulating Rim Depth

Undulating Rim Depth

The mid-depth profile waves up and down 5mm for better aero performance and crosswind stability.

Such design help to improve bike handling, bring you a faster and more confident riding experience.

In addition, the stiffess and strength are also improved.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Road Disc Brake

Road disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our bicycle carbon wheels are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

ProX Road Hubs

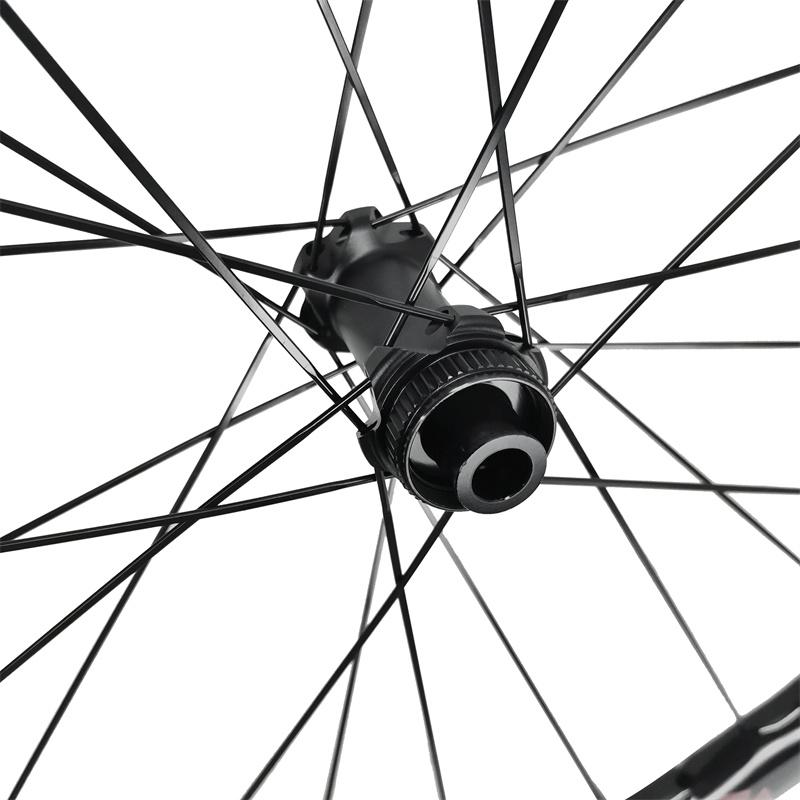

ProX C52DB Disc Hubs

ProX own mould C52DB road hubs are used. High quality hubs with cheap price.

C52DB road disc brake hubs are designed with Ratchet 36T freehub system, and with ceramic bearings inside.

Such hubs can also be etched with your customized logo.

12*100/12*142 thru-axle, with Shimano 11/12 speed or SRAM XDR 12 speed cassette body.

Pillar Spokes

Pillar Spokes

The popular Pillar PSR AERO 1423 spokes are used.

Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.

Perfect aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years' quality warranty is offered(starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
