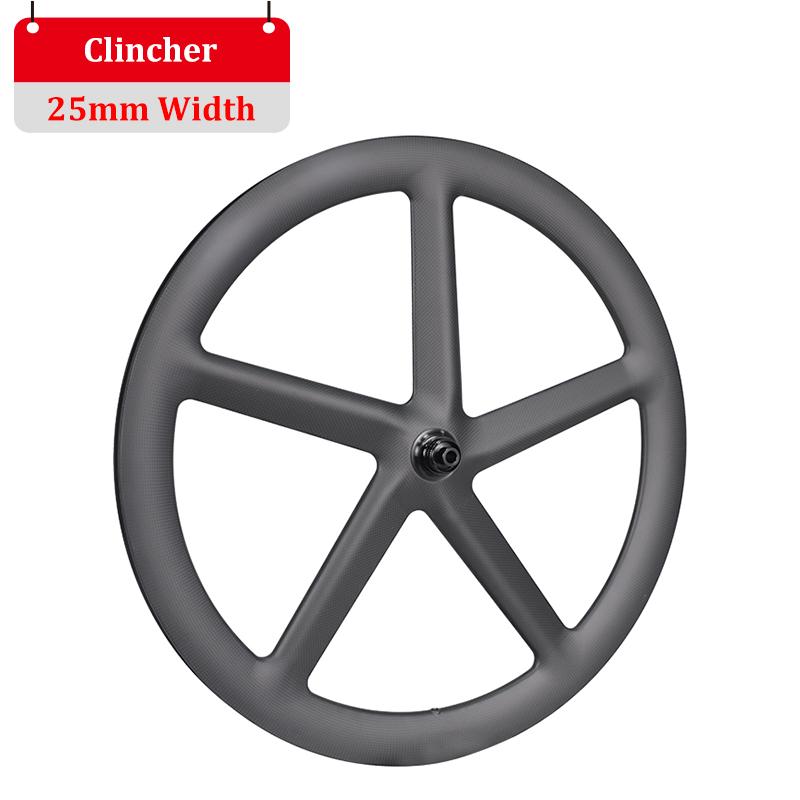

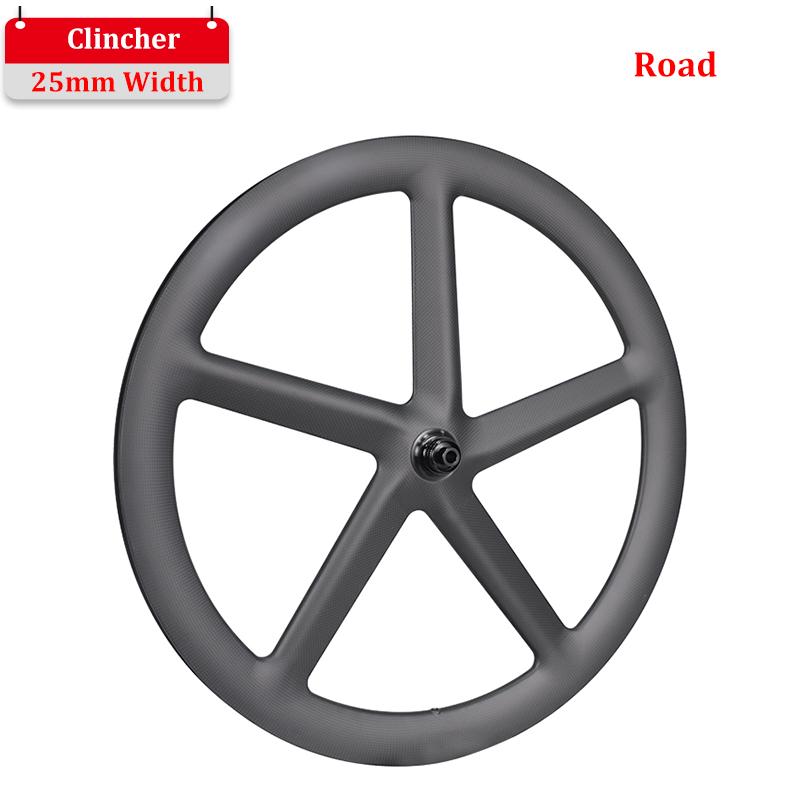

ProX 5-Spoke Carbon Wheels 700C 5-Spoke Wheel For Road-TT-Track Bikes

• 5-spoke carbon wheel for TT/Track bikes

• 25mm width, 52mm depth

• Clincher (Tubeless), fit 700x25C-40C tire

• Both Disc brake & Rim-brake optional

• OEM hub with 36T ratchet freehub system

  • Item NO.:

    P5-52 wheels
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/1K(Customized Decal Acceptable)
DESCRIPTION

In Triathlon, Time Trial and Track bikes, 3-spoke, 5-spoke and full disc carbon wheels are widely used.

Compared to regular wheels, carbon spoke and full disc wheels are relatively heavier, but they are outstanding in aerodynamics and stiffness which are critical for TT/Track bikes.

Since TT/Track bikes are normally used in flat road condition, a bit heavier weight is not the cons. Instead, it could be the pros considering heavier weight provides greater inertia and helps riders to keep at higher speed during cruise phase.

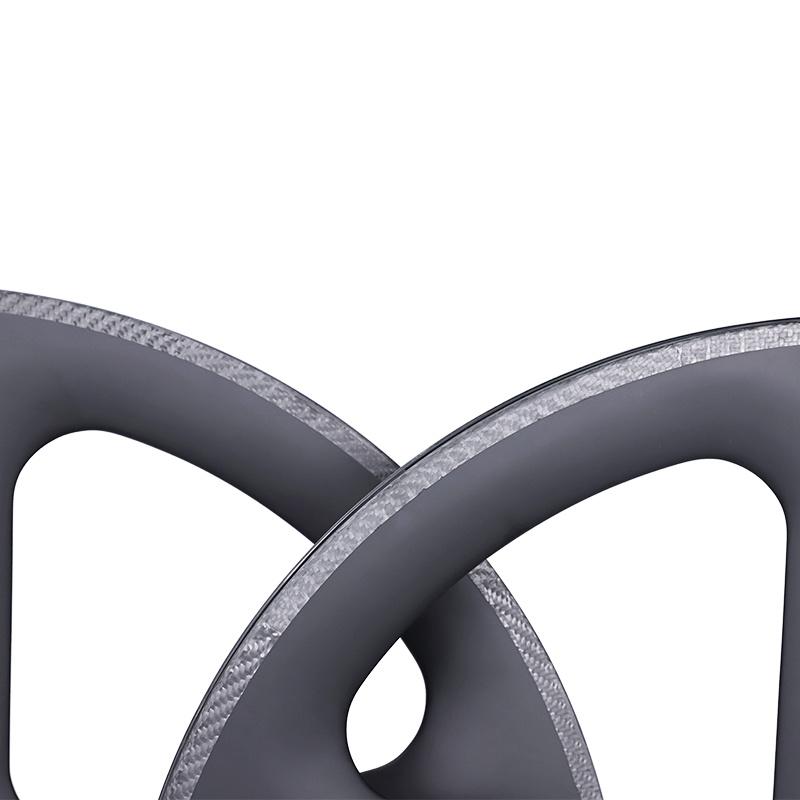

Our 5-spoke carbon wheels are made with thicker side wall compared to regular carbon rims, which provides better strength and stiffness.

The five carbon beams are designed with bladed shape and is one-piece molded with the rest of wheels, which helps to optimize aerodynamics.

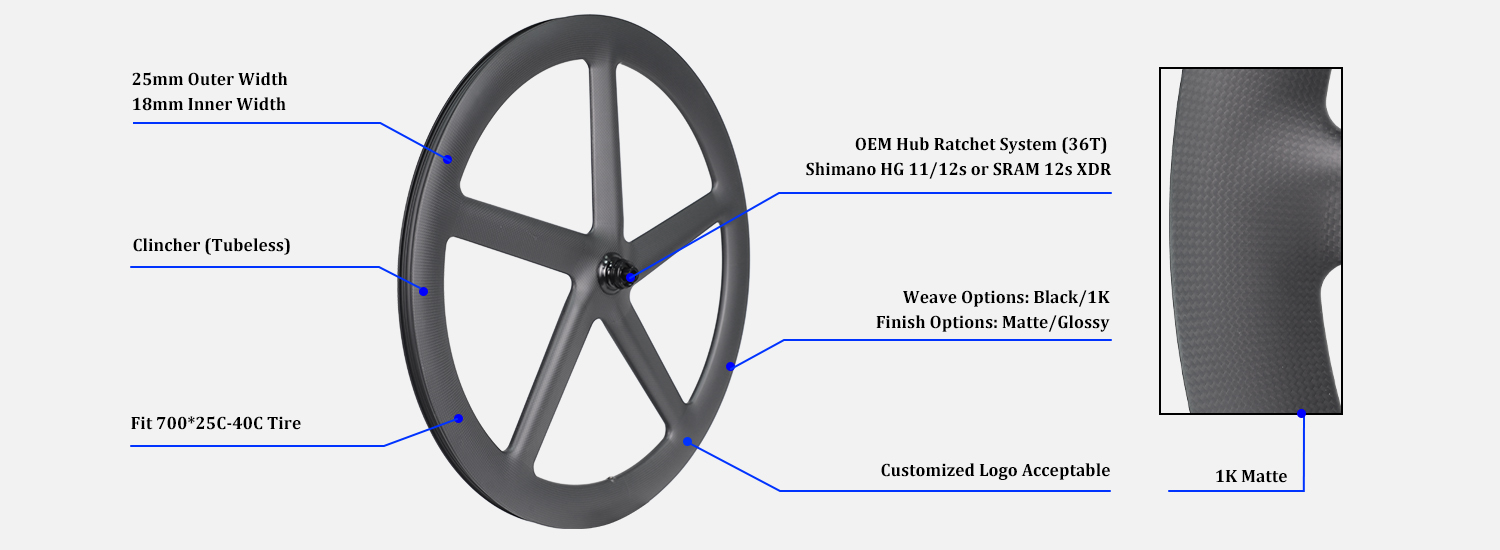

five spoke carbon wheels features

Good quality OEM PX hubs are made by well selected hub manufacturer in Taiwan, using 36T ratchet system. This series hubs are workable for rim brake, disc brake and track system separately.
All of them are designed with a very refined and reliable ratchet freehub system, which improves power transfer efficiency and the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. The ratchet freehub system is applied on high-end hub brand hubs generally, such as DT Swiss hubs.

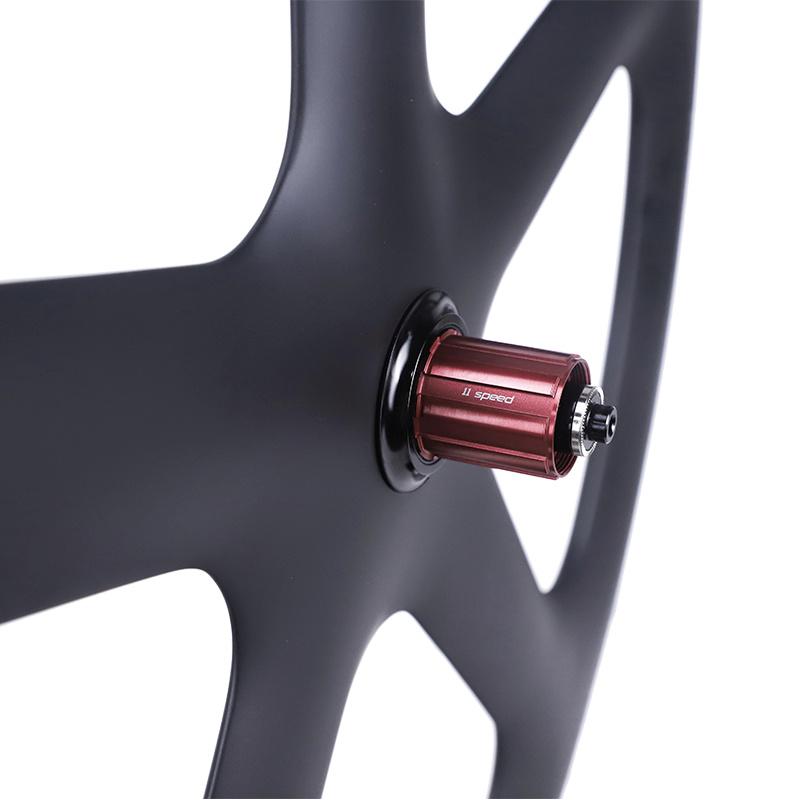

For the rear hub cassette body, the Shimano HG 11/12s and SRAM XDR freehub are optional.
We also offer Duty Free Shipping to EU countries (+UK).

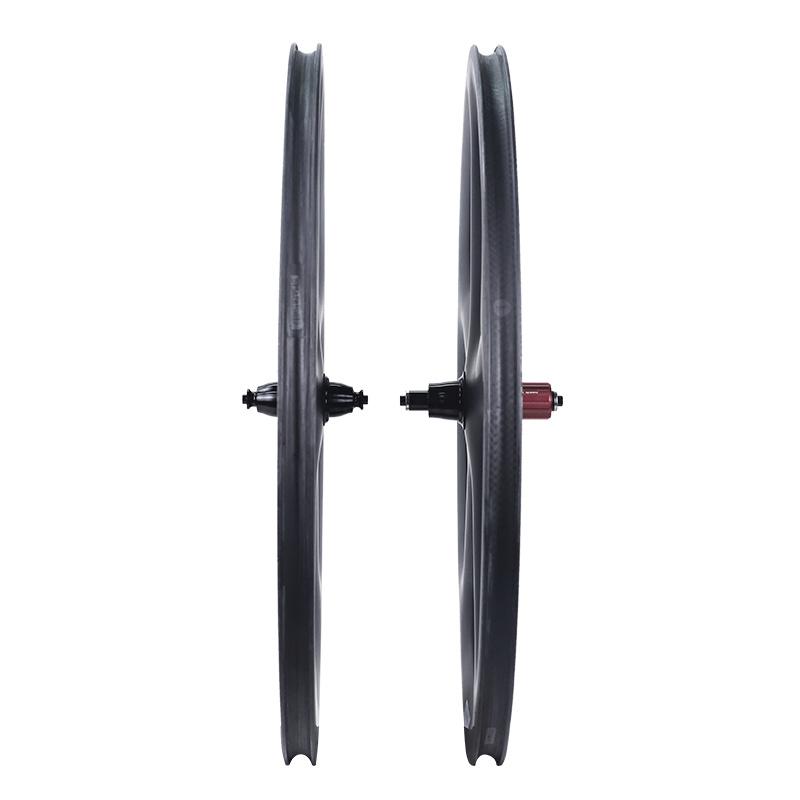

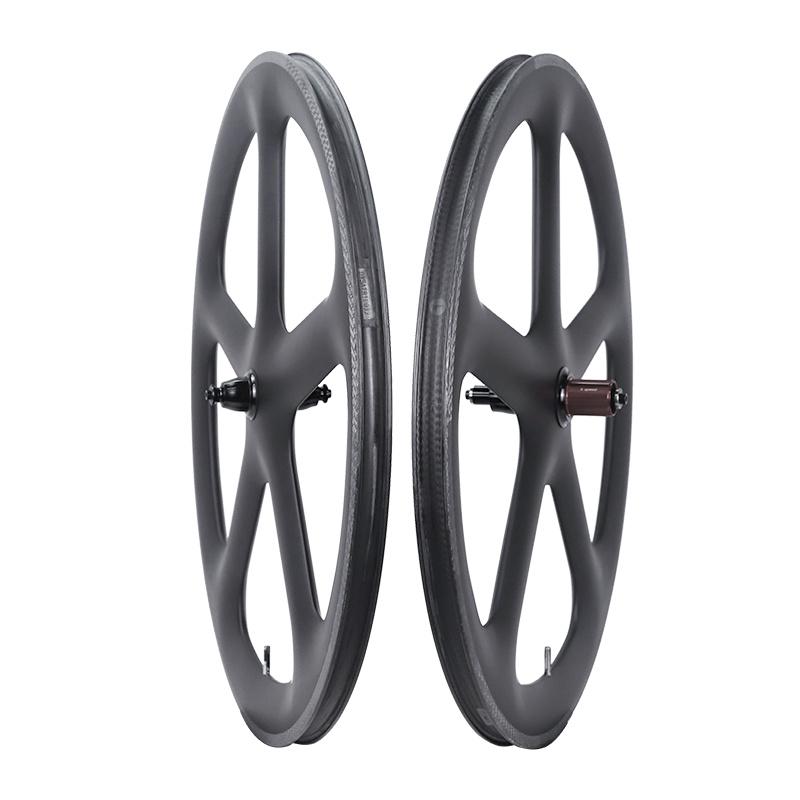

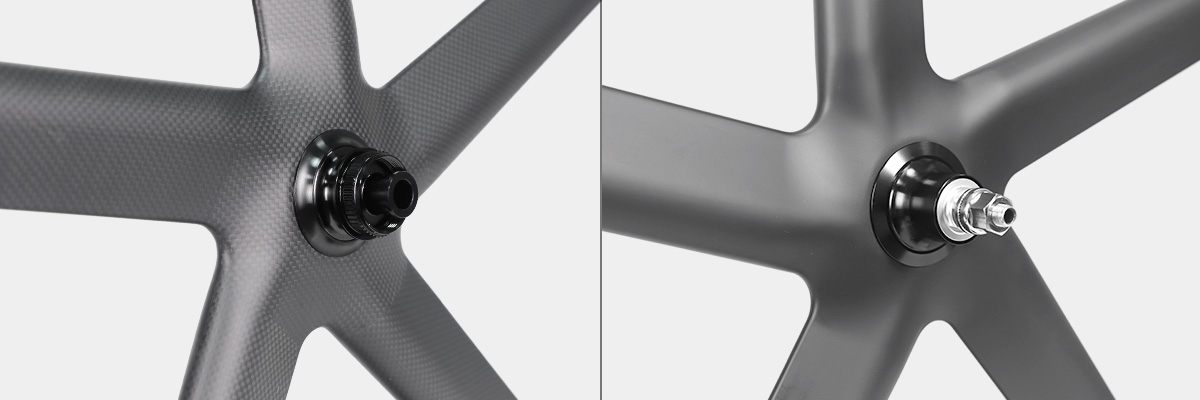

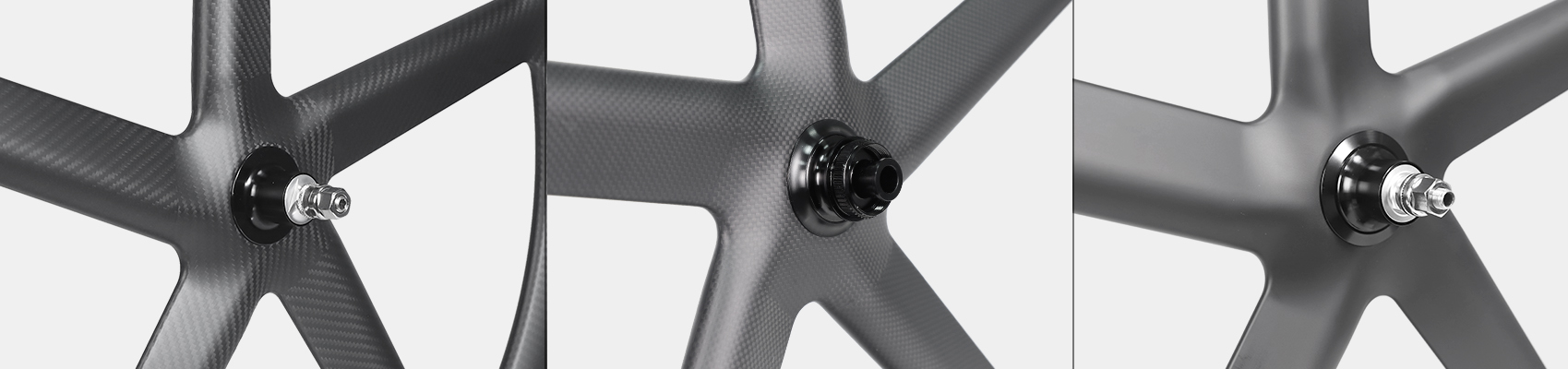

road 5 spoke wheels with disc brake and track hubs

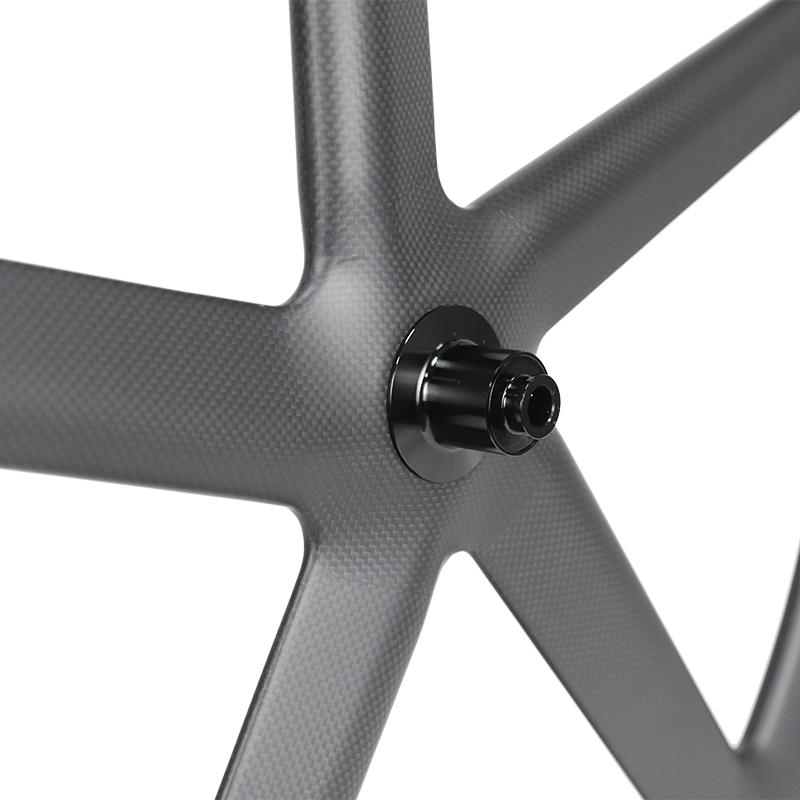

1K matte finish

Front 12*100mm TA disc brake

Black matte finish

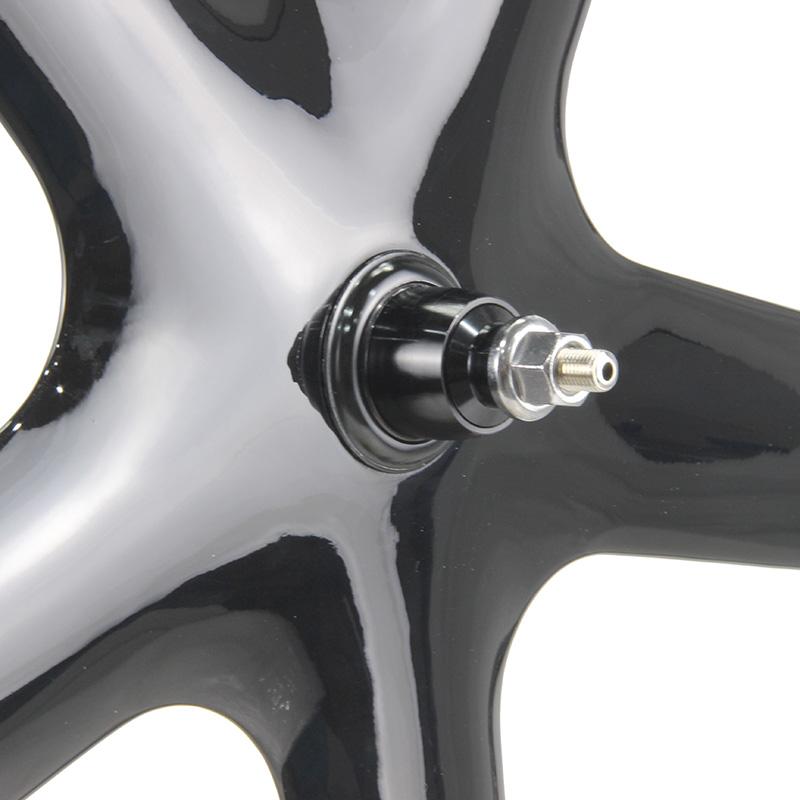

Front 9*100mm track


SPECIFICATION

ProX Aero and Strong 5-Spoke Carbon Wheels Specification:

-Hub: OEM ProX hubs (made in Taiwan), with 36T ratchet system
-Cassette Body: Shimano HG 11/12s or SRAM XDR
-Tire Type: Clincher (Tubeless)

-Rim Width: 25mm outer width/ 18mm inner width

-Rim Depth: 52mm

-Finish Options: Black/1K, Matte/Glossy

-Brake Type: rim-brake and disc brake optional

-Tire Pressure: 125psi/8.6bar

-Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.
-Warranty Year: 2 years


 Model Category Max Weight Limit Brake Type Rim Depth Tire Type Terrain Material Hub Hub Size Weight(+/-30g)
P5-52V-Road-F 5-spoke Front 120kg/265lb Rim Brake 52mm Clincher Road/TT T700 ProX RT36 hub 5*100mm QR 850g
P5-52V-Road-R 5-spoke Rear 120kg/265lb Rim Brake 52mm Clincher Road/TT T700 ProX RT36 hub 5*130mm QR 950g
P5-52DB-Road-F 5-spoke Front 120kg/265lb Disc Brake 52mm Clincher Road/TT T700 ProX 36DB hub 12*100mm TA 850g
P5-52DB-Road-R 5-spoke Rear 120kg/265lb Disc Brake 52mm Clincher Road/TT T700 ProX 36DB hub 12*142mm TA 950g
P5-52-Track-F 5-spoke Front 120kg/265lb N/A 52mm Clincher Track T700 ProX TR02 hub 9*100mm 850g
P5-52-Track-R 5-spoke Rear 120kg/265lb N/A 52mm Clincher Track T700 ProX TR02 hub 10*120mm 950g

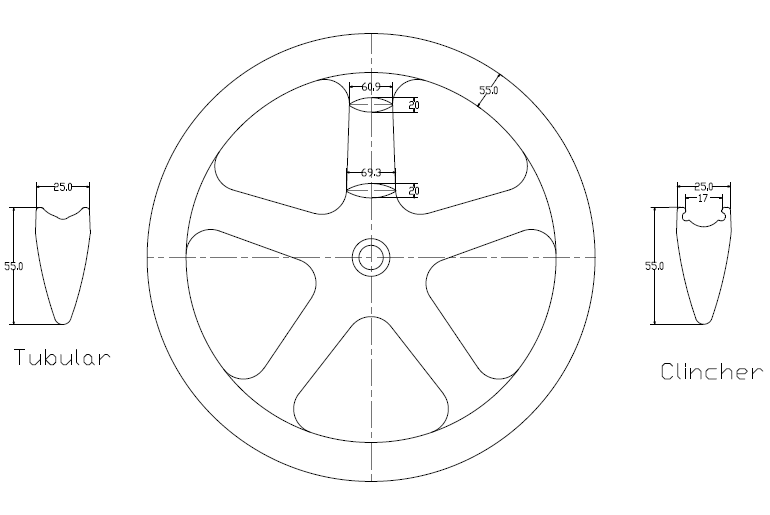

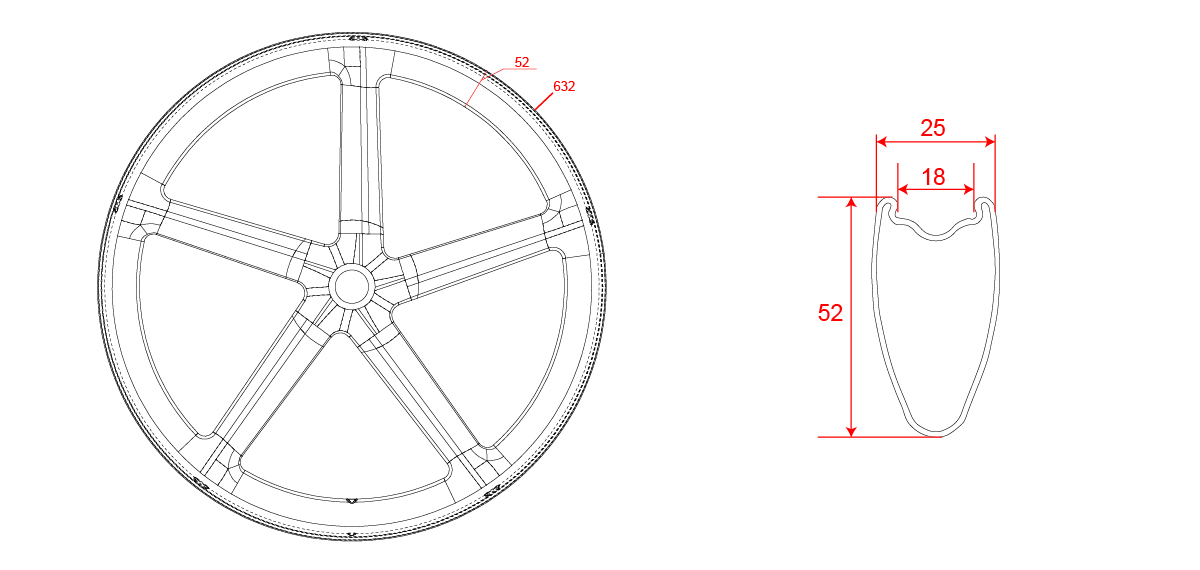

ProX 5-spoke carbon wheel drawing
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our 5-spoke carbon wheels.

Combining with stable resin system to make consistent quality and high strength carbon 5-spoke wheels.

Tubeless

Tubeless

Tubeless tire is getting popular in carbon TT/Track bike wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our 5-spoke bicycle wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Narrow Inner Width

Relatively narrow 18mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

OEM ProX Hubs

OEM ProX Hubs

OEM hubs are used in our 5-spoke wheels which are designed with 36T ratchet freehub system. Stable quality and competitive price.

Different hub spacings optional for rim brake (5*100/5*130mm QR), disc brake (12*100/12*142mm TA), as well as track bike (9*100/10*120mm).

With Shimano HG 11/12 speed, SRAM XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
