Powerway Fatbike Carbon Wheels

/ProX Carbon Fat Bike Wheels Powerway Fat Tire Bike Wheel

carbon bike rim
carbon bike rim carbon bike rim carbon bike rim carbon bike rim carbon bike rim carbon bike rim carbon bike rim carbon bike rim

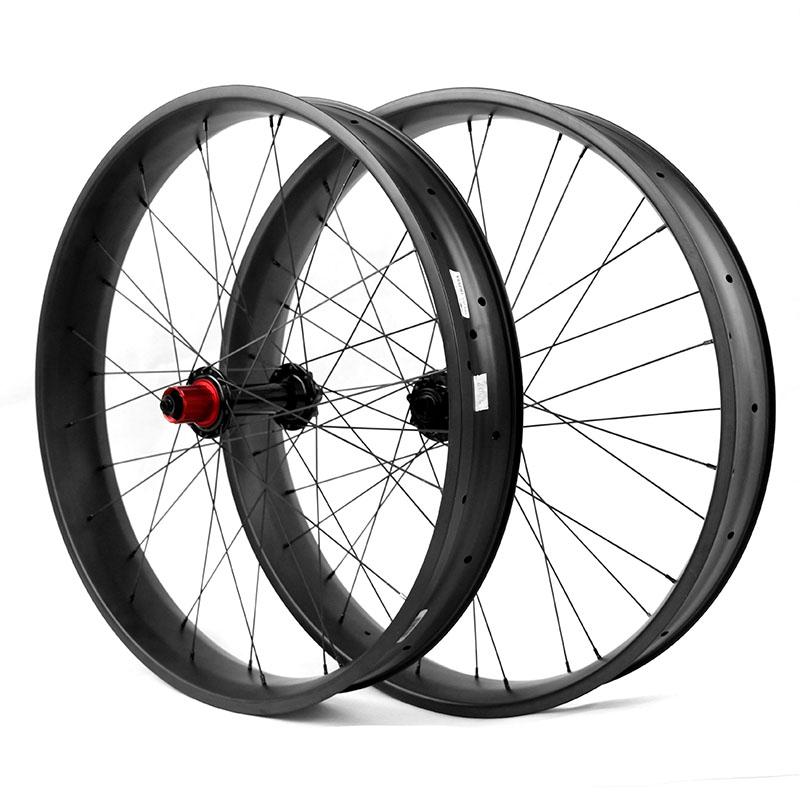

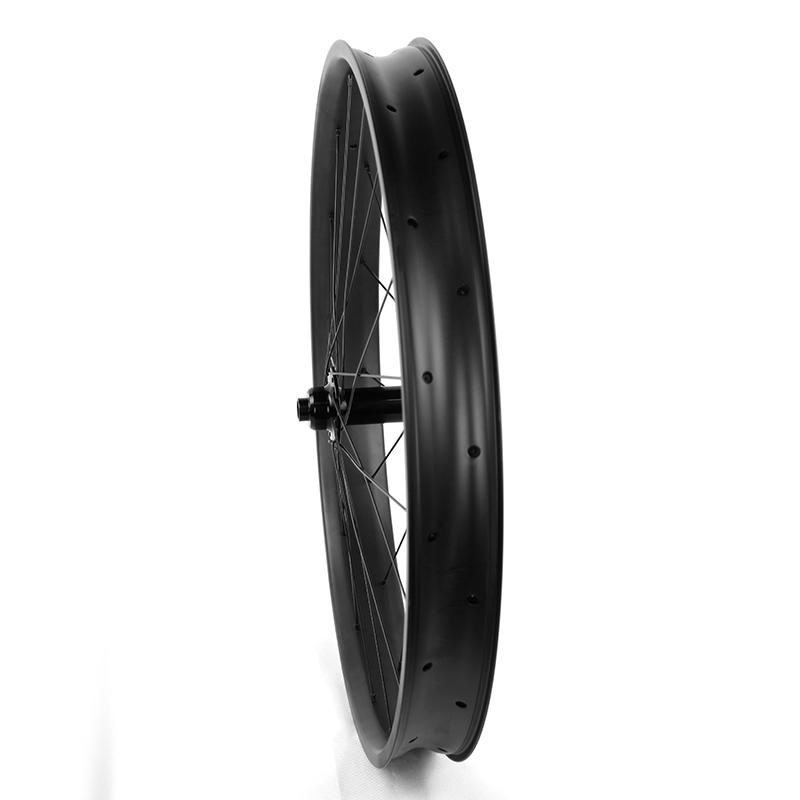

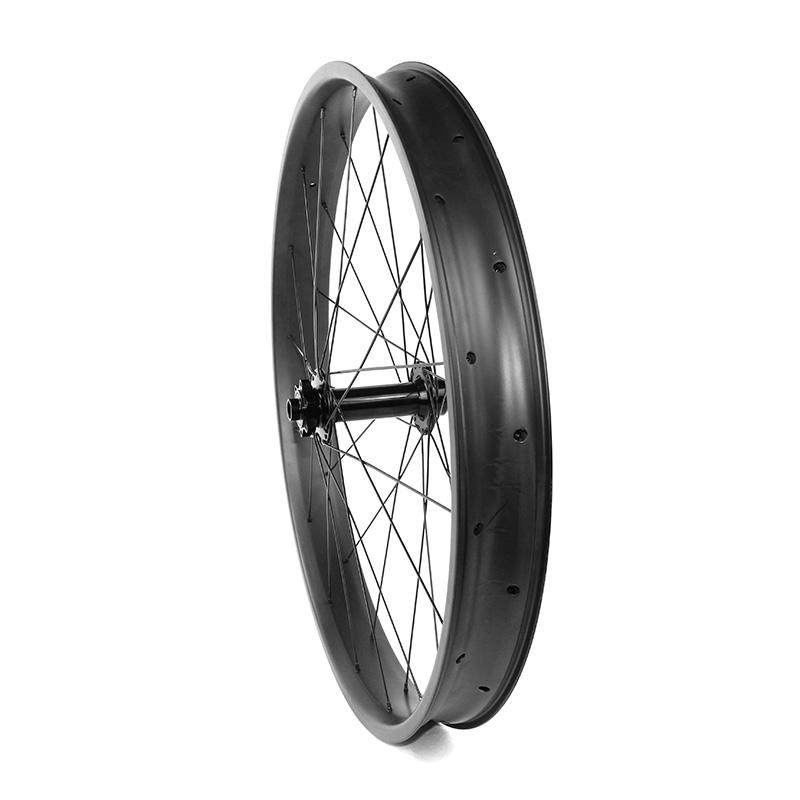

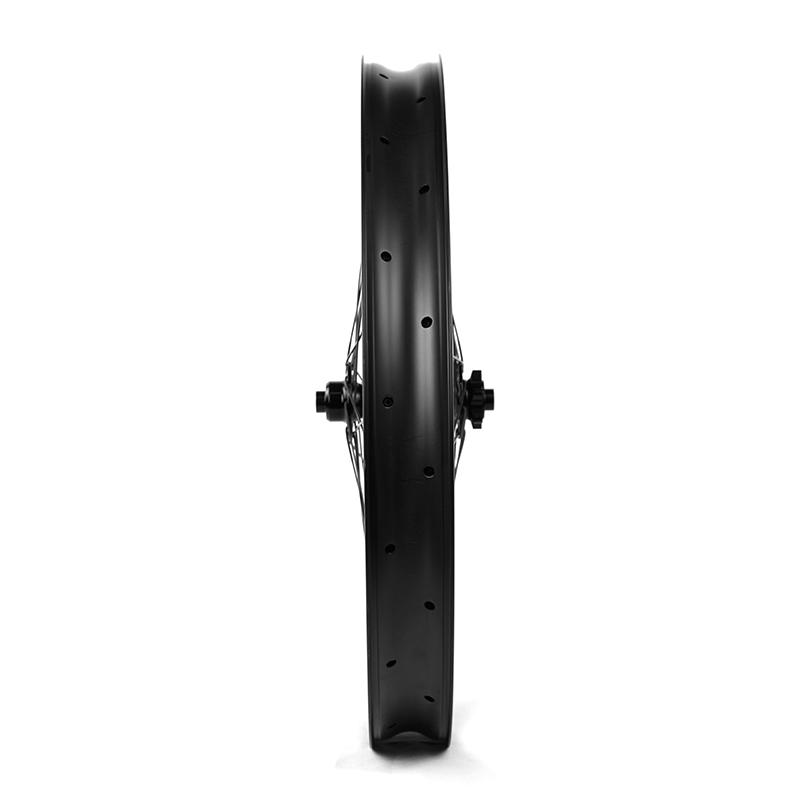

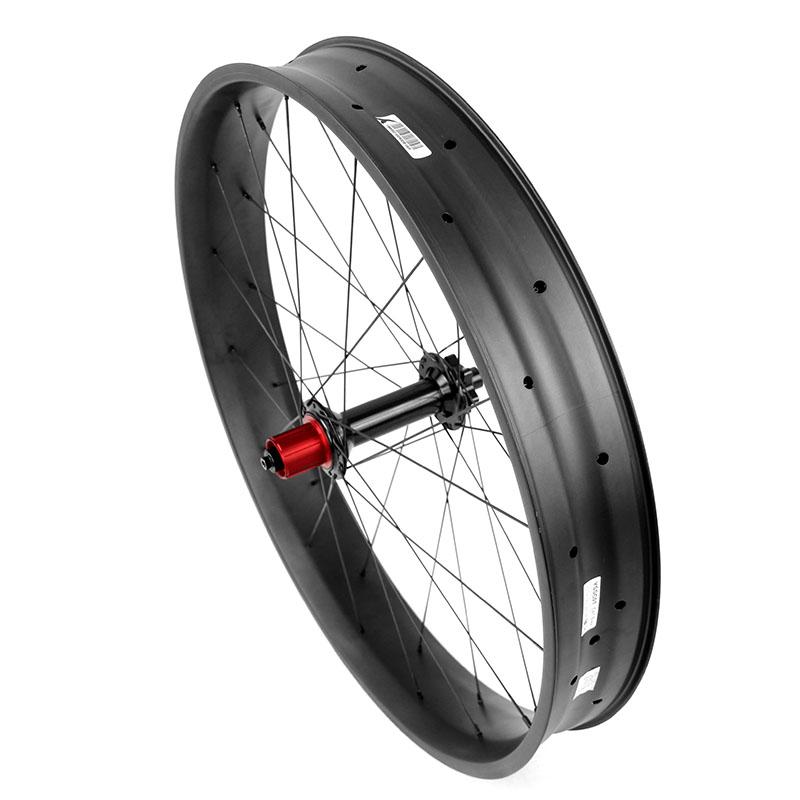

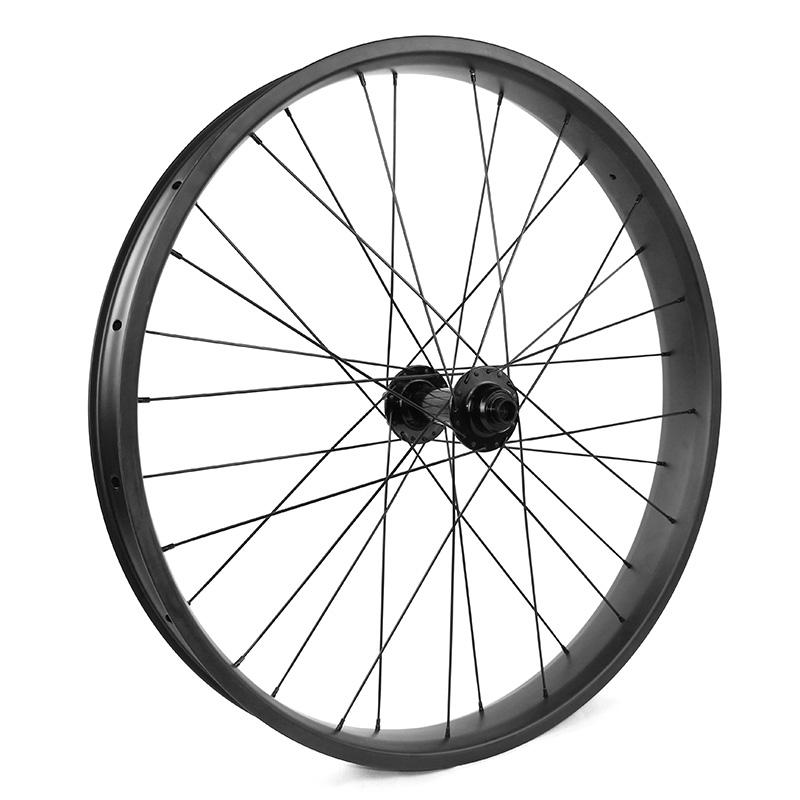

ProX Carbon Fat Bike Wheels Powerway Fat Tire Bike Wheel

Width options: 65mm/85mm/90mm(26er) and 75mm(27.5 inch).
Affordable fatbike/snow/sand wheels with Powerway M74 Fat hubs (15*150/12*197 thru-axle).




  • Item NO.:

    74PF

  • Payment:

    Paypal, Bank Transfer, West Union

  • Origin:

    China

  • Color:

    UD/3K/12K(Customized Decal Acceptable)
Inquiry now
DESCRIPTION

65mm~75mm Widths: This is the most favorite size for riders who are looking for a fat bike. They are light and make the bike goes into corners easily, and still give enough float. They can be applied to almost snow, sand and other deep terrain. With 27.5 inch/650b fartbike rim getting more and more popular in the market, the 75mm width rim is the perfect choice to save the  weight. 75mm rim can even take 5" tires without issue.

85mm~90mm Widths: Wider rims also flatten your tire out pretty significantly which means more contact with the ground to give you as much traction as possible. But it's not too wide as 100mm, so it's also considered as the good rim without hurting too much while turning a corner.

The humble and cheap Powerway M74 Fat hub help you to save the weight for your snow bike wheels. It is hand-built by our skilled and professional wheels builders, to make sure all bicycle wheels with standard roundness, lateral and center tolerance and better precise.

SPECIFICATION

Fatbike Carbon Wheels with Powerway Hubs (tubeless ready)

-Hub:Powerway M74 Fat Hub(front 15*150mm TA/rear 12*197mm TA)
-Disc brake type: 6-bolt
-Rear Cassette Body: Shimano 11s, SRAM 11/12 XD driver, Shimano MicroSpline 12s
-Type: J-bend
-Spoke Hole Count: front 32H/rear 32H
-Tire Type:Clincher/tubeless ready
-Spoke: Pillar 1423/Pillar 1420
-Spoke Tension(recommended): ≤135kgf
-Tire Pressure: 25psi/1.7bar
-Warranty Year: 2 years


Model Rim Terrian  Outer Width Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
74FAT-65S-1423 PF26-65S fat bike/snow bike/sand bike 65mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1423 26*3.5''-4.9'' 1958g
74FAT-85S-1423 PF26-85S fat bike/snow bike/sand bike 85mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1423 26*4.0''-4.9'' 2238g
74FAT-90S-1423 PF26-90S fat bike/snow bike/sand bike 90mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1423 26*4.0''-4.9'' 2298g
74FAT-75S-1423 PF27.5-75S fat bike/snow bike/sand bike 75mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1423 650b*3.8''-4.9'' 2298g
74FAT-65S-1420 PF26-65S fat bike/snow bike/sand bike 65mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1420 26*3.5''-4.9'' 1837g
74FAT-85S-1420 PF26-85S fat bike/snow bike/sand bike 85mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1420 26*4.0''-4.9'' 2117g
74FAT-90S-1420 PF26-90S fat bike/snow bike/sand bike 90mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1420 26*4.0''-4.9'' 2177g
74FAT-75S-1420 PF27.5-75S fat bike/snow bike/sand bike 75mm Powerway M74 Fat Hub 15*150mm 12*197mm Pillar 1420 650b*3.8''-4.9'' 2177g


Rims PF26-65S PF26-85S PF26-90S PF27.5-75S
Max Weight Limit 120kg/265lb 120kg/265lb 120kg/265lb 120kg/265lb
Material T700 T700 T700 T700

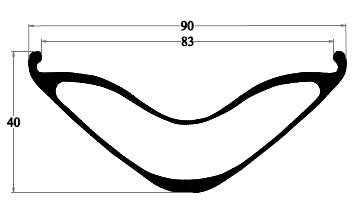

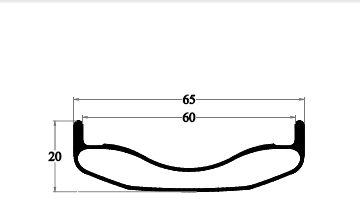

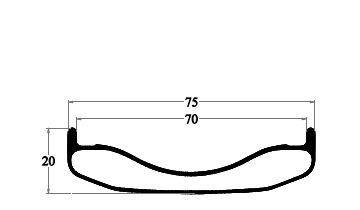

Sectional Drawing carbon fatbike rim drawing 65mm carbon fatbike rim drawing 85mm carbon fatbike rim drawing 90mm carbon fatbike rim drawing 75mm

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our fat bike carbon rims.

Combining with stable resin system to make consistent quality and light weight fatbike carbon rims.

Double Wall Structure

Double Wall Structure

All our fatbike carbon rims are designed with double wall structure.

Considering fat bike rims are much wider than regular rims, double wall is necessary to guarantee the strength and stiffness.

Hookless Design

Hookless Design

Compared to bead hook rims, the sidewalls of hookless rims are thicker and stronger, providing better impact resistance.

Straight bead provides more stance for tire. Tires will not be squeezed in bead as it was.

Thus, the tire/rim engagement is more stable, more difficult to be blown out under strong impact, which is important for carbon fat bike rims.

Tubeless Ready

Tubeless Ready

Tubeless tire is widely used in fatbike wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon fat bike rims are tubeless ready (also fit normal tube tires).

Optimized rim groove design provides easy tire mounting, dismounting, as well as air inflation.

Hand Built

Hand Built

All our carbon wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

Powerway Fat Hubs

Powerway Fat Hubs

Powerway M74 fatbike hubs are used.

M74 fat bike hubs are with stable quality and competitive price.

Front 15*150, Rear 12*197 hub spacing, both 12-speed (Sram XD, Shimano MicroSpline) and 11-speed freehub are optional.

Pillar Spokes

Pillar Spokes

The popular Pillar PSR AERO 1423 spokes are used (lighter weight Pillar 1420 spokes are also optional).

Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.

Perfect aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
