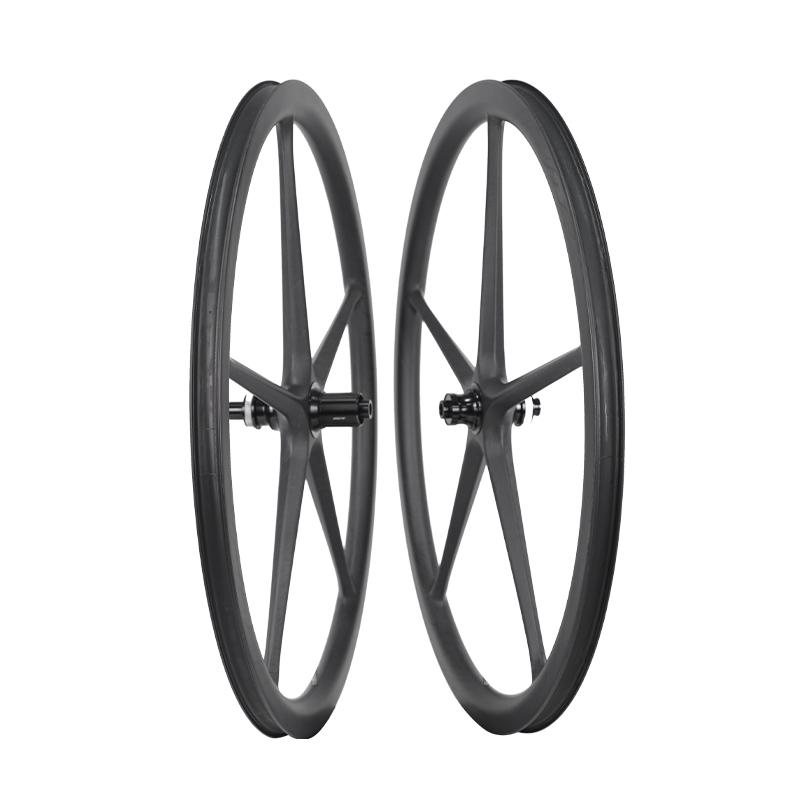

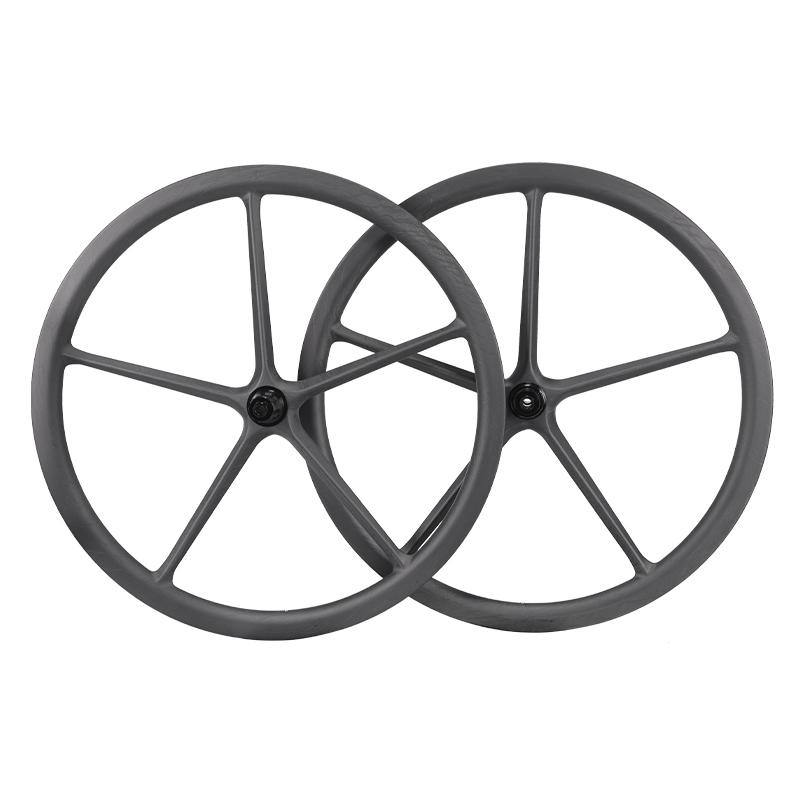

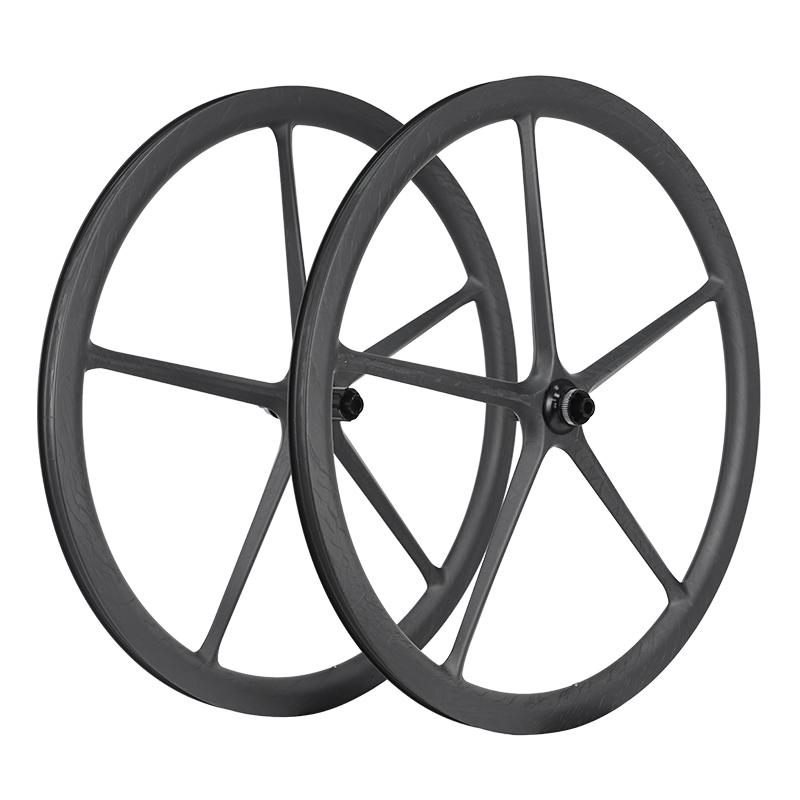

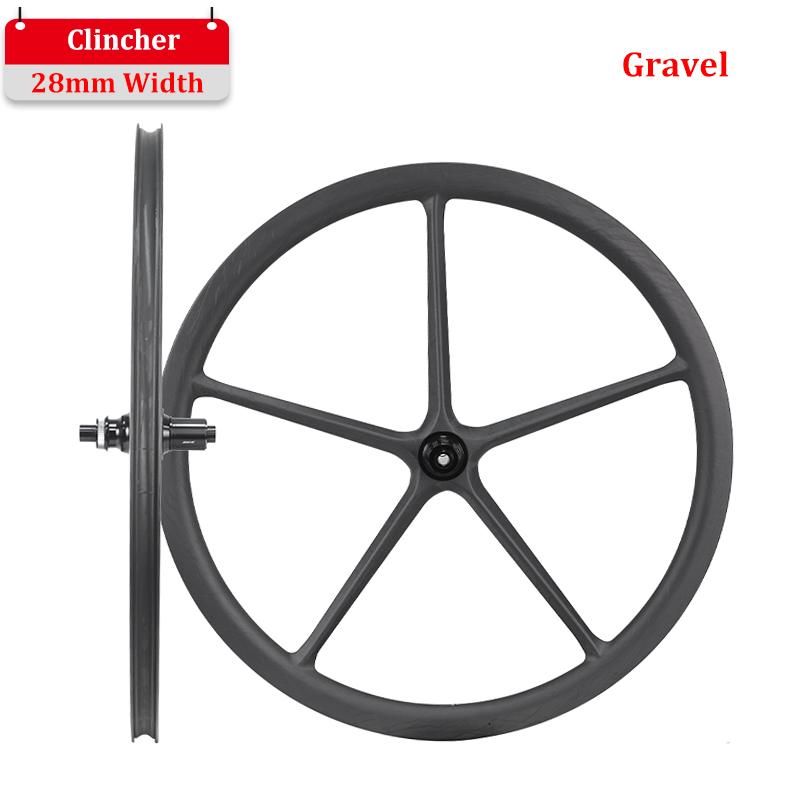

ProX Ultra Light 5-Spoke Carbon Wheels 700C Five-Spoke Wheel For Road-Gravel-TT

• Ultra Light 5-spoke carbon wheels, only 1350g/pair!

• 21.6mm inner width, 38mm depth, clincher

• For Road/TT and Gravel Riding

• High quality hubs from Taiwan

Tubeless Compatible

  • Item NO.:

    P5-38C wheels
  • Order(MOQ):

    1
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    Black/Marble(Customized Decal Acceptable)
DESCRIPTION

In Triathlon, Time Trial and Track bikes, 3-spoke, 5-spoke and full disc rear wheels are widely used.
For the regular 5-spoke wheels, they are usually outstanding in aerodynamics and stiffness, which is widely used in Triathlon,Time Trial and Track bikes. But relatively heavier wheels weight is around 2000g per pair in the market. The latest ultralight 5-spoke wheels is only 1350g(front 625g and rear 725g). These wheels are made from premium Toray T700 fiber, not only just overlay them, but involving appropriate proportion and elaborate lay-up etc. All of efforts to get this versatile wheels with light weight and high strength to challenge the road riding, race and gravel riding with confidence.

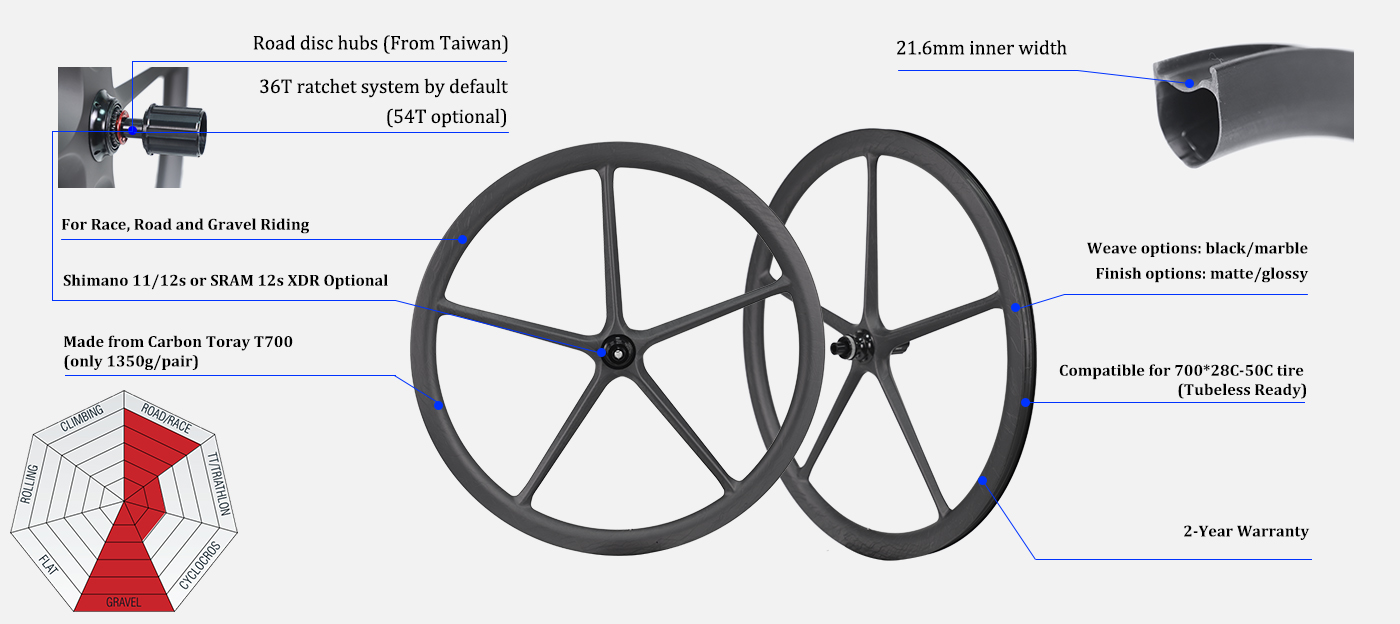

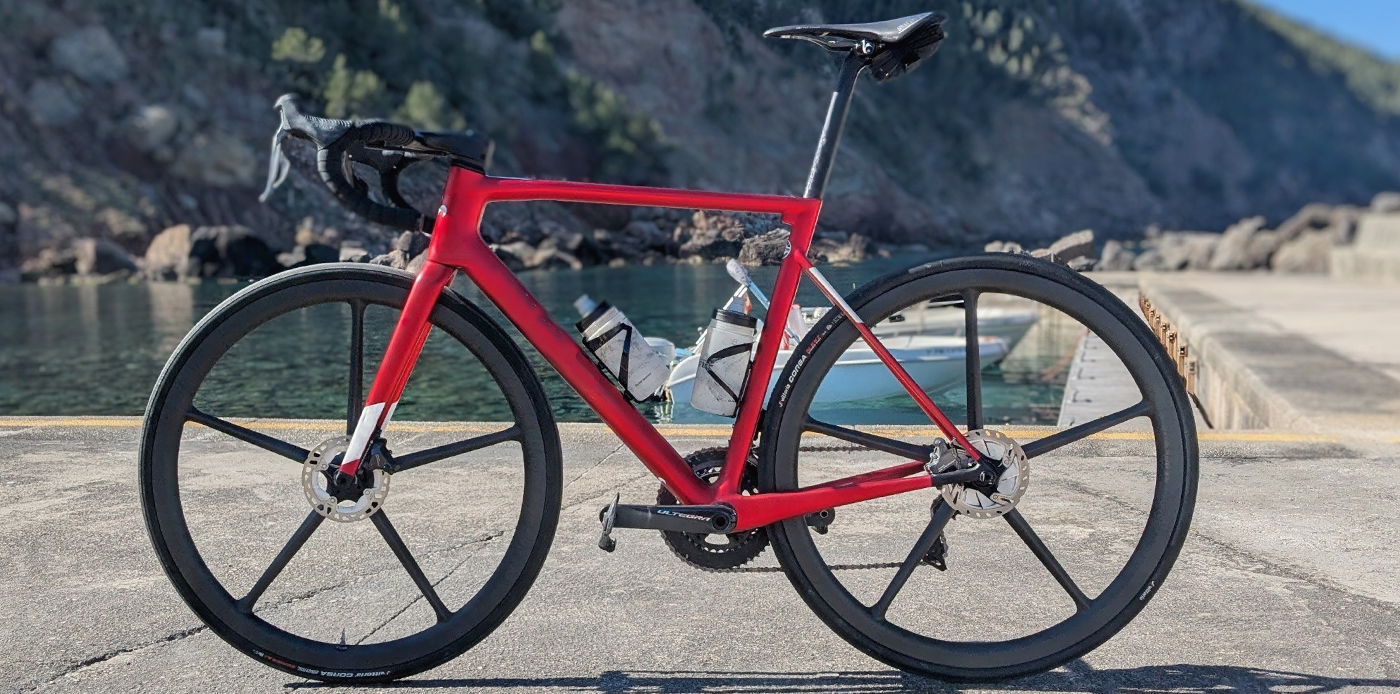

5-spoke gravel and road wheels

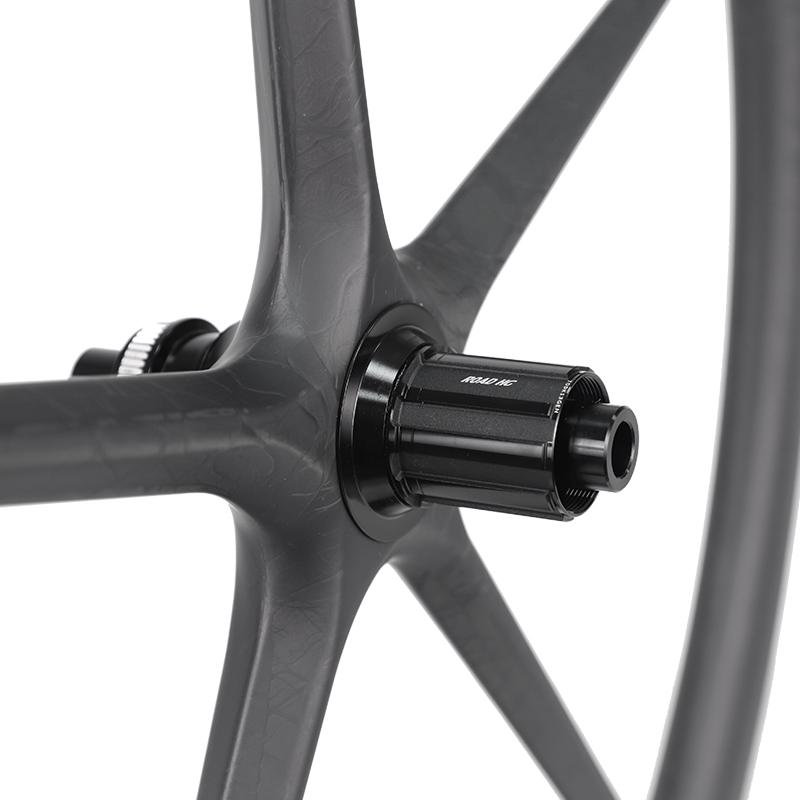

In our five spoke carbon wheel, the hubs (made in Taiwan) are applied and with Shimano 11/12s and Sram 12s XDR freehub optional. Only clincher(tubeless) and disc brake version is available. Hubs are designed with DT swiss style Ratchet 36T freehub system which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. The five carbon beams are designed with aero shape and is one-piece molded with the rest of wheels, which helps to optimize aerodynamics.
ProX decal/logo is offered for free as showed in ProX decal page. The decal will be applied on the wheels and do the matte or glossy finish according to customers' preference. You can choose either with such ProX decal or simply without decal (matte or glossy finish).

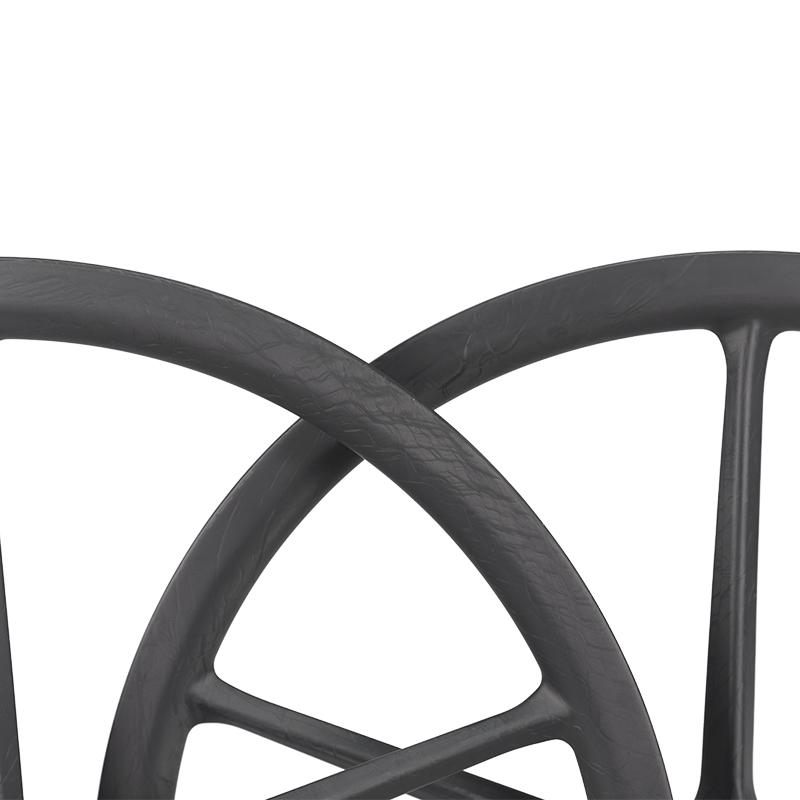

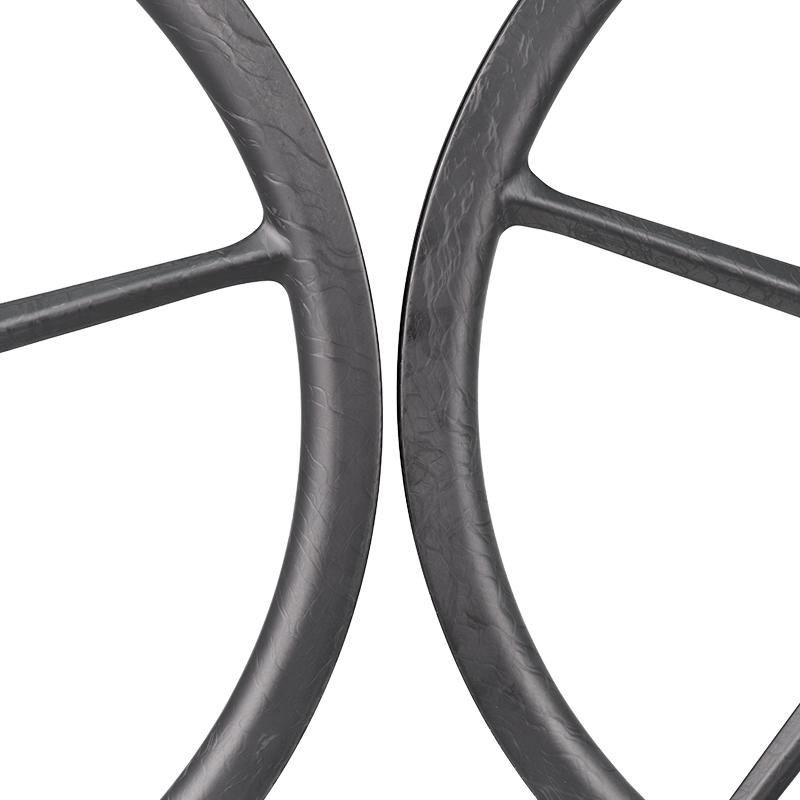

Different carbon weave apperance optional: black, Marble
Different wheels finish optional: matte, glossy

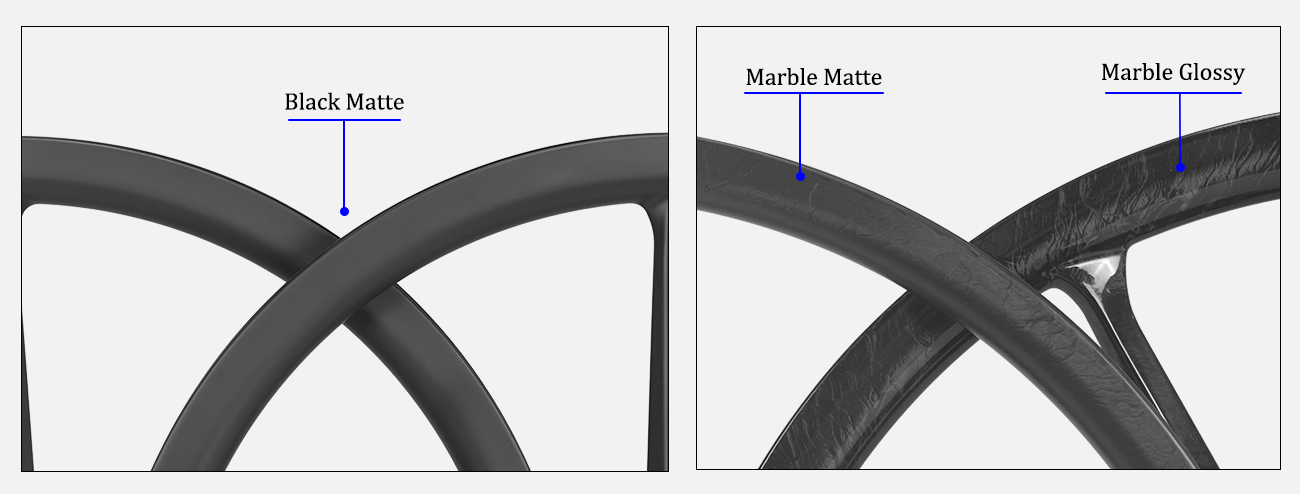

different weave on the spoke wheels

SPECIFICATION

ProX Super Light Five-Spoke Carbon Wheels Specification:

-Hub: ProX 38DB hubs (made in Taiwan), with steel bearings

Ratchet 36T freehub system by default (54T optional)

-Cassette Body: Shimano 11/12s or SRAM 12s XDR

-Tire Type: Clincher(tubeless)

-Rim Width: 28mm outer width/21.6mm inner width

-Rim Depth: 38mm

-Brake Type: disc brake

-Terrain: Road/Gravel/TT

-Recommended Tire Pressure: 125psi/8.6bar for road riding, 60psi/4.1bar for gravel riding

-Max Tire Pressure: 70psi/4.8bar on tubeless tire125psi/8.6bar on inner tube

-Tire Size(Recommended): 700*28C-50C

-Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.

-Warranty Year: 2 years


Model Category Max Weight Limit Brake Type Rim Depth Tire Type Terrain Front/Rear Hub Hub Size Weight(+/-25g)
P5-38C DB-F 5-spoke Front 120kg/265lb Disc Brake 38mm Clincher/Tubeless Road/Gravel/TT Front ProX 38DB Hub 12*100mm TA 625g
P5-38C DB-R 5-spoke Rear 120kg/265lb Disc Brake 38mm Clincher/Tubeless Road/Gravel/TT Rear ProX 38DB Hub 12*142mm TA 725g

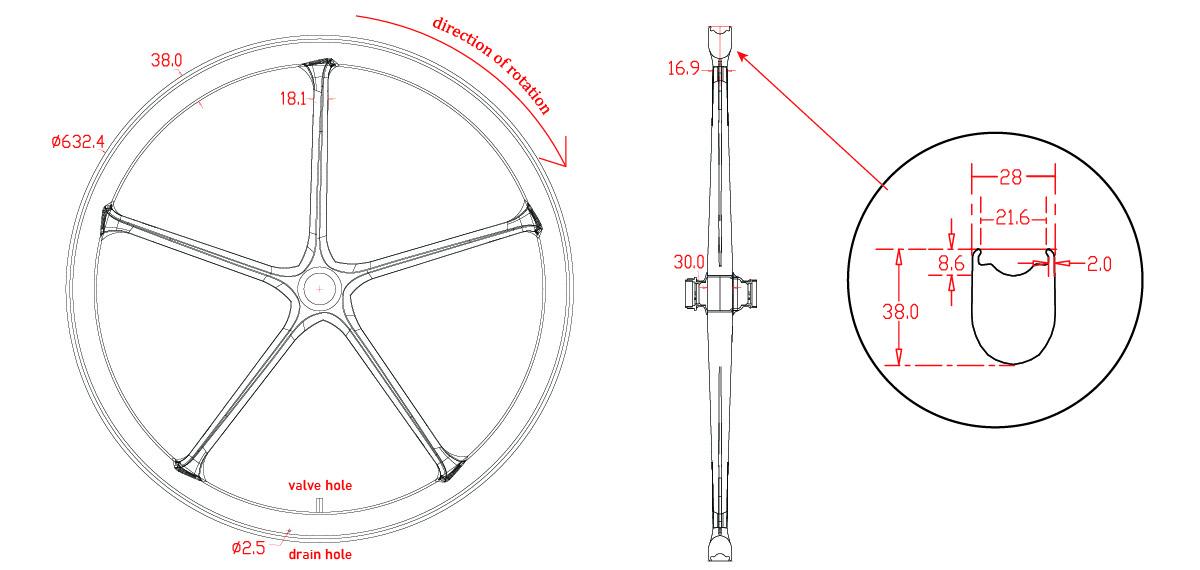

700C carbon 5-spoke wheel drawing
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our 5-spoke carbon wheels.

Combining with stable resin system to make consistent quality and high strength carbon five-spoke wheels.

Light Weight

Light Weight

Graphene filling Toray T700 carbon prepreg are well combined in our lay-up structure design, to create light weight carbon bike wheels. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness.

Tubeless

Tubeless

Tubeless tire is getting popular in carbon road bike wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our 5-spoke bicycle wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Wider Inner Width

Relatively wider 21.6mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x28C is recommended (also fit other wider tires).

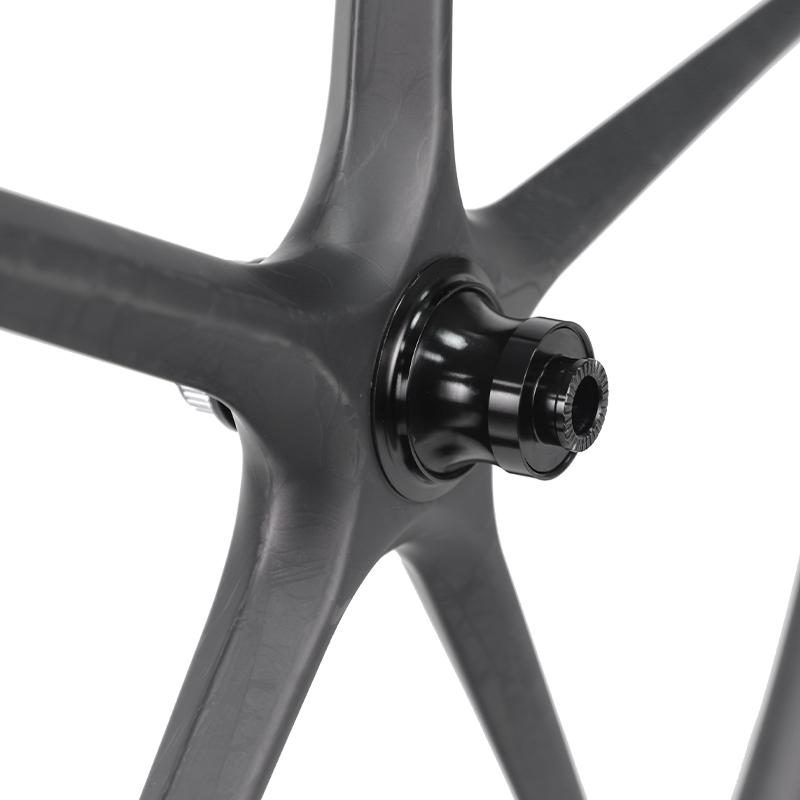

Chosen Road Hubs

ProX Road Hubs

ProX OEM Road hubs are used in our 5-spoke wheels. Stable quality and competitive price.

The hub spacings is for disc brake (12*100/12*142TA) only.

With Shimano 11/12 speed, SRAM 12-speed XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
