ProX Best Gravel Wheelset DT240 Carbon Gravel Wheels 700C Tubeless Ready

• 28/33/44mm depth gravel carbon rims optional

• High-end DT Swiss 240 EXP disc brake hubs

• Shimano/Sram 11-12 speed freehub available

• Sapim CX-Ray spokes, super aero and light

• Compatible for 700*30C-50C tire (tubeless ready)

  • Item NO.:

    240DB Gravel wheels
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

ProX DT240 Carbon Gravel Wheels - High End Gravel Bike Wheels For Racing

The strength has been further improved in the latest DT240 road hubs. In the latest Ratchet EXP system, 36 Teeth ratchet improves power transfer efficiency, helps to shorten acceleration time. The bearing distance has been slightly increased to prolong the lifetime of bearings. Simplified end-caps design for tool-free disassembly and easy maintenance.

Gravel carbon wheels built with DT240 EXP hubs are ideal for racing.


ProX provides 28/33/44mm depth gravel carbon rims to build wheelset for gravel bike. 33mm and 44mm gravel rims are with bead hook and hookless versions optional.

According to our sales record, PCX33 (33mm height bead hook) gravel carbon rim is most popular with our customers.

To match high end DT240 hubs, high end Sapim CX-Ray spokes are used, which is one of the best spokes available in the market.

Sapim CX-Ray spokes is the best combination of light weight, strength, flexibility, and it performs best in fatigue testing.

Hign-end hubs, spokes and rims make high end carbon gravel wheels for racing.

SPECIFICATION

ProX High End DT240 Cyclocross/Gravel Carbon Wheelset Specification:
-Hub:DT240 Road disc EXP ratchet (front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Rear Cassette Body: Shimano 11/12s or Sram 12s XDR optional

-Freehub System: Ratchet EXP 36
-Type: straight pull
-Spoke Hole Count: front 24H/rear 24H
-Tire Type:Clincher/tubeless ready
-Spoke: Sapim CX-Ray
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


High-end DT240 Disc Brake CX/Gravel Carbon Wheelset (tubeless ready)

Model Rim Rim Bead Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
240DB-PCX28-Ray PCX28 Hook 28mm 29mm Tubeless or Clincher DT240 Road disc 12*100mm 12*142mm Sapim CX-Ray 700*30C-50C 1345g
240DB-PCX33-Ray PCX33 Hook 33mm 28mm Tubeless or Clincher DT240 Road disc 12*100mm 12*142mm Sapim CX-Ray 700*30C-50C 1385g
240DB-PZX33-Ray PZX33 Hookless 33mm 28mm Tubeless or Clincher DT240 Road disc 12*100mm 12*142mm Sapim CX-Ray 700*30C-50C 1385g
240DB-PCX44-Ray PCX44 Hook 44mm 28mm Tubeless or Clincher DT240 Road disc 12*100mm 12*142mm Sapim CX-Ray 700*30C-50C 1445g
240DB-PZX44-Ray PZX44 Hookless 44mm 28mm Tubeless or Clincher DT240 Road disc 12*100mm 12*142mm Sapim CX-Ray 700*30C-50C 1445g

700C CX/Gravel Bike Carbon Rims (Tubeless Ready)

Rims PCX28 PCX33 PZX33 PCX44 PZX44
Max Weight Limit 110kg/240lb 120kg/265lb 120kg/265lb 120kg/265lb 120kg/265lb
Material T700+T800 T700+T800 T700+T800 T700+T800 T700+T800
Sectional Drawing gravel rim drawing 28mm depth gravel rim drawing 33mm depth gravel rim drawing 33mm depth hookless gravel rim drawing 44mm depth gravel rim drawing 44mm depth hookless

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon gravel rims.

Wider Inner Width

Wider Inner Width

Wider 21mm inner width, suitable for wide 700x30C-50C gravel tires.

Wider stance for tire, easy tire mounting and dismounting.

Better traction and cornering performance.

Aero U Shape

Aero U Shape

Wide U Shape carbon bike rims are more aerodynamic than traditional V Shape carbon rims.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless Ready

Tubeless tire is widely used in gravel wheels thanks to its better traction, lower rolling resistance and better performance in off-road.

All our gravel bike rims (no matter bead hook or hookless models) are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Disc Brake

Disc Brake

Disc brake provides more sensitive and precise braking performance than rim brake.

All our carbon gravel rims are designed for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our carbon wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

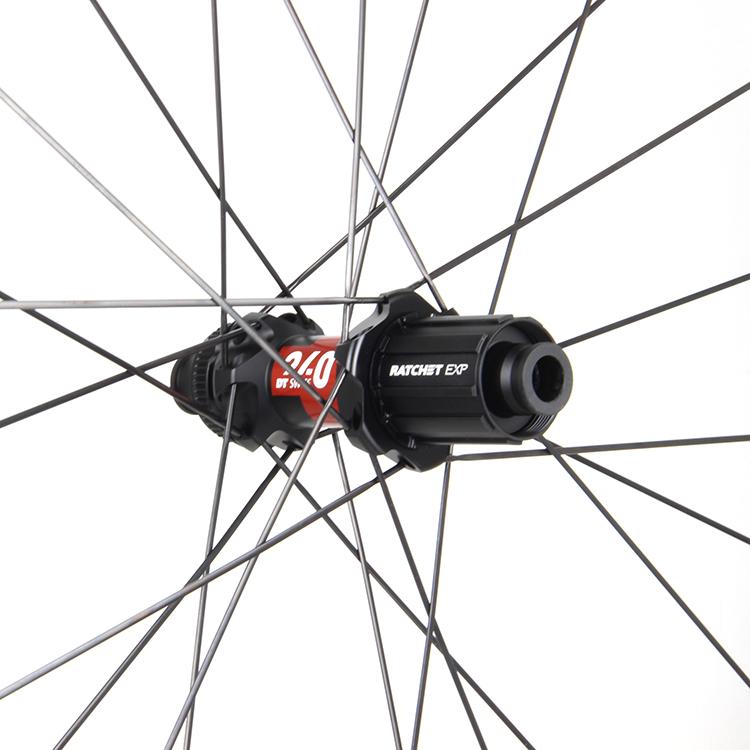

DT240 EXP Hubs

DT240 EXP Hubs

High end DT Swiss 240 EXP disc brake hubs, light weight and reliable carbon gravel wheelset for racing.

Ratchet EXP 36 freehub system provides best reliability. Straight spring and increased bearing distance creates longer lifetime.

12*100/12*142 thru-axle, with Shimano 11-speed, Sram 12-speed XDR freehub optional.

Sapim Spokes

Sapim Spokes

High end Sapim CX-Ray spokes, one of the best spokes available in the market.

Sapim CX-Ray spoke is the best combination of light weight, strength, flexibility, and it results in best fatigue testing.

It is widely used in many carbon bike wheels of those top brands all over the world.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
