• Premium DT Swiss 350SL hubs
• Widened 32mm inner width gravel carbon rims
• 40/45/50mm height optional
• Shimano HG 11/12s or SRAM XDR optional
• Pillar 1423 spokes, aero and strong
• For 44C-70C tyres (tubeless ready)
Item NO.:
350DB Gravel-32Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable):

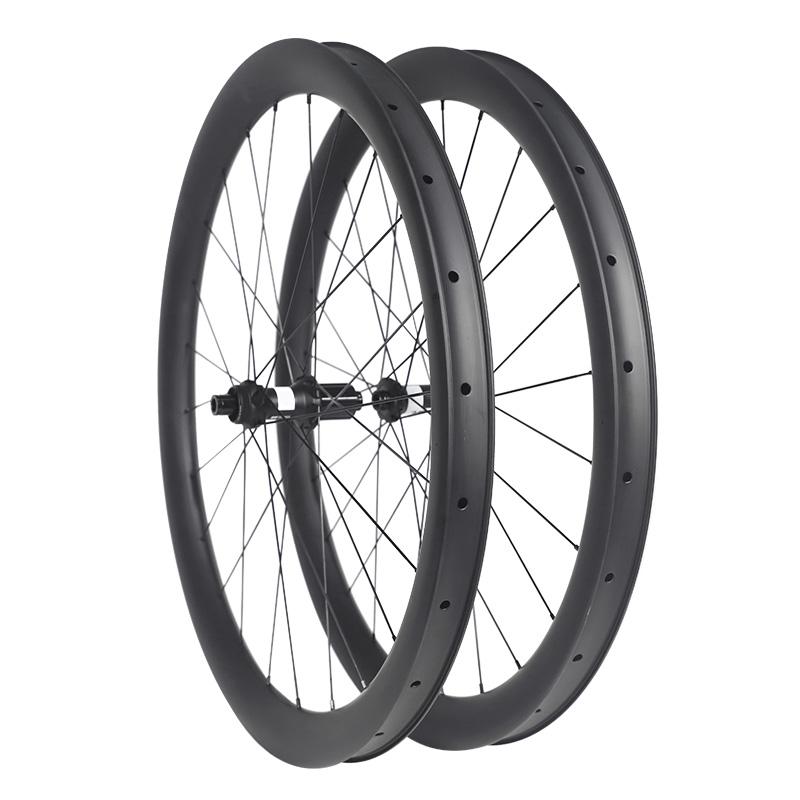

ProX DT Swiss 350SL Carbon Gravel Wheels - Premium Gravel Bike Wheelset For Racing
DT Swiss 350s road hubs are developed to be reliable and simplified. The reliability is achieved by the simultaneous engagement of the ratchets which result in larger contact area.
The simplified end-caps design makes it possible for tool-free disassembly and easy maintenance. The cost of DT swiss 350 hubs are much lower than DT swiss 240 and DT swiss 180 hubs.
Carbon gravel wheels built with DT350 hubs are of great performance and affordable price for racing.
Cyclocross and gravel carbon wheels demand versatility and durability. ProX gravel bike carbon wheels are designed with 32mm inner width rims, which is suitable for gravel tires with size 700*44C-70C. The 40/45/50mm rim height options strikes a compelling balance for mixed-terrain adventures.
Rim Height Options: 40mm vs. 45mm vs. 50mm
Choosing the right rim height depends on riding style and terrain:
40mm: Ideal for technical, unpredictable terrain. The lower profile prioritizes agility, weight savings, and crosswind stability. Perfect for riders tackling steep climbs or twisty singletrack.
45mm: A versatile middle ground. Balances aerodynamic gains compared to 40mm rim , and with moderate weight. It suits riders mixing paved gravel terrain.
50mm: Maximizes aerodynamic efficiency for fast-paced gravel races or rolling terrain. Slightly heavier on weight but offers noticeable speed retention on smoother surfaces.
(50mm wheels built on PXG074-D carbon gravel bicycle frame)
ProX DT Swiss 350SL Gravel Bicycle Carbon Wheelset Specification
-Hub: DT Swiss 350SL disc (front 12*100mm TA/rear 12*142mm TA)
-Disc brake type: center lock
-Type: straight pull
-Cassette Body: Shimano road 11/12s or SRAM 12s XDR optional
-Freehub System: Ratchet System 36
-Spoke Hole Count: front 24H/rear 24H
-Tire Type: Clincher/tubeless ready
-Spoke: Pillar 1423 spoke, bladed and aero, 2.0 - (1.5x2.3) - 2.0 mm Diameter
-Spoke Tension(recommended): ≤145kgf
130~140 kgf on rear drive side and front non-drive side
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years
-Tubeless Valve (not included): 44/60/80mm length optional
ProX Premium Carbon Gravel Wheelset with DT Swiss 350SL Ratchet System Hubs
| Model | Rim | Depth | Outer Width | Inner Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
| 350DB-PXG32-40C-1423 | PXG32-40C | 40mm | 37.5mm | 32mm | Tubeless or Clincher | DT SWISS 350SL | 12*100mm | 12*142mm | Pillar 1423 | 700*44C-70C | 1559g |
| 350DB-PXG32-45C-1423 | PXG32-45C | 45mm | 37.5mm | 32mm | Tubeless or Clincher | DT SWISS 350SL | 12*100mm | 12*142mm | Pillar 1423 | 700*44C-70C | 1579g |
| 350DB-PXG32-50C-1423 | PXG32-50C | 50mm | 37.5mm | 32mm | Tubeless or Clincher | DT SWISS 350SL | 12*100mm | 12*142mm | Pillar 1423 | 700*44C-70C | 1619g |
700C Cyclocross/Gravel Bike Carbon Clincher Rims (Tubeless Ready)
Rims
PXG32-40C
PXG32-45C
PXG32-50C
Max Weight Limit
120kg/265lb
120kg/265lb
120kg/265lb
Material
T700
T700
T700
Sectional Drawing
 |
Carbon Fiber Material Premium Toray T700 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight carbon fiber gravel rims.
|
 |

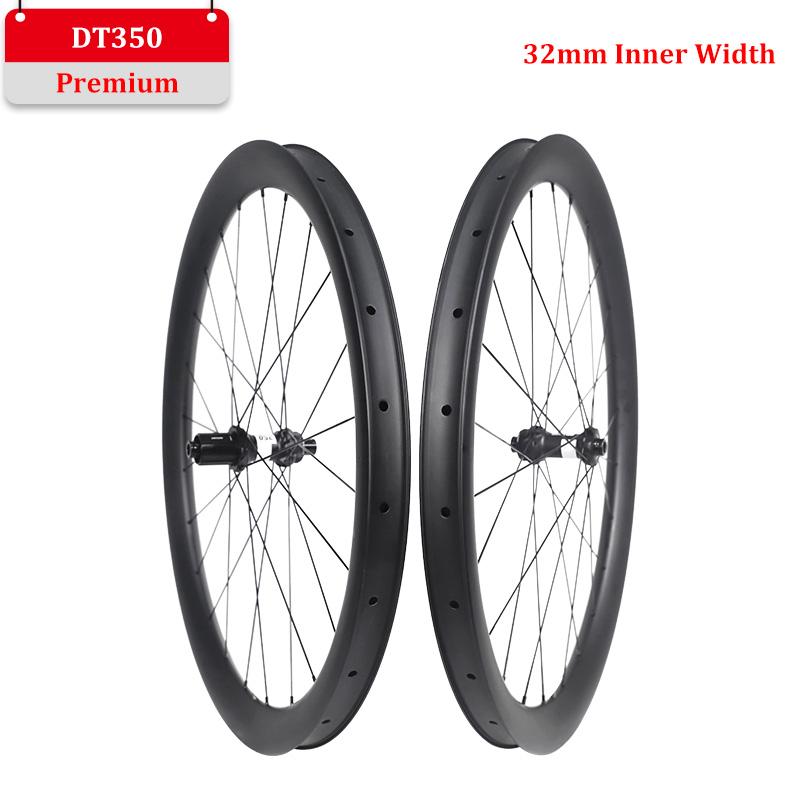

Widened 32mm Inner Width Wider 32mm inner width, suitable for wide 700x44C-70C gravel tires. Wider stance for tire, easy tire mounting and dismounting. Better traction and cornering performance.
|
 |

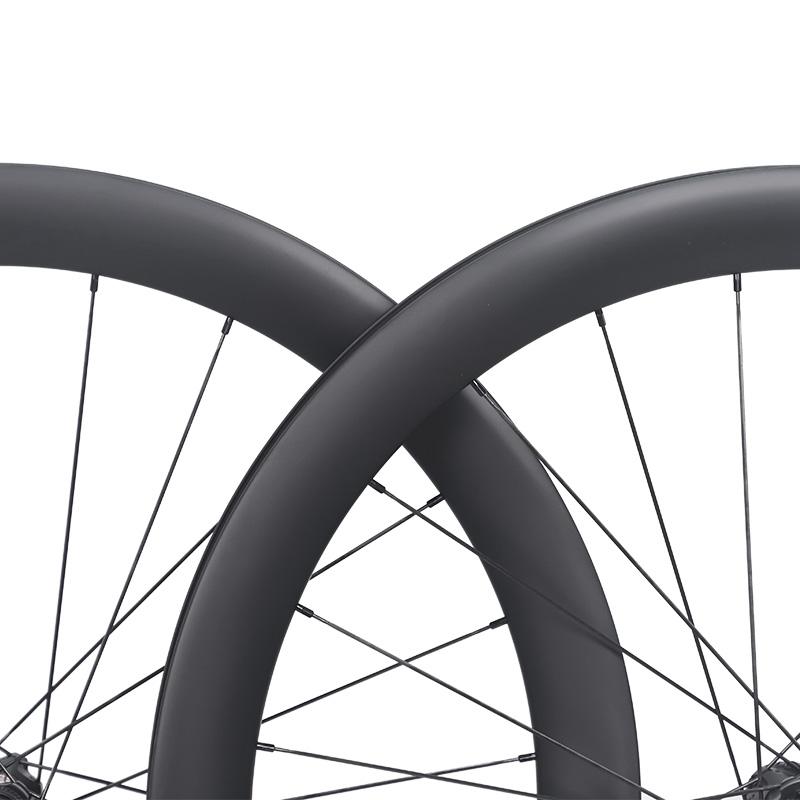

Aero U Shape Wide U Shape carbon bike rims are more aerodynamic than traditional V Shape carbon rims. It is also of better stiffness and strength. |
 |
Tubeless Ready
Tubeless tire is widely used in gravel bike wheelset thanks to its better traction, lower rolling resistance and better performance in off-road. All our gravel bike rims (no matter bead hook or hookless models) are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 |
Disc Brake Disc brake provides more sensitive and precise braking performance than rim brake. All our gravel carbon rims are designed for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
 |
Hand Built All our carbon wheelsets are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
 |

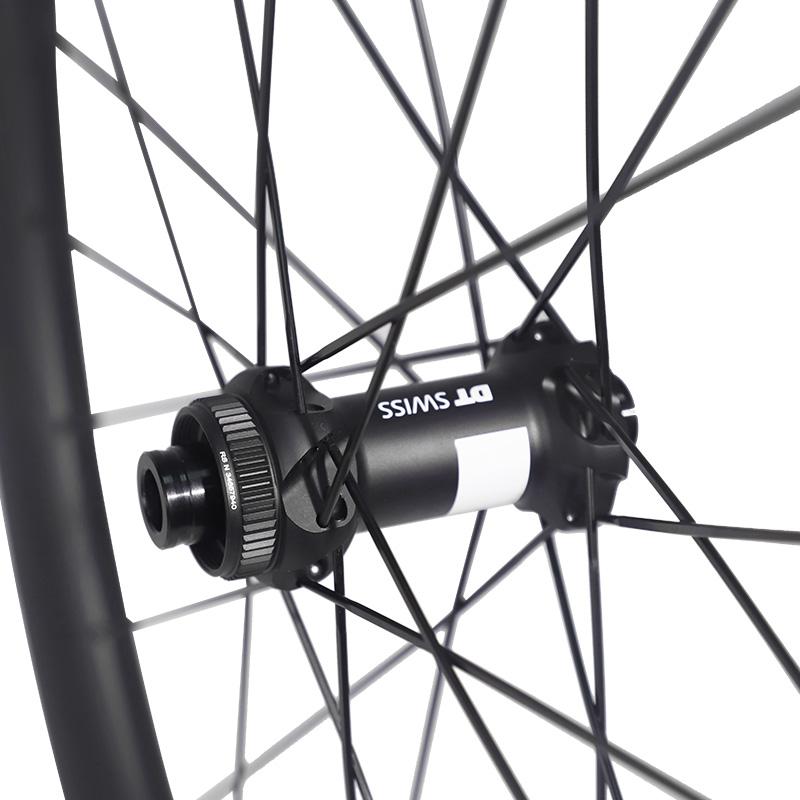

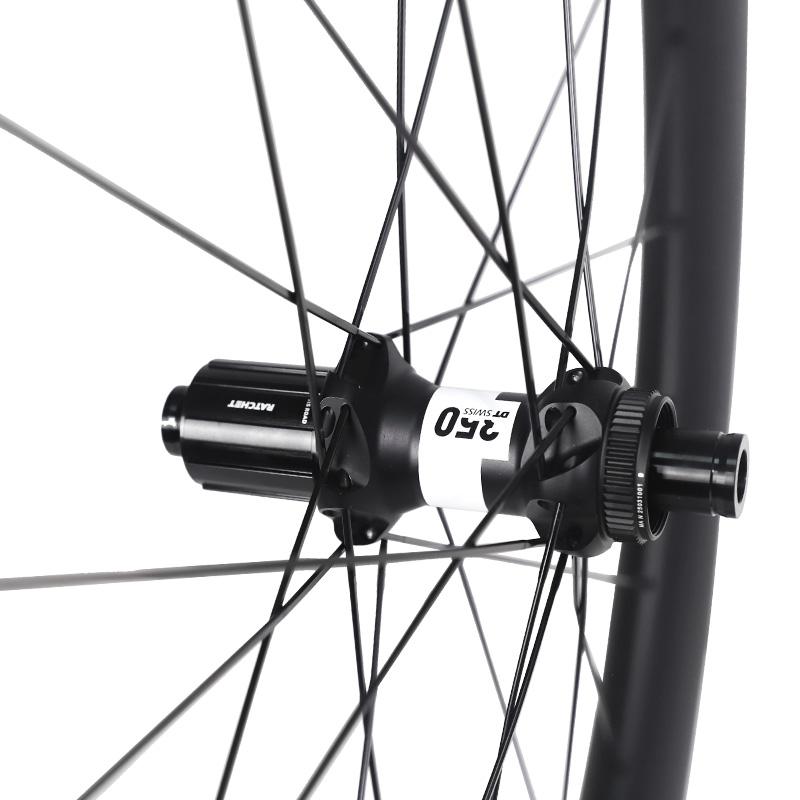

DT350 Road Hubs DT Swiss 350SL road disc brake hubs are used. DT Swiss gravel wheels with great performance and competitive price. DT Swiss Ratchet System, reliable and stable. Straight pull spoke system, direct power transmission.
12*100/12*142 thru-axle, with Shimano HG 11/12 speed, Sram 12-speed XDR freehub optional.
|
 |
Pillar Spokes The popular Pillar PSR AERO 1423 spokes are used. Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%. Perfect aero shape, high elasticity and low drag coefficient.
|
 |
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
