ProX Rim Brake Carbon Wheels DT240 Tubular Carbon Wheelset

• 25mm and 28mm width tubular rims optional

• High-end DT Swiss 240 EXP rim-brake hubs

• Shimano/Sram 11-12 speed freehub available

• Sapim CX-Ray spokes, super light and aero

• Compatible for 700*23C-35C tubular tire

  • Item NO.:

    240S Tubular Wheels
  • Payment:

    Paypal, Bank Transfer, West Union
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

ProX DT240 Tubular Carbon Road Wheels - High End Rim Brake Tubular Carbon Wheelset For Racing

The strength has been further improved in the latest DT240 road hubs. In the latest Ratchet EXP system, 36 Teeth ratchet improves power transfer efficiency, helps to shorten acceleration time. The bearing distance has been slightly increased to prolong the lifetime of bearings. Simplified end-caps design for tool-free disassembly and easy maintenance.

Carbon wheels built with DT240 hubs are ideal for racing.


ProX provides two width option for our DT240 EXP rim brake carbon tubular wheels. That is, 28mm width carbon tubular rims, and 25mm width carbon rims tubular.

Both our 28mm and 25mm rim brake tubular carbon rims are made of Toray T700+T800 carbon fiber, with SL (super light) weight.

The 28mm width rim brake series (model PRV28-T) is compatible for 700*25C-35C tubular tire, with height 22/33/38/44/50/55mm optional.

The 25mm width rim brake series (model PRV25-T) is compatible for 700*23C-33C tubular tire, with height 38/45/50/60/80mm optional.

With so many options available, you can always choose the one with width and height you prefer.

SPECIFICATION

ProX DT240 EXP Rim Brake Carbon Tubular Wheelset Specification:
-Hub:DT240 Road EXP ratchet 36T (front 5*100mm QR/rear 5*130mm QR)
-Brake type: rim brake/non-disc
-Cassette Body: Shimano 11/12s or Sram 12s XDR available

-Freehub System: Ratchet EXP 36
-Type: straight pull
-Spoke Hole Count: front 20H/rear 24H
-Tire Type:Tubular
-Spoke: Sapim CX-Ray
-Spoke Tension(recommended): ≤130kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


DT240 Rim-brake Carbon Tubular Wheels Built With PRV28 Tubular Carbon Rims (28mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
240S-PRV28-33T-Ray PRV28-33T 33mm 28mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-35C 1219g
240S-PRV28-38T-Ray PRV28-38T 38mm 28mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-35C 1239g
240S-PRV28-44T-Ray PRV28-44T 44mm 28mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-35C 1259g
240S-PRV28-50T-Ray PRV28-50T 50mm 28mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-35C 1339g
240S-PRV28-55T-Ray PRV28-55T 55mm 28mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*25C-35C 1359g


700C Rim-brake Tubular Carbon Rims PRV28 (28mm width)

Rims PRV28-33T PRV28-38T PRV28-44T PRV28-50T PRV28-55T
Max Weight Limit 105kg/230lb 105kg/230lb 110kg/240lb 115kg/250lb 115kg/250lb
Material T700 T700 T700 T700 T700
Sectional Drawing


DT240 Rim-brake Carbon Tubular Wheels Built With PRV25 Tubular Carbon Rims (25mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
240S-PRV25-38T-Ray PRV25-38T 38mm 25mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*23C-33C 1219g
240S-PRV25-45T-Ray PRV25-45T 45mm 25mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*23C-33C 1259g
240S-PRV25-50T-Ray PRV25-50T 50mm 25mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*23C-33C 1299g
240S-PRV25-60T-Ray PRV25-60T 60mm 25mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*23C-33C 1459g
240S-PRV25-80T-Ray PRV25-80T 80mm 25mm Tubular DT240 EXP Road 5*100mm QR 5*130mm QR Sapim CX-Ray 700*23C-33C 1579g


700C Rim-brake Tubular Carbon Rims PRV25 (25mm width)

Rims PRV25-38T PRV25-45T PRV25-50T PRV25-60T PRV25-80T
Max Weight Limit 105kg/230lb 105kg/230lb 110kg/240lb 115kg/250lb 115kg/250lb
Material T700+T800 T700+T800 T700+T800 T700+T800 T700+T800
Sectional Drawing

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight tubular carbon rim.

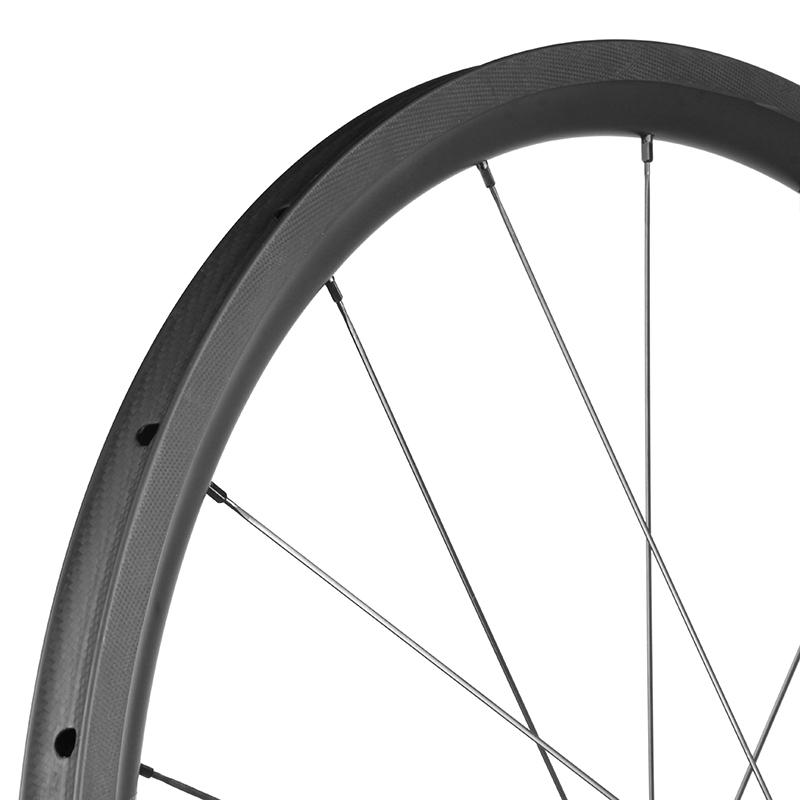

Aero U Shape

Wide U Shape road bike carbon rims are more aerodynamic than traditional V Shape road carbon rims.

It is also of better stiffness and strength.

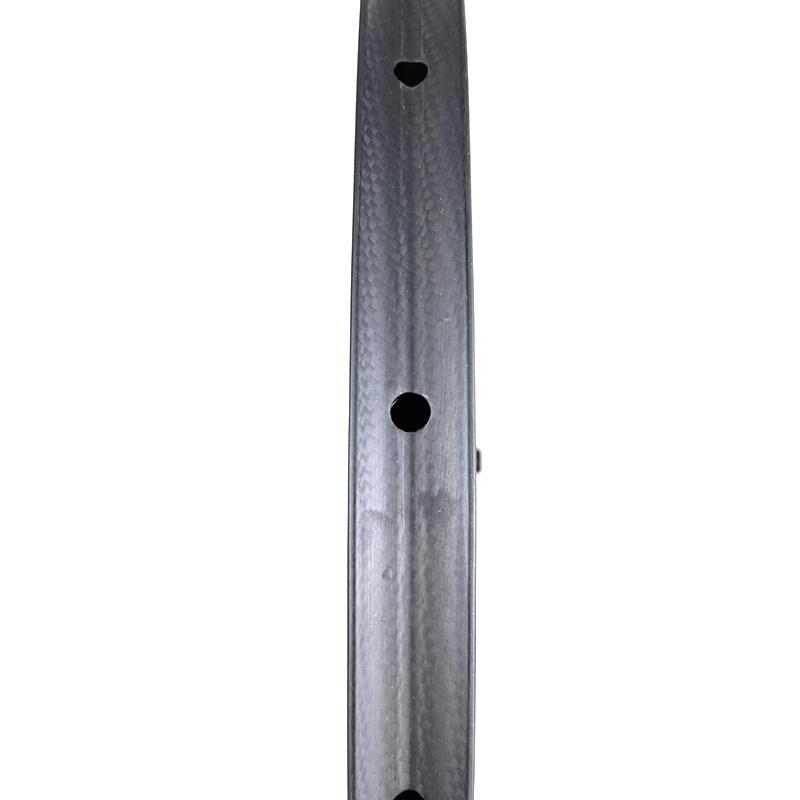

Rim Brake

Rim Brake

Road carbon rims designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface.

Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition.

Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.

Hand Built

Hand Built

All our carbon wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

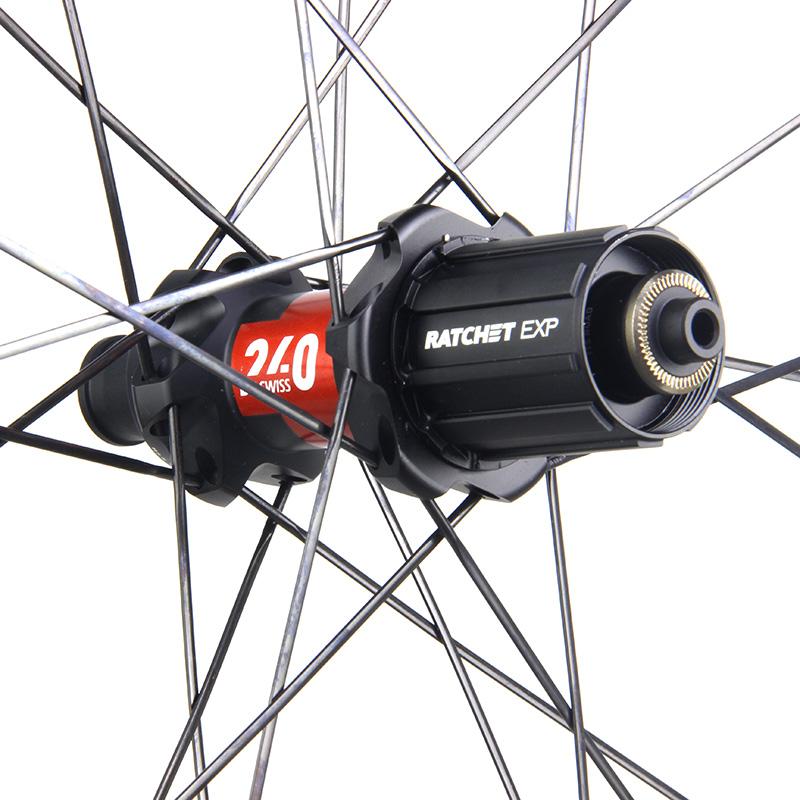

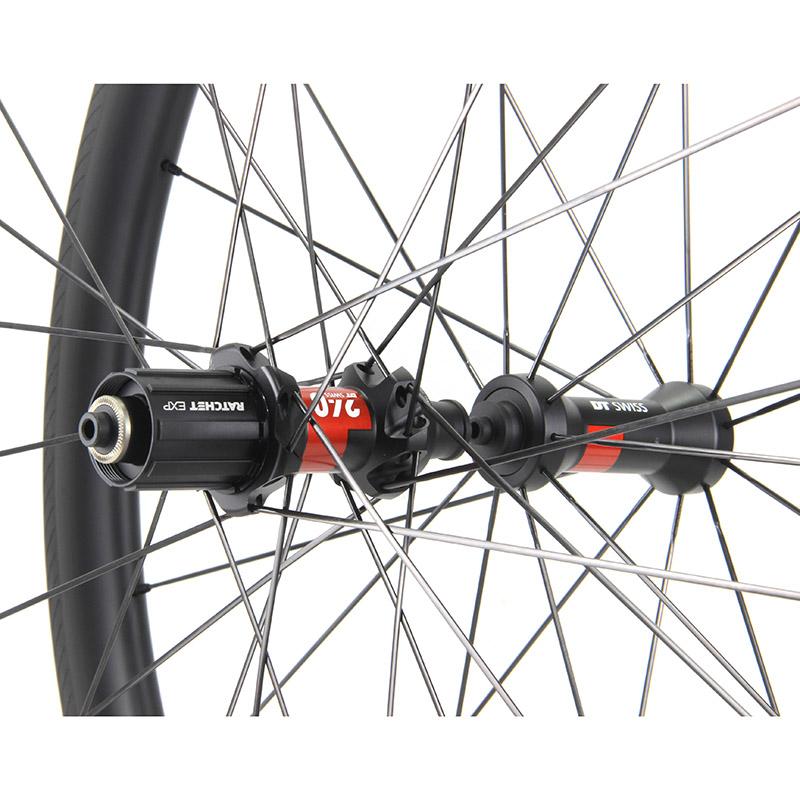

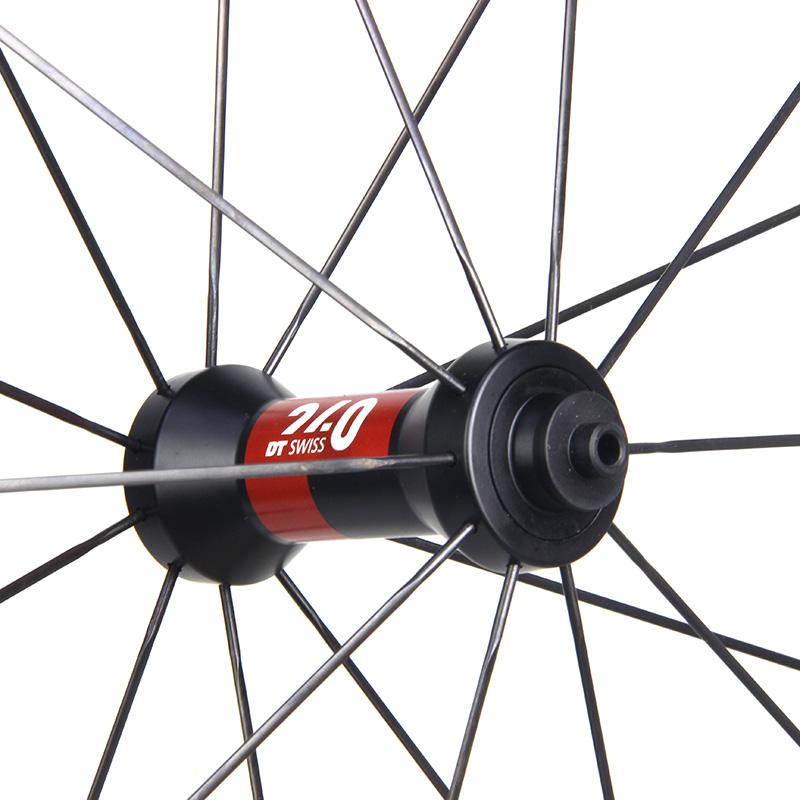

DT240 EXP Road Hubs

DT240 EXP Hubs

High end DT Swiss 240 EXP road hubs, light weight and reliable carbon rim brake wheelset for racing.

Ratchet EXP 36 freehub system provides best reliability. Straight spring and increased bearing distance creates longer lifetime.

5*100/5*130 standard QR, with Shimano 11-speed, Sram 12-speed XDR freehub optional.

Sapim Spokes

Sapim Spokes

High end Sapim CX-Ray spokes, one of the best spokes available in the market.

Sapim CX-Ray spoke is the best combination of light weight, strength, flexibility, and it results in best fatigue testing.

It is widely used in many carbon fiber bike wheels of those top brands all over the world.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
