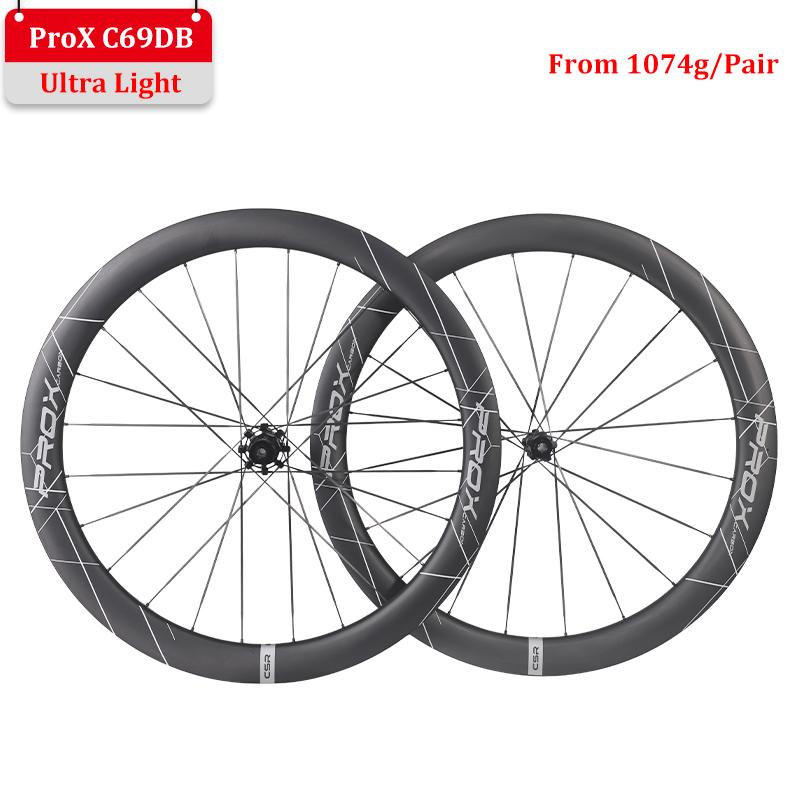

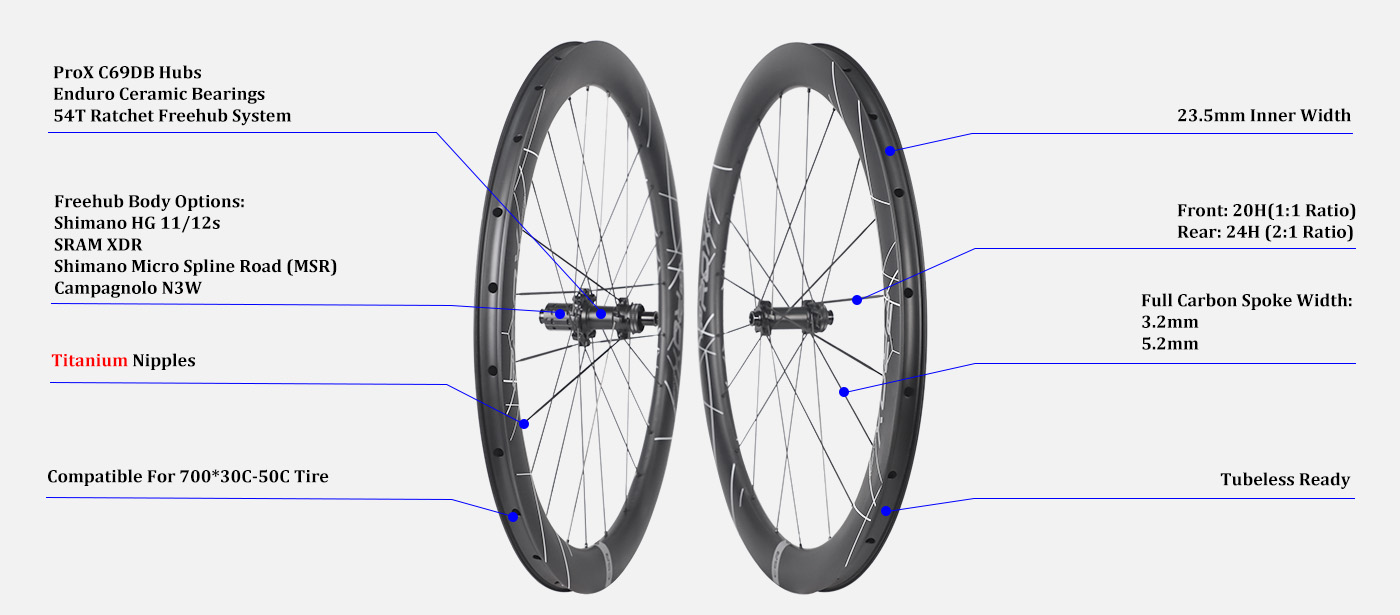

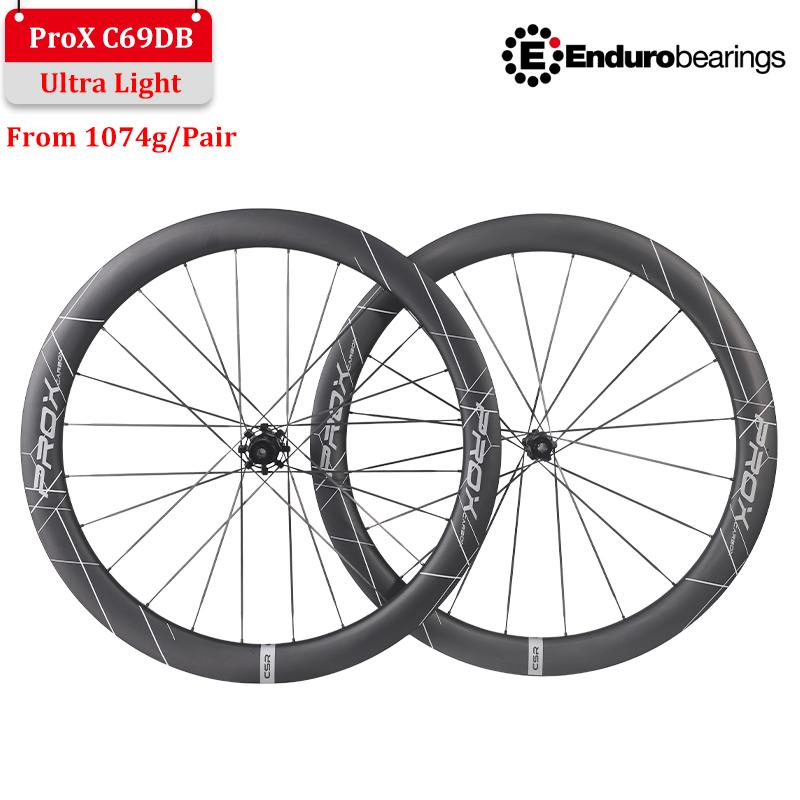

• Ultra Light carbon spoke road wheels, from 1074g/pair
• Built with new 23.5mm internal width carbon rims
• C69DB hubs, with premium Enduro ceramic bearings, 54T ratchet
• Full carbon spokes, with Titanium nipples
• Carbon spoke width options: 3.2mm & 5.2mm
• Tubeless ready, fit 700*30C-50C tire
Brand:
PROXItem NO.:
C69DB-ULOrder(MOQ):
1Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/Marble (Customized Decal Acceptable):

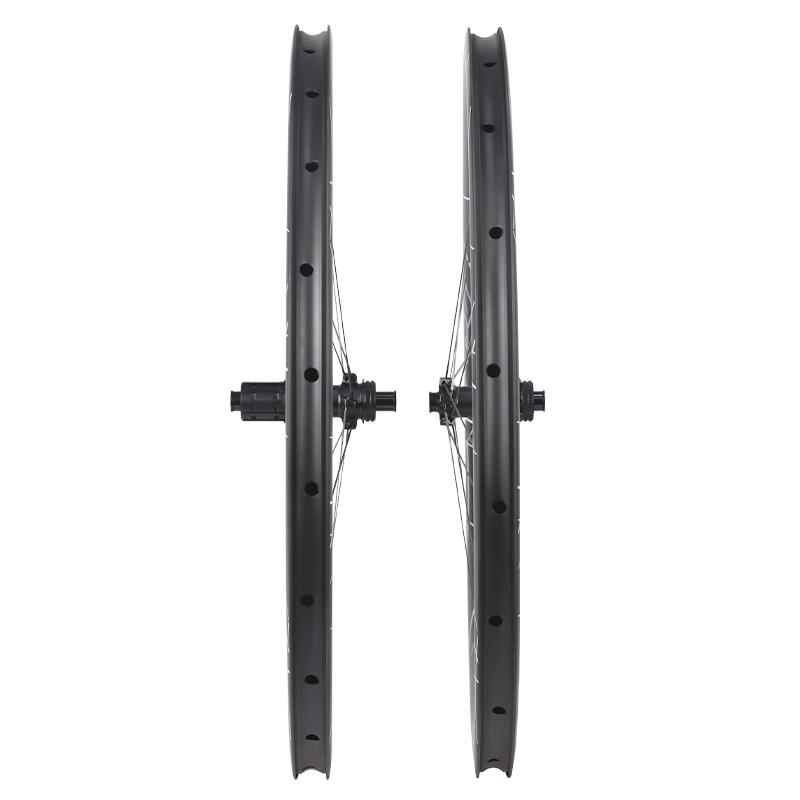

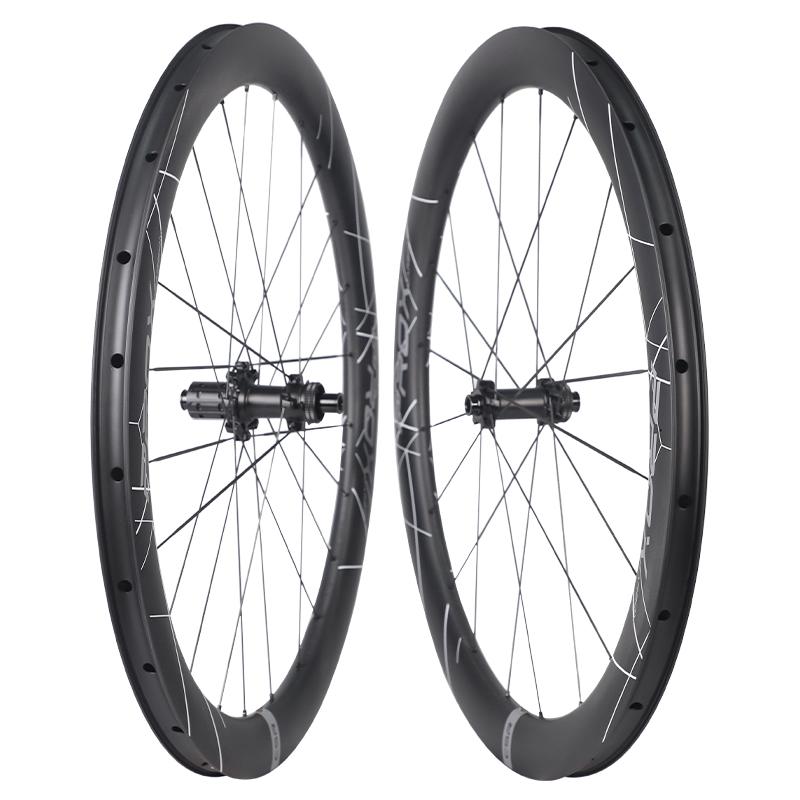

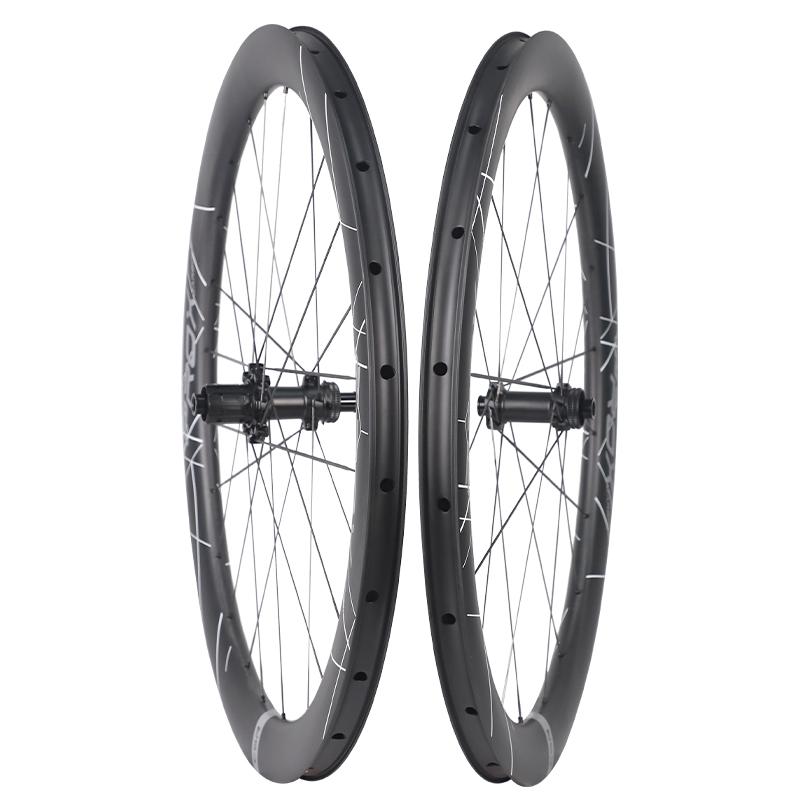

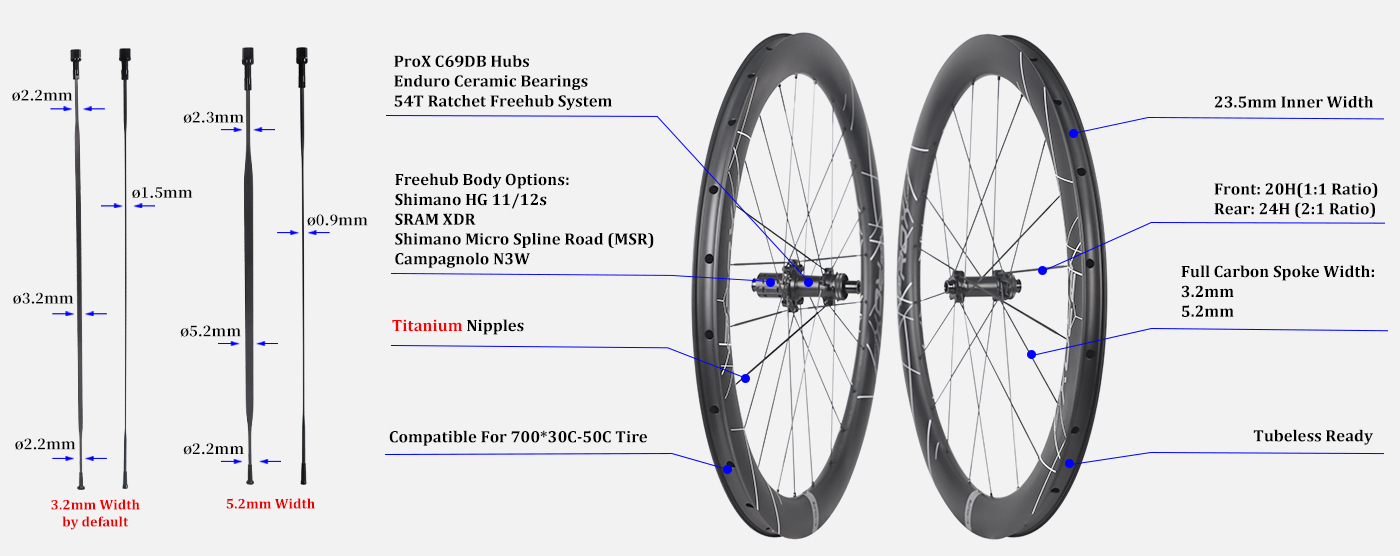

ProX C69DB Full Carbon Spoke Road Wheels - Ultra Light Road Racing Wheels
ProX C69DB is an ultra-light full carbon spoke road disc wheelset designed for fast-paced road riding and high-performance racing. Built around the high-performance C69DB hub, titanium spoke heads, and a lightweight carbon rim, the wheelset combines low weight, high lateral stiffness, responsive acceleration, and reliable long-term performance. The C69DB features a unique T-head spoke design, a 54T ratchet freehub system, and premium hub bearings. Together with the lightweight carbon rim and full carbon spokes, these technologies deliver efficient power transfer, precise handling, and dependable durability for demanding road riding.

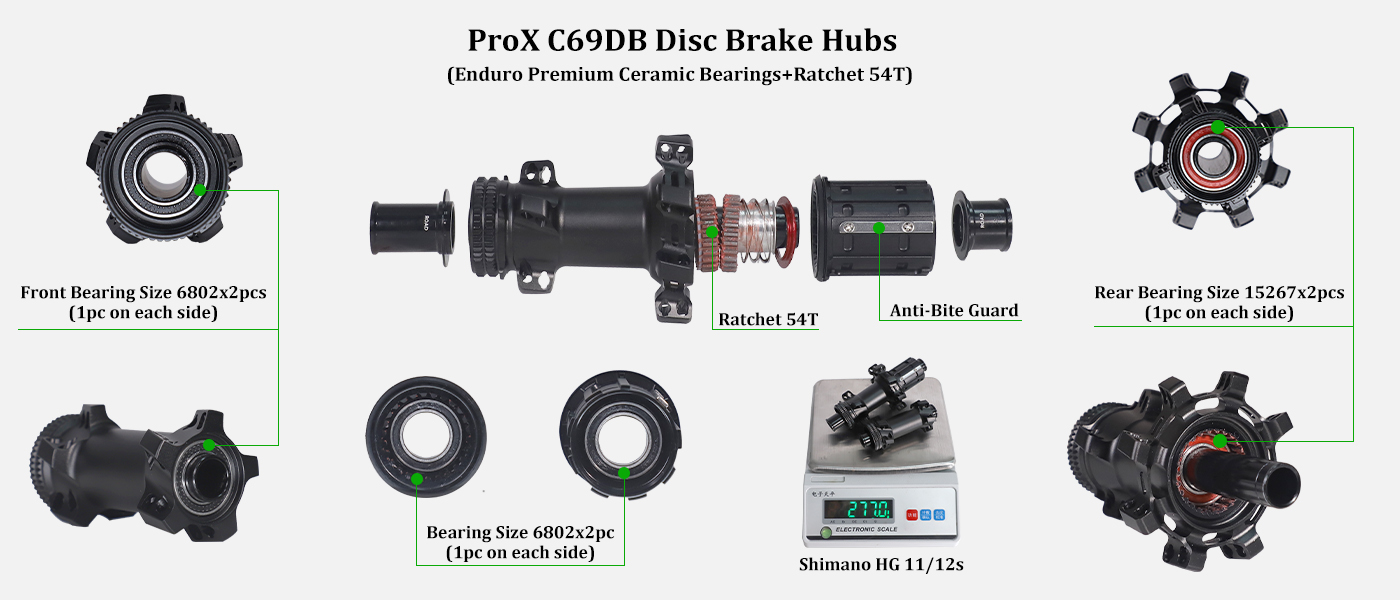

Hubs:
The C69DB hub is manufactured by a well-established Taiwan-based hub maker and uses a straight-pull spoke configuration.

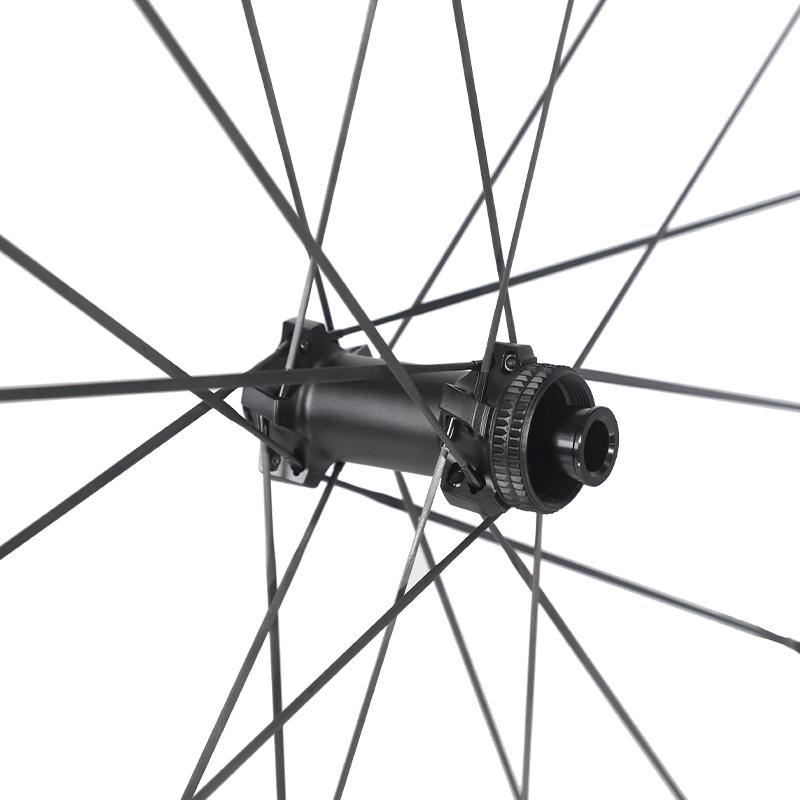

The front hub features 20 spoke holes with a 1:1 lacing ratio, providing a lightweight construction while maintaining sufficient lateral stiffness.

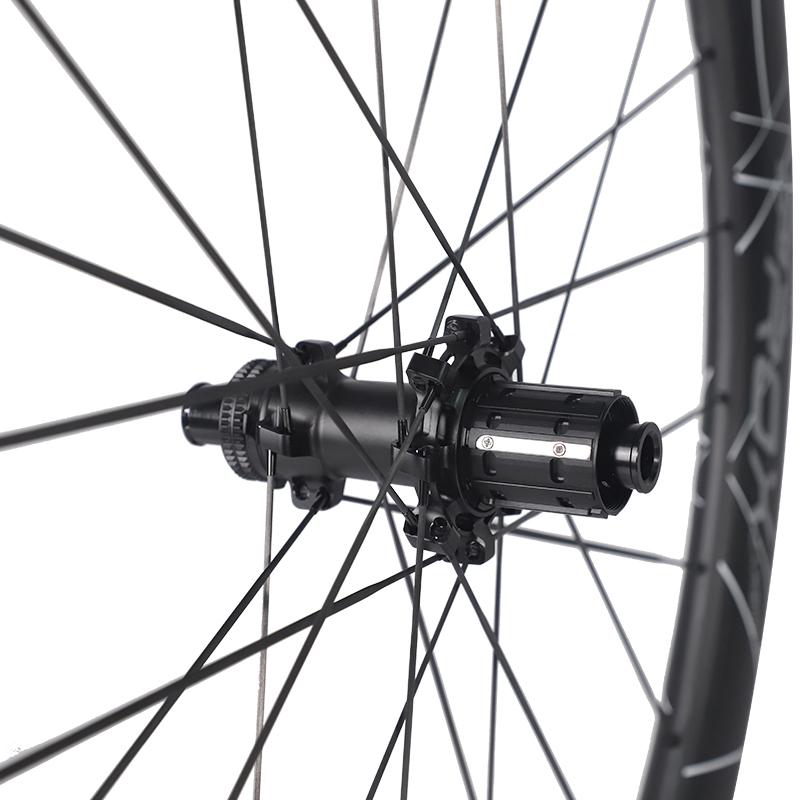

The rear hub uses 24 spoke holes with a 2:1 lacing ratio, optimizing spoke tension and strength between the drive and non-drive sides to better handle the higher torque generated by rear-wheel power input.
The hub's high-flange design further increases lateral stiffness for responsive handling, while the 54T ratchet freehub system provides fast engagement and efficient power transmission.
*Enduro Bearings
ProX C69DB hubs are equipped with Enduro XD15 ceramic bearings.
An Enduro exclusive, XD15 combines Grade 5 silicon nitride ceramic balls with an advanced nitrogen-infused aerospace stainless steel bearing race. The race is highly resistant to corrosion and designed to maintain a smooth running surface even when exposed to contaminants. Proprietary XD15 “speed” grease is used to complement the ceramic-hybrid bearing system, providing a combination of low rolling resistance, smooth operation, and long-term durability.

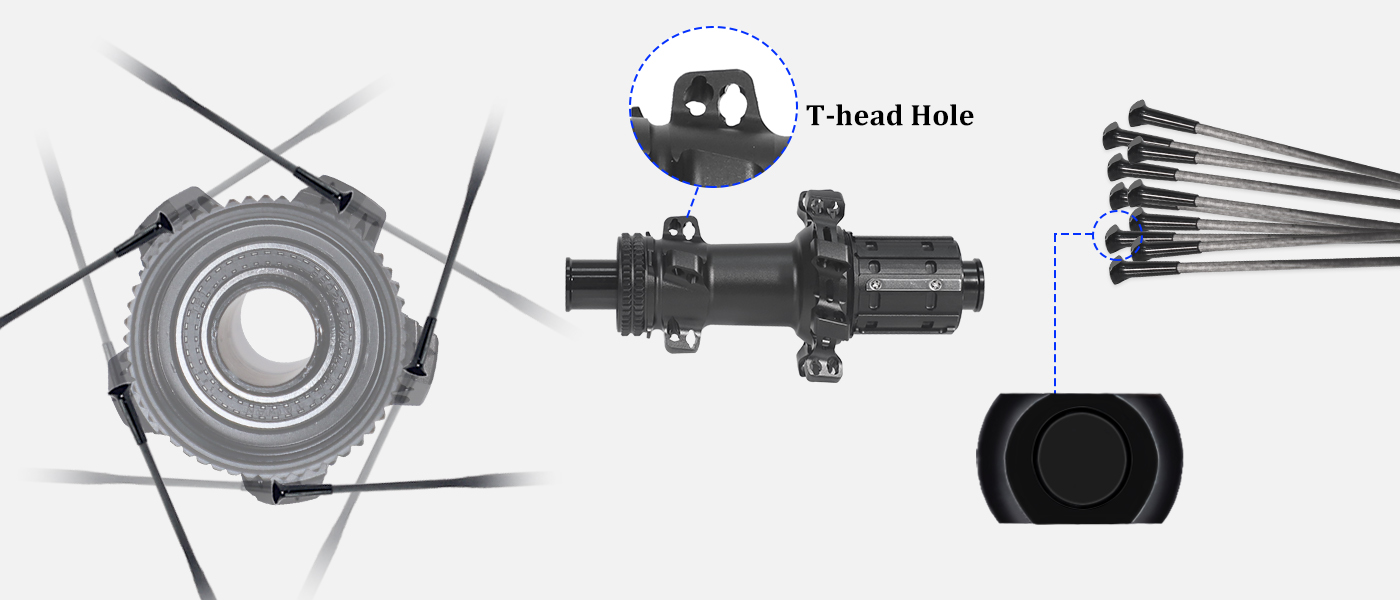

* T‑Head Spoke Hole Design
The C69DB hub features an exclusive T-head spoke hole design. The T-shaped recessed pockets in the hub flanges are precisely matched to the profile of the T-head spoke ends, allowing each spoke head to sit securely and flush within the hub hole. Compared with conventional straight-pull hub designs, this interlocking structure helps prevent spoke heads from shifting inside the spoke holes under repeated vibration and road impacts. By keeping the spoke heads securely positioned, the design helps maintain more consistent spoke tension and wheel trueness, while reducing the need for frequent re-truing and improving overall wheel reliability.
Spokes:
The C69DB uses customized full carbon spokes (CT3) with a default 3.2mm-wide aerodynamic blade profile. Made from carbon fiber with titanium spoke heads, these spokes combine low weight with high stiffness and fatigue resistance. The CT3 carbon spoke, including its titanium spoke head and titanium nipple, weighs approximately 2.3g, around 2.7g lighter than a well-known Sapim CX-Ray spoke with nipple. For riders seeking additional aerodynamic performance, the C69DB can also be upgraded to wider 5.2mm carbon spokes. The wider profile provides a larger aerodynamic surface while maintaining the performance advantages of carbon spokes. Compared with conventional steel spokes, the full carbon spoke construction provides higher stiffness and excellent fatigue resistance. According to ProX in-lab testing, the carbon spoke has a maximum tested spoke tension of 528kgf, significantly exceeding the typical maximum tension of conventional steel spokes, which is generally below 400kgf.
Please note: Due to the special wheel building tools needed for carbon spoke wheel building, as well as bigger nipple size (around 7mm diameter head, which is larger than Presta valve hole diameter 6.5mm), nipple can not be put into the rim through valve hole. It means No-External-Hole rim can not be built with carbon spokes (which comes with bigger nipple head). Thus, tubeless rim tape is a must if you intend to use tubeless tires. If you prefer No-External-Hole wheels, please choose our other carbon wheels (regular steel spokes).
Rider Review | C69DB‑RD923‑45UL‑CT3:
ProX C69DB Ultra Light Full Carbon Spoke Road Racing Wheels Specification:
- Hub: ProX C69DB disc hubs (front 12*100mm TA/rear 12*142mm TA), with Enduro ceramic bearings. Ratchet 54T freehub system
- Decal/Logo: No branding on the rims and hubs by default, accept customized logo
- Rim Weave: UD naked carbon weave
- Rim Finish: Matte or glossy finish
- Spoke options: 3.2mm(by default) or update to 5.2mm width, both aero carbon spokes, made of carbon fiber T800
- Rim depth options: 35/45/50/55/60/65mm
- Disc brake type: Center lock
- Cassette Body: Shimano HG 11/12s, SRAM XDR, Shimano Microspline Road, Campagnolo N3W
- Type: straight pull
- Spoke Hole Count: 20 holes (1:1) on front and 24 holes (2:1) on rear
- Tire Type: Clincher/Tubeless compatible
- Nipple: Titanium (7mm length)
- Spoke Tension(recommended): ≤170kgf
120~130kgf on front disc side and rear drive side
- Tire Pressure: 125psi/8.6bar
- Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.
- Warranty Year: 2 years
- Tubeless Valve (not included): 44/60/80mm length optional
ProX C69DB Full Carbon Spoke Road Disc Brake Wheels Built
Model
Rim
Depth
Inner Width
Tire Type
Hub
Front Size
Rear Size
Carbon Spoke
C69DB-RD923-35UL-CT3
RD923-35UL
35mm
23.5mm
Tubeless or Clincher
ProX C69DB Disc
12*100mm
12*142mm
ProX CT3
700*30C-50C
1074g
C69DB-RD923-45UL-CT3
RD923-45UL
45mm
23.5mm
Tubeless or Clincher
ProX C69DB Disc
12*100mm
12*142mm
ProX CT3
700*30C-50C
1124g
C69DB-RD923-50UL-CT3
RD923-50UL
50mm
23.5mm
Tubeless or Clincher
ProX C69DB Disc
12*100mm
12*142mm
ProX CT3
700*30C-50C
1144g
C69DB-RD923-55UL-CT3
RD923-55UL
55mm
23.5mm
Tubeless or Clincher
ProX C69DB Disc
12*100mm
12*142mm
ProX CT3
700*30C-50C
1194g
C69DB-RD923-60UL-CT3
RD923-60UL
60mm
23.5mm
Tubeless or Clincher
ProX C69DB Disc
12*100mm
12*142mm
ProX CT3
700*30C-50C
1254g
C69DB-RD923-65UL-CT3
RD923-65UL
65mm
23.5mm
Tubeless or Clincher
ProX C69DB Disc
12*100mm
12*142mm
ProX CT3
700*30C-50C
1284g
700C Ultra Light UL Road Disc Brake Carbon Clincher Rims
Rims
RD923-35UL
RD923-45UL
RD923-50UL
RD923-55UL
RD923-60UL
RD923-65UL
Max Weight Limit
90kg/198lbs
95kg/209lbs
95kg/209lbs
95kg/209lbs
95kg/209lbs
95kg/209lbs
Material
T800+T1000
T800+T1000
T800+T1000
T800+T1000
T800+T1000
T800+T1000

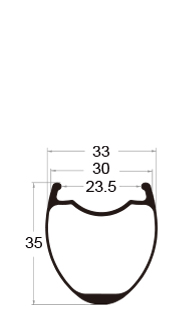

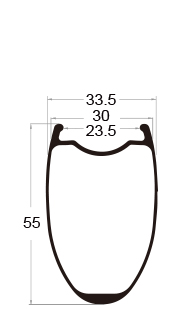

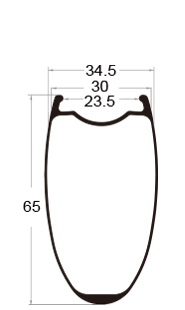

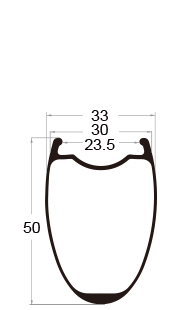

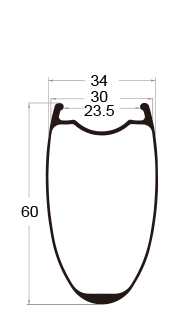

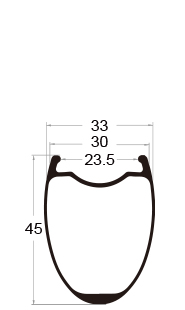

Sectional Drawing
 |
Carbon Fiber Material Premium T800 + T1000 grade carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and ultra light road carbon road rims.
|
 |
Light Weight By using well designed lay-up structure, mixing T800 and T1000 grade carbon prepreg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
 |
Wide Inner Width Relatively wide 23.5mm inner width, make it possible to fit multiple sizes of tire. Normally road tire size 700x30C are recommended (also fit other wider tires).
|
 |
Tubeless Ready
Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 |
Road Disc Brake Road disc brake provides more sensitive and precise braking performance than rim brake. Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
 |
Hand Built All our bicycle carbon wheels are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
 |
ProX C69DB Disc Hubs ProX own mould C69DB road hubs are used. High quality hubs with cheap price. C69DB road disc brake hubs are designed with ratchet freehub system with Enduro ceramic bearings. Such hubs can also be etched with your customized logo.
12*100/12*142 thru-axle, with Shimano HG, SRAM XDR, Shimano Microspline Road or Campagnolo N3W cassette body.
|
 |
ProX CS Carbon Spokes The customized ProX 3.2 mm width and ProX 5.2mm width carbon spokes are used. The carbon spoke provides better aerodynamics, stiffness and better fatigue life compared to the traditional steel spokes. Perfect bladed aero shape, high elasticity and low drag coefficient.
|
 |
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
