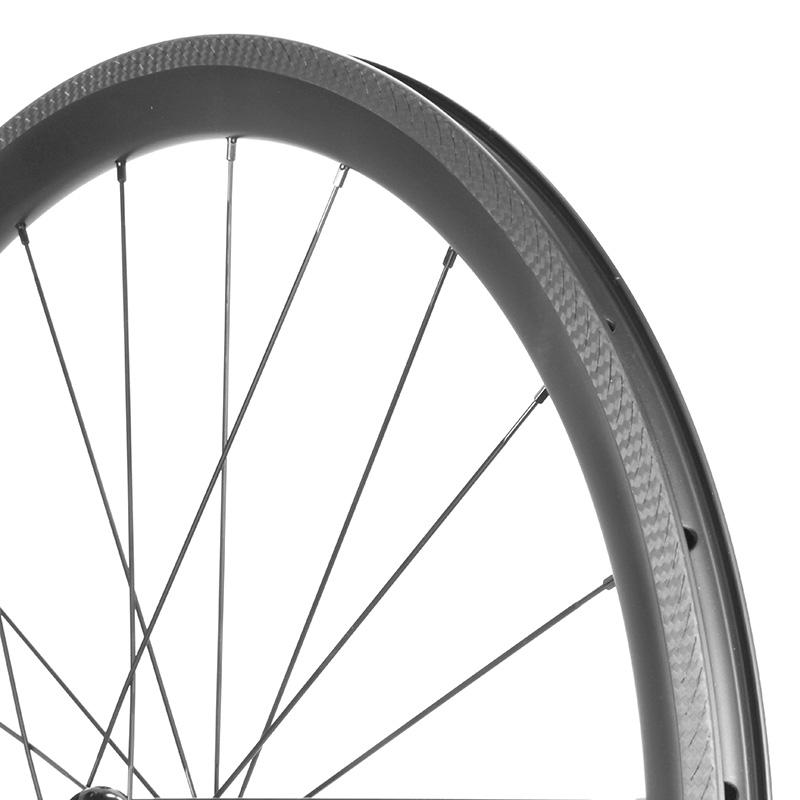

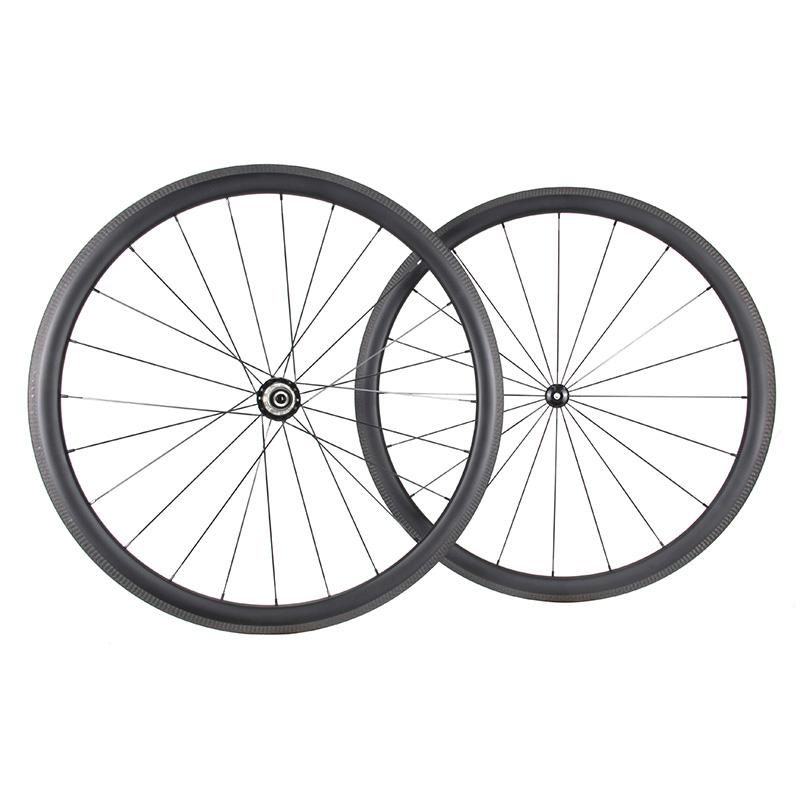

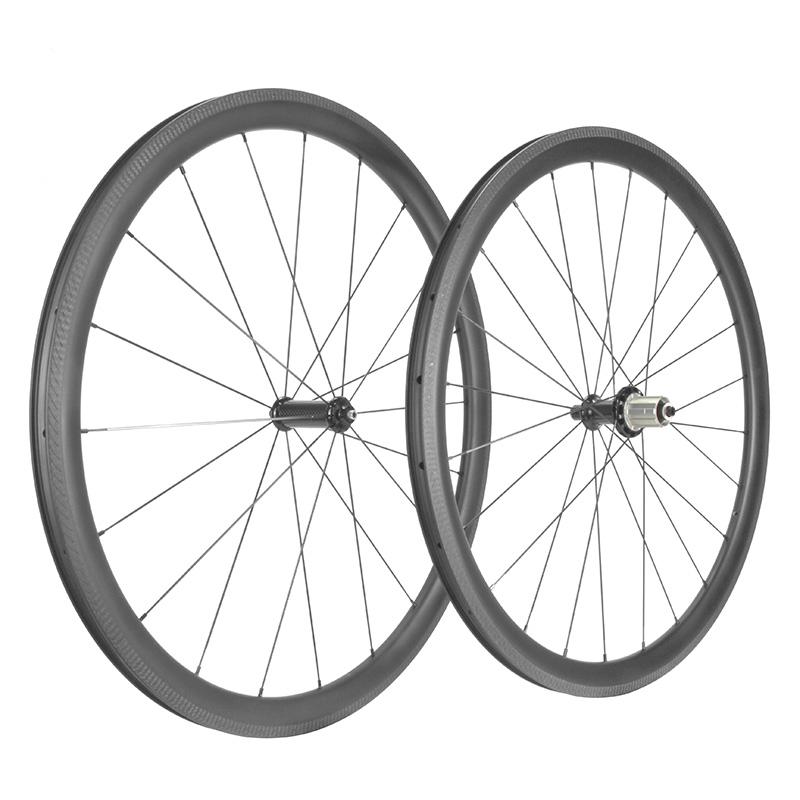

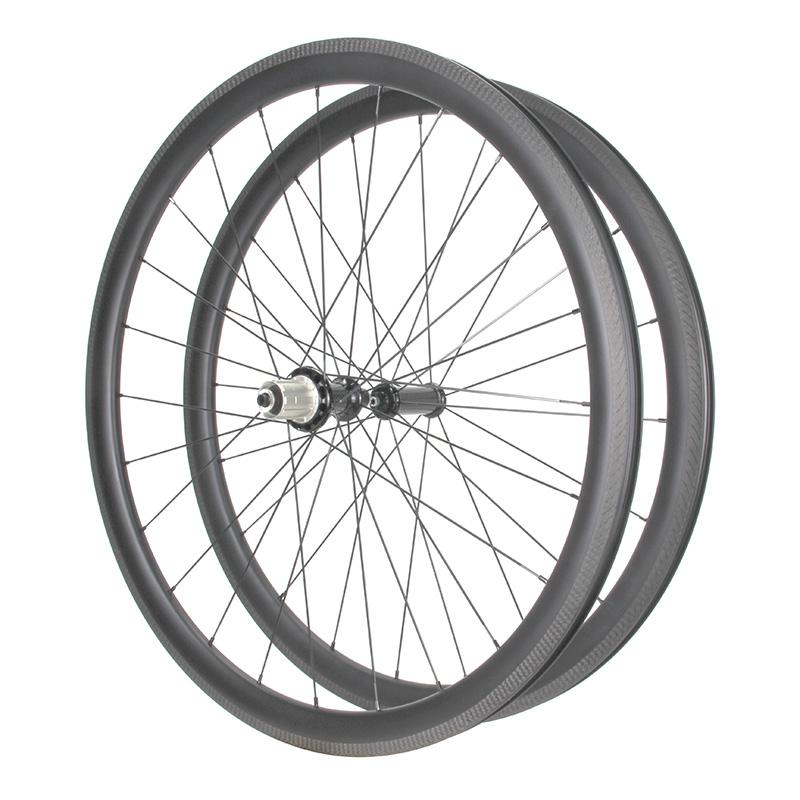

ProX Rim Brake Wheelset 700C Powerway Carbon Road Wheels

• 25mm and 28mm width carbon rims optional

• Carbon shell Powerway R36 road rim-brake hubs

• Shimano/Sram 11-12 speed freehub available

• Pillar 1423 spokes, aero and strong

• Compatible for 700*25C-45C tire (tubeless ready)

  • Item NO.:

    R36 Clincher Wheels
  • Payment:

    Paypal, Bank Transfer, West Union
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

Powerway R36 Rim Brake Road Wheels - Good Quality Carbon Wheelset For Training

Considering the cost of DT Swiss hubs increases quickly, and lead time is getting longer and longer, ProX has introduced Powerway hubs into our product line (model R36)

Powerway R36 rim brake hubs are made in Taiwan, with nice 3K carbon shell, with stable quality and great performance.

If you like Taiwan made Powerway hubs, and the 3K carbon shell, R36 is good option for you.


ProX provides two width option for our R36 rim-brake carbon wheels. That is, 28mm width carbon clincher rims, and 25mm width carbon rims clincher.

Both series rims are with high TG 3K grooved braking track, which provides more friction, shorten about 30% braking distance, faster heat elimination.

The 28mm width rim series (model PRV28) is with 28mm outer (21mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*28C. If you plan to use 28C (or wider) tire, PRV28 rim series is recommended.

The 25mm width rim series (model PRV25) is with 25mm outer (18mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*25C. If you plan to use 25C tire, PRV25 rim series is recommended.

SPECIFICATION

Powerway R36 Rim Brake Carbon Road Wheelset Specification:
-Hub:Powerway R36 road (front 5*100mm QR/rear 5*130mm QR)
-Brake type: rim brake/non-disc
-Cassette Body: Shimano 11/12s or Sram 12s XDR optional
-Type: straight pull
-Spoke Hole Count: front 20H/rear 24H
-Tire Type:Clincher/tubeless ready
-Spoke: Pillar 1423
-Spoke Tension(recommended): ≤130kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


Powerway R36 Rim-brake Carbon Clincher Wheels Built With 28mm Width Rims

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
R36-PRV28-33C-1423 PRV28-33C 33mm 28mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*28C-45C 1526g
R36-PRV28-38C-1423 PRV28-38C 38mm 28mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*28C-45C 1546g
R36-PRV28-44C-1423 PRV28-44C 44mm 28mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*28C-45C 1566g
R36-PRV28-50C-1423 PRV28-50C 50mm 28mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*28C-45C 1626g
R36-PRV28-55C-1423 PRV28-55C 55mm 28mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*28C-45C 1666g

700C Rim-brake Carbon Clincher Rims 28mm Width

Rims PRV28-33C PRV28-38C PRV28-44C PRV28-50C PRV28-55C
Max Weight Limit 105kg/230lb 105kg/230lb 110kg/240lb 110kg/240lb 110kg/240lb
Material T700 T700 T700 T700 T700
Sectional Drawing


Powerway R36 Rim-brake Carbon Clincher Wheels Built With 25mm Width Rims

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
R36-PRV25-38C-1423 PRV25-38C 38mm 25mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-45C 1526g
R36-PRV25-45C-1423 PRV25-45C 45mm 25mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-45C 1566g
R36-PRV25-50C-1423 PRV25-50C 50mm 25mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-45C 1606g
R36-PRV25-60C-1423 PRV25-60C 60mm 25mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-45C 1726g
R36-PRV25-80C-1423 PRV25-80C 80mm 25mm Tubeless or Clincher Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-45C 1926g


700C Rim-brake Carbon Clincher Rims 25mm Width

Rims PRV25-38C PRV25-45C PRV25-50C PRV25-60C PRV25-80C
Max Weight Limit 110kg/240lb 110kg/240lb 115kg/250lb 120kg/265lb 120kg/265lb
Material T700 T700 T700 T700 T700
Sectional Drawing


TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight road carbon rims.

Wider Inner Width

Wider Inner Width

Wider 21mm inner width, optimized for increasingly popular 700x28C tires (also fit even wider tires).

Wider stance for tire, easy tire mounting and dismounting.

Better traction and cornering performance.

Aero U Shape

Aero U Shape

Wide U Shape carbon road rims are more aerodynamic than traditional V Shape road rims.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in carbon road bicycle wheelset thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Rim Brake

Rim Brake

Road carbon rims designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface.

Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition.

Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.

Hand Built

Hand Built

All our carbon bicycle wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

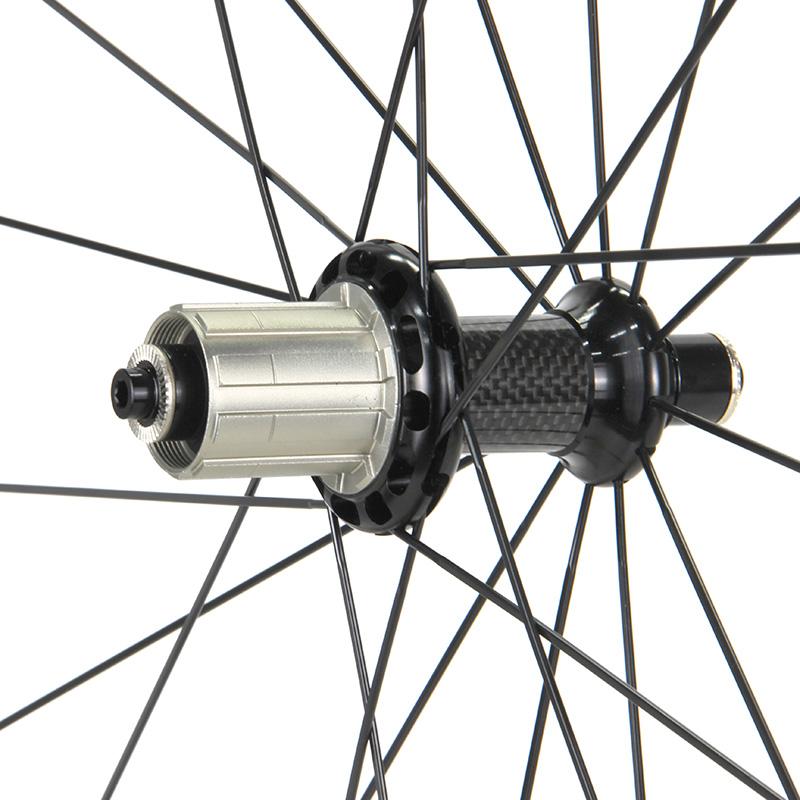

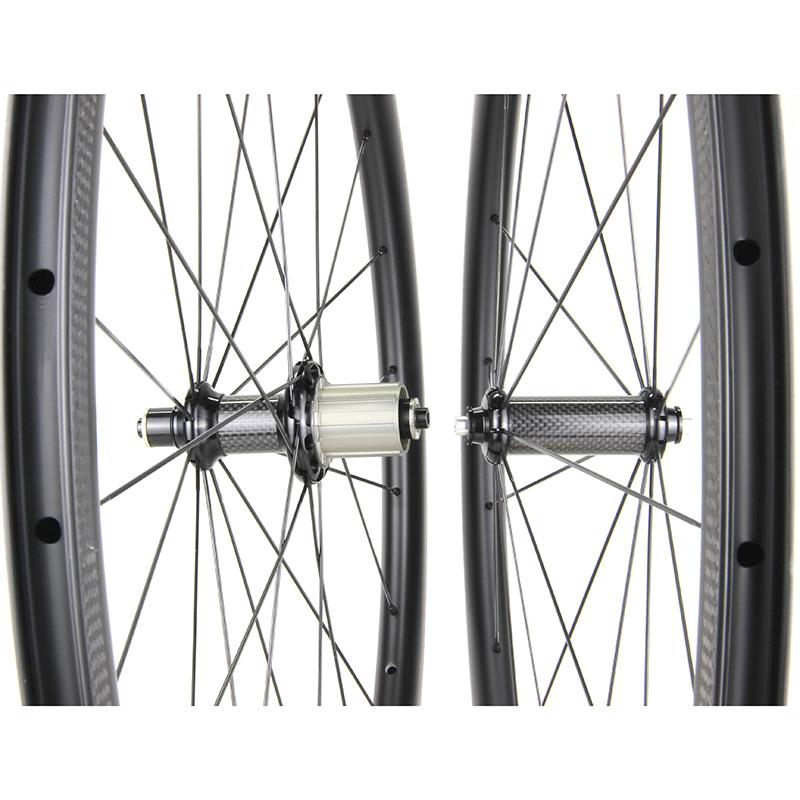

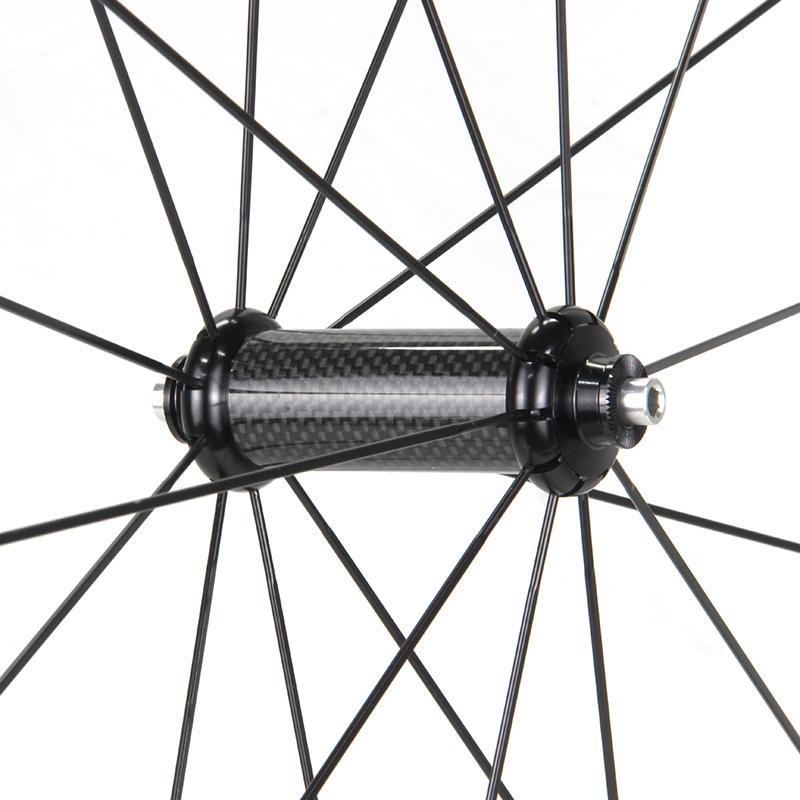

Powerway Road Hubs

Powerway Road Hubs

Powerway R36 road rim brake hubs are used. R36 hubs are with nice carbon shell.

Such rim brake hubs are with stable quality and competitive price.

Pillar Spokes

Pillar Spokes

The popular Pillar PSR AERO 1423 spokes are used.

Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.

Perfect aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
