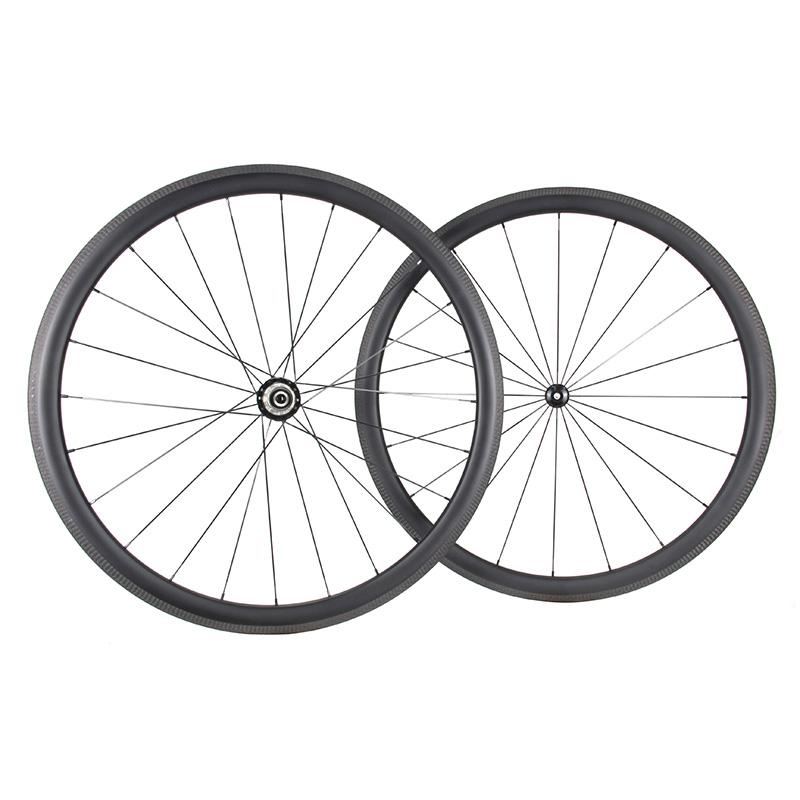

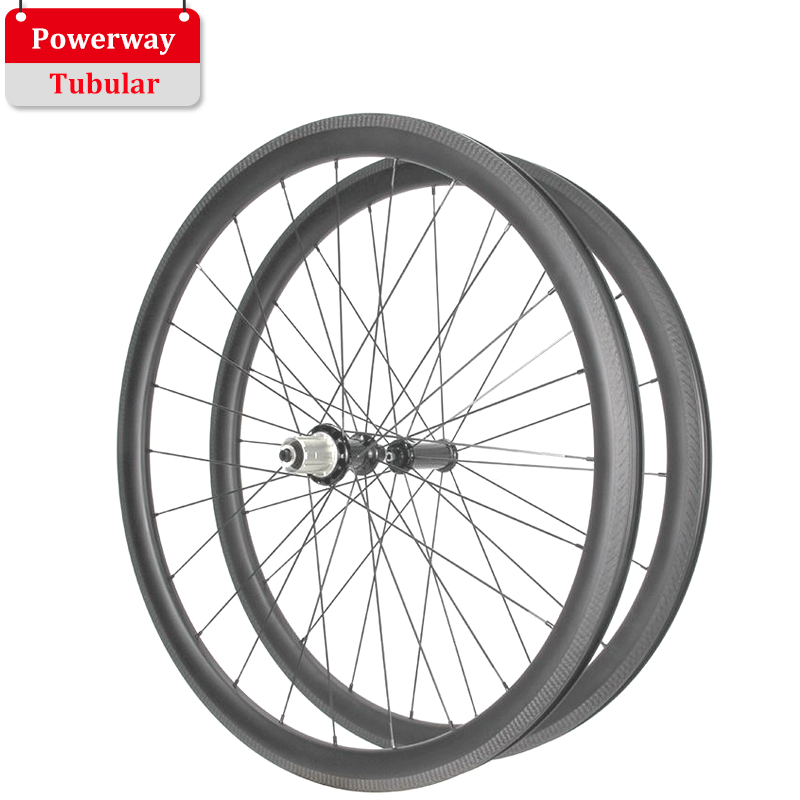

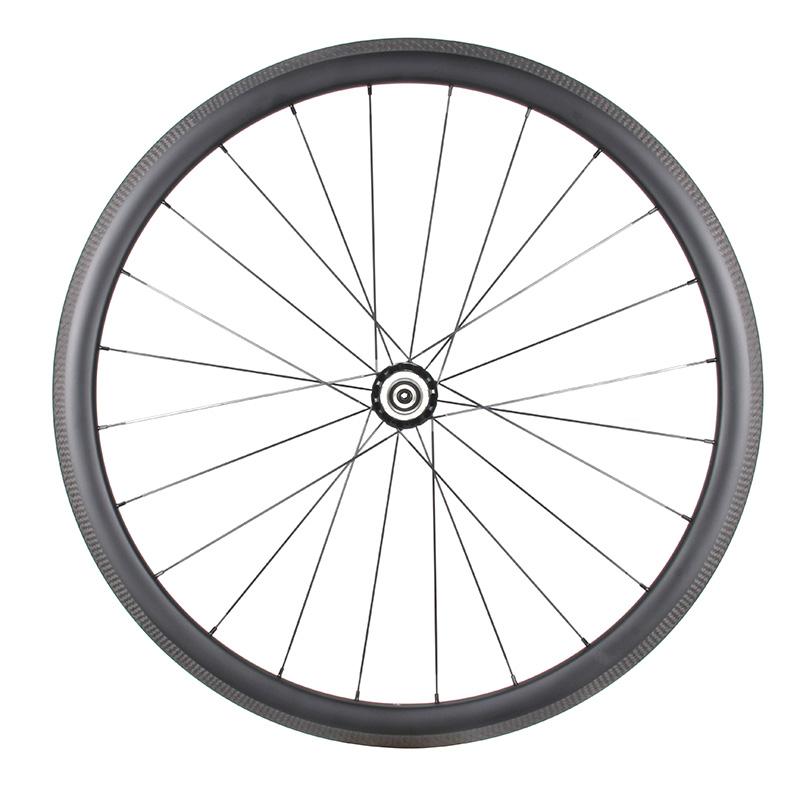

ProX Rim Brake Wheelset 700C Powerway Tubular Carbon Wheels

• 25mm and 28mm width tubular rims optional

• Carbon shell Powerway R36 road rim-brake hubs

• Shimano/Sram 11-12 speed freehub available

• Pillar 1423 spokes, aero and strong

• Compatible for 700*23C-35C tubular tire

  • Item NO.:

    R36 Tubular Wheels
  • Payment:

    Paypal, Bank Transfer, West Union
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

Powerway R36 Rim Brake Tubular Wheels - Good Quality Tubular Carbon Wheelset For Training

Considering the cost of DT Swiss hubs increases quickly, and lead time is getting longer and longer, ProX has introduced Powerway hubs into our product line (model R36)

Powerway R36 rim brake hubs are made in Taiwan, with nice 3K carbon shell, with stable quality and great performance.

If you like Taiwan made Powerway hubs, and the 3K carbon shell, R36 is good option for you.

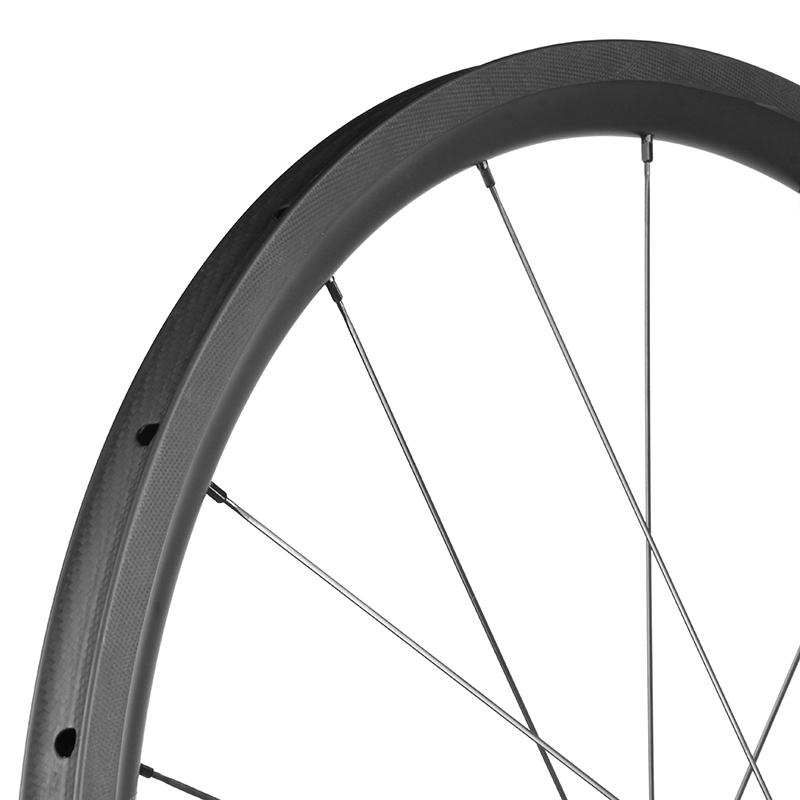

ProX provides two width option for our R36 rim brake carbon tubular wheels. That is, 28mm width carbon tubular rims, and 25mm width carbon rims tubular.

Both our 28mm and 25mm rim brake tubular carbon rims are made of Toray T700+T800 carbon fiber, with SL (super light) weight.

The 28mm width rim brake series (model PRV28-T) is compatible for 700*25C-35C tubular tire, with height 22/33/38/44/50/55mm optional.

The 25mm width rim brake series (model PRV25-T) is compatible for 700*23C-33C tubular tire, with height 38/45/50/60/80mm optional.

With so many options available, you can always choose the one with width and height you prefer.

SPECIFICATION

Powerway R36 Rim-brake Tubular Carbon Road Wheelset Specification:
-Hub:Powerway R36 road (front 5*100mm QR/rear 5*130mm QR)
-Brake type: rim brake/non-disc
-Cassette Body: Shimano 11/12s or Sram 12s XDR optional
-Type: straight pull
-Spoke Hole Count: front 20H/rear 24H
-Tire Type:Tubular
-Spoke: Pillar 1423
-Spoke Tension(recommended): ≤130kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


Powerway Rim-brake Carbon Wheels Built With PRV28 Tubular Rims (28mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
R36-PRV28-33T-1423 PRV28-33T 33mm 28mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-35C 1306g
R36-PRV28-38T-1423 PRV28-38T 38mm 28mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-35C 1326g
R36-PRV28-44T-1423 PRV28-44T 44mm 28mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-35C 1346g
R36-PRV28-50T-1423 PRV28-50T 50mm 28mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-35C 1426g
R36-PRV28-55T-1423 PRV28-55T 55mm 28mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*25C-35C 1446g


700C Road Rim-brake Tubular Carbon Rims PRV28 (28mm width)

Rims PRV28-33T PRV28-38T PRV28-44T PRV28-50T PRV28-55T
Max Weight Limit 105kg/230lb 105kg/230lb 110kg/240lb 115kg/250lb 115kg/250lb
Material T700 T700 T700 T700 T700
Sectional Drawing


Powerway Rim-brake Carbon Wheels Built With PRV25 Tubular Rims (25mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
R36-PRV25-38T-1423 PRV25-38T 38mm 25mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*23C-33C 1306g
R36-PRV25-45T-1423 PRV25-45T 45mm 25mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*23C-33C 1346g
R36-PRV25-50T-1423 PRV25-50T 50mm 25mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*23C-33C 1386g
R36-PRV25-60T-1423 PRV25-60T 60mm 25mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*23C-33C 1546g
R36-PRV25-80T-1423 PRV25-80T 80mm 25mm Tubular Powerway R36 road 5*100mm QR 5*130mm QR Pillar 1423 700*23C-33C 1666g


700C Road Rim-brake Tubular Carbon Rims PRV25 (25mm width)

Rims PRV25-38T PRV25-45T PRV25-50T PRV25-60T PRV25-80T
Max Weight Limit 105kg/230lb 105kg/230lb 110kg/240lb 115kg/250lb 115kg/250lb
Material T700+T800 T700+T800 T700+T800 T700+T800 T700+T800
Sectional Drawing

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight road carbon rims.


Aero U Shape

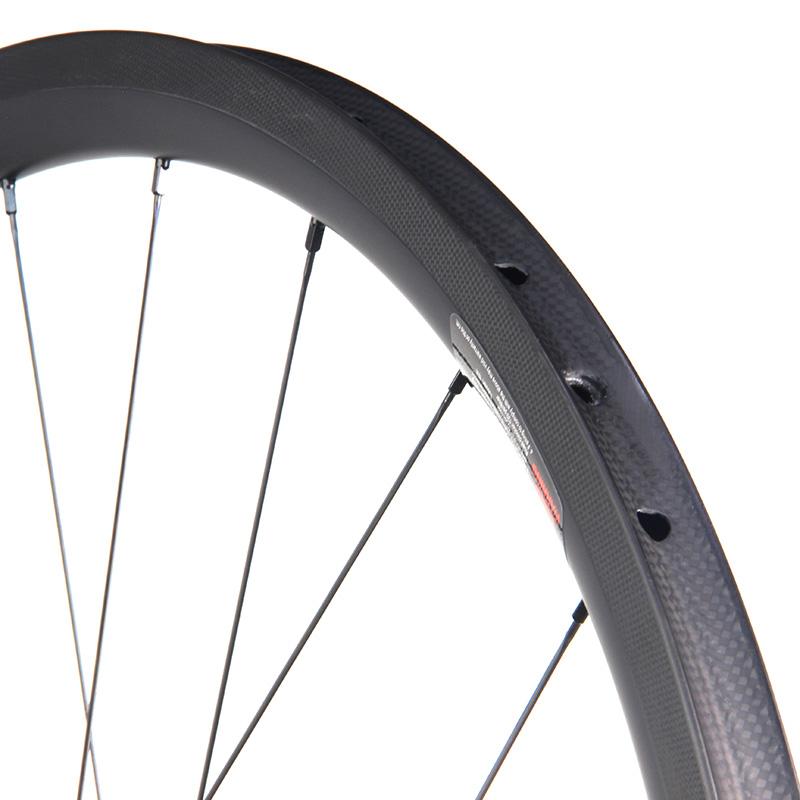

Wide U Shape tubular carbon road rims are more aerodynamic than traditional V Shape road rims.

It is also of better stiffness and strength.

Rim Brake

Rim Brake

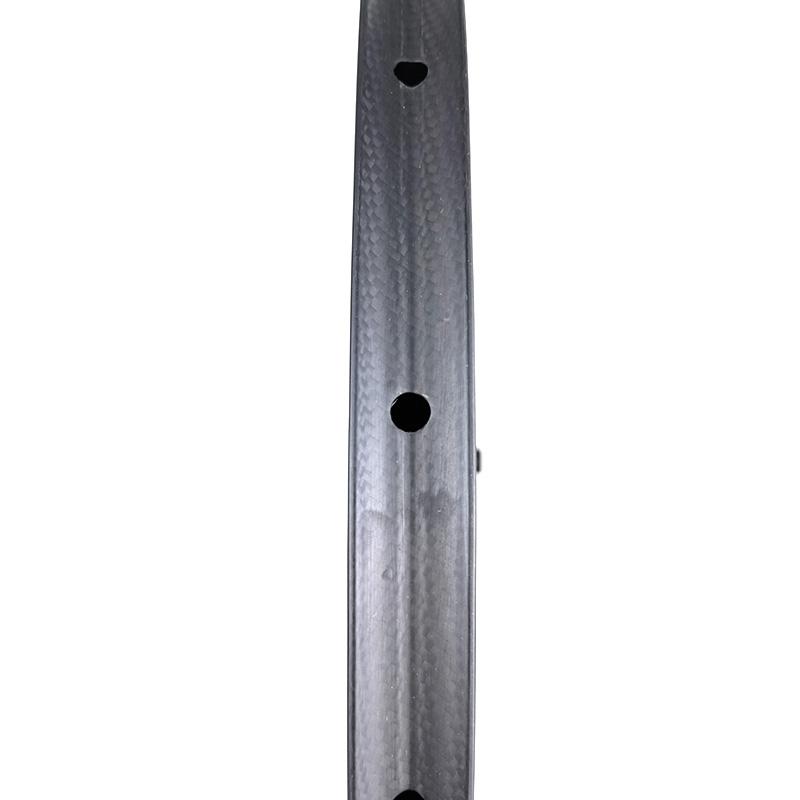

Road carbon rims designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface.

Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition.

Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.

Hand Built

Hand Built

All our carbon bicycle wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

Powerway Road Hubs

Powerway Road Hubs

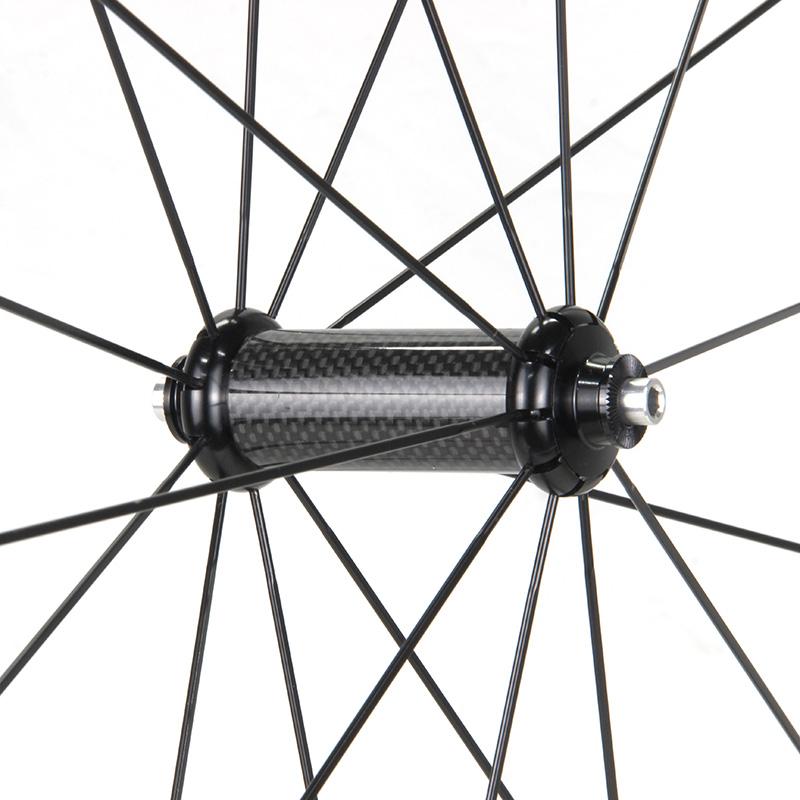

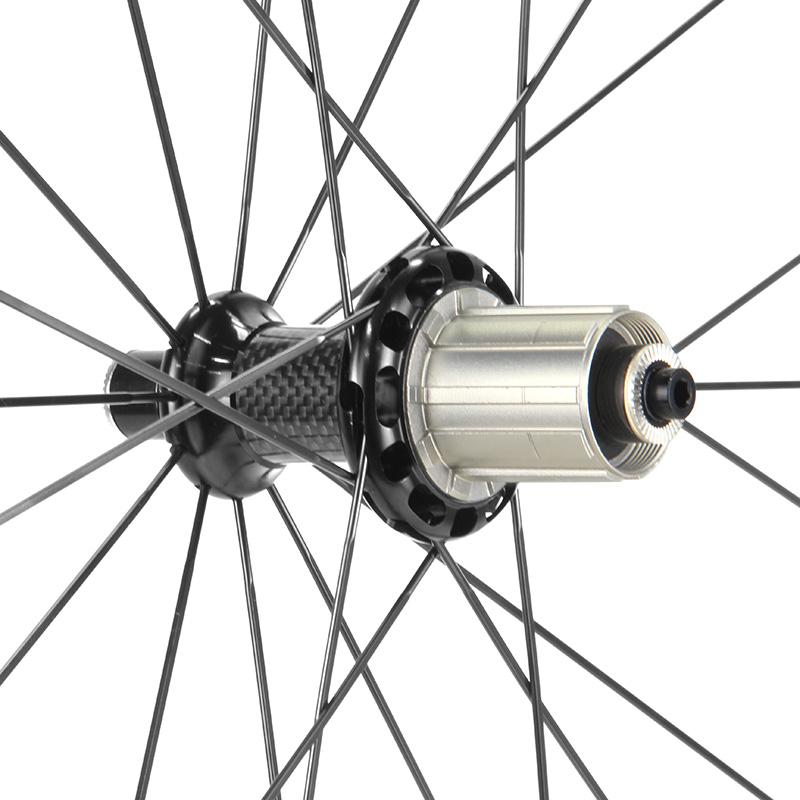

Powerway R36 road rim brake hubs are used. R36 hubs are with nice carbon shell.

Such rim brake hubs are with stable quality and competitive price.

Pillar Spokes

Pillar Spokes

The popular Pillar PSR AERO 1423 spokes are used.

Pillar patented cold forge technology is applied in the spoke production which increase the strength up to 20%.

Perfect aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
