ProX Full Disc Carbon Wheel 28mm Wide Aero Disc Rear Wheel For TT And Track Bikes

• High TG 3K grooved brake surface

28mm width disk carbon wheel

• Innovative asymmetric design

• PMI solid filled inside, better stiffness and strength

• ProX RT36/DT Swiss hubs optional

  • Item NO.:

    UFO28-DISC
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

In Time Trial, Triathlon and Track bikes, full disc wheel, 5-spoke and 3-spoke carbon wheels are widely used.

Compared to regular wheels, carbon spoke and full disc wheels are relatively heavier, but they are outstanding in aerodynamics and stiffness which are critical for TT/Road/Track bikes.

With PMI filled inside for this UFO disc wheel, it not only contributes impact resistance, but also stiffness to this disc wheel. In the meantime, it helps to reduce possible noise while riding as well compared to hollow disc wheel.

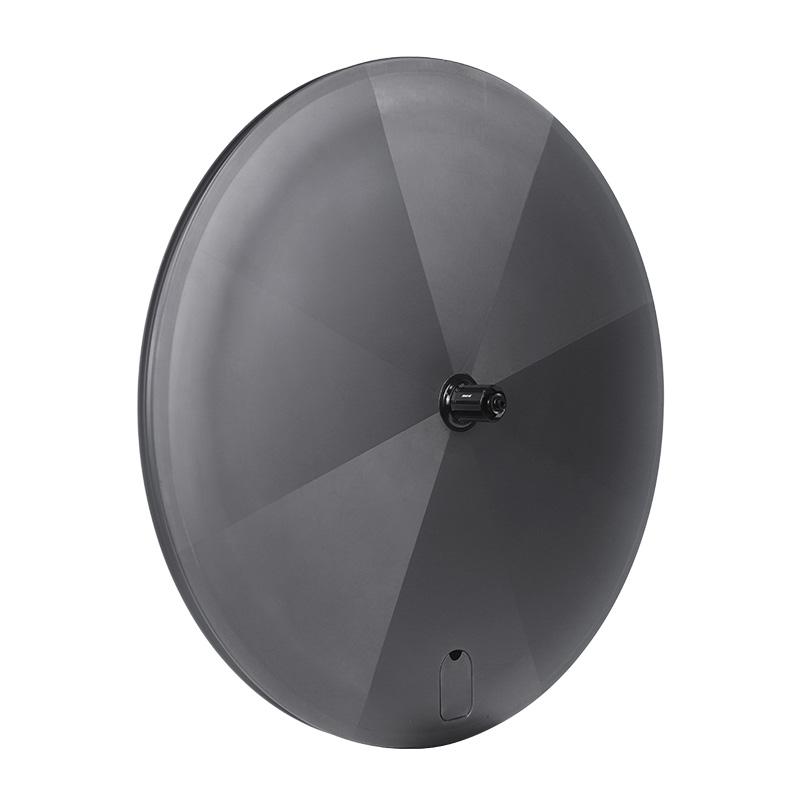

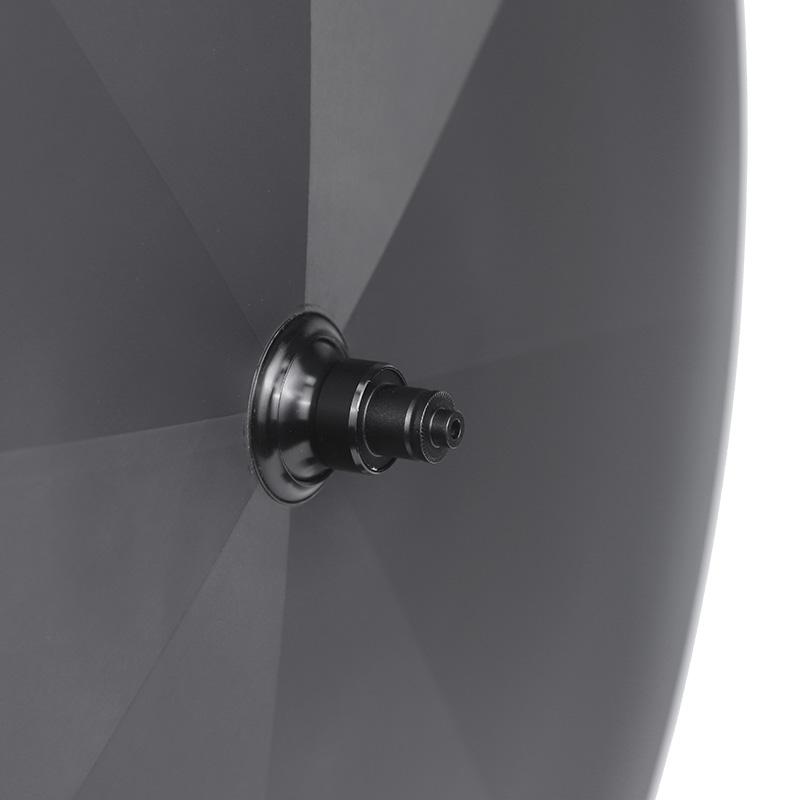

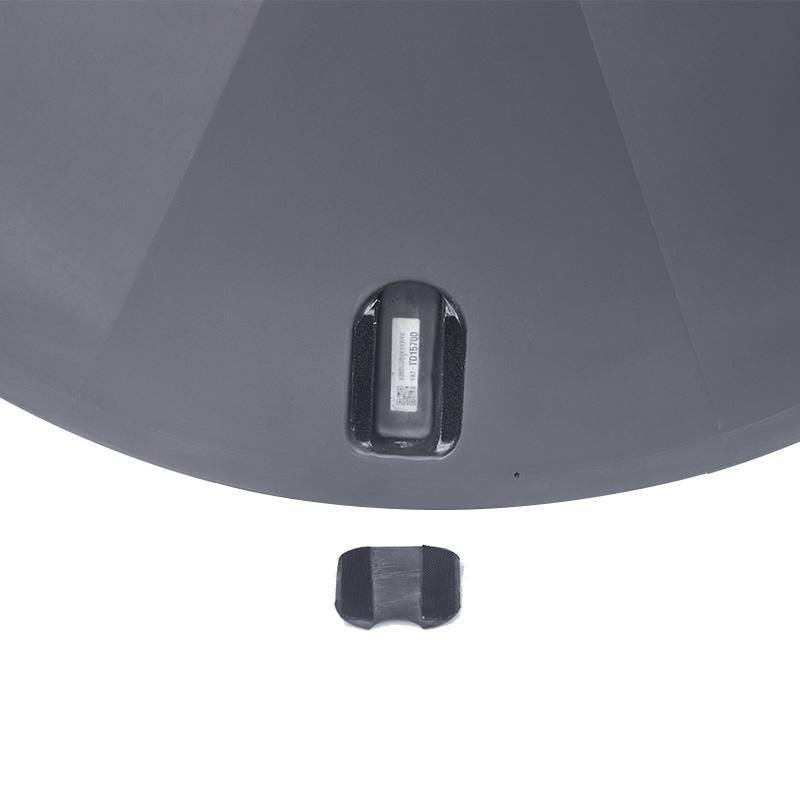

The valve hole is on the non-drive side and equipped with a carbon cover which is fixed by hook & loop tape inside. It keeps the valve clean and of better looking. The most important benefit is to reduce wind resistance and noise.
28mm outer width is an absolute and perfect choice to follow latest popular tendency in the carbon bike market. 22mm inner 28mm outer width, optimized aerodynamics for 700x28C tires.

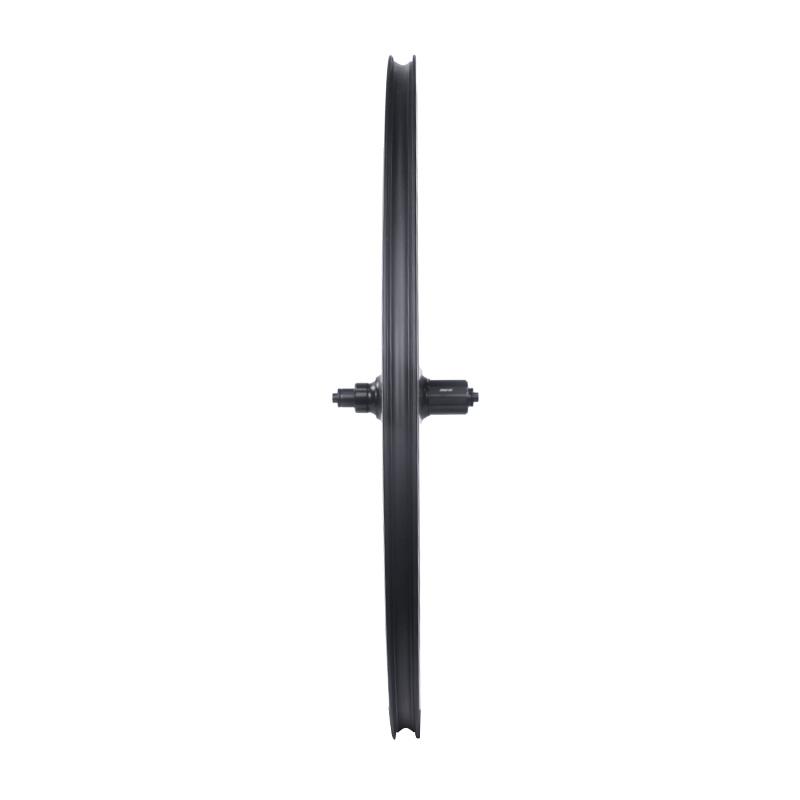

With innovative asymmetric design, slightly bulge wheel body on non-drive side and slightly sunken on drive side. This difference would not be greatly obvious from the wheel side view, but greatly helps to balance the whole bike after assembling and reach better aerodynamics while riding.

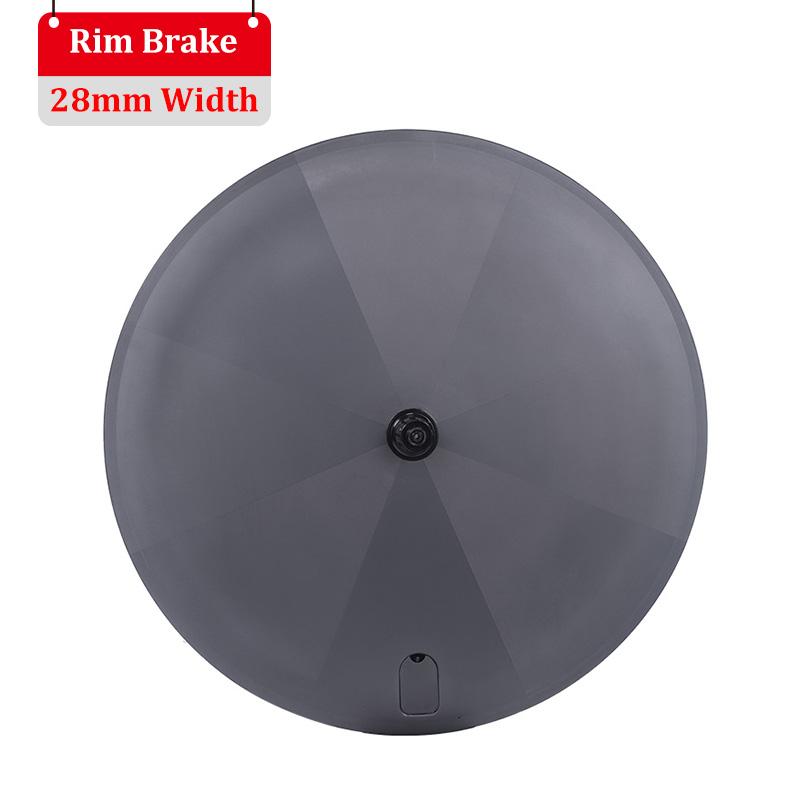

28mm width rim brake carbon full disc wheel

Full disk carbon wheel is equipped with high TG resin brake surface (with small grooves on the surface).
Such high TG 3K grooved brake surface is able to bear higher temperature while braking, and the heat can be eliminated sooner, which improves the service life of wheel.
- Small grooves provide more friction, less lever force is needed, and the braking distance can be shorten.
- Small grooves make water clearance easier, and improve the performance, especially in wet condition.
- Reduce noise and avoid squeal during braking.


Hub options:

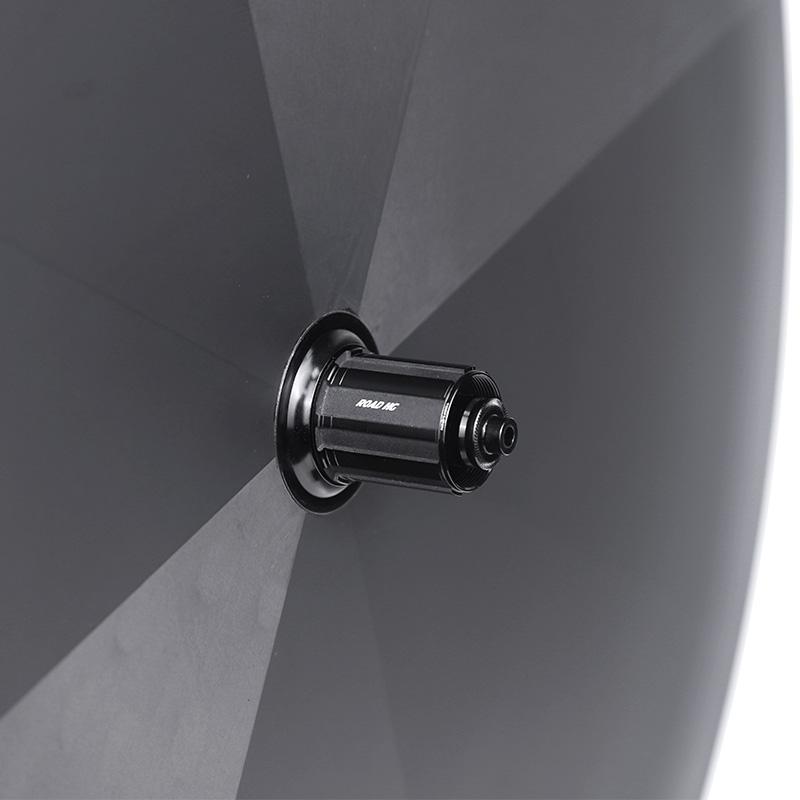

Stiff, versatile and aero full disk rear wheel for racing or on the streets. There are three hubs options for TT/Road bikes--ProX RT36, DT swiss 350s and DT swiss 240s hubs. All of them are designed with a very refined and reliable ratchet freehub system, which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. The ratchet freehub system is applied on high-end hub brand hubs generally.

All of them are rim brake(rear 5*130mm QR), Shimano 11/12s or SRAM 12s XDR freehub available.

- ProX RT36 hub: Good quality hub made by well selected hub manufacturer in Taiwan, using Enduro bearings and 36T ratchet system.
- DT Swiss 350 road hub: wrapped by carbon shell, 18T ratchet system

- DT Swiss 240 EXP road hub: wrapped by carbon shell, 36T ratchet system

- Powerway T01 hub (for track bike): Reliable quality hubs made by well-know Taiwan hub manufacturer.

ProX carbon full disk rear wheel is priced from US$520/pc.

SPECIFICATION

ProX 700C Aero 28mm Wide Full Carbon Disc Clincher Wheel For TT/Road/Track Bikes

-Rim Width: 28mm outer (22mm inner) width

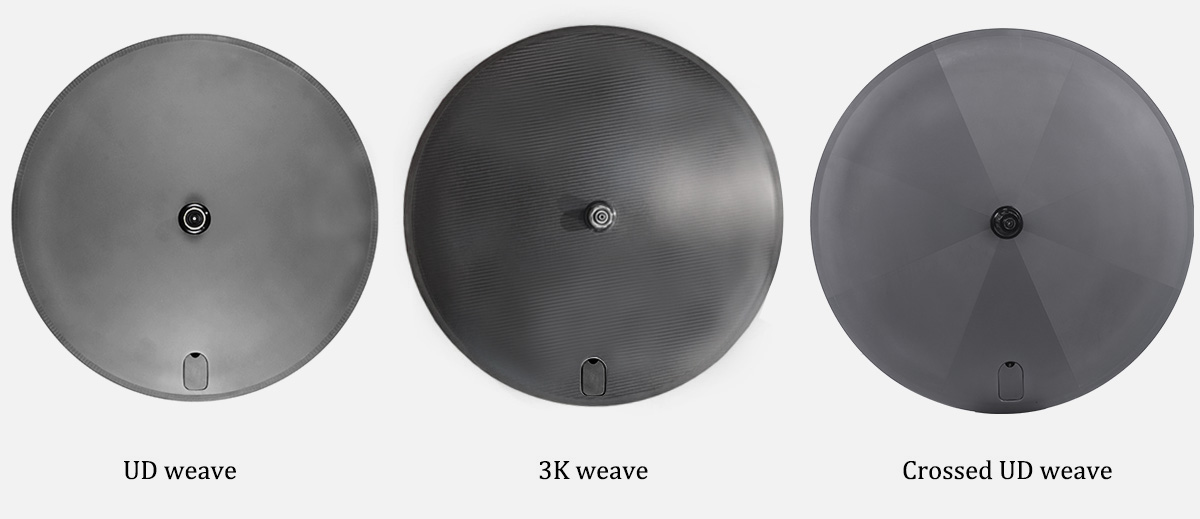

-Appearance: UD and 3K Twill optional
-Hub: ProX RT36, DT Swiss 350, DT Swiss 240 hubs optional for TT/Road bikes

         Powerway T01 hub for track bikes

-Brake Type: rim brake

-Size: 5*130mm QR
-Cassette Body: Shimano 11/12s or SRAM 12s XDR
-Tire Type: Clincher (tubeless ready)
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


Model Category Max Weight Limit Brake Type Tire Type Terrain  Front/Rear Hub Hub Size Weight(+/-40g)
UFO28-DISC-C-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Clincher Tri/Road Rear ProX RT36 5*130mm QR 1210g
UFO28-DISC-C-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Clincher Tri/Road Rear DT Swiss 350s 5*130mm QR 1240g
UFO28-DISC-C-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Clincher Tri/Road Rear DT Swiss 240s 5*130mm QR 1210g
UFO28-DISC-C-Track Full Disc Rear Wheel 120kg/265lb N/A Clincher Track Rear Powerway T01 10*120mm 1220g

28mm width full disc carbon wheel drawing
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our carbon full disc wheels.

Combining with stable resin system to make consistent quality and high strength full disc carbon wheels.

Tubeless

Tubeless Ready

Tubeless tire is getting popular in carbon TT/Track wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our carbon clincher disc wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Wider Inner Width

Relatively wider 22mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x28C are recommended (also fit other wider tires).

DT240 Road Hubs

DT Swiss Hubs

High end DT Swiss road hubs and cheap price OEM ProX TR36 optional for the full disc carbon wheel, light weight and reliable Ratchet 36 freehub system.

The hub spacings for rim brake is 5*130mm QR.

With Shimano 11/12 speed, Sram 12-speed XDR freehub optional.

2-Year Warranty

Rim Brake

Road carbon rims designed with high TG brake track for rim brake use. Unique looking small grooves on brake surface.

Small grooves provide more friction, shorten braking distance up to 30%. Faster water clearance, better performance in wet condition.

Small grooves also help to eliminate braking heat faster, better protect the rim in long descending.


2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page.
