ProX Butterfly Weave C68DB Super Light Full Carbon Spoke Disc Road Wheels

Butterfly weave carbon road wheels

Weight starts from 1177g/pair

• C68DB hubs with ceramic bearings, 36T Ratchet

• Full carbon spokes, super light, stiff and aero

• Tubeless ready, fit 700*28C-45C tire

  • Brand:

    PROX
  • Item NO.:

    C68DB Butterfly
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    Butterfly Weave(Customized Decal Acceptable)
DESCRIPTION

ProX C68DB Super Light Full Carbon Spoke Disc Brake Wheels - Unique Butterfly Weave

For the butterfly weave rim, the carbon fiber is overlapped which looks like a butterfly, also named braided/UD X weave/butterfly knot/butterfly effect. The butterfly pattern evenly over the spokes holes which makes a contribution to the strength of the rim wall thickness.
BRD28 series (ProX Butterfly Weave Road Disc 28mm width) carbon rims are made from premium Toray T800+T1000 carbon fiber, not only just overlay them, but involving appropriate proportion and elaborate lay-up etc., which is the basis for light weight. The cost of materials is also higher than the regular T700. The rim weight is around 10g less compared to our other UD weave rims.
Currently butterfly weave is limited to this rim series only. Both matte and glossy finish are available.

butterfly weave road carbon wheels

The C68DB hub is made by well-known Taiwan hub manufacturer and with the reliable quality as usual. It is with straight pull spoke system and 20 spoke holes for both front and rear wheel. The weight of hubs is only 265g/pair (XDR) which is light weight. Hubs are designed with DT swiss style Ratchet 36T freehub system which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy.

The unique full carbon spoke (only 2.9g/pc!) is customized which is 3.1mm wide aero bladed. Such carbon spokes (model CS1) is lighter but stronger than regular steel spokes. The carbon spokes look similar as regular spoke, except for the carbon fiber material and ultra light weight. The weight of our CS1 carbon spoke plus specific aluminum nipple is only 3.2g, which is about 1.8g lighter than well-known Sapim CX-Ray spoke with nipple. C68DB wheels is allowed to update to with wider carbon spokes(5.5mm width, model CS2) as shown. From wider carbon spoke, it gets more aerodynamic. The wheels weight with 5.5mm width carbon spokes is around 10g added compared wheels with 3.1mm spokes. More than anything, the carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes. The max spoke tension of the carbon spoke is 528kgf according to our in-lab test, which is much higher than regular steel spokes (typically under 400kgf). Carbon spoke can be made wider and stronger, so we reduce spoke count without losing wheels stiffness.

C68DB road bike hubs for carbon spoke wheels

BRD28 series carbon rims are with 28mm outer (21mm inner) width, with depth 33/38/45/50/55mm optional. No matter you need shallow carbon rims for climbing or deep carbon rims for flat road riding, there is always one for you.
ProX decal/logo is offered for free as showed in ProX decal page. The decal will be applied on the rim and do the matte or glossy finish according to customers' preference. You can choose either with such ProX decal or simply without decal. The rims can be made with your customized logo as well. So it will become your own brand wheels!

We offer Duty Free Shipping option to EU countries.

Please note: Due to the special wheel building tools needed for carbon spoke wheel building, as well as bigger nipple size (around 7mm diameter head, which is larger than Presta valve hole diameter 6.5mm), nipple can not be put into the rim through valve hole. It means No-External-Hole rim can not be built with carbon spokes (which comes with bigger nipple head). Thus, tubeless rim tape is a must if you intend to use tubeless tires. If you prefer No-External-Hole wheels, please choose our other carbon wheels (regular steel spokes).

tubeless compatible wheels, No External Hole and External Hole

SPECIFICATION

ProX Disc Brake C68DB Super Light Full Carbon Spoke Road Wheels Specification:
-Hub: ProX C68DB disc hubs (front 12*100mm TA/rear 12*142mm TA), with ceramic bearings. Ratchet 36T freehub system

-Rim Weave: butterfly weave

-Rim Finish options: matte or glossy

-Disc brake type: center lock

-Logo: no logo on hubs and wheels by default
-Cassette Body: Shimano HG 11/12s or SRAM XDR 12s
-Type: straight pull
-Spoke Hole Count: 20 spoke holes on both front and rear
-Tire Type: Clincher/Tubeless compatible
-Spoke options: 3.1mm(by default, ProX CS1) or 5.5mm width(ProX CS2), both aero carbon spokes

-Nipple: Aluminum(9mm length)
-Spoke Tension(recommended): ≤170kgf

font drive side/rear non-drive side110kgf~120kgf

font non-drive side/rear drive side: 150kgf~160kgf

-Tire Pressure: 125psi/8.6bar

-Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.

-Warranty Year: 2 years


ProX C68DB Disc Brake Carbon Spoke Road Wheelset Built With ProX CS1 (3.1mm Width) Carbon Spokes (default)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Carbon Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
C68DB-BRD28-33C-CS1 BRD28-33C 33mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1177g
C68DB-BRD28-38C-CS1 BRD28-38C 38mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1207g
C68DB-BRD28-45C-CS1 BRD28-45C 45mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1247g
C68DB-BRD28-50C-CS1
BRD28-50C
50mm
28mm
Tubeless or Clincher
ProX C68DB Disc
12*100mm
12*142mm
ProX CS1
700*28C-45C
1287g
C68DB-BRD28-55C-CS1 BRD28-55C 55mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1297g


ProX C68DB Disc Brake Carbon Spoke Road Wheelset Built With ProX CS2 (5.5mm Width) Carbon Spokes (optional, with upcharge)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Carbon Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
C68DB-BRD28-33C-CS2 BRD28-33C 33mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS2 700*28C-45C 1187g
C68DB-BRD28-38C-CS2 BRD28-38C 38mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS2 700*28C-45C 1217g
C68DB-BRD28-45C-CS2 BRD28-45C 45mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS2 700*28C-45C 1257g
C68DB-BRD28-50C-CS2
BRD28-50C
50mm
28mm
Tubeless or Clincher
ProX C68DB Disc
12*100mm
12*142mm
ProX CS2
700*28C-45C
1297g
C68DB-BRD28-55C-CS2 BRD28-55C 55mm 28mm Tubeless or Clincher ProX C68DB Disc 12*100mm 12*142mm ProX CS2 700*28C-45C 1307g


700C Butterfly Weave Disc Brake Road Carbon Rims

Rims BRD28-33C BRD28-38C BRD28-45C BRD28-50C
BRD28-55C
Max Weight Limit 100kg/220lb 100kg/220lb 105kg/230lb 110kg/242lb
110kg/242lb
Material T800+T1000 T800+T1000 T800+T1000 T800+T1000
T800+T1000
Sectional Drawing Butterfly Weave rim 33mm depth Butterfly Weave rim 38mm depth Butterfly Weave rim 45mm depth Butterfly Weave rim 50mm depth
Butterfly Weave rim 55mm depth

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T800 + T1000 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight butterfly weave road carbon rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T800 and T1000 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Narrow Inner Width

Wide Inner Width

Relatively wide 21mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x28C are recommended (also fit other wider tires).

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Road Disc Brake

Road disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our bicycle carbon wheels are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

ProX Road Hubs

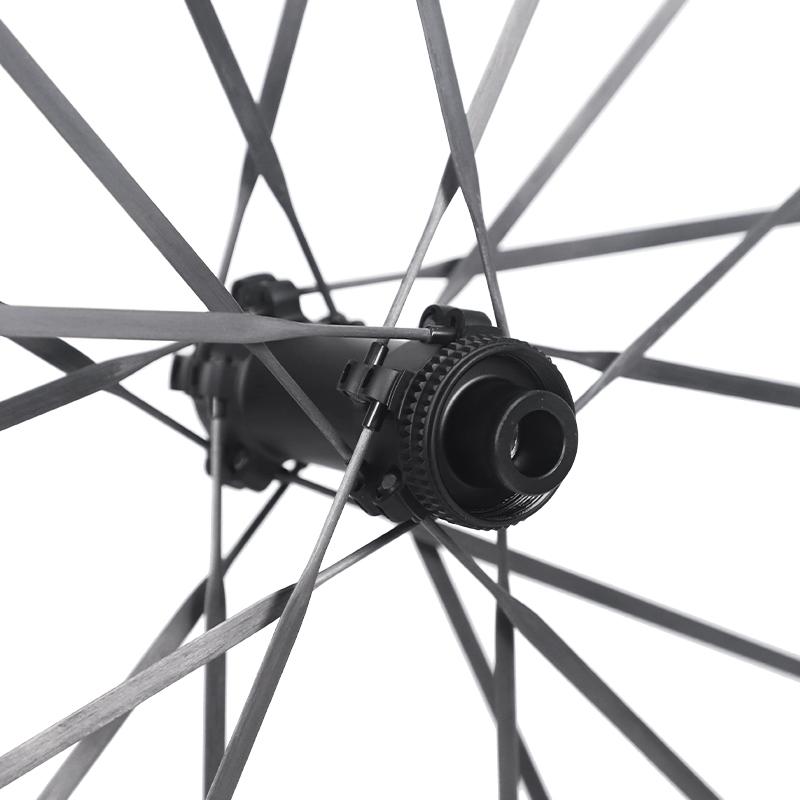

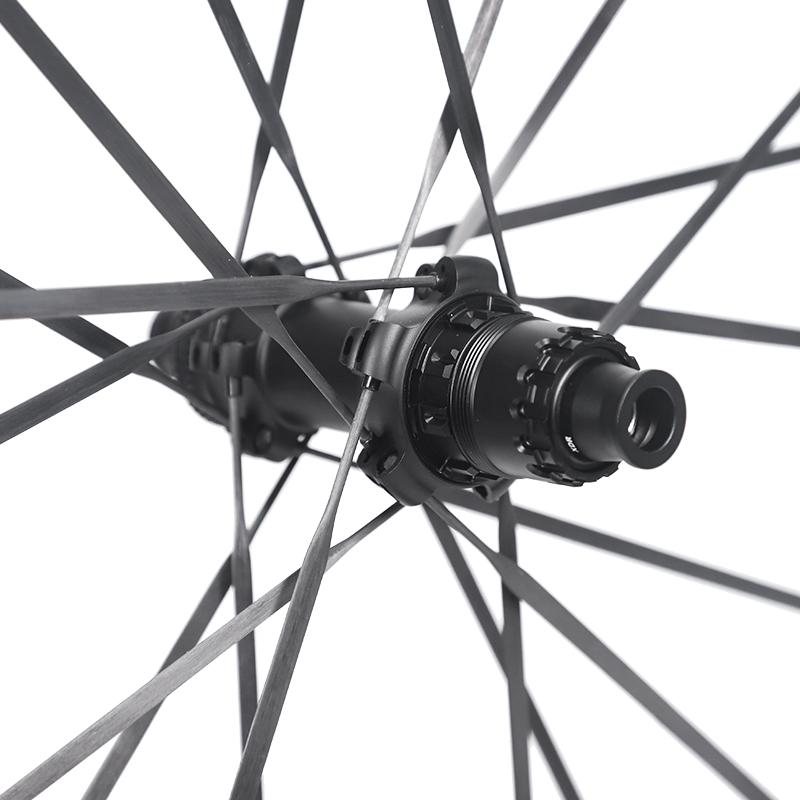

ProX C68DB Disc Hubs

ProX own mould C68DB road hubs are used. Reliable quality hubs with cheap price.

C68DB road disc brake hubs are designed with ratchet freehub system with ceramic bearings.

Such hubs can also be etched with your customized logo.

12*100/12*142 thru-axle, with Shimano 11/12-speed or SRAM XDR 12s cassette body.

carbon spokes

ProX CS1 Carbon Spokes

The customized ProX CS1 carbon spokes are used.

The carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes.

Perfect bladed aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.

VIDEO



(wheels video including hub sounds level while rotating)
