ProX Super Light Carbon Spoke Wheels C67DB Undulating Rim Depth Road Wheelset

Weight starts from 1188g/pair

• Full carbon spoke wheelset, from USD499/pair

• C67DB hubs with ceramic bearings, 36T Ratchet freehub system

• Full carbon fiber spokes, super light and aero

• 26mm and 28mm width carbon rims optional

• Tubeless reardy, fit 700*25C-45C tire

  • Brand:

    PROX
  • Item NO.:

    C67DB Undulating
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

ProX C67DB Disc Brake Carbon Road Undulating Wheels - Super Light Carbon Spoke Road Wheels

Since launching our C66DB an 61DB wheels with Carbon Spoke, we've received lots of inquires about them. Now we add the new C67DB hub to enrich this series and provide more options to meet the growing demand. The carbon spokes used on these different series of full carbon spoke wheelset are the same, and they are just different in hubs.

Lightweight carbon spoke wheels with undulating rims

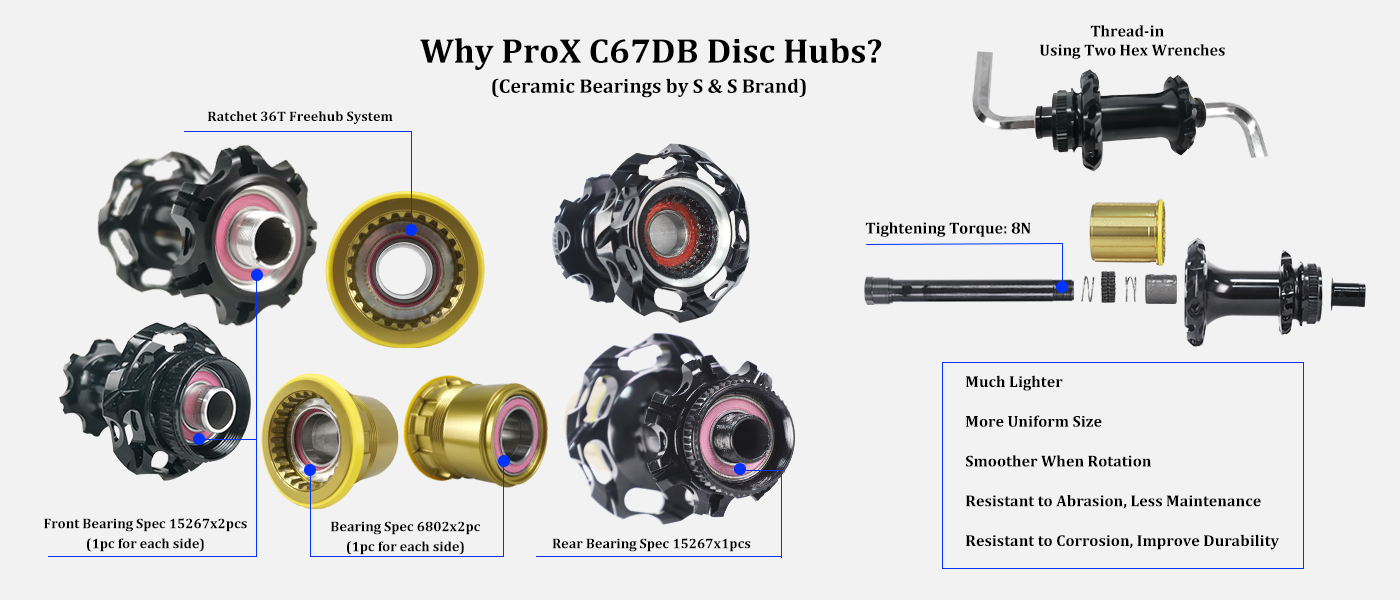

The C67DB hub is made by well-known Taiwan hub manufacturer and with the reliable quality as usual. It is with straight pull spoke system and 2:1 spoke ratio (14:7) for both front and rear wheel. 2:1 spoke ratio provides better strength balance between non-drive side and drive side. Hubs are with high flanges for better lateral stiffness and handling performance. The weight of hub is only 333g/pair which is light weight. Hubs are designed with DT swiss style Ratchet 36T freehub system which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy.

The unique full carbon spoke (only 2.9g/pc!) is customized which is 3.1mm wide aero bladed. Such carbon spokes (model CS1) is lighter but stronger than regular steel spokes. The carbon spokes look similar as regular spoke, except for the carbon fiber material and ultra light weight. The weight of our CS1 carbon spoke plus specific aluminum nipple is only 3.2g, which is about 1.8g lighter than well-known Sapim CX-Ray spoke with nipple. More than anything, the carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes. The max spoke tension of the carbon spoke is 528kgf according to our in-lab test, which is much higher than regular steel spokes (typically under 400kgf).

The hubs are designed with thread on end caps, which makes the connection between hub body and end caps much more stable.
Please use two hex wrenches(M12) when screwing/unscrewing the caps from hub (the picture of tool is also showed below).

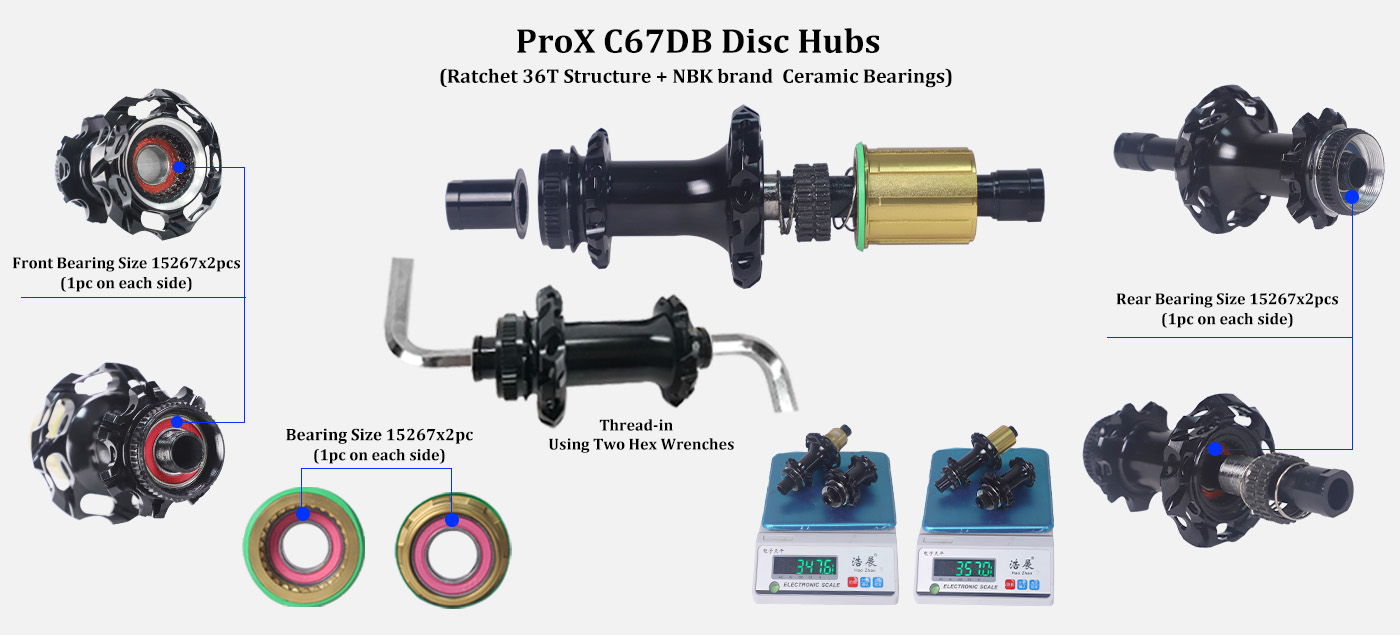

ProX C67DB road bike hubs with ceramic bearings

For 26mm wide Undulating Road Disc series rim, it is in two depth option of 45/50mm and 53/58mm. For 28mm wide rim, the varied rim depth option is 30/35mm, 45/50mm and 60/65mm .This design is for better aero performance and crosswind stability. It allow the riders to handle the bike better especially in the wind. The rim has a hook bead design and is tubeless compatible. Tubeless tires can make a good performance at lower tire pressure for reduced rolling resistance and contribute to all out speed.
Standard weight version (without "SL") carbon rim is made from Toray T700 carbon fiber which is the basis to make high strength bike carbon rims. The max rider weight limit is 120kg/265lb.
Super light weight version (with "SL") carbon rim is made from premium Toray T800 carbon fiber to achieve super light weight, which is more suitable for lighter weight riders (max weight limit 100kg/220lb).
Such new undulating rim depth carbon rims help to minimize wind drag and improve stability in crosswinds obviously. It will bring you a faster and more confident riding experience.
ProX decal/logo is offered for free as showed in ProX decal page. The decal will be applied on the rim and do the matte or glossy finish according to customers' preference. You can choose either with such gold ProX decal or simply without decal (UD black matte or UD black glossy finish).

In addition, there are two finish options for C67DB hubs-matte and glossy, which can be made with your customized logo (either etch logo or make stickers). So it will become your own brand hubs!

SPECIFICATION

ProX Disc Brake C67DB Undulating Full Carbon Spoke Road Wheels Specification:
-Hub: ProX C67DB disc hubs (front 12*100mm TA/rear 12*142mm TA), with ceramic bearings. Ratchet 36T freehub system

-Finish of Hub: glossy

-Decal/Logo: with or without on the rims and hubs

-Rim Weave options: UD, 3K, 12K, Marble

-Rim Finish options: matte, glossy or paintless

-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or SRAM XDR 12s
-Type: straight pull
-Spoke Hole Count: 21 spoke holes(14:7 ratio) on both front and rear
-Tire Type:Clincher/Tubeless compatible
-Spoke: Aero carbon spokes (ProX CS1)

-Nipple: Aluminum(9mm length)
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


ProX Disc Brake C67DB Full Carbon Spoke Road Wheels Built with Undulating Road Rims (26mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Carbon Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
C67DB-URD26-450SL-CS1 URD26-450-SL 45-50mm 25.5mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*25C-40C 1299g
C67DB-URD26-450-CS1 URD26-450 45-50mm 25.5mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*25C-40C 1359g
C67DB-URD26-580SL-CS1 URD26-580-SL 53-58mm 25.5mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*25C-40C 1359g
C67DB-URD26-580-CS1 URD26-580 53-58mm 25.5mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*25C-40C 1459g


700C Undulating Road Disc Brake Carbon Clincher Rims (26mm width)

Rims URD26-450-SL URD26-450 URD26-580-SL URD26-580
Max Weight Limit 100kg/220lb 120kg/265lb 100kg/220lb 120kg/265lb
Material T800 T700 T800 T700
Sectional Drawing 26mm width carbon undulating rims drawing

ProX Disc Brake C67DB Carbon Spoke Road Wheels Built with Undulating Rims (28mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Carbon Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
C67DB-URD28-305SL-CS1* URD28-305-SL 30-35mm 28mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1179g
C67DB-URD28-305-CS1 URD28-305 30-35mm 28mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1259g
C67DB-URD28-450SL-CS1 URD28-450-SL 45-50mm 28mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1319g
C67DB-URD28-450-CS1 URD28-450 45-50mm 28mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1379g
C67DB-URD28-605SL-CS1 URD28-605-SL 60-65mm 28mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1459g
C67DB-URD28-605-CS1 URD28-605 60-65mm 28mm Tubeless or Clincher ProX C67DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1559g

UCI approved wheelsC67DB-URD28-305SL-CS1* wheels is UCI approved. If you are interested in more details, please click the link or contact us for more details.


700C Undulating Road Disc Brake Carbon Clincher Rims (28mm width)

Rims URD28-305-SL URD28-305 URD28-450-SL URD28-450 URD28-605-SL URD28-605
Max Weight Limit 100kg/220lb 120kg/265lb 100kg/220lb 120kg/265lb 100kg/220lb 120kg/265lb
Material T800 T700 T800 T700 T800 T700
Sectional Drawing 28mm width carbon undulating rims drawing

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight undulating carbon road rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Narrow Inner Width

Wide Inner Width

Relatively wide 19mm/21mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

Undulating Rim Depth

Undulating Rim Depth

The mid-depth profile waves up and down 5mm for better aero performance and crosswind stability.

Such design help to improve bike handling, bring you a faster and more confident riding experience.

In addition, the stiffess and strength are also improved.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Road Disc Brake

Road disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our bicycle carbon wheels are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

ProX Road Hubs

ProX C67DB Disc Hubs

ProX own mould C67DB road hubs are used. High quality hubs with cheap price.

C67DB road disc brake hubs are designed with ratchet freehub system with ceramic bearings.

Such hubs can also be etched with your customized logo.

12*100/12*142 thru-axle, with Shimano 11/12-speed or SRAM XDR 12s cassette body.

carbon spokes

ProX CS1 Carbon Spokes

The customized ProX CS1 carbon spokes are used.

The carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes.

Perfect bladed aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
