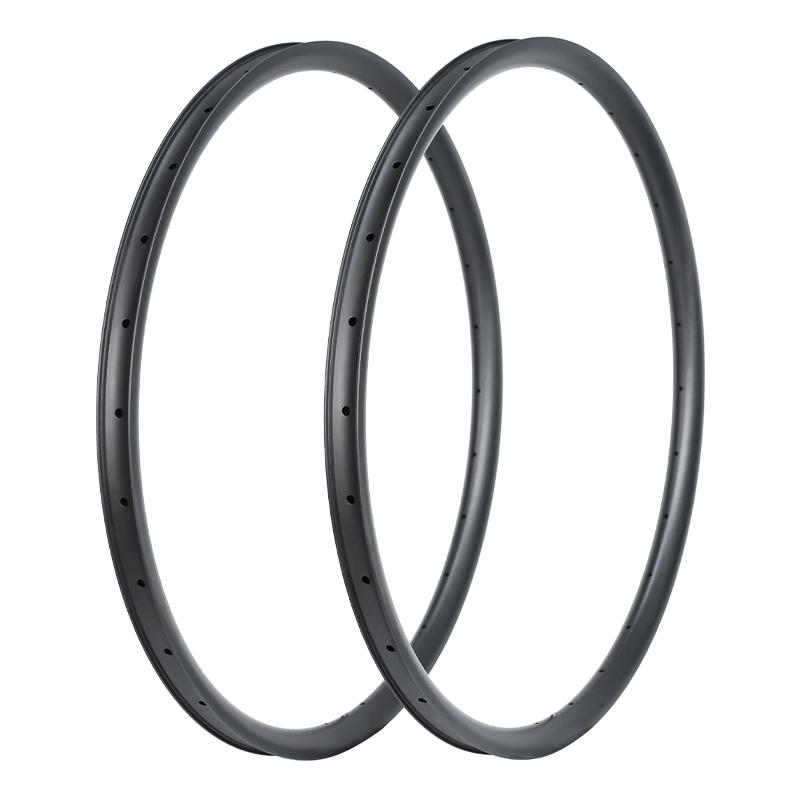

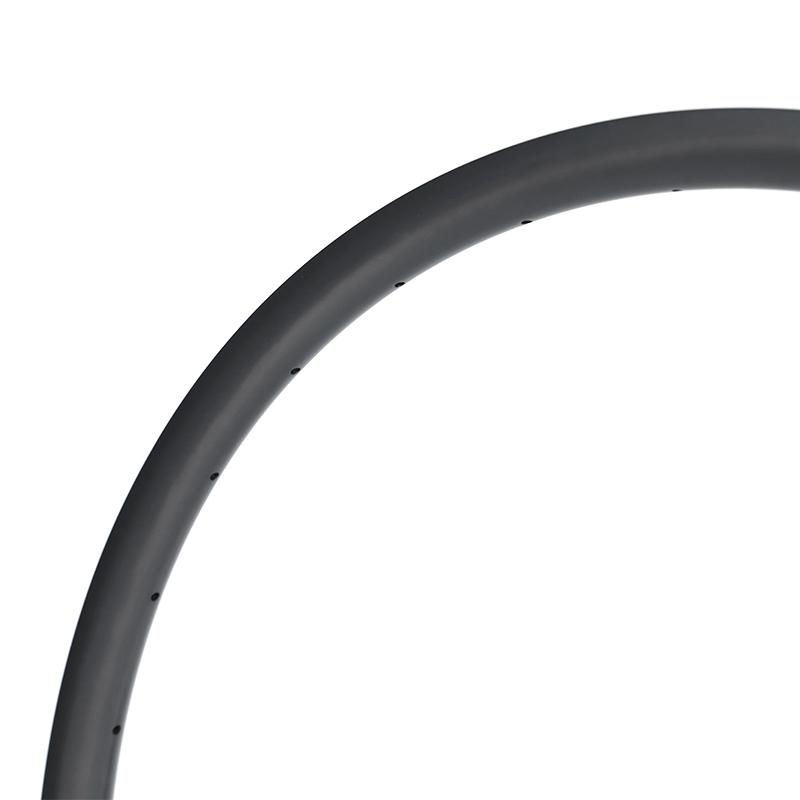

• 32inch Symmetric design mtb carbon rims
• Hook and hookless optional
• Tubeless ready carbon MTB rims
• Light weight T700+T800+Graphene material
• High quality, 2-year warranty
Brand:
PROXItem NO.:
PXM32Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
UD/3K/12K(Customized Decal Acceptable):
PRD32 carbon rims are made from premium Toray T700+T800+Graphene pre-preg to achieve super light weight, which is more suitable for lighter weight XC/AM riders (max weight limit 100kg/220lb).
In addition, we optimize rim lay-up design, eliminate excessive materials to save weight, and add extra materials around spoke hole area for reinforcement. Thus, our MTB carbon rims are super strong, but still light weight.
For riders who plan to use tubeless tire at lower tire pressure (not exceed 50psi), hookless is a good option.
For riders who prefer higher tire pressure (max 60psi), bead hook is recommended.

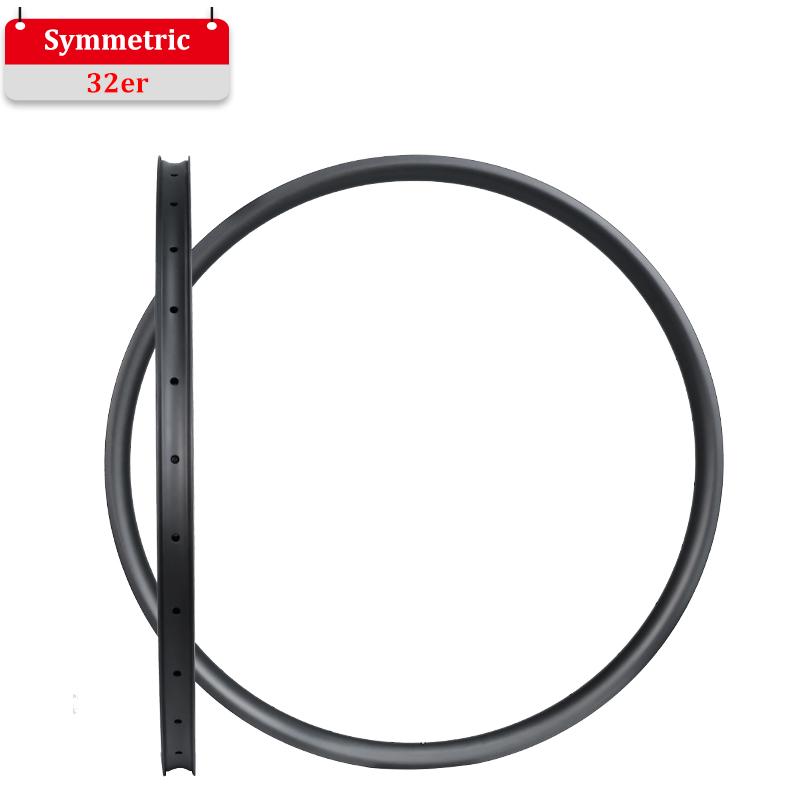

ProX Symmetric Design 32er MTB Carbon Rims
| Model | PXM32-36C | PXM32-36C |
| Terrain(Recommended) | Cross Country and All Mountain | Cross Country and All Mountain |
| Material | T700+T800 | T700+T800 |
| Weight(±15g) | 480g | 480g |
| Outer Width | 36mm | 36mm |
|
Inner Width |
30mm |
30mm |
|
Spoke Holes Angle |
Axial 8°, Radial 8° |
Axial 8°, Radial 8° |
| Rim Offset | 0mm | 0mm |
| ERD* | 647mm | 647mm |
| BSD | 686mm |
686mm |
| Tire Bead | Hook | Hookless |
| Tire Type | Tubeless or Clincher | Tubeless or Clincher |
| Max Weight Limit | 100kg/220lb | 100kg/220lb |
| Max Spoke Tension | 145kgf | 145kgf |
| Max Tire Pressure | 60psi/4.1bar | 60psi/4.1bar |
| Tire Size(Recommended) | 32*2.7''-3.8'' | 32*2.7''-3.8'' |

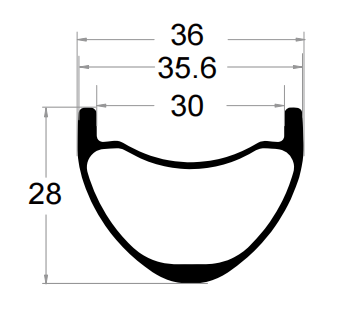

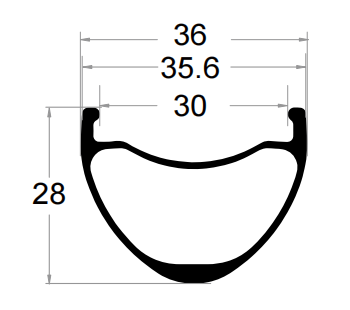

| Sectional Drawing |
 |
 |
ERD*
Effective Rim Diameter (ERD) is the maximum distance that spokes need to bridge going from one end of the rim to another. How do we calculate the ERD of our rims? The corresponding equation and a drawing is as shown:
ERD=OD-(rim depth)*2+(rim thickness)*2
For example：
ERD of PXM32-36C rim=697mm-28mm*2+3mm*2=647mm
Most people prefer ERD including the length of the nipple cap. However, customers may use different nipples and components for building. Please add the height of the nipple cap(2.5mm~3mm generally) for your spoke calculation. If the height of the nipple cap is 3mm, then ERD of your PXM32-36C rim is 589mm+3mm*2=653mm
A: Rim nipple bed thickness (=3mm)
B: Length of nipple cap (2.5mm~3mm generally)
 |
Carbon Fiber Material Premium Toray T700 + T800 carbon fiber are used in our carbon rims. Besides, advanced graphene filling technology is used in producing our super light MTB carbon rims (GP model). Combining with stable resin system to make consistent quality and light weight 32er mountain bike rims.
|
 |
Light Weight Graphene filling Toray T700 + T800 carbon prepreg are well combined in our lay-up structure design, to create light weight carbon bike rims. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
 |
Tubeless Ready
Tubeless tire has been the mainstream of mountain bike carbon wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 |
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
