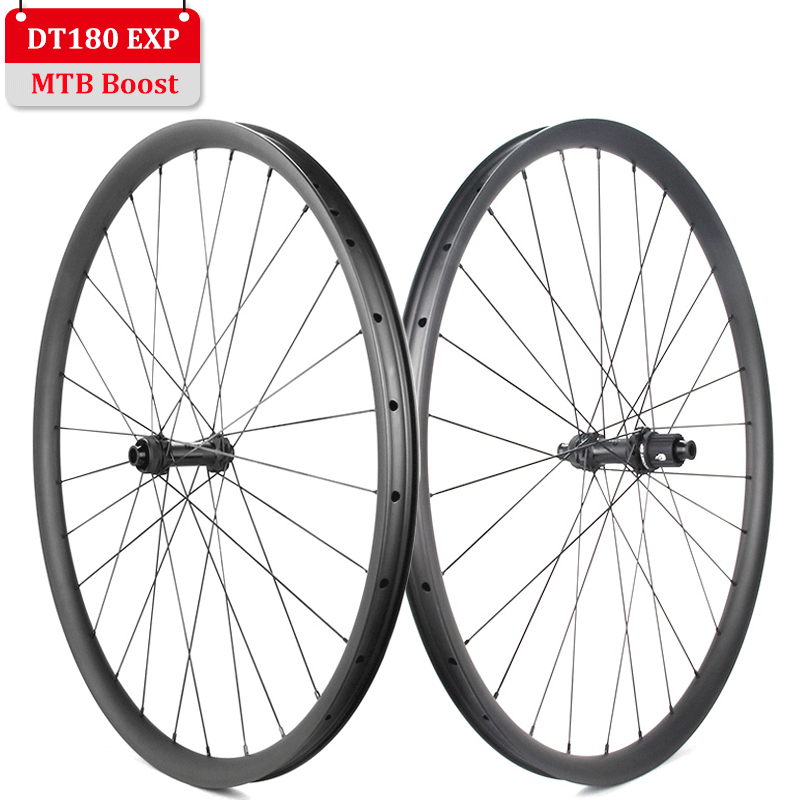

ProX Best Carbon MTB Wheels DT180 Boost Mountain Bike Wheelset

• Pro racing DT Swiss 180 MTB Boost hubs

• Asymmetric carbon rims for XC/TR/AM/EN/Ebike

• Shimano 12s and Sram 11/12s XD freehub

• Sapim CX-Ray spokes, super light and stiff

• High quality carbon wheels, with 2-year warranty

  • Item NO.:

    180MB wheels
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

ProX DT180 EXP MTB Boost Carbon Wheels - Best Mountain Bike Carbon Wheels For Racing

Equipped with upgraded Ratchet EXP technology, the newest DT Swiss 180 MTB boost hub is ultimate in precision, lightness and stiffness. The refined end-caps are simplified for tool-free disassembly. What's more, powered by premium ceramic bearings, the rolling resistance is minimized, which enables you to ride faster with less effort. MTB carbon wheels built with DT180 hubs are ideal for professional racing.

For DT180 MTB carbon wheels, ProX provides wide range of carbon mtb rims (30/33/38/40mm) for different usage, including Cross Country, Trail, All Mountain, Enduro, Ebike and Down Hill.

Our mtb carbon rims are with asymmetric design which helps to equalize the spoke tension between drive side and non-drive side. MTB carbon wheelset built with asymmetric mtb rims are stiffer and stabler.

To match premium DT180 hubs, high-end Sapim CX-Ray spokes are used, which is one of the best spokes available in the market.

Sapim CX-Ray spokes is the best combination of light weight, strength, flexibility, and it performs best in fatigue testing.

Premium hubs, spokes and rims make best carbon mtb wheels for racing.

SPECIFICATION

ProX Best DT180 MTB Boost Carbon Wheelset 29er and 650b Specification:

-Hub: DT Swiss 180S Boost Ratchet EXP 36T (front 15*110mm TA/rear 12*148mm TA)

-Disc brake type: center lock
-Cassette Body: Shimano 12s MicroSpline, Sram 11/12s XD optional

-Freehub System: Ratchet EXP 36
-Type: straight pull
-Spoke Hole Count: front 28H/rear 28H
-Tire Type:Clincher/Tubeless ready
-Spoke: Sapim CX-Ray
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 40psi max
-Warranty Year: 2 years


DT180 MTB Boost 29er and 650b Mountain Bike Carbon Wheelset (Tubeless Ready)

Model (29ER) Rim Terrian  Outer Width Rim Offset  Hub Front Size Rear Size Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
180MB-PAD930-Ray PAD930-XC Cross Country 30mm 2.6mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 29*2.0''-2.4'' 1286g
180MB-PAD930GP-Ray PAD930-XC-GP Cross Country 30mm 2.6mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 29*2.0''-2.4'' 1186g
180MB-PAD933GP-Ray PAD933-XC-GP Cross Country 33mm 3mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 29*2.1''-2.5'' 1246g
180MB-PAD933-Ray PAD933-TR Trail 33mm 3mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 29*2.1''-2.5'' 1326g
180MB-PAD938-AM-Ray PAD938-AM All Mountain 38mm 2.6mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 29*2.3''-2.8'' 1466g
         180MB-PAD938-EN-Ray
PAD938-EN
Enduro/E-bike
38mm
2.6mm
DT180 Boost EXP
15*110mm
12*148mm
Sapim CX-Ray
29*2.3''-2.8''
1546g
180MB-PAD940-Ray PAD940-EN Enduro/E-bike 40mm 3.5mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 29*2.35''-3.0'' 1546g
Model (650B)
180MB-PRD737-AM-Ray PRD737-AM All Mountain 37mm 0mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 650b*2.3''-2.8'' 1386g
180MB-PRD737-DH/EB-Ray PRD737-DH/EB DH/Ebike/Enduro 37mm 0mm DT180 Boost EXP 15*110mm 12*148mm Sapim CX-Ray 650b*2.3''-2.8'' 1606g


ProX Asymmetric Design Mountain Bike Carbon Rims For XC/TR/AM/EN/EBike/DH

Rims PAD930-XC PAD930-XC-GP PAD933-XC-GP PAD933-TR

PAD938-AM

PAD938-EN PAD940-EN PRD737-DH/EB
Max Weight Limit 120kg/265lb 100kg/220lb 100kg/220lb 120kg/265lb 120kg/265lb 120kg/265lb 120kg/265lb 120kg/265lb
Material T700 T700 + T800 +

Graphene

T700 + T800 +

Graphene

T700 + T800 +

Graphene

T700 T700 T700 T700
Sectional Drawing MTB carbon rim drawing of 30mm
MTB carbon rim drawing of 30mm wide
MTB carbon rim drawing of 33mm
MTB carbon rim drawing of 33mm wide
29er rim drawing
MTB carbon rim e-bike
MTB carbon rim drawing of 40mm
carbon 650b rim drawing

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Besides, advanced graphene filling technology is used in producing our super light MTB carbon rims (GP model).

Combining with stable resin system to make consistent quality and light weight carbon mtb rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Asymmetric Design

Asymmetric Design

Asymmetric design mtb rims help to make wheelset with more even spoke tension between drive side and non-drive side.

Carbon mtb wheels built with asymmetric rims are of better stiffness and stability.

The spoke tension on such wheelset will not get loose easily, lower frequency for re-truing is needed.

Hookless Design

Hookless Design

Compared to bead hook rims, the sidewalls of hookless rims are thicker and stronger, providing better impact resistance.

Straight bead provides more stance for tire. Tires will not be squeezed in bead as it was, which makes it less "light bulb effect".

Thus, the tire/rim engagement is more stable, more difficult to be blown out under strong impact, which is important for mountain bike carbon rims.

Tubeless Ready

Tubeless Ready

Tubeless tire has been the mainstream in mtb carbon wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Hand Built

Hand Built

All our carbon wheelsets are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

DT180 Boost Hubs

DT180 Boost Hubs

Best DT Swiss 180 EXP Boost hubs, ultimate in lightweight, stiffness and performance. Ideal carbon mtb wheels for pro racing.

Ratchet EXP 36 freehub system, plus ceramic bearings for super smoothness and reliability.

15*110/12*148 boost spacing, with Sram XD 11/12 speed, Shimano MicroSpline 12 speed freehub optional.

Sapim CX-Ray Spokes

Sapim CX-Ray Spokes

High end Sapim CX-Ray spokes, one of the best spokes available in the market.

Sapim CX-Ray spoke is the best combination of light weight, strength, flexibility, and it results in best fatigue testing.

It is widely used in many carbon bike wheels of those top brands all over the world.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
