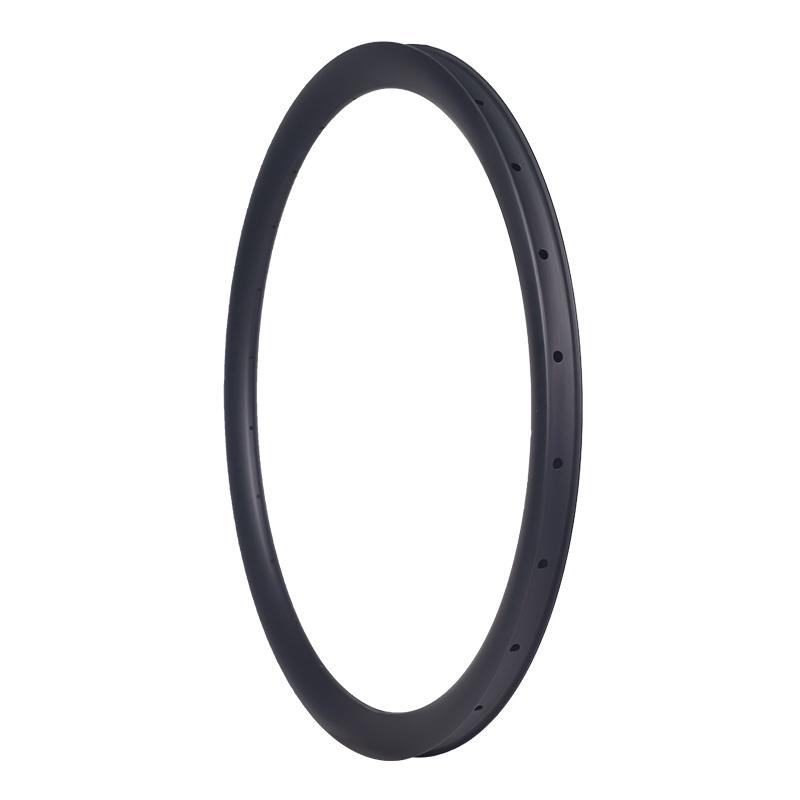

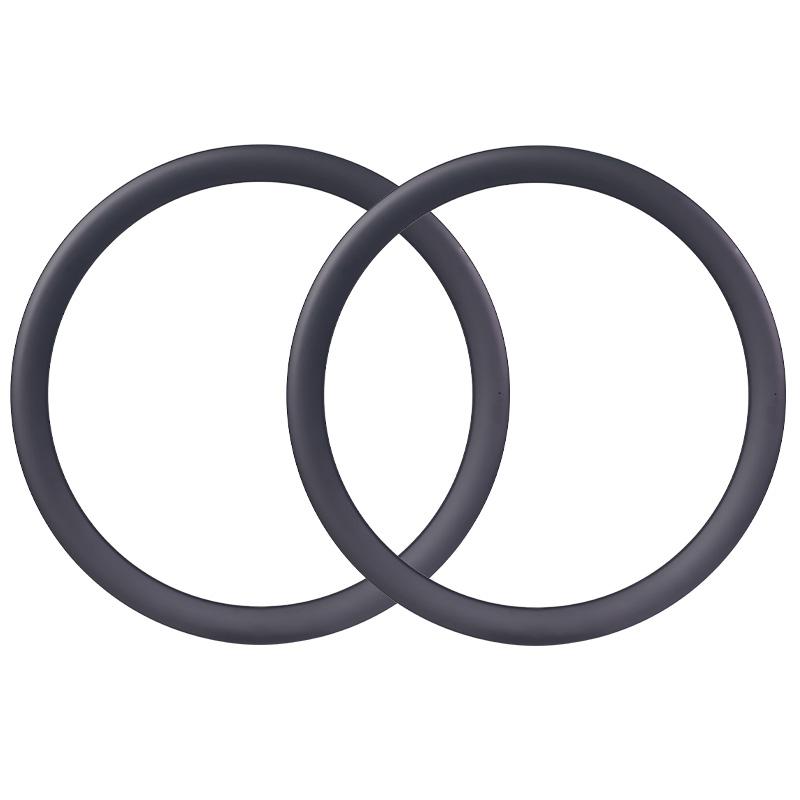

wide carbon gravel rims
wide carbon gravel rims wide carbon gravel rims wide carbon gravel rims wide carbon gravel rims wide carbon gravel rims wide carbon gravel rims wide carbon gravel rims wide carbon gravel rims

ProX Carbon Gravel Rims Widened 26mm Inner Width 700C Carbon Rims For Gravel Bike

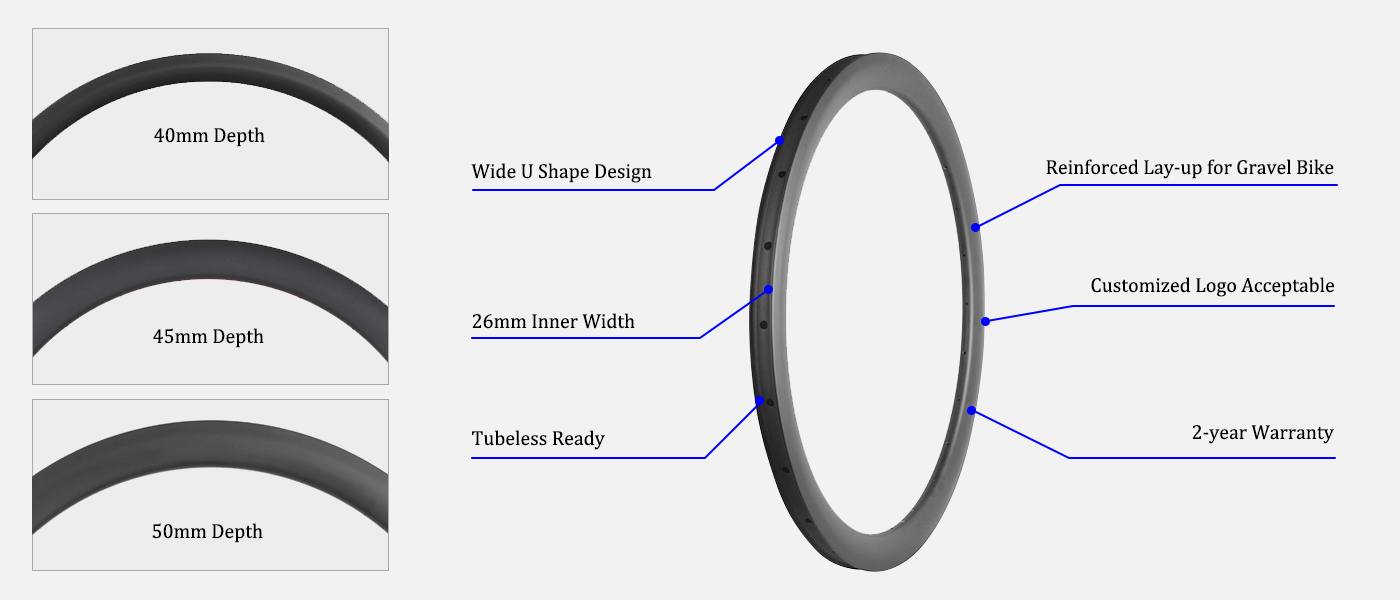

• Widened 26mm inner width, for 37C-50C tires

• 40/45/50 height optional

• Reinforced lay-up structure

• Designed for CX/Gravel bikes

• Tubeless ready

• High quality, 2-year warranty

  • Item NO.:

    PXG26 Gravel

  • Payment:

    Paypal, Bank Transfer

  • Origin:

    China

  • Color:

    UD/3K/12K(Customized Decal Acceptable)
Inquiry now
DESCRIPTION

Cyclocross and gravel carbon rims demand versatility and durability. ProX gravel bike carbon rims are designed with 26mm inner width, which is suitable for gravel tires with size 700*37C-50C. The 40/45/50mm rim height options strikes a compelling balance for mixed-terrain adventures.

The U-shaped rim profile enhances tire compatibility and stability. With a 26mm inner width, this design ensures optimal support for high-volume gravel tires (37C-50C), reducing the risk of tire rollover during aggressive cornering or technical descents. The wider bed allows tires to maintain a natural rounded profile, improving grip and shock absorption on loose surfaces like gravel, dirt, or mud.

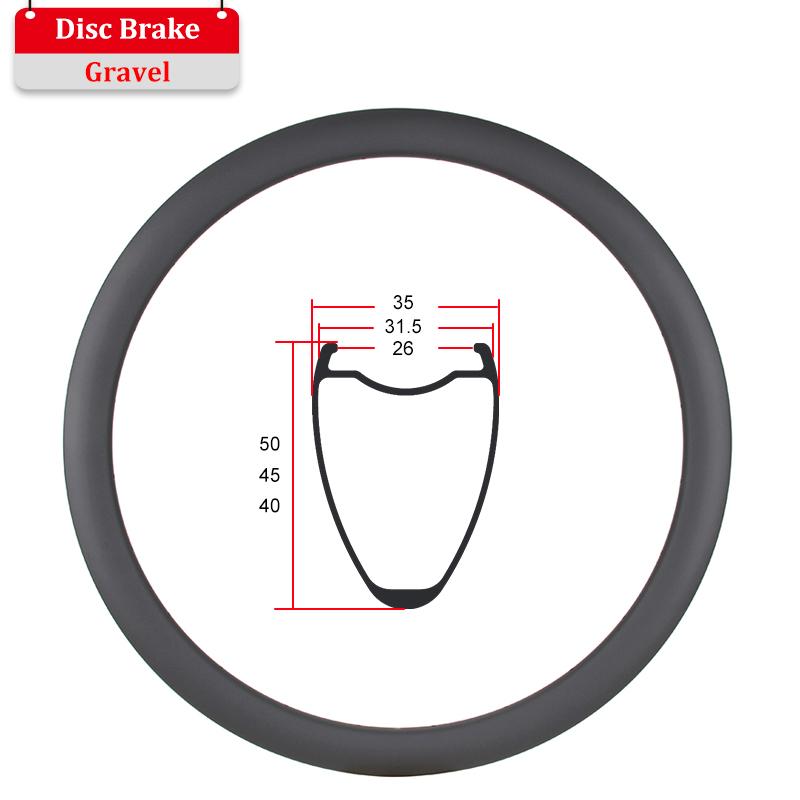

26mm inner width gravel carbon bike rim

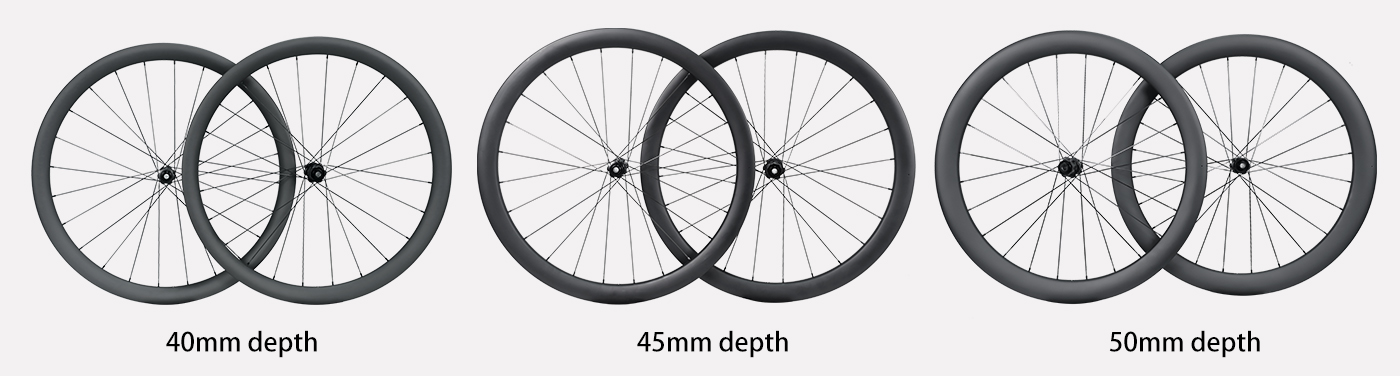

Rim Height Options: 40mm vs. 45mm vs. 50mm

Choosing the right rim height depends on riding style and terrain:
40mm: Ideal for technical, unpredictable terrain. The lower profile prioritizes agility, weight savings, and crosswind stability. Perfect for riders tackling steep climbs or twisty singletrack.
45mm: A versatile middle ground. Balances aerodynamic gains compared to 40mm rim , and with moderate weight. It suits riders mixing paved gravel terrain.
50mm: Maximizes aerodynamic efficiency for fast-paced gravel races or rolling terrain. Slightly heavier on weight but offers noticeable speed retention on smoother surfaces.

ProX decal/logo is offered for free as showed in ProX decal page if decal in stock. The decal will be applied on the rim and do the matte or glossy finish according to customers’ preference. You can choose either with ProX decal or simply without decal (UD black matte or UD black glossy finish).

carbon gravel wheels

SPECIFICATION

700C Disc Brake Widened 26mm Inner Width CX/Gravel Bike Carbon Rims (Tubeless Ready)

Model PXG26-40C PXG26-45C PXG26-50C
Size 700C 700C 700C
Terrian(Recommended) Cyclocross/Gravel Cyclocross/Gravel Cyclocross/Gravel
Material T700 T700 T700
Weight(±15g) 410g 430g 450g
Max Weight Limit 120kg/265lb 120kg/265lb 120kg/265lb
Depth 40mm 45mm 50mm

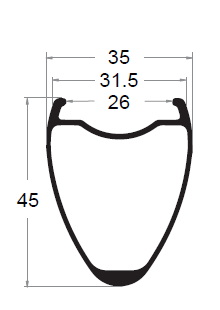

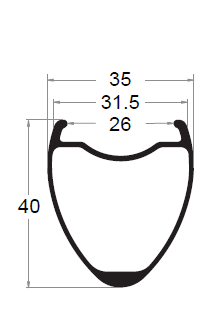

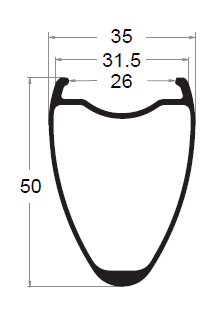

Sectional Drawing 26mm inner Cyclocross Gravel rim 40mm depth 26mm inner Cyclocross Gravel rim 45mm depth 26mm inner Cyclocross Gravel rim 50mm depth
Outer Width 31.5mm 31.5mm 31.5mm
Inner Width 26mm 26mm 26mm
Spoke Holes 24H/28H/32H 24H/28H/32H 24H/28H/32H
ERD* 560mm 550mm 540mm
Rim Bead Hook Hook Hook
Tire Type Tubeless or Clincher Tubeless or Clincher Tubeless or Clincher
Brake Type Disc Brake Disc Brake Disc Brake
Max Spoke Tension 130kgf  130kgf  130kgf
Max Tire Pressure 90psi/6.2bar 90psi/6.2bar 90psi/6.2bar
Tire Size(Recommended) 700*37C-50C 700*37C-50C 700*37C-50C


calculate the ERD of gravel rims

ERD*

Effective Rim Diameter (ERD) is the maximum distance that spokes need to bridge going from one end of the rim to another. How do we calculate the ERD of our rims? The corresponding equation and a drawing is as shown:

ERD=OD-(rim depth)*2+(rim thickness)*2

For example：

ERD of PXG26-40C rim=633mm-40mm*2+3.5mm*2=560mm

Most people prefer ERD including the length of the nipple cap. However, customers may use different nipples and components for building. Please add the height of the nipple cap(2.5mm~3mm generally) for your spoke calculation. If the height of the nipple cap is 3mm, then ERD of your PXG26-40C rim is 560mm+3mm*2=567mm


A: Rim nipple bed thickness (=3.5mm)

B: Length of nipple cap (2.5mm~3mm generally)

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and strong gravel bike carbon rims.

Wider Inner Width

Wider Inner Width

Wider 26mm inner width, optimized for wide 700x37C-50C gravel bike tires.

Wider stance for tire, easy tire mounting and dismounting.

Better traction and cornering performance.

Aero U Shape

Aero U Shape

Wide U Shape carbon road rims are more aerodynamic than traditional V Shape road bike carbon rims.

Besides, the stiffness and strength are also much better.

Bead Lock

Bead Lock

There are small ridges on both side of rim channel called “bead lock”, which makes it easy for tubeless tire inflation.

Together with hooked bead to well lock the tire, prevent it from blowing out.

Tubeless Ready

Tubeless Ready

Tubeless tire is widely used in gravel bike carbon wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our gravel carbon rims are tubeless ready (also fit normal tube tires), no matter bead hook or hookless model.

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Disc Brake

Disc Brake

Disc brake provides more sensitive and precise braking performance than rim brake.

All our carbon gravel rims are designed for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
