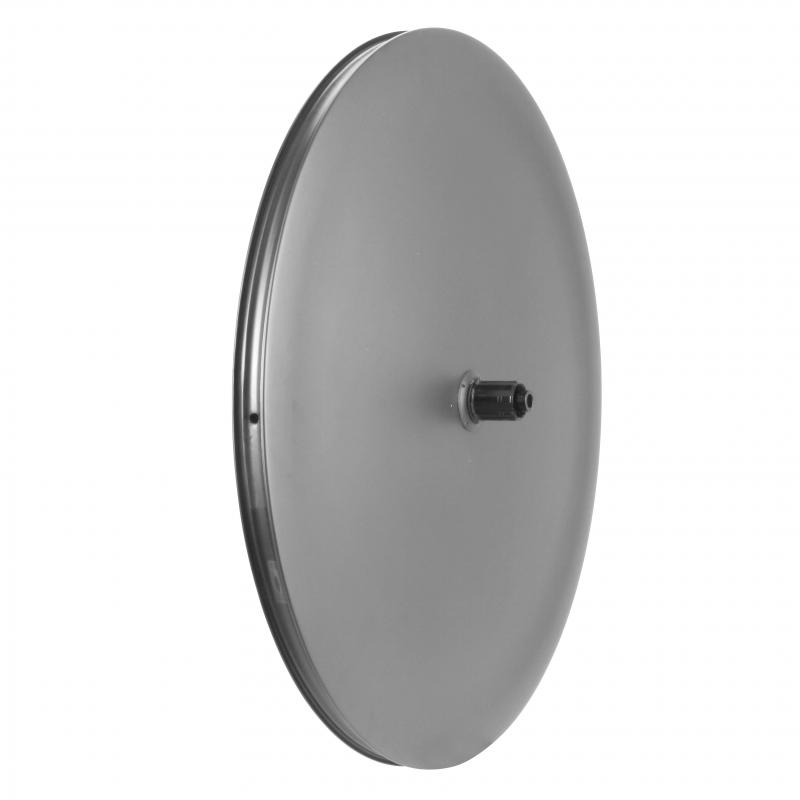

ProX Full Disc Carbon Wheel 28mm Wide Disc Brake Aero Rear Disc Wheel For TT Bikes

• 28mm width full disc carbon wheel

• Disc brake (center lock)

• Innovative asymmetric design

• PMI solid filled inside, better stiffness and strength

• ProX 36DB/DT Swiss hubs optional

  • Item NO.:

    UFO28-DISC-DB
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

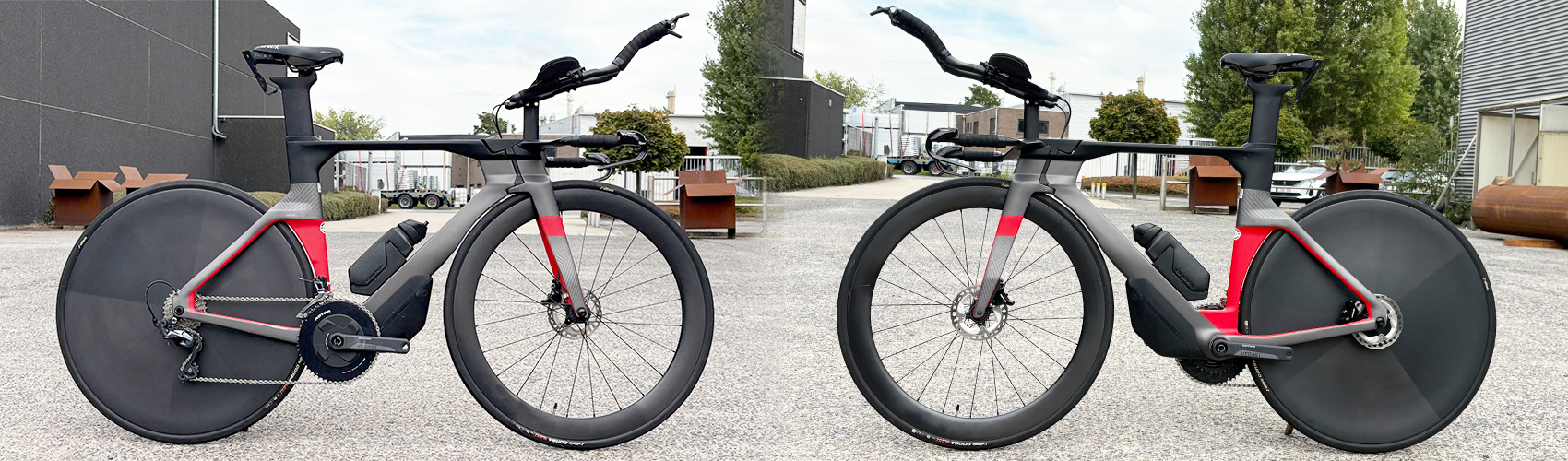

In Time Trial, Triathlon and Track bikes, full disc wheel, 5-spoke and 3-spoke carbon wheels are widely used.

Compared to regular wheels, carbon spoke and full disc wheels are relatively heavier, but they are outstanding in aerodynamics and stiffness which are critical for TT/Track bikes.

With PMI filled inside for this UFO disc wheel, it not only contributes impact resistance, but also stiffness to this disc wheel. In the meantime, it helps to reduce possible noise while riding as well compared to hollow disc wheel.

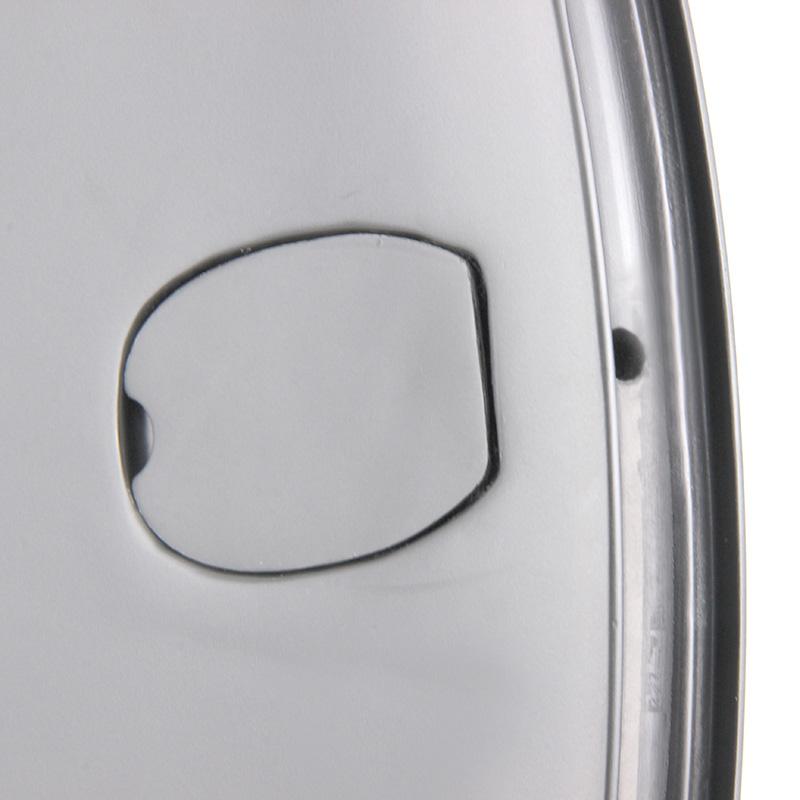

The valve hole is on the non-drive side and equipped with a carbon cover which is fixed by hook & loop tape inside. It keeps the valve clean and of better looking. The most important benefit is to reduce wind resistance and noise.
28mm outer width is an absolute and perfect choice to follow latest popular tendency in the carbon bike market. 22mm inner 28mm outer width, optimized aerodynamics for 700x28C tires.

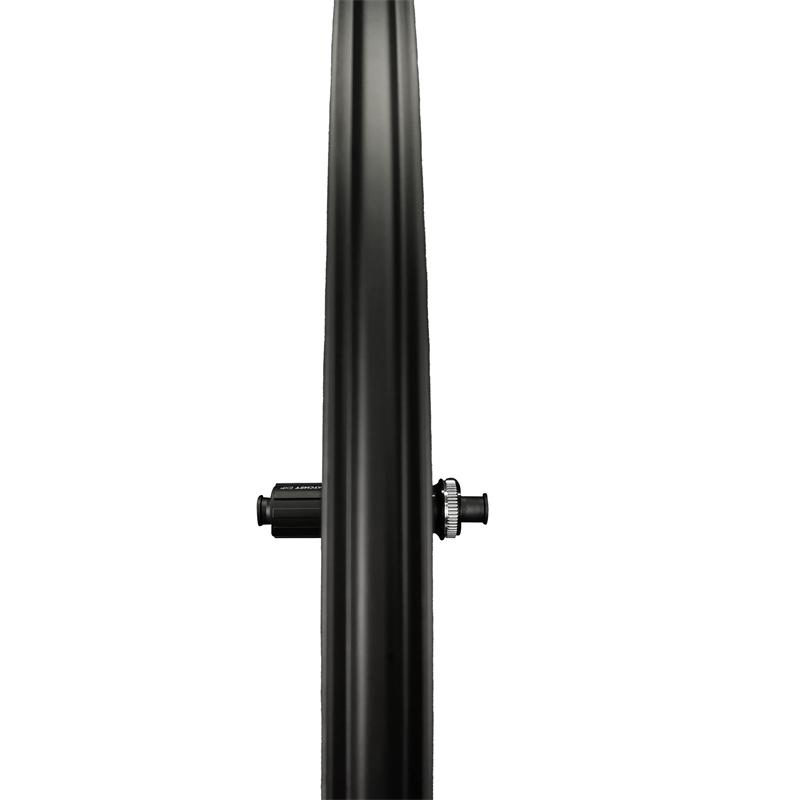

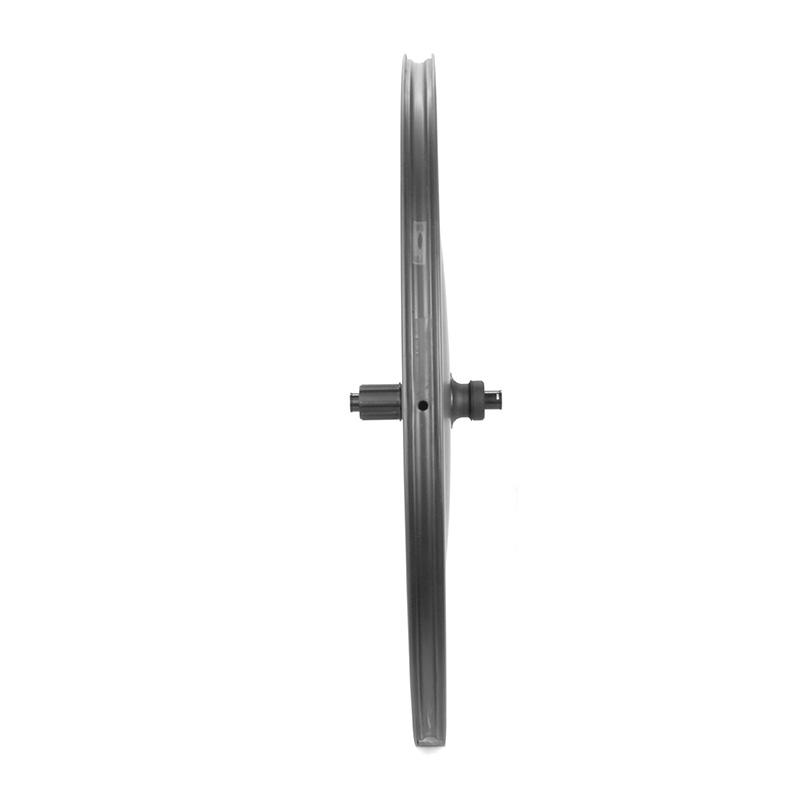

With innovative asymmetric design, slightly bulge wheel body on non-drive side and slightly sunken on drive side. This difference would not be greatly obvious from the wheel side view, but greatly helps to balance the whole bike after assembling and reach better aerodynamics while riding.

28mm width carbon 700c rear disc wheel

Hub options:

There are three hubs options for full disk rear wheel -ProX 36DB, DT swiss 350 and DT swiss 240 hubs.

All of them are designed with a very refined and reliable ratchet freehub system, which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. The ratchet freehub system is applied on high-end hub brand hubs generally.

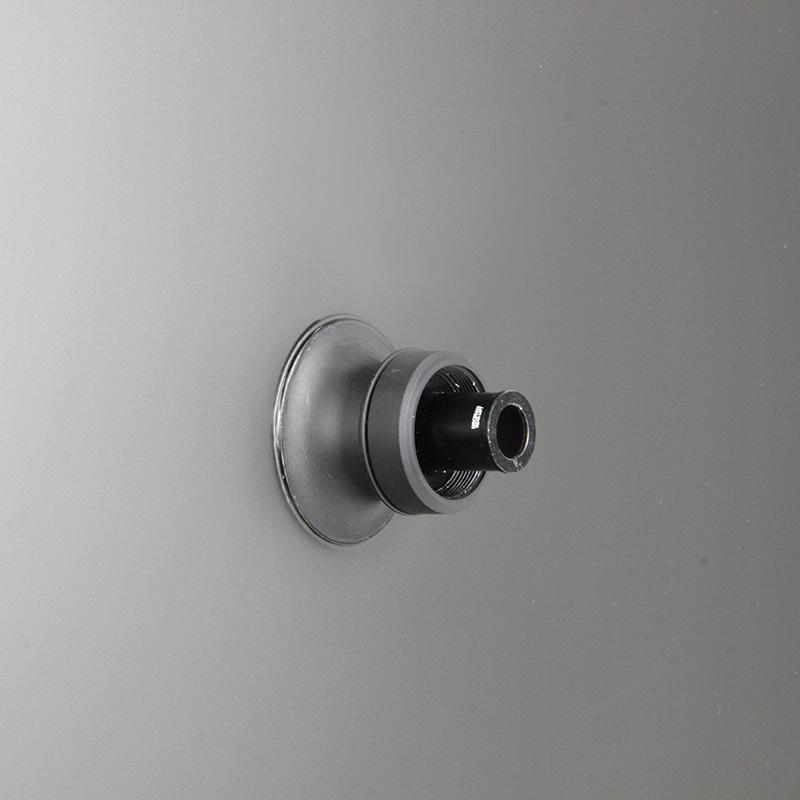

All of them are center lock disc brake, Shimano 11/12s or SRAM 12s XDR freehub available.

- ProX 36DB hub: Good quality hubs made by well selected hub manufacturer in Taiwan, using Enduro bearings and 36T ratchet system.
- DT Swiss 350 road hub: wrapped by carbon shell, 36T ratchet system

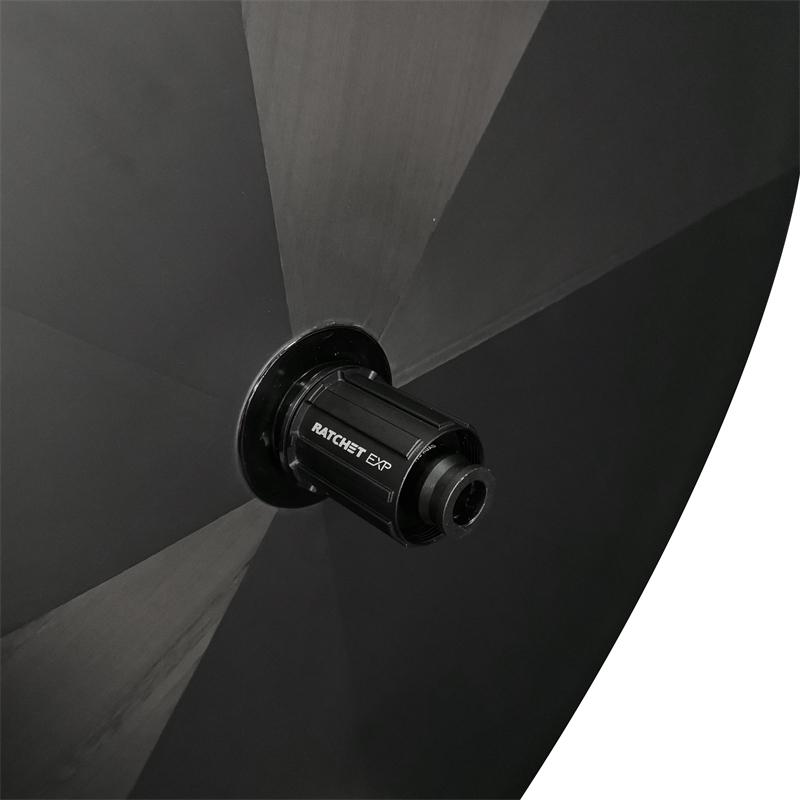

- DT Swiss 240 EXP road hub: wrapped carbon shell, 36T ratchet system

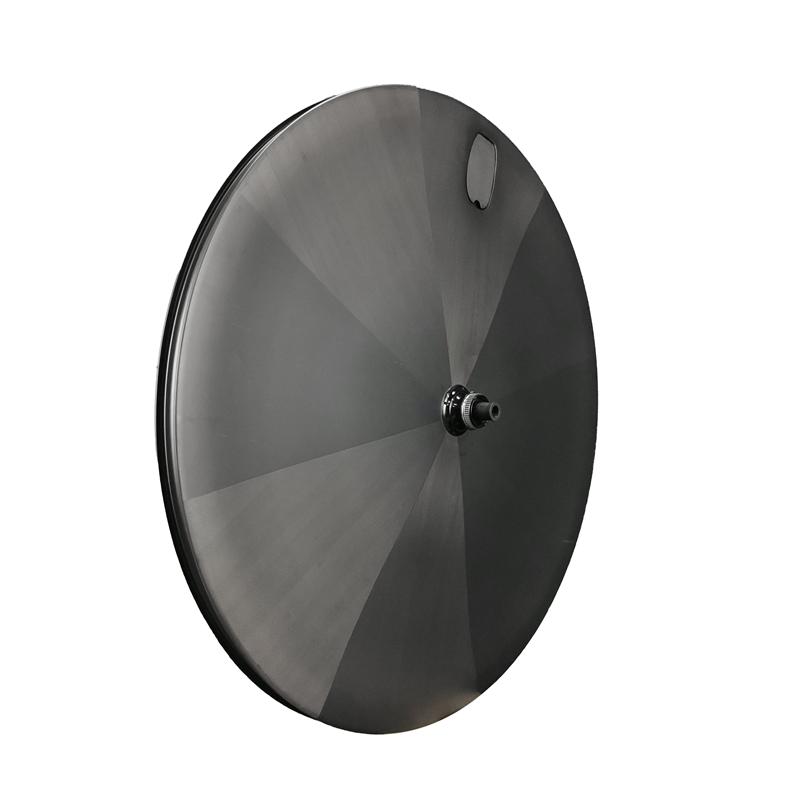

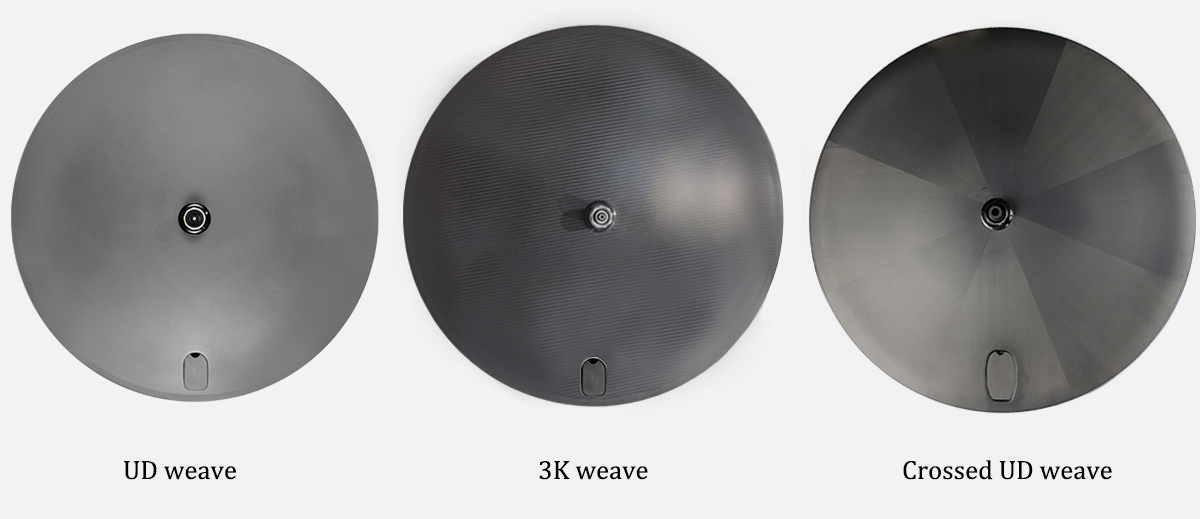

Different carbon weave apperance optional (see below picture).

full disc wheel UD 3k crossed UD weave

ProX carbon full disk rear wheel is priced from US$599/pc.

SPECIFICATION

ProX Super Aero 28mm Width Disc Brake 700C Full Carbon Disc Wheel For TT Bikes

-Rim Width: 28mm outer (21mm inner) width

-Appearance: UD and 3K Twill optional

-Hubs: ProX 36DB, DT Swiss 350DB and DT Swiss 240DB hubs optional

-Size: Rear 12*142mm TA

-Disc Brake Type: Center lock
-Cassette Body: Shimano 11/12s or SRAM 12s XDR
-Tire Type: Clincher (tubeless ready)
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years

Model Category Max Weight Limit Brake Type Tire Type Terrian Front/Rear Hub Hub Size Weight(+/-40g)
UFO28-DISC-DB-C-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear ProX 36DB 12*142mm TA 1230g
UFO28-DISC-DB-C-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear DT Swiss 350DB 12*142mm TA 1260g
UFO28-DISC-DB-C-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear DT Swiss 240DB 12*142mm TA 1230g

28mm width full disc carbon wheel drawing
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our carbon full disc wheels.

Combining with stable resin system to make consistent quality and high strength full disc carbon wheels.

Tubeless

Tubeless Ready

Tubeless tire is getting popular in carbon TT/Track wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our carbon clincher disc wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Wider Inner Width

Relatively wider 22mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x28C are recommended (also fit other wider tires).

DT240 Road Hubs

DT Swiss Hubs

High end DT Swiss road hubs and cheap price OEM ProX 36DB optional for the full disc carbon wheel, light weight and reliable Ratchet 36 freehub system.

The hub spacings is disc brake (12*142mm thru axle).

With Shimano 11/12 speed, Sram 12-speed XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
