• Carbon spoke gravel wheels
• Full carbon spokes, super light and stiff
• Widened 26mm inner width carbon rims, for 35C-50C tires
• 40/45/50mm height optional
• Gravel specific G71DB hubs, 36T ratchet freehub system
• Shimano HG 11/12s or SRAM XDR optional
Brand:
PROXItem NO.:
G71DB GravelOrder(MOQ):
1Payment:
Paypal, Bank TransferOrigin:
ChinaColor:
Black/UD/Marble(Customized Decal Acceptable):

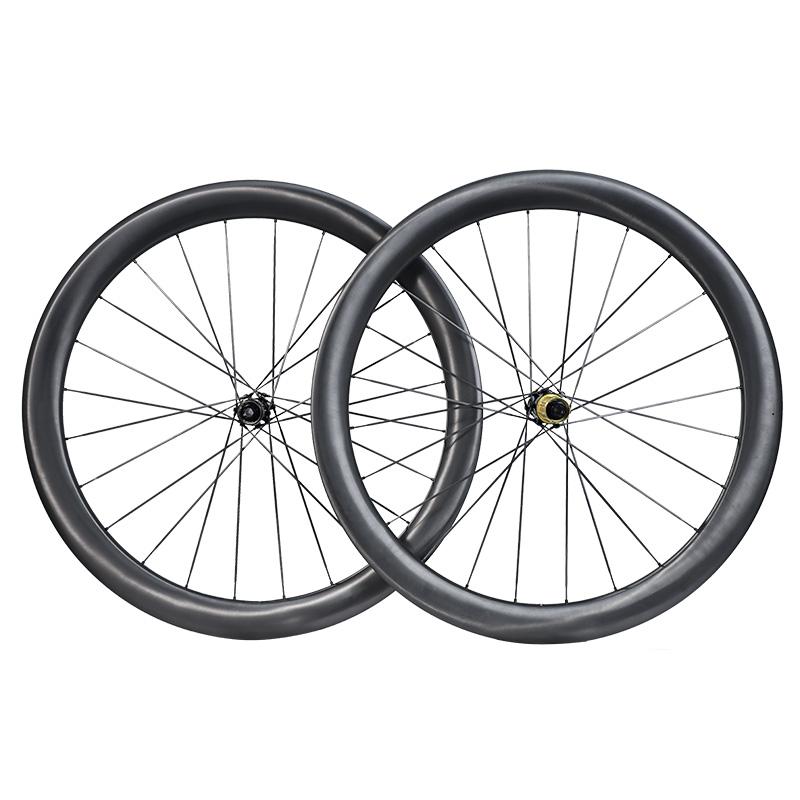

ProX G71DB Disc Brake Super Light Carbon Spokes Gravel Carbon Wheels
Carbon wheels are the ultimate upgrade when you’re looking to optimize the gravel riding experience. This series carbon wheels provide a stiffer ride and improved acceleration.
[Hubs]

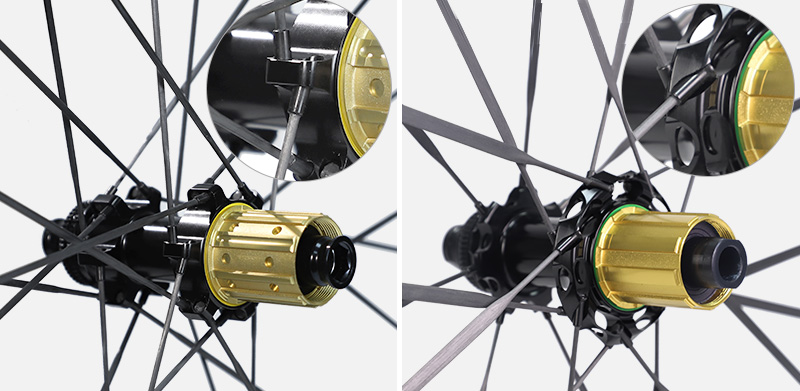

（Drilled-flange spoke system)
(Captive spoke system)
[Spokes]
[Rims]
Please note: Due to the special wheel building tools needed for carbon spoke wheel building, as well as bigger nipple size (around 7mm diameter head, which is larger than Presta valve hole diameter 6.5mm), nipple can not be put into the rim through valve hole. It means No-External-Hole rim can not be built with carbon spokes (which comes with bigger nipple head). Thus, tubeless rim tape is a must if you intend to use tubeless tires. If you prefer No-External-Hole wheels, please choose our other carbon wheels (regular steel spokes).
Cyclocross and gravel carbon wheels demand versatility and durability. ProX gravel bike carbon wheels are designed with 26mm inner width rims, which is suitable for gravel tires with size 700*35C-50C. The 40/45/50mm rim height options strikes a compelling balance for mixed-terrain adventures.
Rim Height Options: 40mm vs. 45mm vs. 50mm
Choosing the right rim height depends on riding style and terrain:
40mm: Ideal for technical, unpredictable terrain. The lower profile prioritizes agility, weight savings, and crosswind stability. Perfect for riders tackling steep climbs or twisty singletrack.
45mm: A versatile middle ground. Balances aerodynamic gains compared to 40mm rim, and with moderate weight. It suits riders mixing paved gravel terrain.
50mm: Maximizes aerodynamic efficiency for fast-paced gravel races or rolling terrain. Slightly heavier on weight but offers noticeable speed retention on smoother surfaces.
Carbon Spoke Gravel Wheels are lighter and performance-driven.
✅Ideal for:
Fast gravel riding
Mixed road riding
Performance-oriented riders
Gravel racing and training
Riders who value efficiency and responsiveness
If you keen on simpler maintenance, prioritize durability, budget-focused builds or you are only a first-time gravel rider, please take Steel Spoke Gravel Wheels into your consideration.

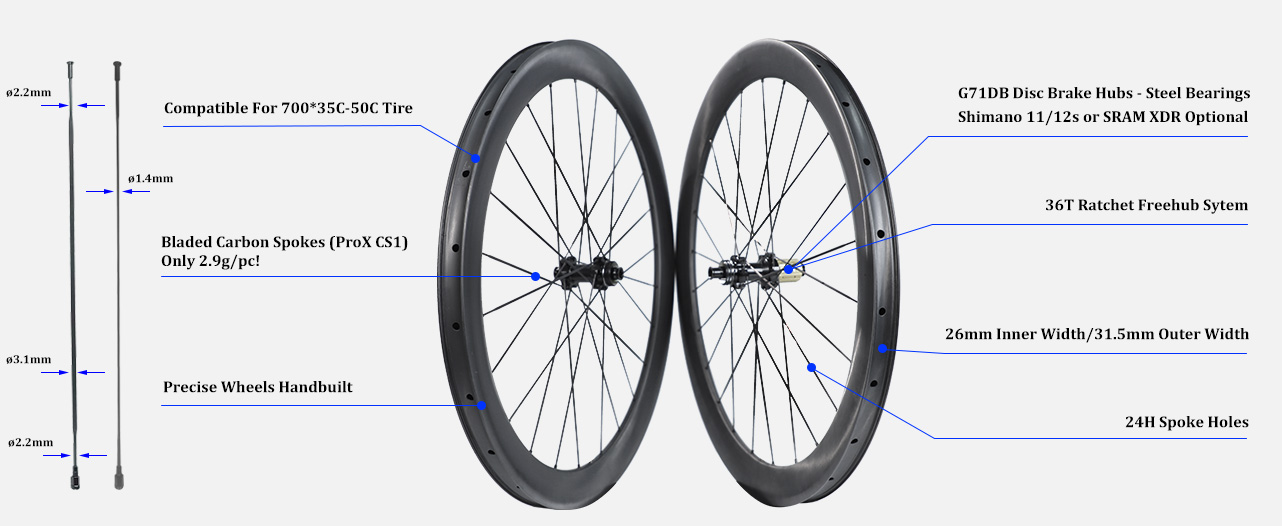

ProX G71DB Full Carbon Gravel Bike Wheels With Carbon Spokes Specification:
-Hub: ProX G71DB disc hubs (front 12*100mm TA/rear 12*142mm TA), with steel bearings. Ratchet 36T freehub system
-Decal/Logo: No decal/logo on the rims and hubs by default
-Rim Weave: Black or marble
- Rim Finish: Matte or glossy finish
-Spoke options: 3.1mm width (ProX CS1), aero carbon spokes, made of carbon fiber T800
-Rim depth options: 40/45/50mm
-Disc brake type: center lock
-Cassette Body: Shimano HG 11/12s or SRAM XDR
-Type: straight pull
-Spoke Hole Count: 24 spoke holes(1:1 ratio) on both front and rear
-Tire Type: Clincher/Tubeless compatible
-Nipple: Aluminum(9mm length)
-Spoke Tension (recommended): ≤170kgf
-Tire Pressure: 125psi/8.6bar
-Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.
-Warranty Year: 2 years
-Tubeless Valve (not included): 44/60/80mm length optional
| Model | Rim | Depth | Outer Width | Inner Width | Tire Type | Hub | Front Size | Rear Size | Spoke |
Tire Size
(Recommended)
|
Weight
(+/-3%)
|
| G71DB-PXG26-40C-CS1 | PXG26-40C | 40mm | 31.5mm | 26mm | Tubeless or Clincher | ProX G71DB Disc | 12*100mm | 12*142mm | ProX CS1 | 700*35C-50C | 1292g |
| G71DB-PXG26-45C-CS1 | PXG26-45C | 45mm | 31.5mm | 26mm | Tubeless or Clincher | ProX G71DB Disc | 12*100mm | 12*142mm | ProX CS1 | 700*35C-50C | 1332g |
| G71DB-PXG26-50C-CS1 | PXG26-50C | 50mm | 31.5mm | 26mm | Tubeless or Clincher | ProX G71DB Disc | 12*100mm | 12*142mm | ProX CS1 | 700*35C-50C | 1372g |
700C Widened Gravel Bike Specific Carbon Clincher Rims (Tubeless Ready)
Rims
PXG26-40C
PXG26-45C
PXG26-50C
Max Weight Limit
120kg/265lb
120kg/265lb
120kg/265lb
Material
T700
T700
T700
Sectional Drawing
 |
Carbon Fiber Material Premium Toray T700 carbon fiber are used in our carbon rims. Combining with stable resin system to make consistent quality and light weight gravel bike carbon rims.
|
 |
Light Weight By using well designed lay-up structure and Toray T700 carbon pre-preg, light weight carbon rims are created. Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement. So, light weight is achieved without compromise in strength or stiffness. |
 |
Widened 26mm Inner Width Relatively wide 26mm inner width, make it possible to fit multiple sizes of tire. Normally gravel tire size 700x35C-50C are recommended (also fit other wider tires).
|
 |
Aero U Shape Wide U Shape gravel bike carbon rims are more aerodynamic than traditional V Shape carbon gravel rims. It is also of better stiffness and strength. |
 |
Tubeless Ready
Tubeless tire is getting popular in bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort. All our carbon clincher rims are tubeless ready (also fit normal tube tires). Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation. |
 |
Disc Brake Gravel disc brake provides sensitive and precise braking performance. Carbon fiber bike gravel rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking. Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight. |
 |
Hand Built All our bicycle carbon wheels are hand built by experienced mechanician. Based on customers’ demand, various choice of hubs, spokes and nipples are optional. After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.
|
 |

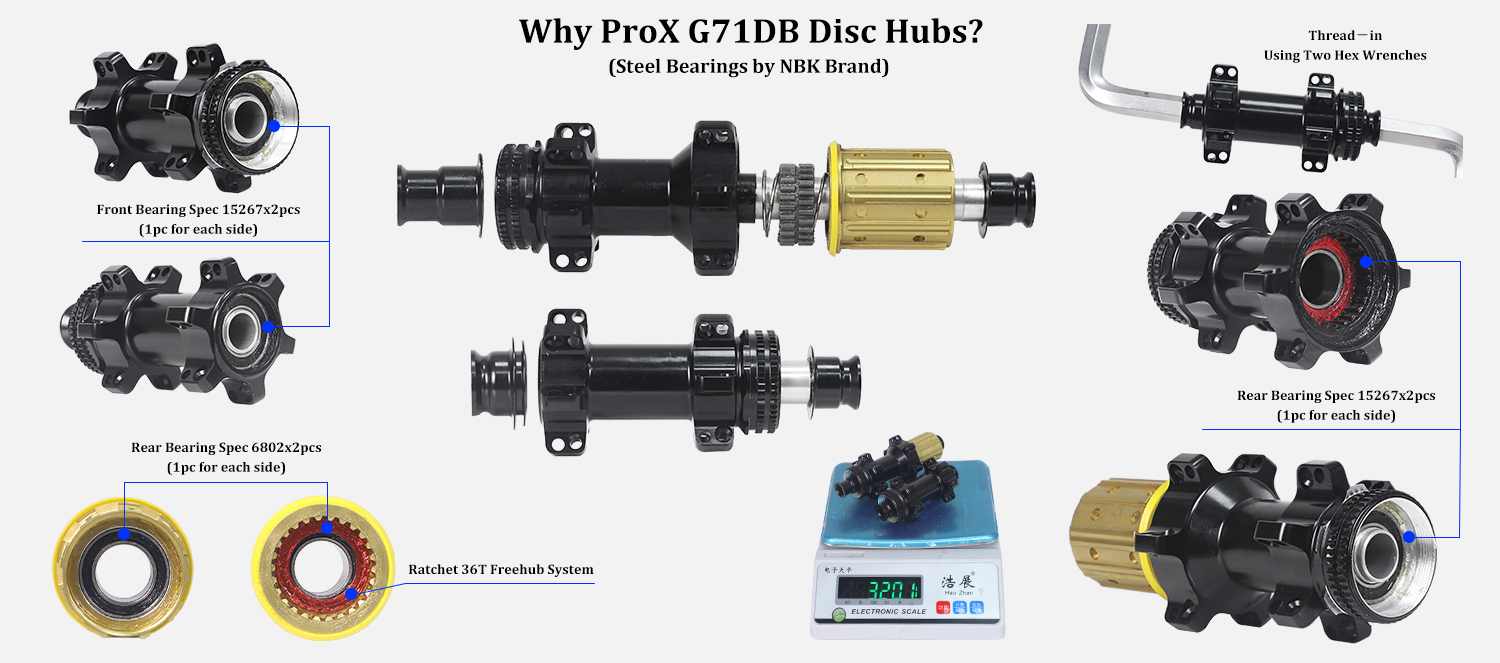

ProX G71DB Disc Hubs ProX own mould G71DB gravel hubs are used. High quality hubs with cheap price. G71DB disc brake hubs are designed with ratchet freehub system with steel bearings. Such hubs can also be etched with your customized logo.
12*100/12*142 thru-axle, with Shimano HG 11/12-speed or SRAM XDR cassette body.
|
 |
ProX CS1 Carbon Spokes The customized ProX CS1(3.1mm width) carbon spokes are used. The carbon spoke provides better aerodynamics, stiffness and better fatigue life compared to the traditional steel spokes. Perfect bladed aero shape, high elasticity and low drag coefficient.
|
 |
2-Year Warranty We have strict production management system, QC and Testing process. Our quality is always very good and reliable. For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).
Click Warranty Policy to see more details in another page. |
