ProX Ultra Light Carbon Spoke Wheels C66DB Disc Brake Carbon Spoke Road Wheels

Bladed carbon fiber spokes, aero & strong

• Ultra light C66DB disc hubs, ceramic bearings

21 spokes for both front and rear (14:7 ratio)

• 28mm and 25mm width carbon rims optional

• Compatible for 700*25C-45C tire (tubeless ready)

  • Brand:

    PROX
  • Item NO.:

    C66DB Clincher Wheel
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

ProX C66DB Ultra Light Road Bike Wheels With Carbon Spokes - Premium Carbon Wheels For Racing

The new ProX C66DB disc brake road carbon wheels feature cool and unique carbon spokes (only 2.9g/pc!). Such carbon spokes (model CS1) is lighter but stronger than regular steel spokes. The carbon spokes look similar as regular spoke, except for the carbon fiber material and ultra light weight. The weight of our CS1 carbon spoke plus specific aluminum nipple is only 3.2g, which is about 1.8g lighter than well-known Sapim CX-Ray spoke with nipple. More than anything, the carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes.

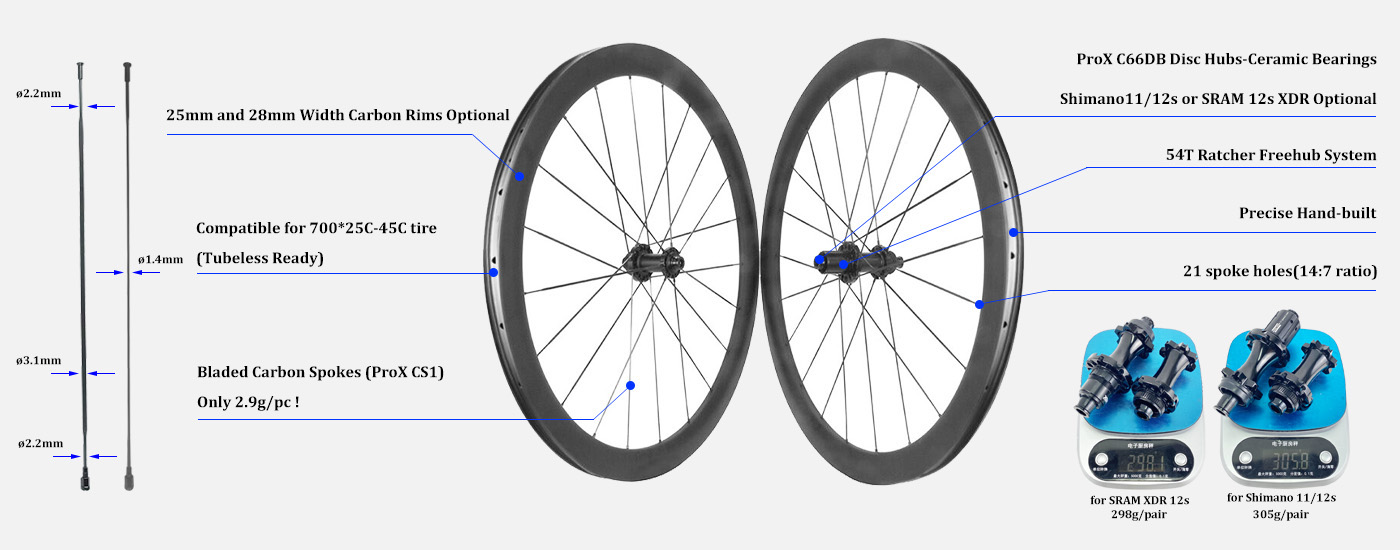

ultra light road wheels with carbon spokes

ProX C66DB road disc brake hubs are with straight pull spoke system, with 2:1 (that is 14:7) spoke ratio for both front and rear wheel. 2:1 spoke ratio provides better strength balance between drive side and non-drive side. The hub shell is made of premium #7075 aluminum alloy and shaves off at the position in the middle, which helps for better aerodynamics while riding. The weight of hub is only 298g/pair which is really light on weight. Hubs are designed with Ratchet 36T freehub system which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. For the C66DB hubs, the additional ring has been added to fix the bearing. This design is for the front drive side and rear hub non-drive side. What's more, we also extend the length of end cap to get the bigger area to connect the hub.  All of these is to provide a stronger hub and more stable riding experience.

Ceramic bearings are rounder, smoother and with more uniform size. In that case, the friction is reduced and that can contribute more energy to the wheels. Ceramic bearing is also harder than steel bearings (up to 30%), which improves durability, and they also don’t rust for less maintenance.

In addition, C66DB hubs can be made with your customized logo (either etch logo or make stickers). So it will become your own brand hubs!

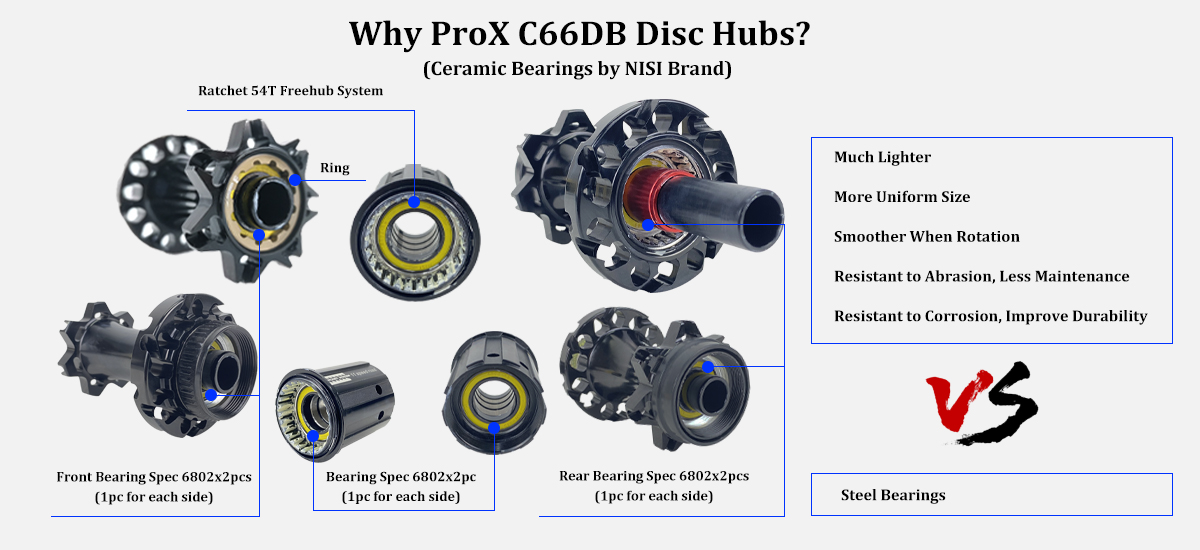

ProX C66DB hubs with ceramic bearings

ProX provides two width option for our C66DB disc brake carbon road wheels. That is, 28mm width carbon clincher rims, and 25mm width carbon rims clincher.

The 28mm width rim series (model PRD28) is with 28mm outer (21mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*28C. If you plan to use 28C (or wider) tire, PRD28 rim series is recommended.

The 25mm width rim series (model PRD25) is with 25mm outer (18mm inner) width.

For such wide road rims, the optimized aerodynamics tire size is 700*25C. If you plan to use 25C tire, PRD25 rim series is recommended.

The carbon spoke wheels are priced from USD 509/pair.

SPECIFICATION

ProX C66DB Disc Brake Carbon Spoke Road Wheels Specification:
-Hub: ProX C66DB disc hubs (front 12*100mm TA/rear 12*142mm TA), with ceramic bearings. Ratchet 36T freehub system

-Disc brake type: center lock
-Cassette Body: Shimano 11/12s or SRAM XDR 12s
-Type: straight pull
-Spoke Hole Count: 21 spoke holes(14:7 ratio) on both front and rear
-Tire Type:Clincher/Tubeless ready
-Spoke: Aero carbon spokes (ProX CS1)

-Nipple: Aluminum(9mm length)
-Spoke Tension(recommended): ≤145kgf
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years


ProX C66DB Disc Brake Carbon Spoke Road Wheels Built With PRD28 Carbon Rims (28mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Carbon Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
C66DB-PRD28-33C-CS1 PRD28-33C 33mm 28mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1234g
C66DB-PRD28-38C-CS1 PRD28-38C 38mm 28mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1254g
C66DB-PRD28-44C-CS1 PRD28-44C 44mm 28mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1294g
C66DB-PRD28-50C-CS1 PRD28-50C 50mm 28mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1354g
C66DB-PRD28-55C-CS1 PRD28-55C 55mm 28mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*28C-45C 1394g


700C Road Disc Brake Carbon Clincher Rims PRD28 (28mm width)

Rims PRD28-33C
PRD28-38C
PRD28-44C
PRD28-50C
PRD28-55C
Max Weight Limit 105kg/230lb
105kg/230lb
110kg/240lb
115kg/250lb
115kg/250lb
Material T700+T800
T700+T800
T700+T800
T700+T800
T700+T800
Sectional Drawing ultra light road bike wheels 33mm depth
ultra light road bike wheels 38mm depth
ultra light road bike wheels 44mm depth
ultra light road bike wheels 50mm depth
ultra light road bike wheels 55mm depth


ProX C66DB Disc Brake Road Carbon Spoke Wheels Built With PRD25 Carbon Rims (25mm width)

Model Rim Depth Outer Width Tire Type Hub Front Size Rear Size Carbon Spoke
Tire Size
(Recommended)
Weight
(+/-3%)
C66DB-PRD25-38C-CS1 PRD25-38C 38mm 25mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*25C-45C 1214g
C66DB-PRD25-45C-CS1 PRD25-45C 45mm 25mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*25C-45C 1274g
C66DB-PRD25-50C-CS1 PRD25-50C 50mm 25mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*25C-45C 1334g
C66DB-PRD25-60C-CS1 PRD25-60C 60mm 25mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*25C-45C 1474g
C66DB-PRD25-80C-CS1 PRD25-80C 80mm 25mm Tubeless or Clincher ProX C66DB Disc 12*100mm 12*142mm ProX CS1 700*25C-45C 1754g


700C Road Disc Brake Carbon Clincher Rims PRD25 (25mm width)

Rims PRD25-38C
PRD25-45C
PRD25-50C
PRD25-60C
PRD25-80C
Max Weight Limit 115kg/240lb
110kg/240lb
115kg/250lb
115kg/250lb
120kg/265lb
Material T700
T700
T700
T700
T700
Sectional Drawing 38mm deep carbon spoke road wheels
45mm deep carbon spoke road wheels
50mm deep carbon spoke road wheels
60mm deep carbon spoke road wheels
80mm deep carbon spoke road wheels

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 + T800 carbon fiber are used in our carbon rims.

Combining with stable resin system to make consistent quality and light weight carbon fiber bike rims.

Light Weight

Light Weight

By using well designed lay-up structure, mixing Toray T700 and T800 carbon prepreg, light weight carbon rims are created.

Excessive materials are eliminated to save weight, while extra materials are added around spoke hole for reinforcement.

So, light weight is achieved without compromise in strength or stiffness.

Narrow Inner Width

Narrow Inner Width

Relatively narrow 18mm/21mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

Aero U Shape

Aero U Shape

Wide U Shape carbon road rims are more aerodynamic than traditional V Shape carbon road rims.

It is also of better stiffness and strength.

Tubeless Ready

Tubeless Ready

Tubeless tire is getting popular in road bicycle wheels thanks to its better traction, lower rolling resistance and better riding comfort.

All our carbon clincher rims are tubeless ready (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Road Disc Brake

Road Disc Brake

Road disc brake provides more sensitive and precise braking performance than rim brake.

Carbon fiber road bike rims designed specifically for disc brake use, no brake track. No “burning rim” worries during braking.

Specific carbon prepreg lay-up design for disc brake rims, longer durability and lighter weight.

Hand Built

Hand Built

All our bicycle carbon wheels are hand built by experienced mechanician.

Based on customers’ demand, various choice of hubs, spokes and nipples are optional.

After wheel built, they are trued precisely at high standard (≤0.3mm) on roundness, lateral and center tolerance.

ProX Road Hubs

ProX C66DB Disc Hubs

ProX own mould C66DB road hubs are used. High quality hubs with cheap price.

C66DB road disc brake hubs are designed with ratchet freehub system with ceramic bearings.

Such hubs can also be etched with your customized logo.

12*100/12*142 thru-axle, with Shimano 11/12-speed or SRAM XDR 12s cassette body.

carbon spokes

ProX CS1 Carbon Spokes

The customized ProX CS1 carbon spokes are used.

The carbon spoke provides both higher stiffness and better fatigue life compared to the traditional steel spokes.

Perfect bladed aero shape, high elasticity and low drag coefficient.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
