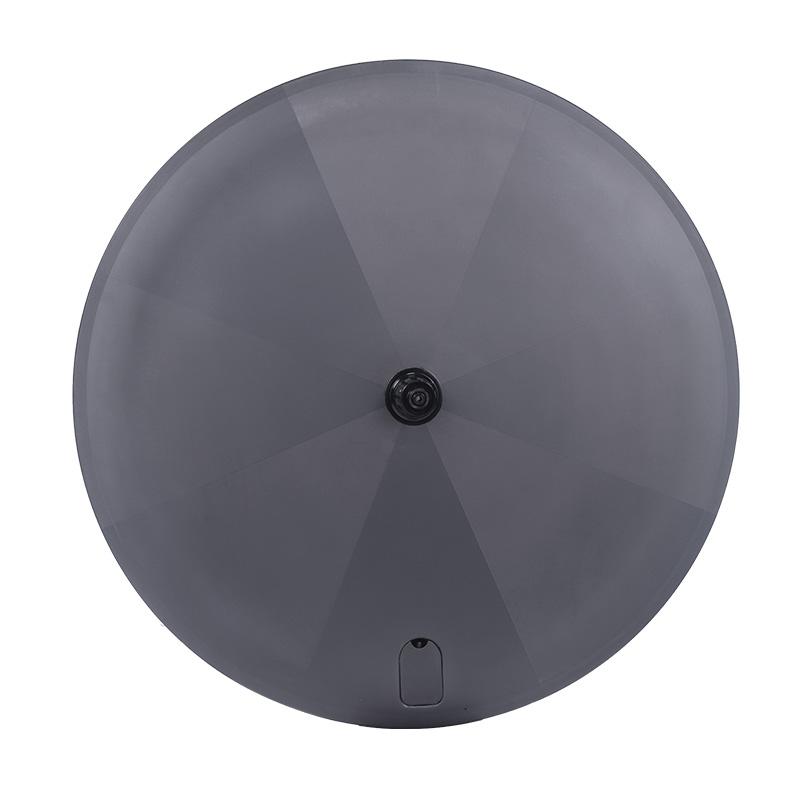

ProX 700C Rear Disc Wheel 25mm Wide Aero Full Disc Carbon Wheel For TT And Track Bikes

• Rim Brake, high TG brake surface

25mm width full disc carbon wheel

• Clincher(tubeless) and Tubular optional

• PMI solid filled inside, better stiffness and strength

• Novatec, ProX RT36, DT Swiss, Powerway hubs optional

  • Item NO.:

    UFO25-DISC
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD/3K/12K(Customized Decal Acceptable)
DESCRIPTION

In Time Trial(TT), Triathlon and Track bikes, full disc wheel, 5-spoke wheel and 3-spoke wheel are widely used.

Compared to regular carbon bike wheels, spoke and full disc wheels are relatively heavier, but they are outstanding in aerodynamics and stiffness which are critical for TT/Track bikes.
Since TT/Track bikes are normally used in flat road condition, a bit heavier weight is not the cons. Instead, it could be the pros considering heavier weight provides greater inertia and helps riders to keep at higher speed during cruise phase.
With PMI filled inside for this UFO disc bike wheel, it not only contributes impact resistance, but also better strength and stiffness to this disc wheel. Besides, solid full disc wheel makes much less noise than those hollow full disc wheels during riding.

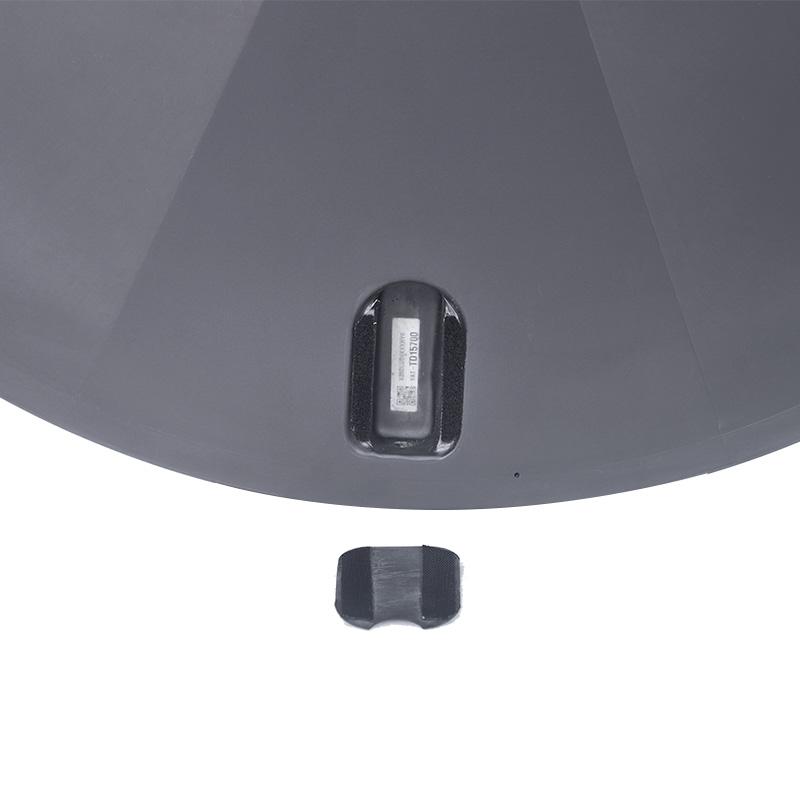

The valve hole is on the drive side and equipped with a carbon cover which is fixed by hook & loop tape inside. It keeps the valve clean and of better looking. The most important benefit is to reduce wind resistance and noise.

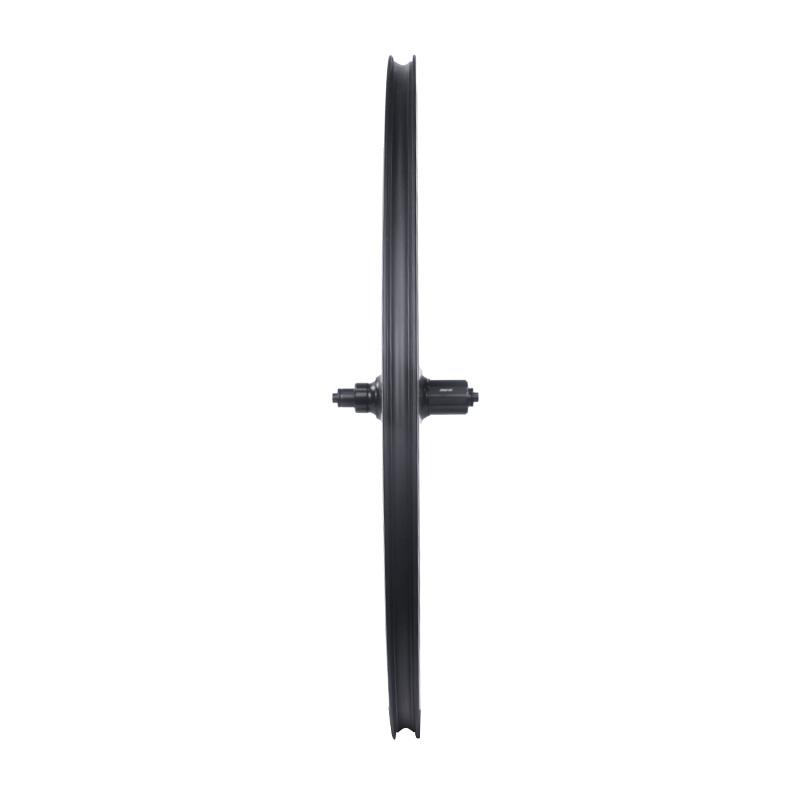

Designed with innovative asymmetric, it's slightly bulge wheel body on non-drive side and slightly sunken on drive side. This difference would not be greatly obvious from the wheel side view, but greatly helps to balance the whole bike after assembling and reach better aerodynamics while rolling.
This disc wheel features a toroidal bulge design, which makes it much more aerodynamic than other normal disc wheel in the market.

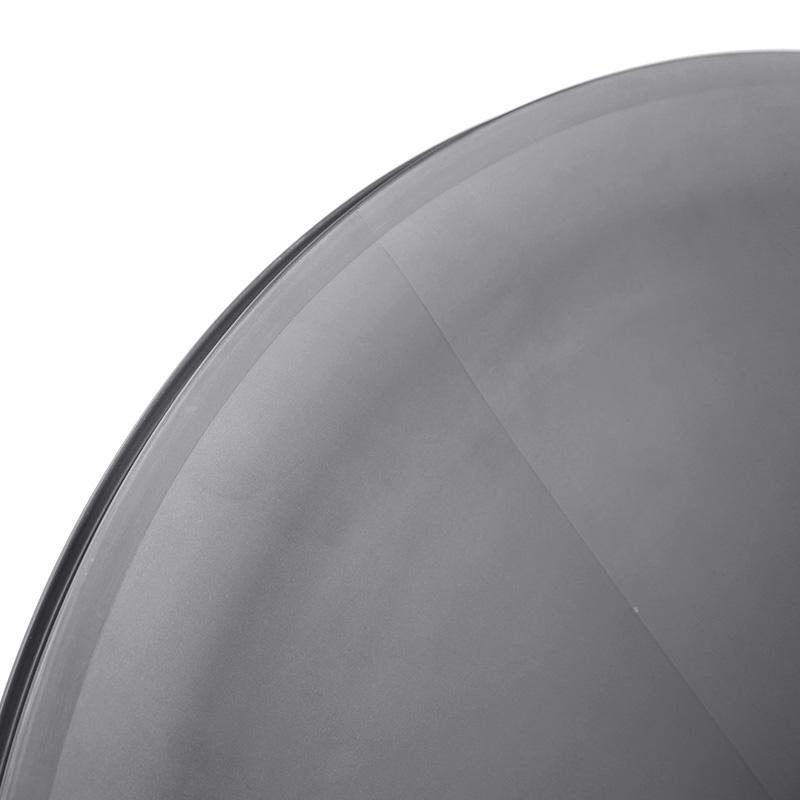

Full disk carbon wheel is equipped with high TG resin brake surface. Such high TG UD weave brake surface is able to bear higher temperature while braking.
For such 25mm wide road rims, it's a perfect fit for the traditional 700*25C tire and also compatible for wider tires (700*25C-40C).
Both tubular and clincher(tubeless ready) versions are available.

700c disc rear wheel

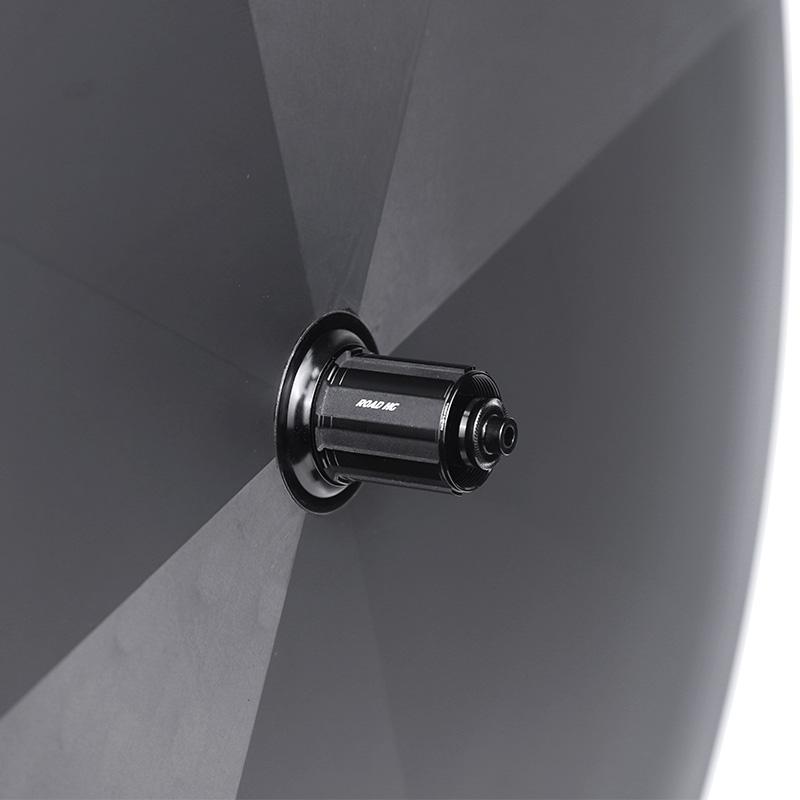

Hub options:
There are 5 hubs options for full disk rear wheel--Novatec 482, ProX RT36, DT Swiss 350, DT Swiss 240 and Powerway T01 hubs.
Novatec 482 hub is with 4-pawl freehub system.
Rest them are designed with a very refined and reliable ratchet freehub system, which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hubs help you to shorten acceleration time and save energy. The ratchet freehub system is applied on high-end hub brand hubs generally.
All of them are rim brake(rear 5*130mm QR), Shimano 11/12s or SRAM 12s XDR freehub available.
- Novatec 482 hub: 4-pawl freehub system and made in Taiwan
- ProX RT36 hub: Good quality hubs made by well selected hub manufacturer in Taiwan, using Enduro bearings and 36T ratchet system.
- DT Swiss 350 hub: 36T ratchet system
- DT Swiss 240 EXP hub: 36T ratchet system
- Powerway T01 hub (for track bikes): Reliable quality hubs made by well-known hub manufacturer in Taiwan.

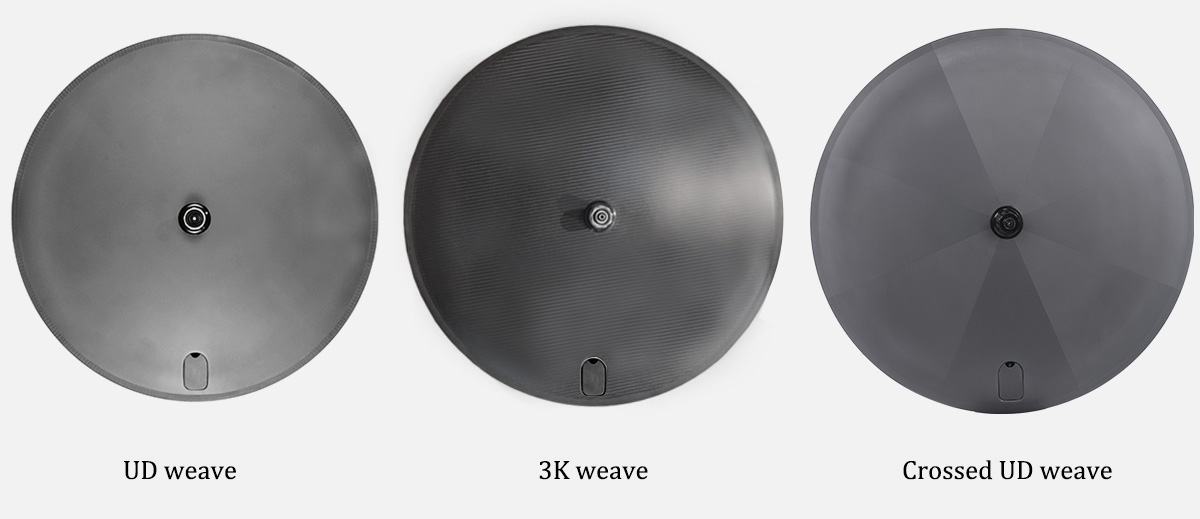

Different carbon weave apperance optional (see below picture).

25mm width full disc wheel different carbon weave

ProX carbon full disk rear wheel is priced from US$499/pc.
As always, hand-made in house, to order and to your specifications.

SPECIFICATION

ProX Super Aero 25mm Width TT/Track Bike Full Disc Carbon Wheel

-Hub: Novatec 482, ProX RT36, DT Swiss 350, DT Swiss 240, Powerway T01

-Cassette Body: Shimano 11/12s or Sram 12s XDR

-Tire Type: Tubular, Clincher(tubeless)

-Rim Width: 25mm

-Brake Type: rim brake

-Tire Pressure: 125psi/8.6bar

-Warranty Year: 2 years


Clincher-25mm Wide Full Disk Carbon Rear Wheel

Model Category Max Weight Limit Brake Type Tire Type Terrain  Front/Rear Hub Hub Size Weight(+/-40g)
UFO25-DISC-C-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Clincher Tri/Road Rear Novatec 482 5*130mm QR 1250g
UFO25-DISC-C-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Clincher Tri/Road Rear ProX RT36 5*130mm QR 1240g
UFO25-DISC-C-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Clincher Tri/Road Rear DT Swiss 350s 5*130mm QR 1270g
UFO25-DISC-C-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Clincher Tri/Road Rear DT Swiss 240s 5*130mm QR 1240g
UFO25-DISC-C-Track Full Disc Rear Wheel 120kg/265lb N/A Clincher Track Rear Powerway T01 10*120mm 1250g

Tubular-25mm Wide Full Disk Carbon Rear Wheel
Model Category Max Weight Limit Brake Type Tire Type Terrain Front/Rear Hub Hub Size Weight(+/-40g)
UFO25-DISC-T-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Tubular Tri/Road Rear Novatec 482 5*130mm QR 1140g
UFO25-DISC-T-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Tubular Tri/Road Rear ProX RT36 5*130mm QR 1130g
UFO25-DISC-T-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Tubular Tri/Road Rear DT Swiss 350s 5*130mm QR 1150g
UFO25-DISC-T-Tri Full Disc Rear Wheel 120kg/265lb Rim Brake Tubular Tri/Road Rear DT Swiss 240s 5*130mm QR 1130g
UFO25-DISC-T-Track Full Disc Rear Wheel 120kg/265lb N/A Tubular Track Rear Powerway T01 10*120mm 1140g

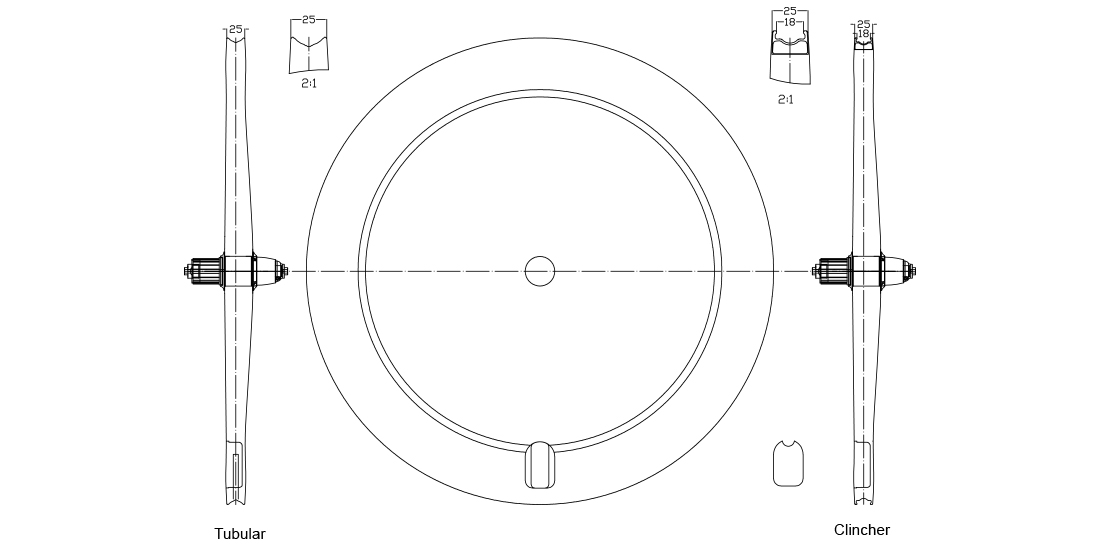

geometry of full disc carbon wheel
TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700 carbon fiber are used in our carbon full disc wheels.

Combining with stable resin system to make consistent quality and high strength full disc carbon wheels.

Tubeless

Tubeless

Tubeless tire is getting popular in carbon TT/Track wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our carbon clincher disc wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Narrow Inner Width

Relatively narrow 18mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x25C and 700x28C are recommended (also fit other wider tires).

DT240 hubs wheels

DT Swiss Hubs

High end DT Swiss road hubs, Novatec hub and cheap price OEM ProX RT36 optional for the full disc carbon wheel, light weight and reliable Ratchet 36 freehub system.

The rear hub spacings for rim brake is 5*130mm QR.

With Shimano 11/12-speed, Sram 12-speed XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
