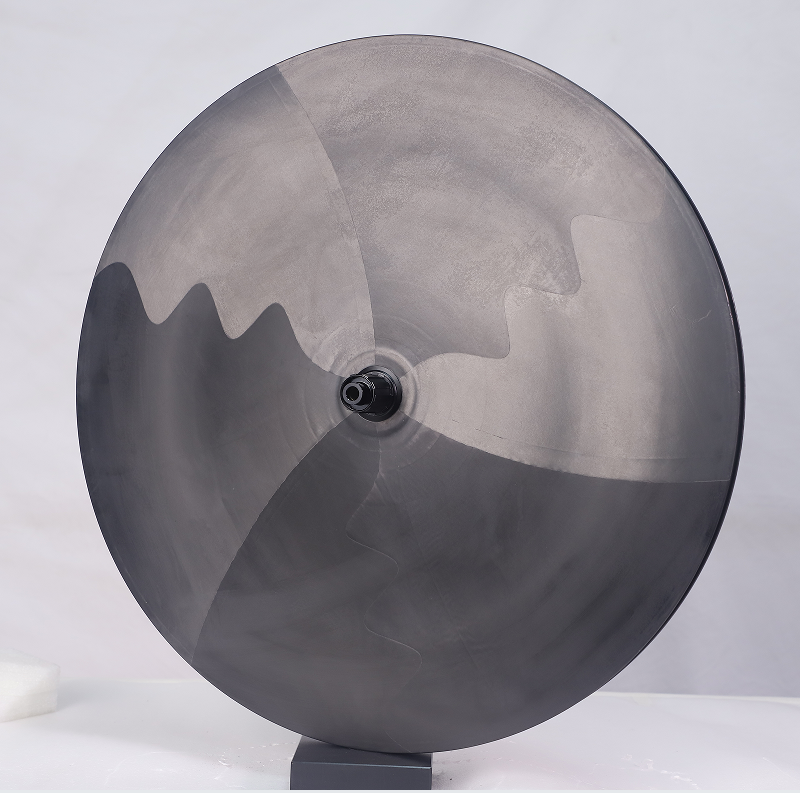

ProX Full Disc Carbon Wheel 27mm Wide Disc Brake Aero Rear Disc Wheel For TT Bikes

• Ultra light, only 970g/pc!

• 36T ratchet freehub system

• Hub with S&S ceramic bearing

• 27mm width full disc carbon wheel

• Disc brake (center lock)

• Compatible for 700*28C-45C tires

  • Item NO.:

    UFO27-DISC-DB
  • Payment:

    Paypal, Bank Transfer
  • Origin:

    China
  • Color:

    UD non-paint (Customized Decal Acceptable)
DESCRIPTION

Ultra-Light. Non-Paint. Aerodynamic Advantage.
A new carbon disc wheel engineered for TT, Triathlon, and Track racing—only 970g, raw UD carbon finish, ceramic bearings, and optimized wide-rim aerodynamics.


Time Trial, Triathlon and Track bikes, full disc wheel, 5-spoke and 3-spoke carbon wheels are widely used.

Compared to regular wheels, carbon spoke and full disc wheels are relatively heavier, but they are outstanding in aerodynamics and stiffness which are critical for TT/Track bikes.


ProX Carbon had taken it to the next new level in terms of rim finish. Non-paint (paintless) finish become one of the choices. They feature the latest manufacturing technology and are the completed product when come out of rim molds directly, eliminating the need for coating or painting. Such carbon rims are of better scratch resistant, near flawless look and visible original carbon fiber weave. Non-paint looks more premium to match the carbon bike than the matte finish. Less paint. More carbon. Pure performance.

27mm outer width is an absolute and perfect choice to follow latest popular tendency in the carbon bike market. 21mm inner 27mm outer width, optimized aerodynamics for 700x28C tires.

The valve hole is on the non-drive side and equipped with a carbon cover which is fixed by hook & loop tape inside. It keeps the valve clean and of better looking. The most important benefit is to reduce wind resistance and noise.

Good quality OEM PX hub is made by well selected hub manufacturer in Taiwan. It is designed with ratchet 36T freehub system which improves power transfer efficiency, combining with ceramic bearings, the rolling resistance is minimized. Such hub helps you to shorten acceleration time and save energy. Ceramic bearings are smoother, rounder and with more uniform size. In that case, the friction is reduced and that can contribute more energy to the wheels. Ceramic bearing is also harder than steel bearings (up to 30%), which improves durability, and they also don’t rust for less maintenance. All of them are center lock disc brake, Shimano 11/12s or SRAM 12s XDR freehub available.


Different carbon weave apperance optional (see below picture).

SPECIFICATION

ProX Super Lightweight Aero 27mm Width Disc Brake 700C Full Carbon Disc Wheel For TT Bikes

-Materials: Carbon fiber T700+T800

-Rim Width: 27mm outer (21mm inner) width

-Finish: Non-paint

-Weave: Cloud UD carbon or turbo UD carbon

-Hubs: ProX 36DB hub

-Size: Rear 12*142mm thru axle

-Bearings: S&S ceramic bearings
-Freehub System: 36T ratchet

-Disc Brake Type: Center lock
-Cassette Body: Shimano 11/12s or SRAM 12s XDR

-Valve Cover Sticker: Included
-Tire Type: Clincher (tubeless ready)
-Tire Pressure: 125psi/8.6bar
-Warranty Year: 2 years

- Tubeless Valve (not included): 44mm length recommended
-Recommended Maintenance Frequency On Hubs:
Standard Use: every 1,000–1,500 km or 3–6 months (whichever comes first).
Harsh Conditions (wet, muddy, dusty): every 500 km or monthly.
Post-Ride Check: clean externally after muddy/rainy rides to prevent grime buildup.


Model Category Max Weight Limit Brake Type Tire Type Terrian Front/Rear Hub Hub Size Weight(+/-40g)
UFO27-DISC-DB-Tri Full Disc Rear Wheel 120kg/265lb Disc Brake Clincher Tri/Road Rear ProX 36DB 12*142mm TA 970g

TECHNOLOGY
Carbon Fiber Material

Carbon Fiber Material

Premium Toray T700+T800 carbon fibers are used in our carbon full disc wheels.

Combining with stable resin system to make consistent quality and high strength full disc carbon wheels.

Tubeless

Tubeless Ready

Tubeless tire is getting popular in carbon TT/Track wheels thanks to its better traction, lower rolling resistance and better riding comfort.

Our carbon clincher disc wheels are perfect for tubeless tire (also fit normal tube tires).

Optimized anti-burp bump design provides easy tire mounting, dismounting, as well as air inflation.

Narrow Inner Width

Wider Inner Width

Relatively wider 21mm inner width, make it possible to fit multiple sizes of tire.

Normally road tire size 700x28C are recommended (also fit other wider tires).

DT240 Road Hubs

OEM Hub

OEM hub is used in our full disk wheel for stable quality and competitive price.

The hub spacings is disc brake (12*142mm thru axle).

With Shimano HG 11/12 speed, SRAM 12 speed XDR freehub optional.

2-Year Warranty

2-Year Warranty

We have strict production management system, QC and Testing process. Our quality is always very good and reliable.

For all carbon rims and carbon wheels sold by ProX, 2 years’ quality warranty is offered (starting from the date of package being signed).

Click Warranty Policy to see more details in another page.
